AC DC Converters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRS-200-15AC/DC CONVERTER 15V 210W |
2,496 | 33.16 |
|
Datasheet |
LRS-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 15V | - | - | - | - | - | 14 A | - | - | - | - | - | 210W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|

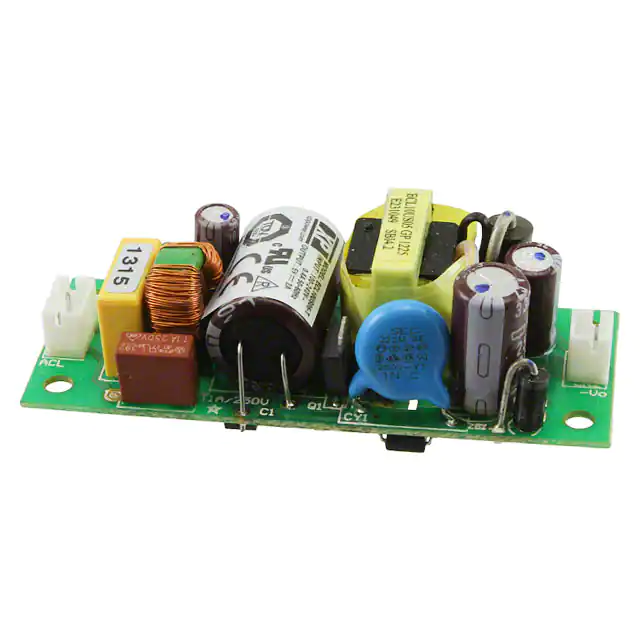

ECL10US05-TAC/DC CONVERTER 5V 10W |
4,107 | 26.84 |
|
Datasheet |
ECL (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
RPT-75CAC/DC CONVERTER 5V +/-15V 72W |
4,898 | 34.42 |
|
Datasheet |
RPT-75 (72W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 6 A | 2.3 A | 500 mA | - | - | - | 72W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.0mm) |
|
PMT-24V150W2BAAC/DC CONVERTER 24V 150W |
2,756 | 27.75 |
|
Datasheet |
PMT2 (150W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 170 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 3.75 kV | -30°C ~ 70°C | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
CFM60S090AC/DC CONVERTER 9V 60W |
4,547 | 26.53 |
|
Datasheet |
CFM60S (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
|
LRS-200N2-12O/P +12V17A |
2,148 | 0.00 |
|
Datasheet |
LRS-200N2 (200W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 12V | - | - | - | - | - | 17 A | - | - | - | - | - | 204W | ITE (Commercial) | 3.75 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
RS-150-5AC/DC CONVERTER 5V 130W |
2,347 | 32.62 |
|
Datasheet |
RS-150 (150W) | Box | Active | Enclosed | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | - | - | - | - | - | 26 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) |
|
|
LRS-200-48AC/DC CONVERTER 48V 211W |
3,186 | 33.16 |
|
Datasheet |
LRS-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 211W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
RQ-65BAC/DC CNVRTR 5V 12V -5V -12V 63W |
2,289 | 30.27 |
|
Datasheet |
RQ-65 (65W) | Box | Active | Enclosed | 4 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | -5V | -12V | - | - | 6 A | 2 A | 500 mA | 500 mA | - | - | 63W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|

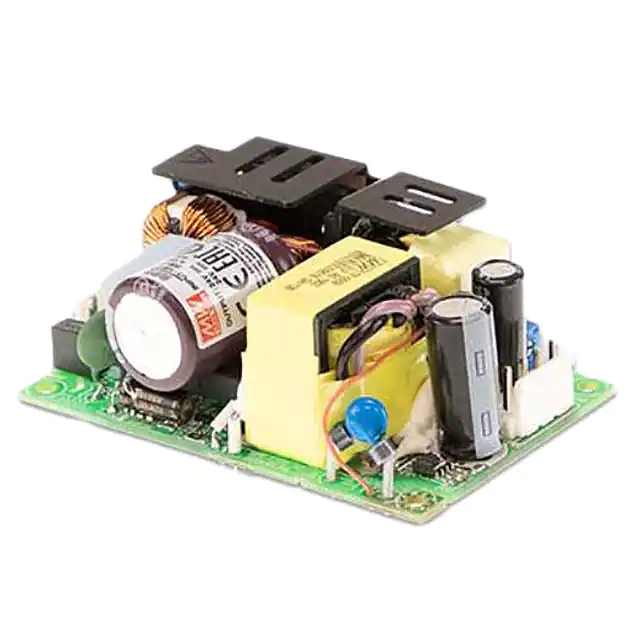

EPP-120S-15AC/DC CONVERTER 15V 114W |
4,925 | 36.58 |
|
Datasheet |
EPP-120S (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | - | - | - | - | - | 7.6 A | - | - | - | - | - | 114W (143W Forced Air) | ITE (Commercial) | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm) |
|

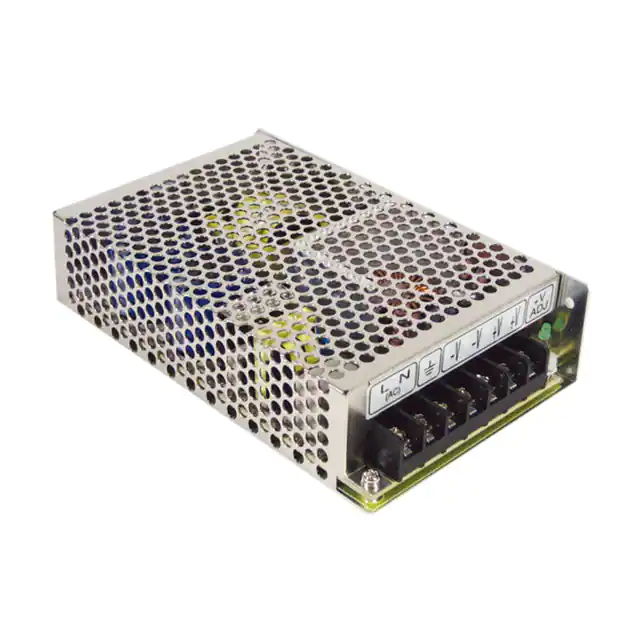

RT-85DAC/DC CONVERTER 5V 24V 12V 90W |
4,049 | 36.58 |
|
Datasheet |
RT-85 (85W) | Box | Active | Enclosed | 3 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 24V | 12V | - | - | - | 6 A | 2 A | 1 A | - | - | - | 90W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) |
|
|
RQ-65CAC/DC CNVRTR 5V 15V -5V -15V 65W |
3,627 | 30.27 |
|
Datasheet |
RQ-65 (65W) | Box | Active | Enclosed | 4 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 15V | -5V | -15V | - | - | 5 A | 2 A | 500 mA | 500 mA | - | - | 65W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|

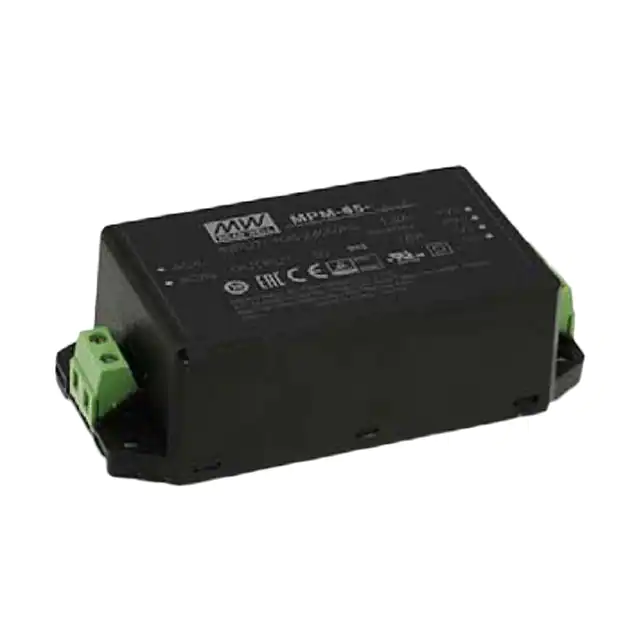

MPM-65-24STAC/DC CONVERTER 24V 65W |
2,873 | 33.70 |
|
Datasheet |
MPM-65 (65W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 65W (72W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) |
|
|
LRS-200N2-24O/P +24V8.8A |
4,379 | 0.00 |
|
Datasheet |
LRS-200N2 (200W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | ITE (Commercial) | 3.75 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
|
LRS-200N2-48O/P +48V4.4A |
4,578 | 0.00 |
|
Datasheet |
LRS-200N2 (200W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 211W | ITE (Commercial) | 3.75 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
RD-125-2448AC/DC CONVERTER 24V 48V 144W |
1,320 | 36.29 |
|
Datasheet |
RD-125 (125W) | Box | Active | Enclosed | 2 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 24V | 48V | - | - | - | - | 2 A | 2 A | - | - | - | - | 144W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) |
|
|
RD-125BAC/DC CONVERTER 5V 24V 133W |
2,290 | 38.56 |
|
Datasheet |
RD-125 (125W) | Box | Active | Enclosed | 2 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | 24V | - | - | - | - | 4.6 A | 4.6 A | - | - | - | - | 133W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) |
|
CFM40T-06AC/DC CONVERTER 5V 24V 12V 43W |
1,013 | 34.49 |
|
Datasheet |
CFM40T (40W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | 12V | - | - | - | 3 A | 1 A | 300 mA | - | - | - | 43W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.13" H (101.6mm x 50.8mm x 28.6mm) |
|
|
LRS-200-36AC/DC CONVERTER 36V 212W |
4,120 | 33.16 |
|
Datasheet |
LRS-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 36V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 212W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
|
RT-85CAC/DC CONVERTER 5V +/-15V 88W |
3,236 | 36.58 |
|
Datasheet |
RT-85 (85W) | Box | Active | Enclosed | 3 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 15V | -15V | - | - | - | 7 A | 3 A | 500 mA | - | - | - | 88W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) |
