AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI40-15-U2-P6AC/DC DESKTOP ADAPTER 15V 41W |
3,234 | 22.34 |
|
Datasheet |
SDI40-U (40W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
|
|
SDI40-15-U2-P6RAC/DC DESKTOP ADAPTER 15V 41W |
2,810 | 22.34 |
|
Datasheet |
SDI40-U (40W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
|
|
SDI40-12-U2-P5AC/DC DESKTOP ADAPTER 12V 36W |
3,346 | 22.34 |
|
Datasheet |
SDI40-U (40W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
|
|
SDI40-12-U2-P5RAC/DC DESKTOP ADAPTER 12V 36W |
3,303 | 22.34 |
|
Datasheet |
SDI40-U (40W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
|
|
SDI40-12-U2-P6AC/DC DESKTOP ADAPTER 12V 36W |
1,476 | 22.34 |
|
Datasheet |
SDI40-U (40W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
|
|
SDI40-12-U2-P6RAC/DC DESKTOP ADAPTER 12V 36W |
4,472 | 22.34 |
|
Datasheet |
SDI40-U (40W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
|
SMM30-48-V-MUBAC/DC WALL MOUNT ADAPTER 48V 30W |
4,934 | 22.33 |
|
Datasheet |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 48V | 620mA | 30 W | 100mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | USB Micro | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SMM30-36-V-MUBAC/DC WALL MOUNT ADAPTER 36V 30W |
2,254 | 22.33 |
|
Datasheet |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 36V | 830mA | 30 W | 100mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | USB Micro | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
L36880-N8490-A82AC/DC WALL ADAPTER |
3,468 | 19.99 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMM30-18-4-MUBAC/DC WALL MOUNT ADAPTER 18V 30W |
1,578 | 22.35 |
|
Datasheet |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 1.66A | 30 W | 100mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | USB Micro | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
SMI45C-P-KWAC-DC, 5V/3A-9V/3A-12V/3A-15V/3 |
4,485 | 0.00 |
|
Datasheet |
SMI45C (45W) | Box | Active | International | - | - | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 2.25A, 3A, 3A, 3A, 3A | 45 W | 67mW | - | ITE (Commercial) | 87.73% | 0°C ~ 45°C | USB C Power Delivery (PD) | - | - | - | 3.41" L x 1.63" W x 0.98" H (86.5mm x 41.5mm x 25.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA |
|

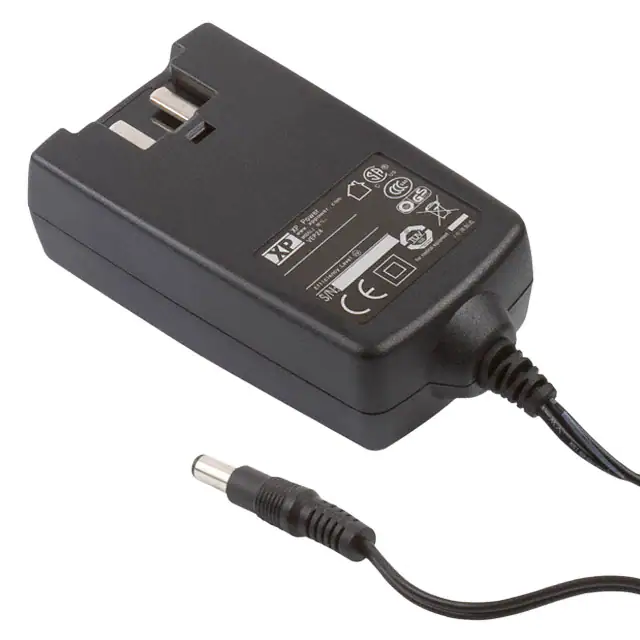

VEP24US05AC/DC WALL MOUNT ADAPTER 5V 13W |
4,694 | 17.85 |
|
Datasheet |
VEP24 (24W) | Box | Discontinued at Digi-Key | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 5V | 2.5A | 13 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade | - | 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm) | CB, TUV, UL |
|
|
VEP24US24AC/DC WALL MOUNT ADAPTER 24V 24W |
1,015 | 17.85 |
|
Datasheet |
VEP24 (24W) | Box | Discontinued at Digi-Key | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 24V | 1A | 24 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade | - | 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm) | CB, TUV, UL |
|
TRG36A12-11E03 VIAC/DC DESKTOP ADAPTER 12V 30W |
1,993 | 22.14 |
|
Datasheet |
TRG36 (36W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.37" L x 2.01" W x 0.89" H (111.0mm x 51.0mm x 22.5mm) | CE, cULus, FCC, GS, PSE, TUV |
|
|
TR9CE41002TZY-MED(R)PWR SUPP, BATT, COND |
1,922 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SDM36-5-UDC-P5RAC/DC DESKTOP ADAPTER 5V 25W |
2,632 | 20.97 |
|
Datasheet |
SDM36-UD (36W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-5-UDC-P6AC/DC DESKTOP ADAPTER 5V 25W |
2,395 | 20.97 |
|
Datasheet |
SDM36-UD (36W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-5-UDC-P6RAC/DC DESKTOP ADAPTER 5V 25W |
3,077 | 20.97 |
|
Datasheet |
SDM36-UD (36W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-9-UDC-P5AC/DC DESKTOP ADAPTER 9V 36W |
3,203 | 20.97 |
|
Datasheet |
SDM36-UD (36W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 9V | 4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-9-UDC-P5RAC/DC DESKTOP ADAPTER 9V 36W |
1,782 | 20.97 |
|
Datasheet |
SDM36-UD (36W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 9V | 4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
