Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSE28MSN3SBUZZER PIEZO 23X23MM TH |
3,008 | 24.01 |
|
Datasheet |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 4kHz | Piezo | Siren | 7 SPS | 75dB @ 20V, 30cm | 50mA | Top | -40°C ~ 65°C | - | Washable | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE28MSU2SBUZZER PIEZO 23X23MM TH |
2,961 | 24.01 |
|
Datasheet |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.9kHz | Piezo | Speed Up, Fast | 0.5 ~ 8 PPS in 30 Sec | 75dB @ 20V, 30cm | 50mA | Top | -40°C ~ 65°C | - | Washable | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE28MTT3SBUZZER PIEZO 23X23MM TH |
4,782 | 24.01 |
|
Datasheet |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.35kHz | Piezo | Ringer, 3 Tone | - | 75dB @ 20V, 30cm | 50mA | Top | -40°C ~ 65°C | - | Washable | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE28MWH1SBUZZER PIEZO 23X23MM TH |
2,030 | 24.01 |
|
Datasheet |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.95kHz | Piezo | Whooping | 5 SPS | 75dB @ 20V, 30cm | 50mA | Top | -40°C ~ 65°C | - | Washable | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE28MWH2SBUZZER PIEZO 23X23MM TH |
2,803 | 24.01 |
|
Datasheet |
MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.95kHz | Piezo | Whooping | 1 SPS | 75dB @ 20V, 30cm | 50mA | Top | -40°C ~ 65°C | - | Washable | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SC628ERBUZZER PIEZO 42.98MM PNL MNT |
2,924 | 24.02 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Single Tone | - | 55dB @ 6V, 61cm | 3 ~ 11mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628NDPRBUZZER PIEZO 42.98MM PNL MNT |
1,211 | 23.95 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 85dB @ 10V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC628H-BTRBUZZER PIEZO 42.98MM PNL MNT |
3,515 | 26.76 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SCE028SD3CTBBUZZER PIEZO 42.85MM PNL MNT |
4,287 | 24.56 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE016SD3CTBBUZZER PIEZO 42.98MM PNL MNT |
4,800 | 24.68 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|

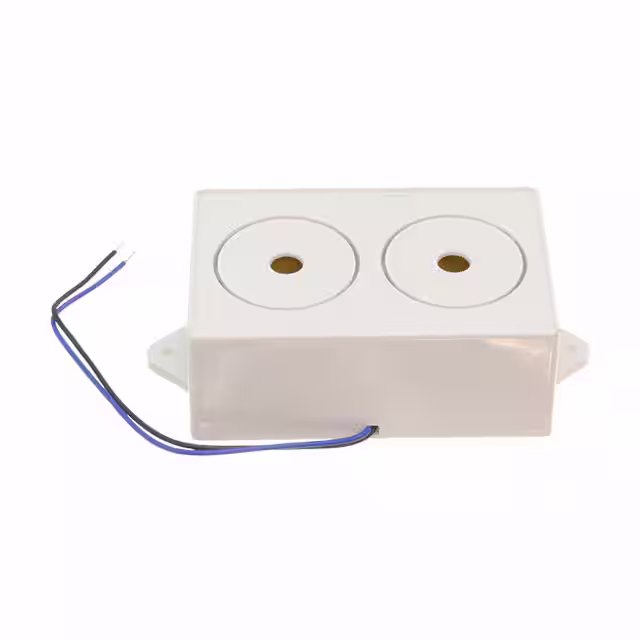

IP1072612-1BUZZER PIEZO 12V FLANGE |
2,139 | 25.02 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 15V | 3.1kHz | Piezo | Siren | - | 125dB @ 12V, 10cm | 120mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | - |
|

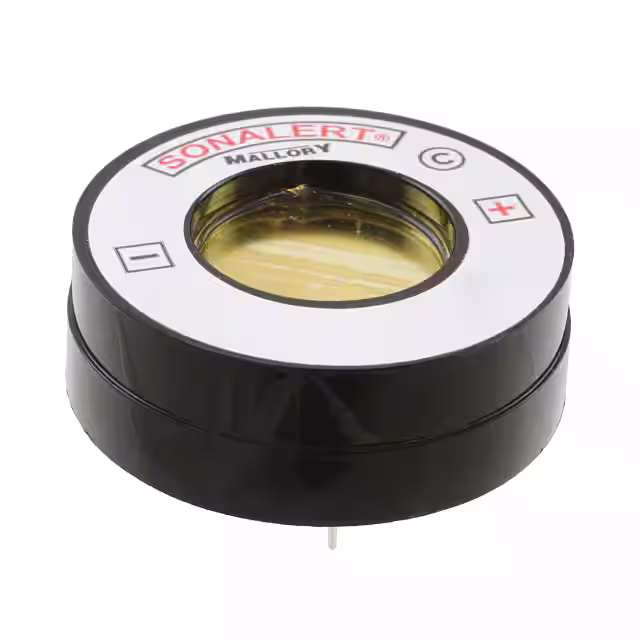

SBM2RBUZZER PIEZO 42.85MM TH |
3,295 | 25.61 |
|
Datasheet |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) |
|
|
SCE016MD3CTBBUZZER PIEZO 42.98MM PNL MNT |
1,061 | 26.16 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE016LD2CTBBUZZER PIEZO 42.98MM PNL MNT |
2,418 | 28.48 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone | - | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SC648DBUZZER PIEZO 42.98MM PNL MNT |
3,909 | 26.96 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 1.9kHz | Piezo | Single Tone | - | 60dB @ 10V, 61cm | 4 ~ 20mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SBM2BUZZER PIEZO 42.85MM TH |
3,291 | 27.15 |
|
Datasheet |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) |
|
|
SC628LBUZZER PIEZO 42.98MM PNL MNT |
3,727 | 27.22 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 4 ~ 18mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Wire Leads | 1.692" Dia (42.98mm) |
|
|
SBM616JRBUZZER PIEZO 42.85MM TH |
3,763 | 27.69 |
|
Datasheet |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 6V, 61cm | 3 ~ 12mA | Top | -30°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) |
|
|
SBM616PRBUZZER PIEZO 42.85MM TH |
2,637 | 27.71 |
|
Datasheet |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 3 ~ 12mA | Top | -30°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) |
|
|
SC648HBUZZER PIEZO 42.98MM PNL MNT |
4,894 | 28.06 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
