Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB-07-530-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 19.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
XC-09-212-SBUZZER PIEZO 35.81MM PNL MNT |
964 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 2 ~ 12V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 12V, 61cm | 3 ~ 40mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW09616QMBUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | - | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | - |
|
|
MW-09-530-QRBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-09-530-Q(F)DBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Single Tone, Warble, Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-09-530-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-09-616-Q(M)DBUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | - | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | - |
|
|
MW-09-948-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-09-948-Q(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-09-948-Q(M)DBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW09530QMBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-09-616-Q(F)BUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Warble Fast | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | - |
|

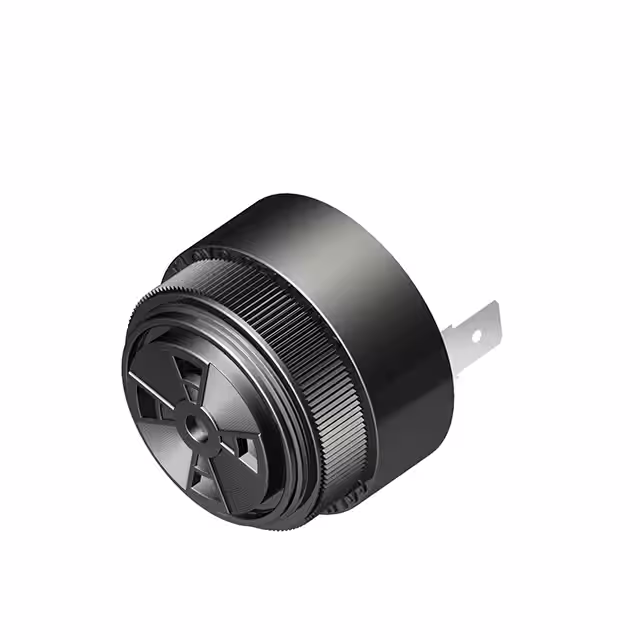

LT-07-530-QBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 19.63 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Staccato Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
LS-07-530-QBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 19.63 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Siren | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-09-530-Q(M)DBUZZER PIEZO 35.81MM PNL MNT |
996 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Single Tone, Warble, Medium | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
XC-09-330-QBUZZER PIEZO 35.8MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 3 ~ 30V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 30V, 61cm | 6 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
|
|
UC-05-515-PBUZZER PIEZO 35.56MM TH |
1,000 | 0.00 |
|
Datasheet |
Ultra Loud Continuous | Bulk | Active | - | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Single Tone | - | 96dB @ 5V, 61cm | 30 ~ 60mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
|
|
UC-05-628-PBUZZER PIEZO 35.56MM TH |
1,000 | 0.00 |
|
Datasheet |
Ultra Loud Continuous | Bulk | Active | - | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Single Tone | - | 95dB @ 6V, 61cm | 10 ~ 50mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
|
|
MB-09-516-S(F)BUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pulse, Fast | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
|
|
MB-09-530-S(S)DBUZZER PIEZO 35.8MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Single Tone, Pulse, Slow | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
