Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB-V09-530-S(F)DBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Single Tone, Pulse, Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MB-V09-516-S(M)BUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pulse, Medium | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
|
|
MB-V09-530-S(S)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Slow | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MB-V09-530-S(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Medium | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MB-V09-530-S(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MB-V09-516-S(F)BUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pulse, Fast | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
|
|
MB-V09-948-S(S)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.9kHz | Piezo | Pulse, Slow | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MB-V09-948-S(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MB-V09-516-S(S)BUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | 5 ~ 16V | - | Piezo | Pulse, Slow | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
|
|
MB-V09-516-S(U)BUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pulse, Fast | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
|
|
MB-V09-948-S(M)BUZZER PIEZO 35.81MM PNL MNT |
997 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.9kHz | Piezo | Pulse, Medium | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MB-V09-530-S(U)BUZZER PIEZO 35.8MM PNL MNT |
990 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
|

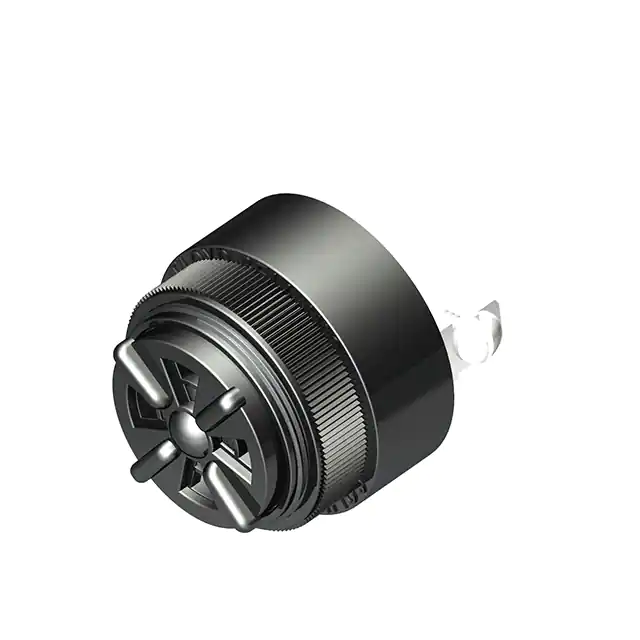

LB-V07-530-S(S)BUZZER PIEZO 35.81MM PNL MNT |
988 | 20.52 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MWV09530SMBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-V09-948-S(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
MW-V09-616-S(F)BUZZER PIEZO PNL MNT |
1,000 | 0.00 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | - | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
.jpg)
|
MW-V09-948-S(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 20.60 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
MWV09616SMBUZZER PIEZO PNL MNT |
1,000 | 20.60 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | - | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
.jpg)
|
MW-V09-530-S(F)BUZZER PIEZO 35.81MM PNL MNT |
990 | 20.60 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
LO-V07-530-SBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 20.61 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Whooping | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
