Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC-V09-201-SBUZZER PIEZO 35.81MM PNL MNT |
1,000 | 29.01 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 12V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
XC-V09-301-SBUZZER PIEZO 35.81MM PNL MNT |
998 | 29.01 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
XC-V09-201-WBUZZER PIEZO 35.8MM PNL MNT |
995 | 29.01 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 12V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
|
CH-V09-525-QHSBUZZER PIEZO 35.8MM PNL MNT |
1,000 | 29.07 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
CH-V09-525-Q(F)BUZZER PIEZO 35.8MM PNL MNT |
1,000 | 29.07 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
CH-V09-525-Q(M)BUZZER PIEZO 35.81MM PNL MNT |
994 | 29.07 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|

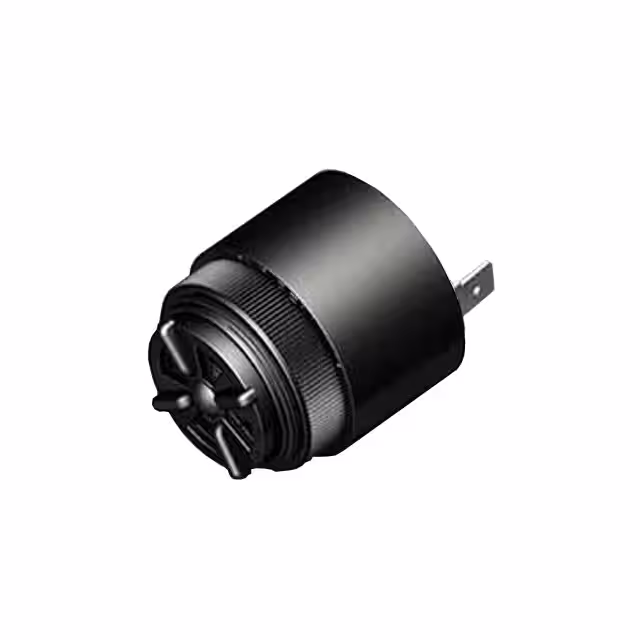

CH-V09-525-Q(S)BUZZER PIEZO 35.8MM PNL MNT |
975 | 29.07 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
CH-V09-525-S(S)BUZZER PIEZO 35.8MM PNL MNT |
1,000 | 29.58 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
CH-V09-525-S(M)BUZZER PIEZO 35.8MM PNL MNT |
1,000 | 29.58 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
CH-V09-525-W(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 29.58 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
.jpg)
|
CH-V09-525-W(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 29.58 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
.jpg)
|
CH-V09-525-S(F)BUZZER PIEZO 35.81MM PNL MNT |
999 | 29.58 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|

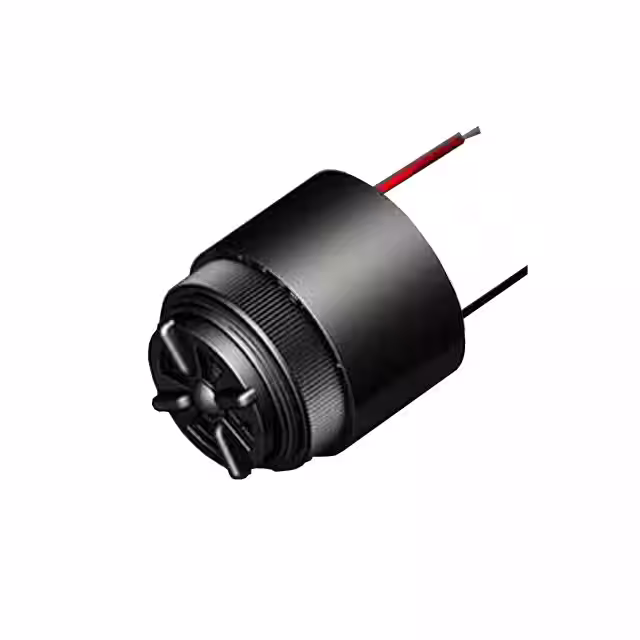

CH-V09-525-W(S)BUZZER PIEZO 35.81MM PNL MNT |
998 | 29.58 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
M6Z-24SBUZZER MAGNETIC 18X24MM PNL MNT |
2,500 | 45.68 |
|
Datasheet |
M6 | Retail Package | Active | Transducer, Externally Driven | AC, DC | - | 12 ~ 24V | 2kHz | Magnetic | Steady, Slow, Quick | - | 80dB @ 12 ~ 24V, 10cm | 7mA DC, 21mA AC | Top | -25°C ~ 55°C | CE | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Front | Quick Connect Tab - 0.110" (2.80mm) | 0.709" L x 0.945" W (18.00mm x 24.00mm) |
.jpg)
|
XB-09-201-Q(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 30.31 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Medium | - | 103dB @ 120V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
XB-09-301-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 30.31 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Fast | - | 103dB @ 220V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
XB-09-301-Q(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 30.31 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Medium | - | 103dB @ 220V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|

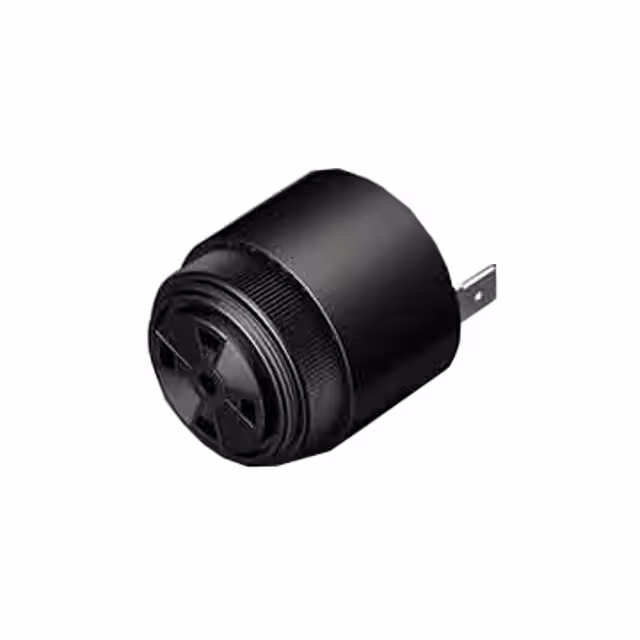

XB-09-201-Q(U)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 30.31 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | - | 103dB @ 120V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
XB-09-301-Q(U)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 30.31 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Fast | - | 103dB @ 220V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
XB-09-301-Q(S)BUZZER PIEZO 35.81MM PNL MNT |
1,000 | 30.31 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Slow | - | 103dB @ 220V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
