Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

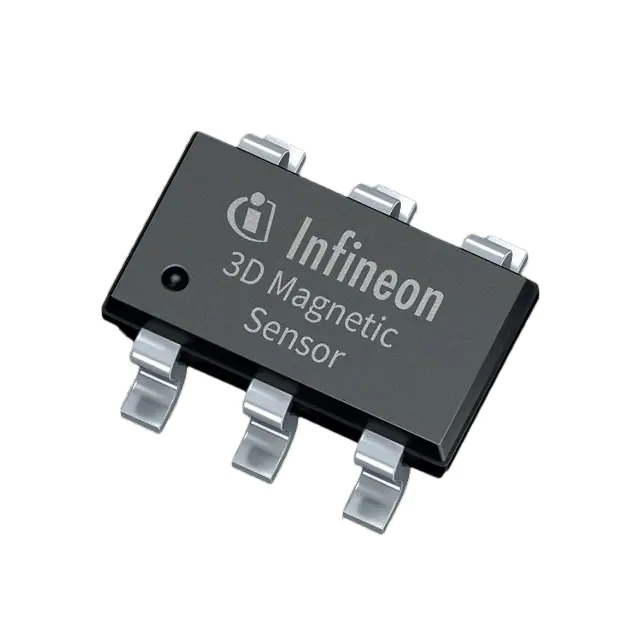

TLV493DA1B6HTSA2SENSOR ROTARY 360DEG SMD |
19,244 | 2.21 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | I2C | - | External Magnet, Not Included | - | - | - | 2.7V ~ 3.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | Automotive | AEC-Q100 | PG-TSOP-6-6-5 |
|
EVW-AE4001B14SENSOR ROTARY 343DEG SMD |
7,788 | 1.92 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 343° | - | Resistive | - | Hole for Shaft | ±2% | 10 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | - | - | - | - |
|
3382G-1-103GSENSOR ROTARY 330DEG SMD |
83,934 | 2.66 |
|
Datasheet |
4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 10 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
TLE5501E0001XUMA1SENSOR ROTARY 360DEG 8DSOP |
5,799 | 3.64 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | PG-DSO-8-16 |
|

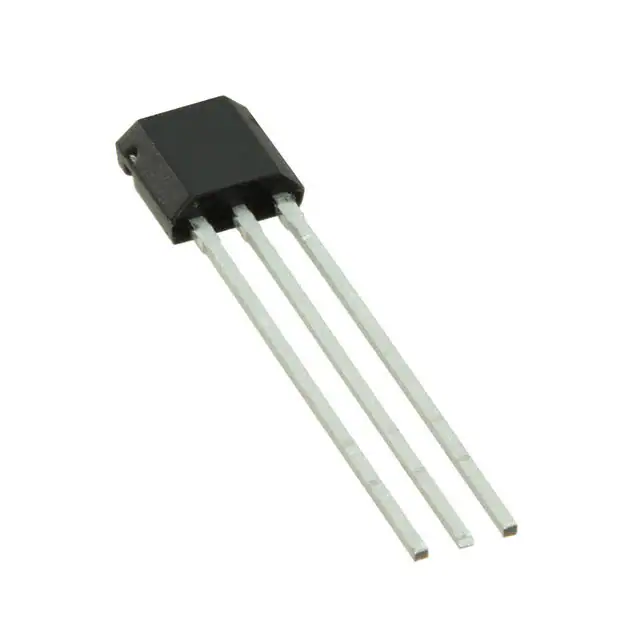

HAL830UT-ASENSOR ANGLE 89DEG PC PIN |
4,806 | 3.94 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Cut Tape (CT) | Not For New Designs | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 89° | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Through Hole | PC Pin | -40°C ~ 170°C | Automotive | AEC-Q100 | TO-92UT-1 |
|
|
TLE5009E1000FUMA1SENSOR ANGLE 360DEG SMD |
5,908 | 1.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | PG-DSO-8 |
|
|
TLE5501E0002XUMA1IC TMR ANGLE SENSOR 8-SOIC |
628 | 4.24 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | PG-DSO-8-16 |
|
|
HAL3725DJ-ASENSOR ANGLE 360DEG SMD |
6,778 | 4.69 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Hal® 37 | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | - | External Magnet, Not Included | ±0.1% | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 170°C | Automotive | AEC-Q100 | 8-SOIC-1 |
|
|
HAL3727DJ-ASENSOR ANGLE 360DEG SMD |
6,550 | 4.69 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | Hal® 37 | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | - | External Magnet, Not Included | ±0.1% | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 170°C | Automotive | AEC-Q100 | 8-SOIC-1 |
|
HMC1501-TRSENSOR ANGLE 90DEG 8MM SMD |
166,102 | 3.89 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Magnetoresistive | 90° (±45°) | 0 ~ 8.00mm (0 ~ 0.31") | Wheatstone Bridge | - | External Magnet, Not Included | - | 6.5 kOhms | - | 1V ~ 25V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|

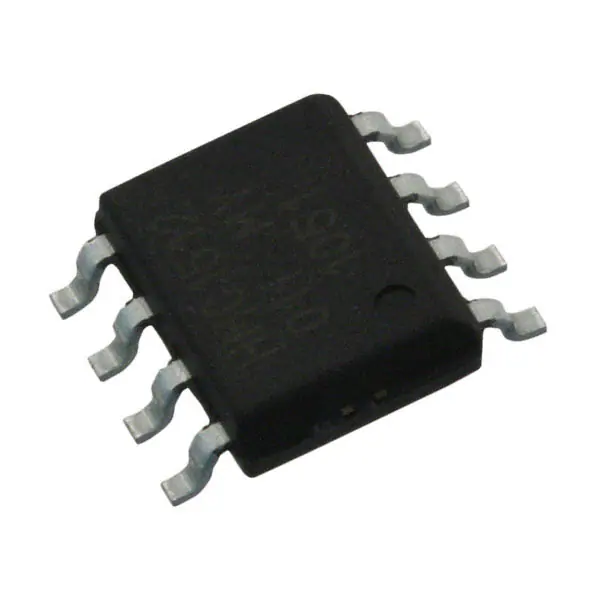

HMC1512-TRSENSOR ANGLE 180DEG 8MM SMD |
47,051 | 4.04 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Magnetoresistive | 180° (±90°) | 0 ~ 8.00mm (0 ~ 0.31") | Wheatstone Bridge | - | External Magnet, Not Included | - | 2.8 kOhms | - | 1V ~ 25V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
AAS33001LLEATR-5ASIL ANGLE SENSOR W/ LINEARIZATI |
11,900 | 5.60 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360° | - | PWM | Clockwise Increase | External Magnet, Not Included | - | - | - | 3.7V ~ 18V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | 14-TSSOP |
|

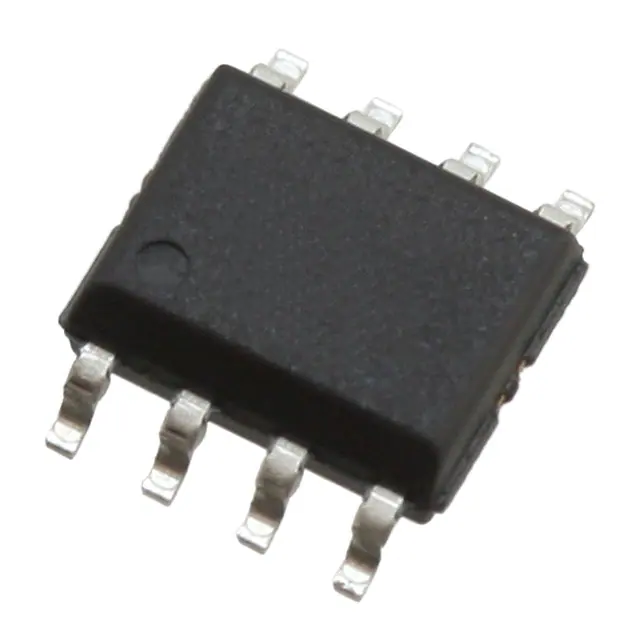

AS5601-ASOMSENSOR ANGLE SMD |
15,315 | 4.86 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | I2C, Quadrature | - | External Magnet, Not Included | - | - | - | 3.3V, 5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MA735GGU-Z9-BIT TO 13-BIT, DIGITAL, CONTAC |
1,837 | 0.00 |
|
Datasheet |
14-UFQFN | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM, SPI | Clockwise Increase, Counterclockwise Increase, Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C (TA) | - | - | 14-UTQFN (2x2) |
|

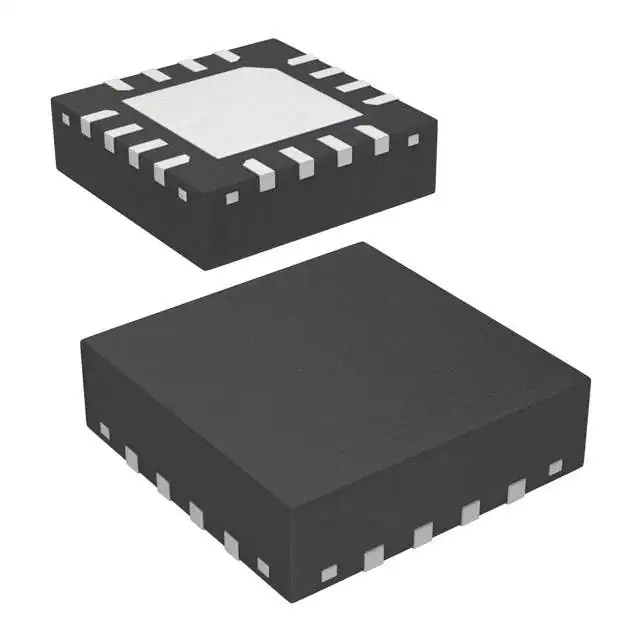

MA702GQ-ZSENSOR ANGLE SMD |
16,071 | 6.54 |
|
Datasheet |
16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM | Programmable | External Magnet, Not Included | - | - | - | 3.3V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
TLI5012BE1000XUMA1SENSOR ANGLE 360DEG SMD |
7,625 | 8.32 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Wheatstone Bridge | - | External Magnet, Not Included | - | - | - | 3V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | PG-DSO-8 |
|
|
MA730GQ-ZSENSOR ANGLE SMD |
27,807 | 6.69 |
|
Datasheet |
16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM | Programmable | External Magnet, Not Included | - | - | - | 3.3V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA702GQ-PSENSOR ANGLE SMD |
3,550 | 7.11 |
|
Datasheet |
16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | PWM | Programmable | External Magnet, Not Included | - | - | - | 3.3V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
MA732GQ-Z14-BIT, DIGITAL, CONTACTLESS ANG |
9,148 | 6.70 |
|
Datasheet |
16-VFQFN Exposed Pad | MagAlpha | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
|
AS5600-ASOTIC SENSOR MAG ROTARY 12BIT 8SOIC |
4,472 | 3.37 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | External Magnet, Not Included | - | - | - | 3.3V, 5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
