Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

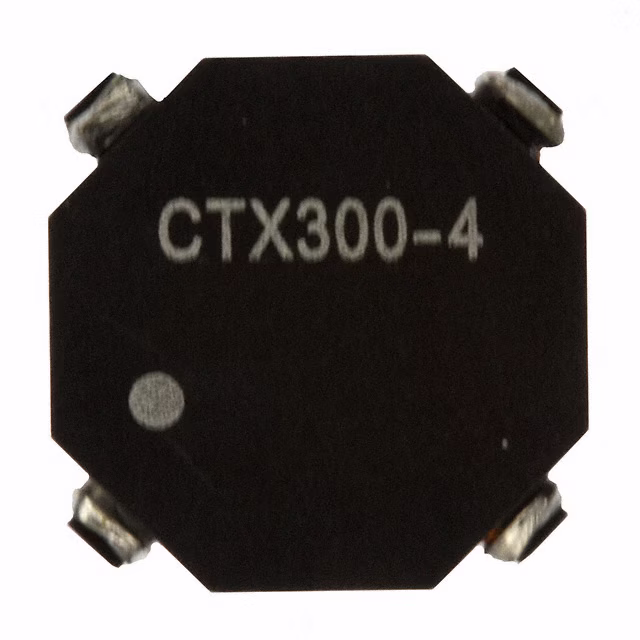

CTX300-4-RINDUCT ARRAY 2 COIL 298.12UH SMD |
1,402 | 6.48 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.12 µH | 1.2 mH | ±20% | 620 mA | 310 mA | - | - | 672mOhm Max | 2.687Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX20-4-RINDUCT ARRAY 2 COIL 19.6UH SMD |
1,046 | 7.48 |
|
Datasheet |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.6 µH | 78.4 µH | ±20% | 2.1 A | 1.05 A | - | - | 55mOhm Max | 220mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
DRQ73-680-RINDUCT ARRAY 2 COIL 68.91UH SMD |
1,155 | 1.73 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 68.91 µH | 275.6 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 358mOhm | 1.43Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

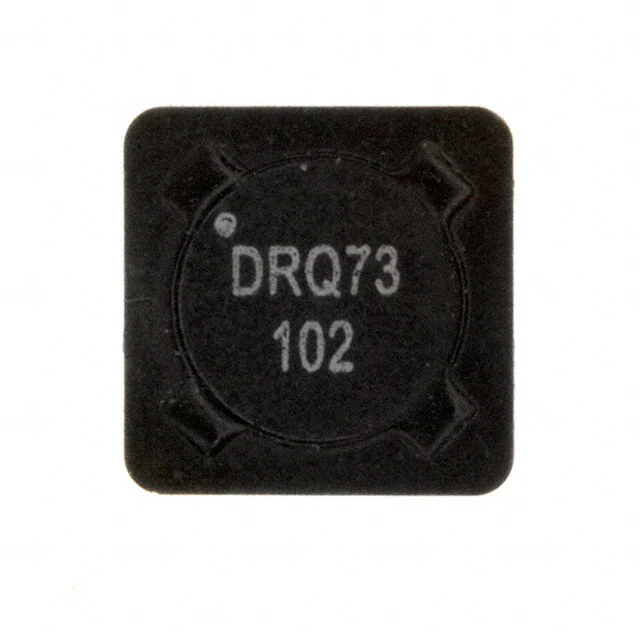

DRQ73-102-RINDUCT ARRAY 2 COIL 995UH SMD |
1,985 | 1.73 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 995 µH | 3.98 mH | ±20% | 260 mA | 128 mA | 250 mA | 130 mA | 4.34Ohm | 17.36Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF0703-820MINDUCT ARRAY 2 COIL 82UH SMD |
2,337 | 1.07 |
|
Datasheet |
SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 82 µH | 328 µH | ±20% | 860 mA | 430 mA | 890 mA | 440 mA | 610mOhm Max | 2.28Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
SRF0703A-151MINDUCT ARRAY 2 COIL 150UH SMD |
2,930 | 1.17 |
|
Datasheet |
SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 608.2 µH | ±20% | 580 mA | 289 mA | 650 mA | 320 mA | 986mOhm Max | 3.63Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-470MINDUCT ARRAY 2 COIL 47UH SMD |
2,728 | 1.31 |
|
Datasheet |
SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 194.2 µH | ±20% | 1.08 A | 542 mA | 1.14 A | 570 mA | 338mOhm Max | 1.28Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-150MINDUCT ARRAY 2 COIL 15UH SMD |
2,395 | 1.17 |
|
Datasheet |
SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 59.6 µH | ±20% | 1.83 A | 916 mA | 2.05 A | 1.03 A | 119mOhm Max | 470mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
PF0553.472NLINDUCT ARRAY 2 COIL 4.8UH SMD |
1,550 | 0.00 |
|
Datasheet |
PF0553NL | Nonstandard | Tray | Active | 2 | 4.8 µH | 19 µH | ±20% | 8.1 A | 4.1 A | 16 A | 8.2 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
|
PF0553.683NLINDUCT ARRAY 2 COIL 66UH SMD |
1,550 | 0.00 |
|
Datasheet |
PF0553NL | Nonstandard | Tray | Active | 2 | 66 µH | 270 µH | ±20% | 2.4 A | 1.2 A | 4.4 A | 2.2 A | 110mOhm Max | 420mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
|
PF0553.153NLINDUCT ARRAY 2 COIL 14UH SMD |
1,545 | 0.00 |
|
Datasheet |
PF0553NL | Nonstandard | Tray | Active | 2 | 14 µH | 56 µH | ±20% | 5 A | 2.5 A | 9.6 A | 4.8 A | 24mOhm Max | 96mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
DRQ74-102-RINDUCT ARRAY 2 COIL 1.009MH SMD |
2,157 | 2.25 |
|
Datasheet |
DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.009 mH | 4.036 mH | ±20% | 270 mA | 135 mA | 310 mA | 160 mA | 3.89Ohm | 15.6Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
SRF1260-3R3YINDUCT ARRAY 2 COIL 3.3UH SMD |
1,188 | 1.58 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | 13.2 µH | ±30% | 9.26 A | 4.63 A | 12.7 A | 6.35 A | 10.1mOhm Max | 37.2mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-8R2YINDUCT ARRAY 2 COIL 8.2UH SMD |
1,057 | 1.58 |
|
Datasheet |
SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | 32.8 µH | ±30% | 5.54 A | 2.77 A | 7.89 A | 3.93 A | 19.4mOhm Max | 73.7mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRAQ127-330-RINDUCT ARRAY 2 COIL 32UH SMD |
508 | 1.58 |
|
Datasheet |
DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 32 µH | 128 µH | ±25% | 3.22 A | 1.61 A | 4.98 A | 2.49 A | 72mOhm Max | 288mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
SRF1260A-220MINDUCT ARRAY 2 COIL 22UH SMD |
3,640 | 1.76 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 3.7 A | 1.84 A | 4.71 A | 2.36 A | 45.1mOhm Max | 172mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-470MINDUCT ARRAY 2 COIL 47UH SMD |
1,838 | 1.76 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | 2.71 A | 1.35 A | 3.24 A | 1.62 A | 86mOhm Max | 340mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-820MINDUCT ARRAY 2 COIL 82UH SMD |
1,595 | 1.57 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 82 µH | 328 µH | ±20% | 2.05 A | 1.03 A | 2.39 A | 1.2 A | 150mOhm Max | 568mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
1,558 | 1.57 |
|
Datasheet |
SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 6.64 A | 3.32 A | 8.68 A | 4.34 A | 18.6mOhm Max | 67.2mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
PA3142AHLINDUCT ARRAY 2 COIL SMD |
1,200 | 0.00 |
|
Datasheet |
PA314xAHL | 4-SMD, No Lead | Tray | Active | 2 | - | 100 nH | ±15% | - | 40 A | - | - | - | 0.3mOhm Max | Shielded | - | -40°C ~ 130°C | Surface Mount | 0.669" L x 0.413" W (17.00mm x 10.50mm) | 0.315" (8.00mm) |
