Arrays, Signal Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height
CTX2-4-R INDUCT ARRAY 2 COIL 1.76UH SMD Eaton - Electronics Division	2,226	4.16	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	1.76 µH	7.06 µH	±20%	4.9 A	2.45 A	-	-	7mOhm Max	28mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
CTX8-4-R INDUCT ARRAY 2 COIL 8.28UH SMD Eaton - Electronics Division	1,869	4.16	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	8.28 µH	33.12 µH	±20%	3.5 A	1.75 A	-	-	18mOhm Max	72mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
CTX200-4P-R INDUCT ARRAY 2 COIL 200.11UH SMD Eaton - Electronics Division	1,666	4.20	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	200.11 µH	800.44 µH	±20%	600 mA	300 mA	-	-	810mOhm Max	3.24Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
LCP5-2.04-47 INDUCT ARRAY 2 COIL 47UH SMD Talema Group LLC	1,724	2.36	RFQ	Datasheet	LCP	Nonstandard	Tape & Reel (TR)	Active	2	47 µH	188 µH	±15%	2.04 A	1.02 A	-	-	72mOhm	288mOhm	Unshielded	-	-40°C ~ 125°C	Surface Mount	0.512" L x 0.512" W (13.00mm x 13.00mm)	0.358" (9.10mm)
CTX200-3P-R INDUCT ARRAY 2 COIL 200.1UH SMD Eaton - Electronics Division	2,625	4.23	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	200.1 µH	800.38 µH	±20%	600 mA	300 mA	-	-	731mOhm Max	2.925Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX20-1 INDUCT ARRAY 2 COIL 19.6UH SMD Eaton - Electronics Division	2,951	0.00	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Obsolete	2	19.6 µH	78.4 µH	±20%	1 A	500 mA	-	-	146mOhm Max	583mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)

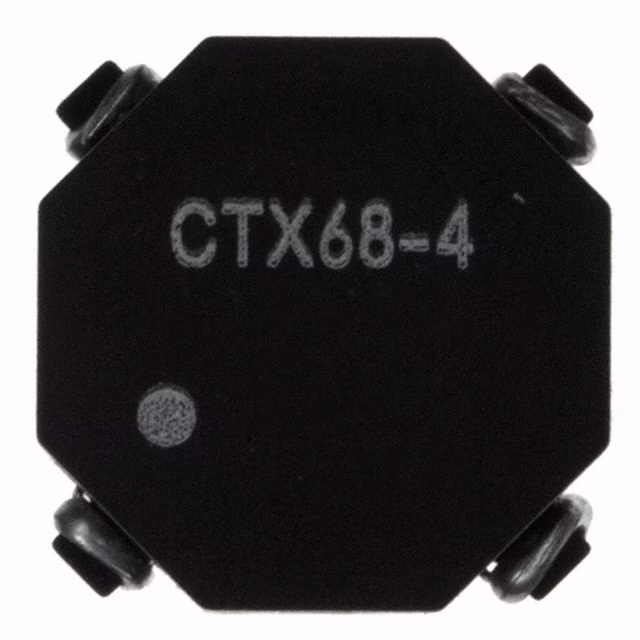

CTX68-4-R INDUCT ARRAY 2 COIL 67.08UH SMD Eaton - Electronics Division	1,882	4.46	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	67.08 µH	268.32 µH	±20%	1.2 A	600 mA	-	-	157mOhm Max	630mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
CTX100-1 INDUCT ARRAY 2 COIL 99.23UH SMD Eaton - Electronics Division	3,559	0.00	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Obsolete	2	99.23 µH	396.9 µH	±20%	440 mA	220 mA	-	-	784mOhm Max	3.137Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)
SDQ25-1R0-R INDUCT ARRAY 2 COIL 970NH SMD Eaton - Electronics Division	3,148	2.15	RFQ	Datasheet	SDQ	Nonstandard	Tape & Reel (TR)	Active	2	970 nH	3.87 µH	±20%	3.15 A	1.58 A	4.09 A	2.05 A	25.2mOhm	100.7mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.205" L x 0.205" W (5.20mm x 5.20mm)	0.098" (2.50mm)
T60405A6166X002 6166X002 VACUUMSCHMELZE	4,065	0.00	RFQ	-	-	Radial, Vertical, 8 Leads	Box	Active	2	12 µH	48 µH	-	15 A	7.5 A	-	-	-	-	Unshielded	-	-40°C ~ 60°C	Through Hole	1.496" L x 0.945" W (38.00mm x 24.00mm)	1.626" (41.30mm)
T60405A6166X004 6166X004 VACUUMSCHMELZE	1,881	0.00	RFQ	-	-	Radial, Vertical, 4 Leads	Box	Active	2	41 µH	165 µH	-	8 A	4 A	-	-	-	-	Unshielded	-	-40°C ~ 60°C	Through Hole	1.417" L x 0.866" W (36.00mm x 22.00mm)	1.587" (40.30mm)
CTX5-2 INDUCT ARRAY 2 COIL 4.7UH SMD Eaton - Electronics Division	4,210	0.00	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Obsolete	2	4.7 µH	18.8 µH	±20%	3 A	1.5 A	-	-	21mOhm Max	84mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
CTX300-3P-R INDUCT ARRAY 2 COIL 298.39UH SMD Eaton - Electronics Division	2,407	4.60	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	298.39 µH	1.2 mH	±20%	500 mA	250 mA	-	-	926mOhm Max	3.702Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX5-4 INDUCT ARRAY 2 COIL 4.9UH SMD Eaton - Electronics Division	2,407	0.00	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Obsolete	2	4.9 µH	19.6 µH	±20%	4.4 A	2.2 A	-	-	14mOhm Max	56mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
T60405A6166X007 6166X007 VACUUMSCHMELZE	3,814	0.00	RFQ	-	-	Radial, Vertical, 4 Leads	Box	Active	2	180 µH	720 µH	-	4 A	2 A	-	-	-	-	Unshielded	-	-40°C ~ 60°C	Through Hole	1.417" L x 0.827" W (36.00mm x 21.00mm)	1.587" (40.30mm)
T60405A6166X005 6166X005 VACUUMSCHMELZE	2,849	0.00	RFQ	-	-	Radial, Vertical, 4 Leads	Box	Active	2	75 µH	300 µH	-	6 A	3 A	-	-	-	-	Unshielded	-	-40°C ~ 60°C	Through Hole	1.417" L x 0.827" W (36.00mm x 21.00mm)	1.587" (40.30mm)
7448990010 INDUCT ARRAY 2 COIL 1UH SMD Würth Elektronik	1,802	3.06	RFQ	Datasheet	WE-MCRI	Nonstandard	Tape & Reel (TR)	Active	2	1 µH	-	±20%	17 A	-	43.5 A	-	5.6mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.453" L x 0.394" W (11.50mm x 10.00mm)	0.354" (9.00mm)
7448990015 INDUCT ARRAY 2 COIL 1.5UH SMD Würth Elektronik	3,466	3.06	RFQ	Datasheet	WE-MCRI	Nonstandard	Tape & Reel (TR)	Active	2	1.5 µH	-	±20%	12.5 A	-	34 A	-	9.4mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.453" L x 0.394" W (11.50mm x 10.00mm)	0.354" (9.00mm)
7448990022 INDUCT ARRAY 2 COIL 2.2UH SMD Würth Elektronik	2,924	3.06	RFQ	Datasheet	WE-MCRI	Nonstandard	Tape & Reel (TR)	Active	2	2.2 µH	-	±20%	11.5 A	-	29.5 A	-	12.5mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.453" L x 0.394" W (11.50mm x 10.00mm)	0.354" (9.00mm)
7448990033 INDUCT ARRAY 2 COIL 3.3UH SMD Würth Elektronik	3,224	3.06	RFQ	Datasheet	WE-MCRI	Nonstandard	Tape & Reel (TR)	Active	2	3.3 µH	-	±20%	7.5 A	-	28.2 A	-	26mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.453" L x 0.394" W (11.50mm x 10.00mm)	0.354" (9.00mm)

Total 1194 Record«Prev 1... 43 44 45 464748 49 50...60 Next»
