Arrays, Signal Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

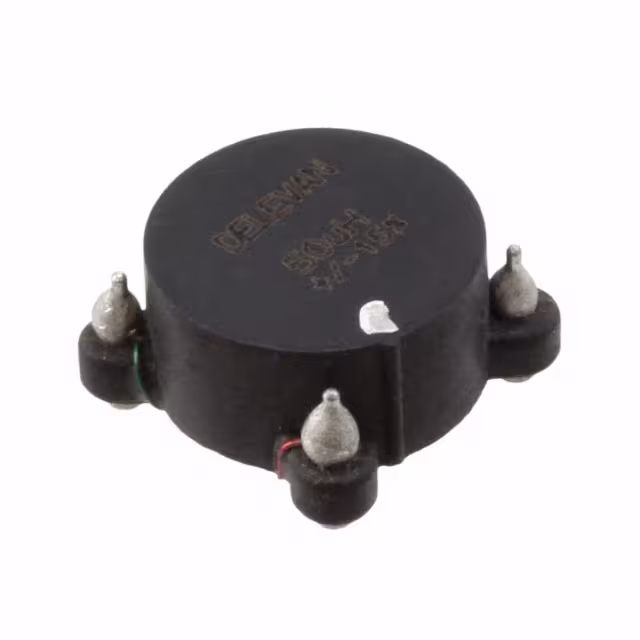

4448R-20LINDUCT ARRAY 2 COIL 25UH SMD |
1,302 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 25 µH | 100 µH | ±15% | 1.6 A | 800 mA | - | - | 116mOhm Max | 464mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
|
4448R-22LINDUCT ARRAY 2 COIL 33UH SMD |
3,738 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±15% | 1.3 A | 650 mA | - | - | 166mOhm Max | 664mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
|
4448R-24LINDUCT ARRAY 2 COIL 50UH SMD |
1,784 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 50 µH | 200 µH | ±15% | 1.2 A | 600 mA | - | - | 202mOhm Max | 808mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
|
4448R-26LINDUCT ARRAY 2 COIL 68UH SMD |
4,706 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±15% | 1.1 A | 550 mA | - | - | 238mOhm Max | 952mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
|
4448R-28LINDUCT ARRAY 2 COIL 100UH SMD |
1,181 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 400 µH | ±15% | 720 mA | 360 mA | - | - | 565mOhm Max | 2.26Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
|
4448R-30LINDUCT ARRAY 2 COIL 150UH SMD |
2,787 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±15% | 640 mA | 320 mA | - | - | 696mOhm Max | 2.784Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
|
4448R-32LINDUCT ARRAY 2 COIL 200UH SMD |
1,390 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 200 µH | 800 µH | ±15% | 600 mA | 300 mA | - | - | 810mOhm Max | 3.24Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
|
4448R-34LINDUCT ARRAY 2 COIL 300UH SMD |
1,592 | 7.39 |
|
Datasheet |
4448R | Nonstandard | Tape & Reel (TR) | Active | 2 | 300 µH | 1.2 mH | ±15% | 540 mA | 270 mA | - | - | 1.003Ohm Max | 4.012Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.530" L x 0.530" W (13.46mm x 13.46mm) | 0.310" (7.87mm) |
|
SMT45A-153INDUCT ARRAY 2 COIL 150UH SMD |
2,789 | 0.00 |
|
Datasheet |
SMT45A | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±25% | 1.1 A | 550 mA | 1.07 A | 540 mA | 313mOhm | 1.25Ohm | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.250" (6.35mm) |
|
|
SMT35A-303INDUCT ARRAY 2 COIL 300UH SMD |
4,172 | 0.00 |
|
Datasheet |
SMT35A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | 2 | 300 µH | 1.2 mH | ±25% | 580 mA | 290 mA | 600 mA | 300 mA | 1.006Ohm | 4.03Ohm | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.392" L x 0.392" W (9.95mm x 9.95mm) | 0.235" (5.97mm) |
|
|
SMT45A-303INDUCT ARRAY 2 COIL 300UH SMD |
3,492 | 0.00 |
|
Datasheet |
SMT45A | Nonstandard | Tape & Reel (TR) | Active | 2 | 300 µH | 1.2 mH | ±25% | 750 mA | 370 mA | 760 mA | 380 mA | 675mOhm | 2.7Ohm | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.250" (6.35mm) |
|
|
SMT45A-303LFINDUCT ARRAY 2 COIL 300UH SMD |
3,946 | 0.00 |
|
Datasheet |
SMT45A | Nonstandard | Tape & Reel (TR) | Active | 2 | 300 µH | 1.2 mH | ±25% | 750 mA | 370 mA | 760 mA | 380 mA | 675mOhm | 2.7Ohm | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.250" (6.35mm) |
|
|
CTX68-5P-RINDUCT ARRAY 2 COIL 68UH SMD |
4,253 | 8.67 |
|
Datasheet |
Econo-Pac™ | Nonstandard SMD | Tape & Reel (TR) | Active | 2 | 68 µH | - | - | 1.72 A | 287 mA | - | - | 450mOhm | - | Unshielded | - | - | Surface Mount | 0.670" L x 0.670" W (17.02mm x 17.02mm) | 0.325" (8.26mm) |
|
|
CTX100-5-RINDUCT ARRAY 4 COIL SMD |
4,428 | 0.00 |
|
Datasheet |
OCTA-PAC® | Nonstandard SMD | Tape & Reel (TR) | Obsolete | 4 | - | - | - | - | - | - | - | - | - | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.670" L x 0.670" W (17.02mm x 17.02mm) | 0.325" (8.26mm) |
|
|
196Q2CHOKE, HEAVY CURRENT, PARALLEL: |
4,380 | 0.00 |
|
Datasheet |
196 | Nonstandard | Bulk | Active | 2 | 10 mH | 40 mH | ±15% | 4 A | 2 A | - | - | - | - | Unshielded | - | - | Chassis Mount | 3.126" L x 2.122" W (79.40mm x 53.90mm) | 2.752" (69.90mm) |
|
|
196S1CHOKE, HEAVY CURRENT, PARALLEL: |
3,620 | 0.00 |
|
Datasheet |
196 | Nonstandard | Bulk | Active | 2 | 18 mH | 72 mH | ±15% | 2 A | 1 A | - | - | - | - | Unshielded | - | - | Chassis Mount | 2.000" L x 2.000" W (50.80mm x 50.80mm) | 2.311" (58.70mm) |
|
|
196M4CHOKE, HEAVY CURRENT, PARALLEL: |
3,957 | 0.00 |
|
Datasheet |
196 | Nonstandard | Bulk | Active | 2 | 5 mH | 20 mH | ±15% | 8 A | 4 A | - | - | - | - | Unshielded | - | - | Chassis Mount | 3.000" L x 2.874" W (76.20mm x 73.00mm) | 2.500" (63.50mm) |
|
|
196K6CHOKE, HEAVY CURRENT, PARALLEL: |
3,926 | 0.00 |
|
Datasheet |
196 | Nonstandard | Bulk | Active | 2 | 3 mH | 12 mH | ±15% | 12 A | 6 A | - | - | - | - | Unshielded | - | - | Chassis Mount | 3.375" L x 2.750" W (85.73mm x 69.85mm) | 2.876" (73.05mm) |
|
|
196G12CHOKE, HEAVY CURRENT, PARALLEL: |
2,760 | 0.00 |
|
Datasheet |
196 | Nonstandard | Bulk | Active | 2 | 1.2 mH | 4.8 mH | ±15% | 24 A | 12 A | - | - | - | - | Unshielded | - | - | Chassis Mount | 3.374" L x 3.563" W (85.70mm x 90.50mm) | 2.811" (71.40mm) |
|
|
196D25CHOKE, HEAVY CURRENT, PARALLEL: |
1,022 | 0.00 |
|
Datasheet |
196 | Nonstandard | Bulk | Active | 2 | 300 µH | 1.2 mH | ±15% | 50 A | 25 A | - | - | - | - | Unshielded | - | - | Chassis Mount | 3.750" L x 4.250" W (95.25mm x 107.95mm) | 3.130" (79.50mm) |
