Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1650WXFMR 1.9KCT / 4, 8, 16 CHAS MNT |
3,293 | 401.82 |
|
- |
1600 | Bulk | Active | - | 1.9kCT | 4, 8, 16 | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | - | ±1dB | - | 280W | - | - | Chassis Mount | 7.500" L x 4.380" W (190.50mm x 111.25mm) | 5.250" (133.35mm) | Wire Leads |
|
145LAUDIO XFMR 4K / 2.6KCT CHAS MNT |
2,186 | 24.02 |
|
Datasheet |
145 | Bulk | Active | - | 4k | 2.6kCT | 340Ohm | 100Ohm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 135mW | - | - | Chassis Mount | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) | Wire Leads |
|
|
145FAUDIO XFMR 600CT / 200CT CHAS MT |
4,020 | 24.02 |
|
Datasheet |
145 | Bulk | Active | - | 600CT | 200CT | 45Ohm | 9Ohm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 135mW | - | - | Chassis Mount | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) | Wire Leads |
|
141FAUDIO XFMR 25KCT / 50CT TH |
3,782 | 26.61 |
|
Datasheet |
141 | Bulk | Active | - | 25kCT | 50CT | 1.645kOhm | 65Ohm | Low Profile, Open Type | 200Hz ~ 15kHz | ±2dB | - | - | - | 100mW | - | - | Through Hole | 0.780" L x 0.660" W (19.81mm x 16.76mm) | 0.460" (11.68mm) | PC Pin |
|
143RAUDIO XFMR 25K / 600CT CHAS MNT |
4,765 | 37.00 |
|
Datasheet |
143 | Bulk | Active | - | 25k | 600CT | 1.89kOhm | 25Ohm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 30mW | - | - | Chassis Mount | 1.000" L x 0.690" W (25.40mm x 17.53mm) | 0.690" (17.53mm) | Wire Leads |
|
|
143DAUDIO XFMR 200K / 1K CHAS MNT |
4,169 | 37.00 |
|
Datasheet |
143 | Bulk | Active | - | 200k | 1k | 4.5kOhm | 30Ohm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 25mW | - | - | Chassis Mount | 1.000" L x 0.690" W (25.40mm x 17.53mm) | 0.690" (17.53mm) | Wire Leads |
|
140REXAUDIO XFMR 600CT / 150 CHAS MNT |
1,617 | 87.07 |
|
Datasheet |
140EX | Bulk | Active | 2:1 | 600CT | 150 | 72.4Ohm | 18.2Ohm | - | 20Hz ~ 20kHz | ±1dB | 500Vrms | 1dB Typ | 22.5dB Typ | 10dB | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Screw Terminal |
|
|
140TEXAUDIO XFMR 1K / 1K CHAS MNT |
1,206 | 87.07 |
|
Datasheet |
140EX | Bulk | Active | 1:1 | 1k | 1k | 89.7Ohm | 89.7Ohm | - | 20Hz ~ 20kHz | ±1dB | 500Vrms | 1dB Typ | 20dB Typ | 10dB | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Screw Terminal |
|
834AAUDIO XFMR CHAS MNT |
4,178 | 129.08 |
|
Datasheet |
800A | Bulk | Active | 1:4 | - | - | - | - | - | 50Hz ~ 15kHz | ±0.5dB | - | - | - | 15dB | - | - | Chassis Mount | - | 1.250" (31.75mm) | Wire Leads |
|
|
812AAUDIO XFMR CHAS MNT |
4,275 | 129.08 |
|
Datasheet |
800A | Bulk | Active | - | - | - | - | - | - | 50Hz ~ 15kHz | ±0.5dB | - | - | - | 15dB | - | - | Chassis Mount | - | 1.250" (31.75mm) | Wire Leads |
|
|
HS-4AUDIO XFMR 117.6K OHM SEC |
4,802 | 0.00 |
|
- |
HS | Box | Active | 1:14 | 62.5, 150, 250, 600 | 117.6k | - | - | General Purpose | 20Hz ~ 20kHz | - | - | - | - | 10dB | - | - | Chassis Mount | - | - | Wire Leads |
|
HS-1AUDIO XFMR 77K OHM SEC |
2,680 | 0.00 |
|
- |
HS | Box | Active | 1:11.3 | 62.5, 150, 250, 600 | 77k | - | - | General Purpose | 20Hz ~ 20kHz | - | - | - | - | 10dB | - | - | Chassis Mount | - | 2.500" (63.50mm) | Wire Leads |
|
|
#458PT-1720=P3AUDIO XFMR 75 / 50 SMD |
1,993 | 0.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2:5 | 75 | 50 | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C | - | Surface Mount | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.173" (4.40mm) | Flat Lead |
|
|
#458PT-2078=P3AUDIO XFMR 75 SMD |
4,928 | 0.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1:4 | 75 | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C | - | Surface Mount | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.173" (4.40mm) | Flat Lead |
|
|
#458PT-2002=P3AUDIO XFMR |
1,659 | 0.80 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG17-1505NSLFTRISO MOD T1 1:1.266 X-TEMP 6P SMD |
4,512 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG17-1505NSLFISO MOD T1 1:1.266 X-TEMP 6P SMD |
4,586 | 0.00 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

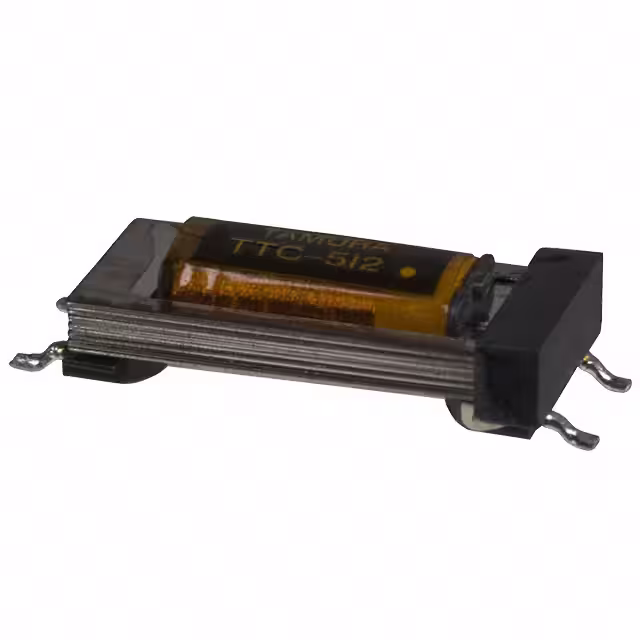

TTC-512AUDIO XFMR 600 / 510 SMD |
4,391 | 0.00 |
|
Datasheet |
TTC | Tape & Reel (TR) | Obsolete | 1:1 | 600 | 510 | 58Ohm | 70Ohm | - | 300Hz ~ 3.5kHz | ±0.3dB ~ ±0.5dB | 1875VRMS @ 1 Second | 1.25dB @ 1kHz | 16dB Min @ 300Hz ~ 3.5kHz | 3.5dB | -10°C ~ 60°C | UL1950, UL60950, EN60950 | Surface Mount | 0.390" L x 0.665" W (9.90mm x 17.80mm) | 0.181" (4.60mm) | Gull Wing |
|
|
TG110-BP07NTLFTRISO MOD 1G BACKPLN AUTO X-TEMP |
3,200 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG15-1505NSLFTRISO MOD T1 2C:1 X-TEMP 6P SMD T/ |
1,827 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
