Audio Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
148QAUDIO XFMR 10K / 2K 500/500 TH |
2,970 | 24.45 |
|
Datasheet |
148 | Bulk | Active | - | 10k | 2k, 500/500 | 1.7kOhm | 238Ohm | Economical Open Type | 200Hz ~ 15kHz | ±1dB | - | 0.5dB | - | 75mW | - | - | Through Hole | 0.820" L x 0.680" W (20.83mm x 17.27mm) | 0.690" (17.53mm) | PC Pin |
|
141HAUDIO XFMR 600CT / 600CT TH |
2,745 | 26.61 |
|
Datasheet |
141 | Bulk | Active | - | 600CT | 600CT | 32Ohm | 45Ohm | Low Profile, Open Type | 200Hz ~ 50kHz | ±2dB | 250V | - | - | 150mW | - | - | Through Hole | 0.780" L x 0.660" W (19.81mm x 16.76mm) | 0.460" (11.68mm) | PC Pin |
|
108EAUDIO XFMR 600CT / 3.2 TH |
2,275 | 27.39 |
|
Datasheet |
108 | Bulk | Active | 13.71:1 | 600CT | 3.2 | 54Ohm | 400mOhm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.75dB | 100VRMS | - | - | 500mW | - | - | Through Hole | 1.030" L x 0.770" W (26.16mm x 19.56mm) | 0.770" (19.56mm) | PC Pin |
|
107XAUDIO XFMR 100KCT / 1KCT TH |
1,279 | 30.70 |
|
Datasheet |
107 | Bulk | Active | 10:1 | 100kCT | 1kCT | 3.66kOhm | 75Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 500Vrms | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin |
|
109HAUDIO XFMR 600CT / 600CT TH |
3,970 | 32.88 |
|
Datasheet |
109 | Bulk | Active | 1:1 | 600CT | 600CT | 40.38Ohm | 52.32Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|
|
109GAUDIO XFMR 600CT / 250CT TH |
4,868 | 32.88 |
|
Datasheet |
109 | Bulk | Active | 1.55:1 | 600CT | 250CT | 40Ohm | 24Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|
|
109RAUDIO XFMR 10KCT / 1.5KCT TH |
4,286 | 37.28 |
|
Datasheet |
109 | Bulk | Active | 5.16:1 | 10kCT | 1.5kCT | 384Ohm | 58Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|
|
109LAUDIO XFMR 10KCT / 3.2CT TH |
2,214 | 37.28 |
|
Datasheet |
109 | Bulk | Active | 55.3:1 | 10kCT | 3.2CT | 300Ohm | 200mOhm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 2W | - | - | Through Hole | 1.315" L x 0.930" W (33.40mm x 23.62mm) | 0.920" (23.37mm) | PC Pin |
|
117F32AUDIO XFMR 8 / 70V CHAS MNT |
3,837 | 42.57 |
|
Datasheet |
117 | Bulk | Active | - | 8 | 70V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 32W | - | - | Chassis Mount | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) | Solder Lug |
|
125BXFMR 1.2K-25K / 1.5-15 CHAS MNT |
4,935 | 45.56 |
|
Datasheet |
125 | Bulk | Active | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 5W | - | - | Chassis Mount | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) | Wire Leads |
|
1760EXFMR 8.5KCT / 4, 8, 16 CHAS MNT |
2,993 | 51.78 |
|
Datasheet |
1760 | Box | Active | 32.61:1 | 8.5kCT | 4, 8, 16 | 150Ohm | 300Ohm, 450mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 15W | - | - | Chassis Mount | 3.250" L x 2.085" W (82.55mm x 52.96mm) | 2.058" (52.27mm) | Wire Leads |
|

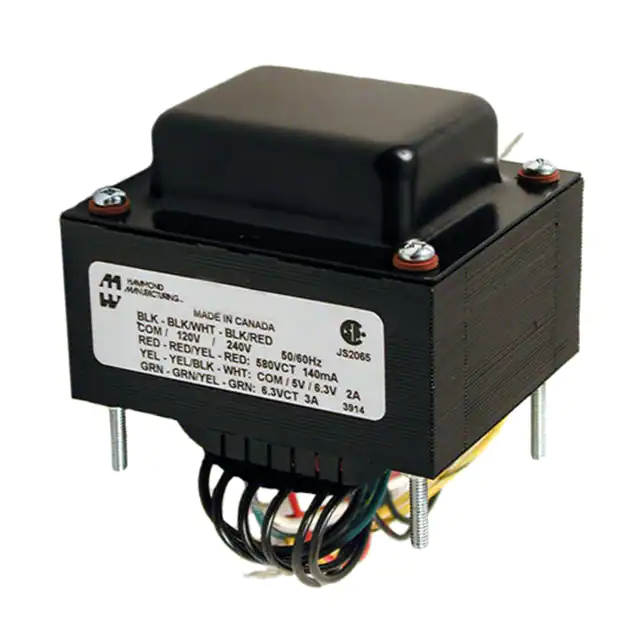

290WXAUDIO XFMR CHAS MNT |
4,182 | 52.25 |
|
Datasheet |
290 | Bulk | Active | - | - | - | 22.5Ohm | 240mOhm, 185.4Ohm | - | - | - | 120/240VAC | - | - | - | - | - | Chassis Mount | 3.250" L x 2.360" W (82.55mm x 59.94mm) | 2.058" (52.27mm) | Wire Leads |
|

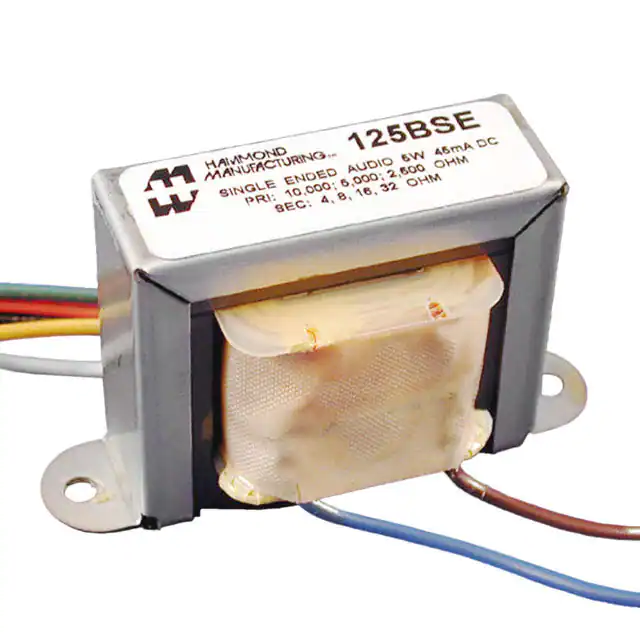

125BSEXFMR 2.5K-10K / 4-32 CHAS MNT |
4,683 | 58.72 |
|
Datasheet |
125SE | Bulk | Active | - | 2.5k ~ 10k | 4 ~ 32 | - | - | General Purpose | 100Hz ~ 15kHz | ±1dB | - | - | - | 5W | - | - | Chassis Mount | 3.250" L x 1.630" W (82.55mm x 41.40mm) | 2.000" (50.80mm) | Wire Leads |
|

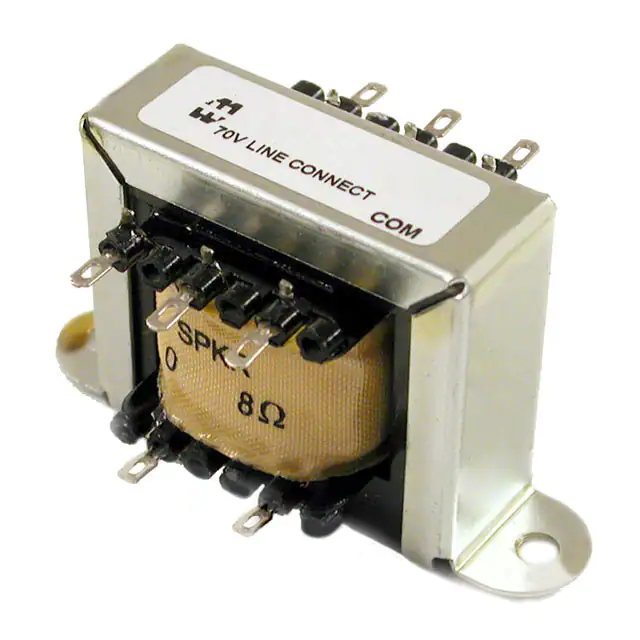

119Y60XFMR 16, 8 / 70V 25V CHAS MNT |
3,611 | 64.57 |
|
Datasheet |
119 | Bulk | Active | - | 16, 8 | 70V, 25V | - | - | Sound Distribution | 50Hz ~ 10kHz | - | 25V, 70V | - | - | 60W | - | - | Chassis Mount | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
|

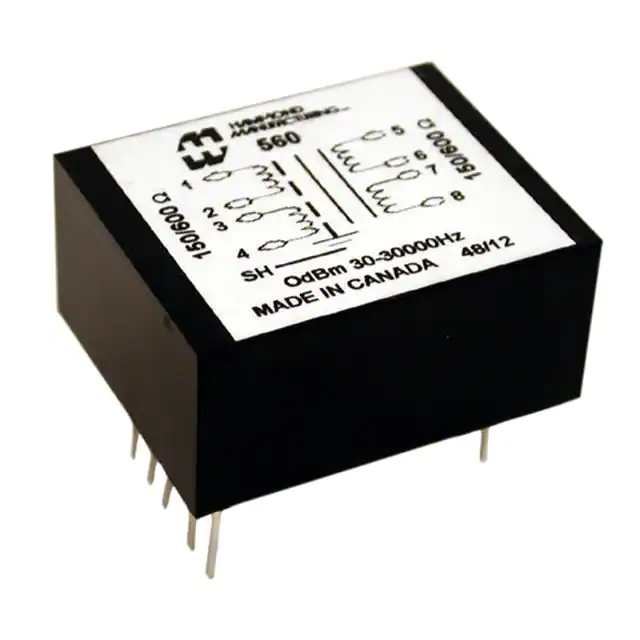

560LXFMR 600 150/150 / 20K 5K/5K TH |
2,933 | 66.21 |
|
Datasheet |
560 | Bulk | Active | - | 600, 150/150 | 20k, 5k/5k | - | - | Broadcast Quality | 30Hz ~ 30kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|
|
560QXFMR 40K 10K/10K / 40K 10K/10K |
3,006 | 66.21 |
|
Datasheet |
560 | Bulk | Active | - | 40k, 10k/10k | 40k, 10k/10k | - | - | Broadcast Quality | 30Hz ~ 15kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|

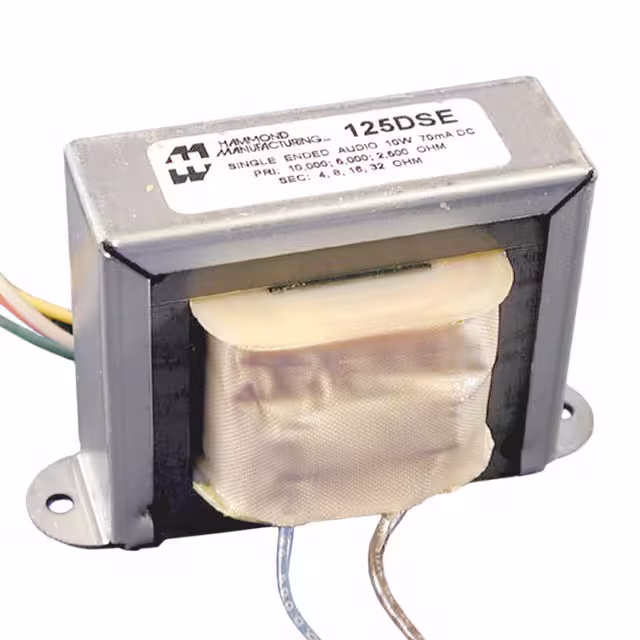

125DSEXFMR 2.5K-10K / 4-32 CHAS MNT |
3,198 | 66.54 |
|
Datasheet |
125SE | Bulk | Active | - | 2.5k ~ 10k | 4 ~ 32 | 115Ohm | 590mOhm | General Purpose | 100Hz ~ 15kHz | ±1dB | 1500V @ 1 Second | - | - | 10W | - | - | Chassis Mount | 4.000" L x 2.100" W (101.60mm x 53.34mm) | 2.630" (66.80mm) | Wire Leads |
|
560NXFMR 600 150/150 / 40K 10K/10K |
1,120 | 66.21 |
|
Datasheet |
560 | Bulk | Active | - | 600, 150/150 | 40k, 10k/10k | - | - | Broadcast Quality | 30Hz ~ 30kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin |
|
140QEXAUDIO XFMR 600CT / 600CT CHAS MT |
2,514 | 87.07 |
|
Datasheet |
140EX | Bulk | Active | 1:1 | 600CT | 600CT | 72.4Ohm | 72.4Ohm | - | 20Hz ~ 20kHz | ±1dB | 500Vrms | 1.1dB Typ | 20dB Typ | 10dB | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Screw Terminal |
|
1609XFMR 10KCT / 4, 8, 16 CHAS MNT |
3,801 | 4.50 |
|
Datasheet |
1600 | Bulk | Active | - | 10kCT | 4, 8, 16 | - | - | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | - | ±1dB | - | 10W | - | - | Chassis Mount | 2.750" L x 2.500" W (69.85mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads |
