Ceramic Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Impedance | Bandwidth | Insertion Loss | Filter Type | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

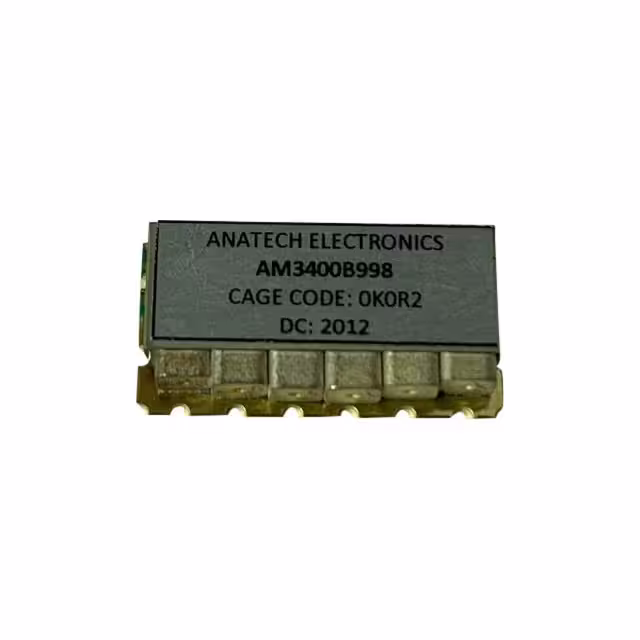

AM3400B9983400 MHZ CERAMIC BAND PASS FILTE |
1,483 | 48.75 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 3.4GHz Center | 50Ohm | 200 MHz | 2dB | Band Pass | Surface Mount | 1.043" L x 0.551" W (26.50mm x 14.00mm) | 0.217" (5.50mm) |
|
AM5450B1263-E5450 MHZ CERAMIC BAND PASS FILTE |
100 | 125.00 |
|
- |
- | 14-SMD Module | Tape & Box (TB) | Active | 5.45GHz Center | - | 200 MHz | 3dB | Band Pass | Surface Mount | 1.969" L x 0.748" W (50.00mm x 19.00mm) | 0.378" (9.60mm) |
|
|
AM3400B12923400 MHZ CERAMIC BAND PASS FILTE |
100 | 125.00 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 3.4GHz Center | 50Ohm | 100 MHz | 2dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AE3225CB18003225 MHZ CERAMIC BAND PASS FILTE |
100 | 125.00 |
|
Datasheet |
- | 20-SMD Module | Box | Active | 3.225GHz Center | 50Ohm | 120 MHz | 2.2dB | Band Pass | Surface Mount | 1.354" L x 0.551" W (34.40mm x 14.00mm) | 0.228" (5.80mm) |
|
|
AE542CB1799542 MHZ CERAMIC BAND PASS FILTER |
100 | 145.00 |
|
Datasheet |
- | 24-SMD Module | Box | Active | 542MHz Center | 50Ohm | 80 MHz | 2.8dB | Band Pass | Surface Mount | 1.496" L x 0.878" W (38.00mm x 22.30mm) | 0.315" (8.00mm) |
|

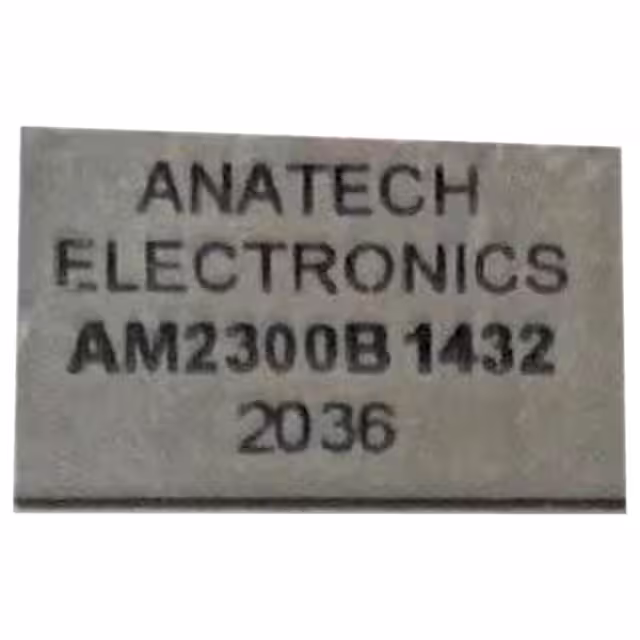

AM2300B14322300 MHZ CERAMIC BAND PASS FILTE |
3,421 | 142.00 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 2.3GHz Center | 50Ohm | 340 MHz | 1.5dB | Band Pass | Surface Mount | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
AE5600B111385600 MHZ CONNECTORIZED CERAMIC B |
100 | 335.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 5.6GHz Center | 50Ohm | 220 MHz | 3dB | Band Pass | Chassis Mount | 1.770" L x 1.650" W (44.96mm x 41.91mm) | 0.510" (12.95mm) |
|
|
AM748B1658-C748 MHZ CONNECTORIZED CERAMIC BA |
100 | 349.00 |
|
Datasheet |
- | Module, SMA Connectors | Tape & Box (TB) | Active | 748MHz Center | 50Ohm | 40 MHz | 2dB | Band Pass | Chassis Mount | 1.969" L x 1.378" W (50.00mm x 35.00mm) | 0.720" (18.30mm) |
|
|
BFCQ-3402+BANDPASS FLTR / SURF MT /ROHS |
1,778 | 0.00 |
|
Datasheet |
- | 1008 (2520 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 33.6GHz Center | 50Ohm | 10 GHz | 2.75dB | Band Pass | Surface Mount | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.032" (0.81mm) |
|
LFCG-530+LTCC LOW PASS FILTER, DC - 530 M |
4,324 | 6.73 |
|
Datasheet |
LFCG | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | 670MHz | 50Ohm | - | 1.8dB | Low Pass | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
CBP2-1300BV+CERAMIC RESONATOR BPF |
1,379 | 0.00 |
|
Datasheet |
- | 14-SMD Module | Strip | Active | 1.3GHz Center | 50Ohm | 200 MHz | 3dB | Band Pass | Surface Mount | 0.701" L x 0.551" W (17.80mm x 14.00mm) | 0.135" (3.43mm) |
|
|
CBP-5800AG+CERAMIC RESONATOR BPF |
3,885 | 0.00 |
|
Datasheet |
- | 11-SMD Module | Strip | Active | 5.8GHz Center | 50Ohm | 150 MHz | 4dB | Band Pass | Surface Mount | 0.750" L x 0.551" W (19.05mm x 14.00mm) | 0.190" (4.83mm) |
|
CBP4-836C+BANDPASS FLTR / SURF MT / ROHS |
2,819 | 46.20 |
|
Datasheet |
- | 13-SMD Module | Strip | Active | 836MHz Center | 50Ohm | 25 MHz | 1.7dB | Band Pass | Surface Mount | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.210" (5.33mm) |
|
ECS-DCF-103CER FIL 5665 MHZ BAND PASS FIL |
2,798 | 1.16 |
|
Datasheet |
ECS-DCF | 3-SMD, No Lead | Tape & Reel (TR) | Active | 5.665GHz Center | 50Ohm | 350 MHz | 2.5dB | Band Pass | Surface Mount | 0.339" L x 0.181" W (8.60mm x 4.60mm) | 0.118" (3.00mm) |
|
|
ECS-DCF-101CER FIL 5235 MHZ BAND PASS FIL |
2,597 | 1.16 |
|
Datasheet |
ECS-DCF | 3-SMD, No Lead | Tape & Reel (TR) | Active | 5.235GHz Center | 50Ohm | 180 MHz | 2.5dB | Band Pass | Surface Mount | 0.339" L x 0.197" W (8.60mm x 5.00mm) | 0.118" (3.00mm) |
|
|
ECS-DCF-102CER FIL 5697 MHZ BAND PASS FIL |
3,029 | 1.16 |
|
Datasheet |
ECS-DCF | 3-SMD, No Lead | Tape & Reel (TR) | Active | 5.697GHz Center | 50Ohm | 360 MHz | 2.5dB | Band Pass | Surface Mount | 0.339" L x 0.181" W (8.60mm x 4.60mm) | 0.118" (3.00mm) |
|
|
ECS-DCF-104CER FIL 5245 MHZ BAND PASS FIL |
1,247 | 1.16 |
|
Datasheet |
ECS-DCF | 3-SMD, No Lead | Tape & Reel (TR) | Active | 5.245GHz Center | 50Ohm | 190 MHz | 2.5dB | Band Pass | Surface Mount | 0.339" L x 0.197" W (8.60mm x 5.00mm) | 0.118" (3.00mm) |
|
|
ECS-DCF-106CER FIL 5492.5 MHZ BAND PASS FIL |
1,155 | 2.32 |
|
Datasheet |
ECS-DCF | 3-SMD, No Lead | Tape & Reel (TR) | Active | 5.4925GHz Center | 50Ohm | 685 MHz | 3dB | Band Pass | Surface Mount | 0.504" L x 0.209" W (12.80mm x 5.30mm) | 0.150" (3.80mm) |
|
|
ECS-DCF-105CER FIL 6525 MHZ BAND PASS FIL |
2,540 | 2.32 |
|
Datasheet |
ECS-DCF | 3-SMD, No Lead | Tape & Reel (TR) | Active | 6.525GHz Center | 50Ohm | 1.2 GHz | 3.5dB | Band Pass | Surface Mount | 0.504" L x 0.173" W (12.80mm x 4.40mm) | 0.165" (4.20mm) |
|
|
ECS-DCF-110CER FIL 6450 MHZ BAND PASS FIL |
3,590 | 0.00 |
|
Datasheet |
ECS-DCF | Monoblock, 3 PC Pad | Tape & Reel (TR) | Active | 6.45GHz Center | - | 1.05 GHz | 3dB | - | Surface Mount | 0.378" L x 0.161" W (9.60mm x 4.10mm) | 0.118" (3.00mm) |
