Ceramic Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Impedance | Bandwidth | Insertion Loss | Filter Type | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM922B1591-C922 MHZ CONNECTORIZED CERAMIC BA |
3,256 | 0.00 |
|
Datasheet |
- | 14-SMD Module | Tape & Box (TB) | Active | 922.75MHz Center | 50Ohm | 10.5 MHz | 4.4dB | Band Pass | Surface Mount | 0.803" L x 0.551" W (20.40mm x 14.00mm) | 0.195" (4.95mm) |
|

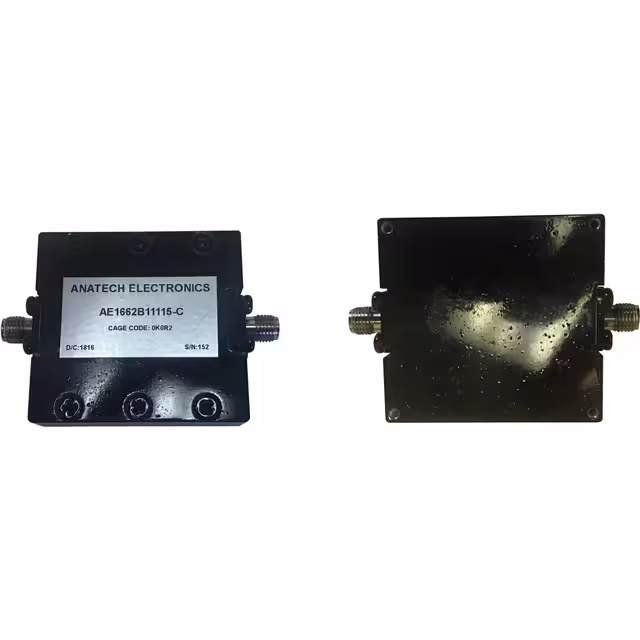

AE1662B11115-C1662.5 MHZ BAND PASS FILTER |
1,837 | 396.50 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 1.6625GHz Center | 50Ohm | 55 MHz | 2.5dB | Band Pass | Chassis Mount | 1.772" L x 1.654" W (45.00mm x 42.00mm) | 0.512" (13.00mm) |
|
LFCN-575+LTCC LOW PASS FILTER, DC - 575 M |
1,299 | 5.81 |
|
Datasheet |
LFCN | 4-SMD, No Lead | Tape & Reel (TR) | Active | 770MHz | 50Ohm | - | 1.2dB | Low Pass | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.94mm) |
|
BFCN-2500+LTCC BAND PASS FILTER, 2100 - 29 |
4,719 | 7.93 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | 2.5GHz Center | 50Ohm | 800 MHz | 3.7dB | Band Pass | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.24mm) | 0.041" (1.04mm) |
|
HFCG-2000+LTCC HIGH PASS FILTER, 2100 - 10 |
2,696 | 6.73 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 1.93GHz (Cutoff) | 50Ohm | 7.9 GHz | 1.8dB | High Pass | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.046" (1.18mm) |
|
LFCN-2352+FILTER |
2,327 | 9.79 |
|
Datasheet |
LFCN | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 25GHz (Cutoff) | 50Ohm | - | 1.6dB | Low Pass | Surface Mount, MLCC | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.036" (0.91mm) |
|
CBP-1400BD+CERAMIC RESONATOR BAND PASS FILT |
2,545 | 42.35 |
|
Datasheet |
- | 10-SMD Module | Bag | Active | 1.4GHz Center | 50Ohm | 160 MHz | 3dB | Band Pass | Surface Mount | 0.560" L x 0.435" W (14.22mm x 11.05mm) | 0.060" (1.52mm) |
|
CBP-2150AN+CERAMIC RESONATOR BAND PASS FILT |
4,744 | 45.53 |
|
Datasheet |
- | 12-SMD Module | Bag | Active | 2.15GHz Center | 50Ohm | 300 MHz | 1.8dB | Band Pass | Surface Mount | 1.360" L x 0.365" W (34.54mm x 9.27mm) | 0.350" (8.89mm) |
|
|
CBP2-3050BN+CERAMIC RESONATOR BPF |
3,085 | 0.00 |
|
Datasheet |
- | 10-SMD Module | Strip | Active | 3.05GHz Center | 50Ohm | 700 MHz | 3dB | Band Pass | Surface Mount | 0.700" L x 0.435" W (17.78mm x 11.05mm) | 0.135" (3.43mm) |
|
|
ECS-DCF-108CER FIL 6525 MHZ BAND PASS FIL |
4,196 | 0.00 |
|
Datasheet |
ECS-DCF | Monoblock, 3 PC Pad | Tape & Reel (TR) | Active | 6.525GHz Center | - | 1.2 GHz | 3dB | - | Surface Mount | 0.370" L x 0.161" W (9.40mm x 4.10mm) | 0.118" (3.00mm) |
|
|
LFB182G45SG9A213FILTER CER BANDPASS 2.45GHZ SMD |
2,724 | 0.09 |
|
Datasheet |
SG | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 2.45GHz Center | - | 50 MHz | 2.2dB | Band Pass | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
LFB182G45SG9A246FILTER CER BANDPASS 2.45GHZ SMD |
4,034 | 0.09 |
|
Datasheet |
SG | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 2.45GHz Center | - | 50 MHz | 2.2dB | Band Pass | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
LFB182G45SG9A293FILTER CER BANDPASS 2.45GHZ SMD |
2,996 | 0.09 |
|
Datasheet |
SG | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 2.45GHz Center | - | - | - | Band Pass | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
LFB182G60SGHB972FILTER CER BANDPASS 2.6GHZ SMD |
1,881 | 0.09 |
|
Datasheet |
SG | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 2.6GHz Center | - | 100 MHz | 1.9dB | Band Pass | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
LFB183G60SGJC019FILTER CER BANDPASS 3.6GHZ SMD |
3,418 | 0.09 |
|
Datasheet |
SG | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 3.6GHz Center | - | 200 MHz | 1.8dB | Band Pass | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
LFB212G45BA1A234FILTER CER BANDPASS 2.45GHZ SMD |
2,448 | 0.11 |
|
Datasheet |
BA | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Obsolete | 2.45GHz Center | - | 50 MHz | 3.5dB | Band Pass | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LFB212G45BA1B759FILTER CER BANDPASS 2.45GHZ SMD |
4,984 | 0.11 |
|
Datasheet |
BA | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Obsolete | 2.45GHz Center | - | 50 MHz | 3.5dB | Band Pass | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LFB212G45BA1B763FILTER CER BANDPASS 2.45GHZ SMD |
4,576 | 0.11 |
|
Datasheet |
BA | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Obsolete | 2.45GHz Center | - | 50 MHz | 3.5dB | Band Pass | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LFB211G90SG8B704FILTER CER BANDPASS 1.9GHZ SMD |
2,931 | 0.11 |
|
Datasheet |
SG | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1.9GHz Center | - | 13.5 MHz | 3dB | Band Pass | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LFB212G45SG8A125FILTER CER BANDPASS 2.45GHZ SMD |
3,926 | 0.11 |
|
Datasheet |
SG | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | - | - | - | Band Pass | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
