Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
784234101WE-CNSA SMD COMMON MODE POWER LI |
729 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 9.85 kOhms @ 100 MHz | - | 100mA | 3.36Ohm | 80V | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
784234201WE-CNSA SMD COMMON MODE POWER LI |
358 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 10.5 kOhms @ 100 MHz | - | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ECMS1V0905-272-RCMC 2A 2LN 2.7K OHM SMD |
1,867 | 0.57 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.7 kOhms @ 100 MHz | - | 2A | 80mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5ATN501MQ2LCMC 2.5A 2LN 500 OHM SMD |
917 | 1.55 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 2.5A | 34mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF4532TA-601YCMC 1.7UH 600 OHM 2.5A SMD |
1,937 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | 1.7 µH @ 100 kHz | 2.5A | 60mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF4532TA-231YCMC 0.85UH 230 OHM 3.5A SMD |
1,919 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 230 Ohms @ 100 MHz | 850 nH @ 100 kHz | 3.5A | 50mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF4532TA-901YCMC 3.2UH 900 OHM 2.3A SMD |
1,900 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 100 MHz | 3.2 µH @ 100 kHz | 2.3A | 70mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF4532TA-421YCMC 1.5UH 420 OHM 3.2A SMD |
1,893 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 420 Ohms @ 100 MHz | 1.5 µH @ 100 kHz | 3.2A | 55mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF4532TA-900YCMC 0.35UH 90 OHM 4A SMD |
1,461 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | 350 nH @ 100 kHz | 4A | 50mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EMI8041BMUTAGCMC 100MA 2LN SMD ESD |
2,681 | 0.27 |
|
Datasheet |
6-UFDFN | Signal Line | 2 | - | - | 100mA | - | 9V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
DR334A-113BECMC 11UH 500MA 2LN SMD AEC-Q200 |
1,508 | 1.41 |
|
Datasheet |
- | - | 2 | 300 Ohms @ 20 MHz | 11 µH @ 100 kHz | 500mA (Typ) | 120mOhm | 80V | 42V | -40°C ~ 135°C | AEC-Q200 | - | - | - | - |
|
|
DR334A-513AECMC 51UH 500MA 2LN 1.5KOHM SMD |
1,500 | 0.64 |
|
Datasheet |
- | - | 2 | 1.5 kOhms @ 20 MHz | 51 µH @ 100 kHz | 500mA | 300mOhm | 80V | 42V | -40°C ~ 135°C | AEC-Q200 | - | - | - | - |
|
|
DR334A-253AECMC 25UH 500MA 2LN 700OHM SMD |
1,277 | 1.41 |
|
Datasheet |
- | - | 2 | 700 Ohms @ 3 MHz | 25 µH @ 100 kHz | 500mA | 200mOhm | 80V | 42V | -40°C ~ 135°C | AEC-Q200 | - | - | - | - |
|
|
ACMP-5025-142-TCMC 1.5A 2LN 1.4K OHM SMD |
2,135 | 0.81 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 40mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-5025-102-TCMC 2A 2LN 1K OHM SMD |
1,871 | 0.81 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 24mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SU9H-R01180CMC 18MH 100MA 2LN TH |
457 | 0.69 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 100mA | 8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

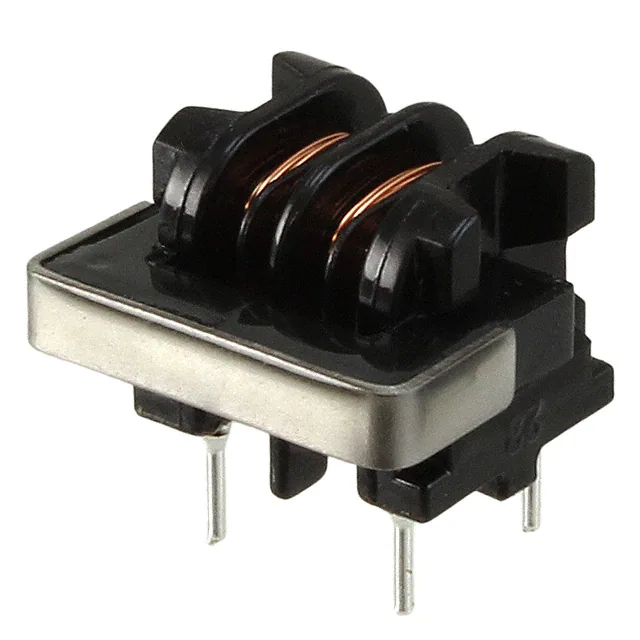

SU9HF-05050CMC 5MH 500MA 2LN TH |
449 | 0.62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 500mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SRF1006-302YCMC 3MH 350MA 2LN 3KOHM SMD |
793 | 0.78 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 500 kHz | 3 mH @ 100 kHz | 350mA | 330mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

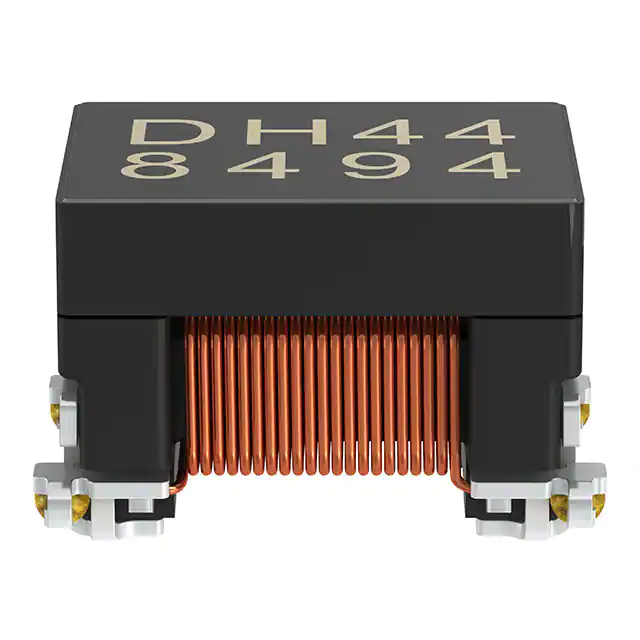

B82786C0513H002CMC 51UH 200MA 2LN 2.6KOHM SMD |
5,755 | 0.76 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SSR10HS-06385CMC 38.5MH 600MA 2LN TH |
300 | 1.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 38.5 mH @ 10 kHz | 600mA | 1.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
