Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

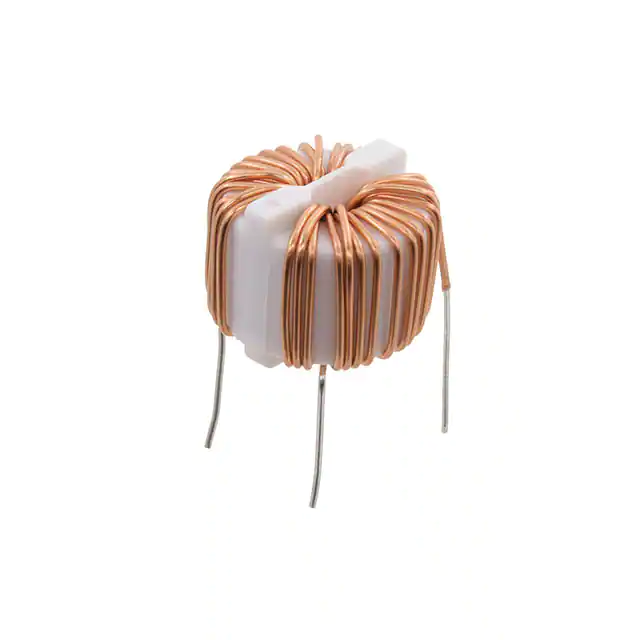

SC-05-103CMC 1MH 5A 2LN TH |
2,917 | 4.49 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82733V2232B001CMC 10MH 2.3A 2LN TH |
2,549 | 3.45 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.3A | 188mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724J2202N001CMC 6.8MH 2A 2LN TH |
2,225 | 4.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 170mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724A2402N001CMC 3.3MH 4A 2LN TH |
4,215 | 5.20 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CM6032V201R-10CMC 8A 8LN 200 OHM SMD |
2,479 | 4.67 |
|
Datasheet |
Vertical, 16 Flat Lead | Power Line | 8 | 200 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7117-RCCMC 850UH 5A 2LN TH |
4,717 | 5.21 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 850 µH @ 1 kHz | 5A | 35mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
PA5140.405NLTCMC 14A 2LN 1.67K OHM SMD |
2,216 | 5.23 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.67 kOhms @ 2.84 MHz | - | 14A | 5.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

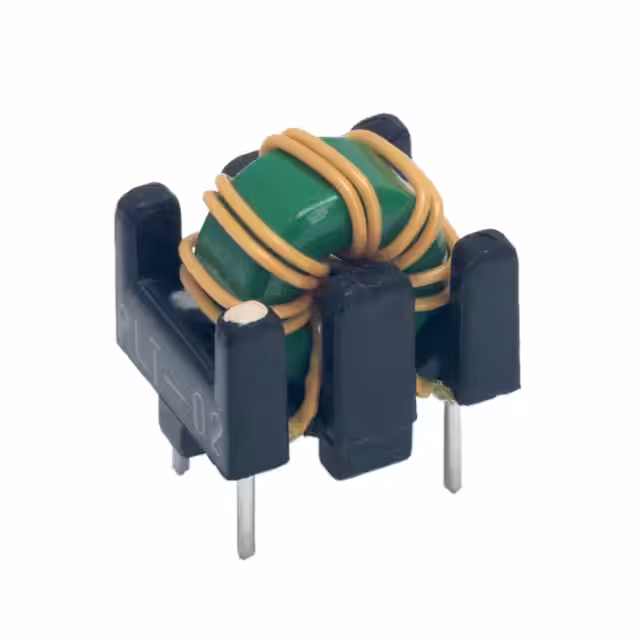

PLT-02CMC 7.5UH 300MA 2LN TH |
3,151 | 5.36 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 300mA | 55mOhm | - | 110V | -25°C ~ 100°C | - | UL | - | - | - |
|
P0527NLCMC 7.2A 2LN SMD |
4,604 | 5.42 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 7.2A | 15mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

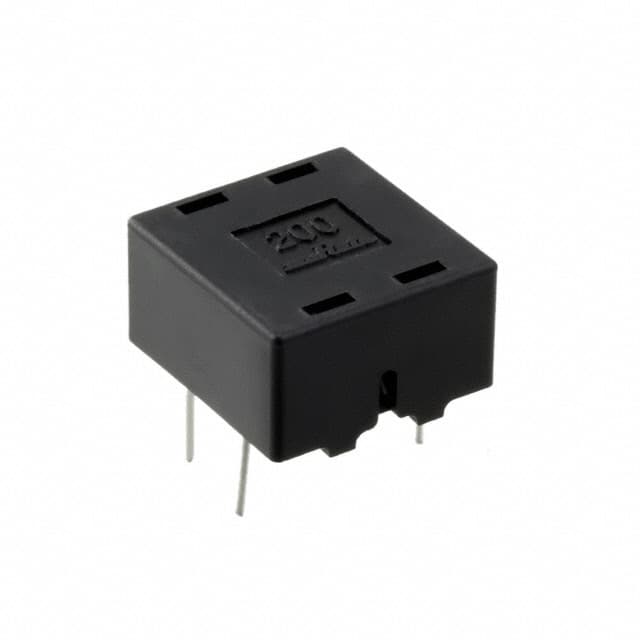

PLT09HN2003R0P1BCMC 3A 2LN TH |
4,568 | 5.68 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3A | 30mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
744824310CMC 10MH 3A 2LN TH |
4,028 | 5.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 3A | 105mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA5141.105NLTCMC 32A 2LN 500 OHM SMD |
1,438 | 6.06 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 2.82 MHz | - | 32A | 1.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

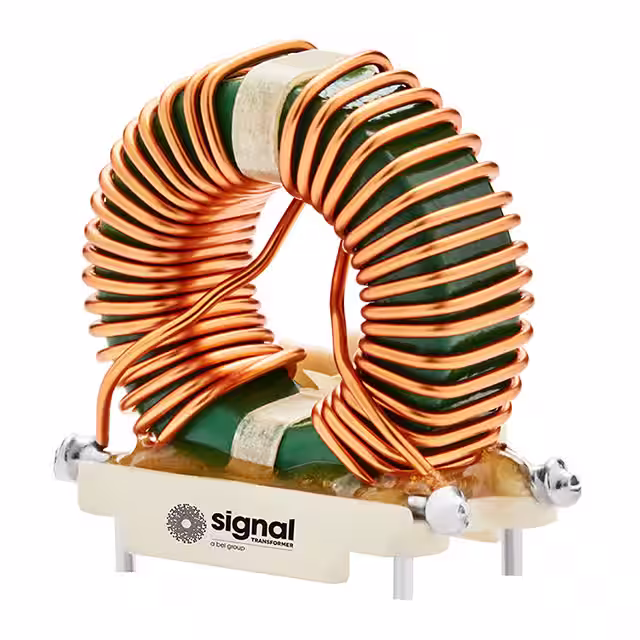

HCTC-2-6.6CMC 2MH 6.6A 2LN TH |
2,105 | 5.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

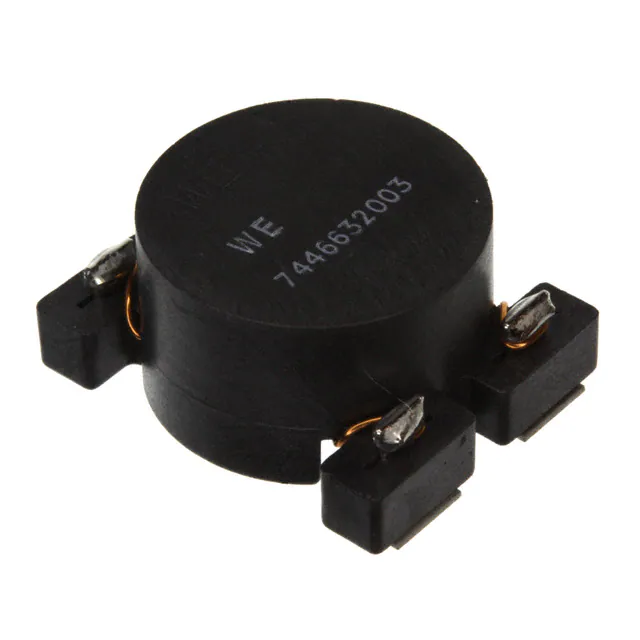

7446632003CMC 3.3MH 2.25A 2LN SMD |
3,799 | 5.22 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.25A | 150mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

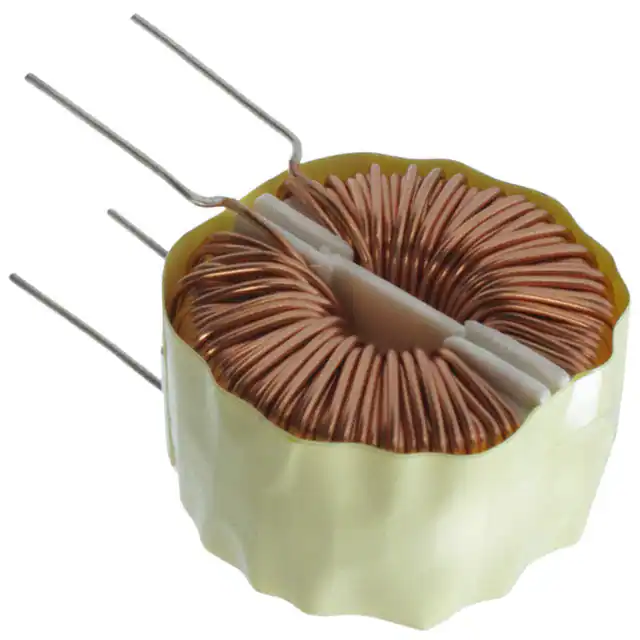

7122-RCCMC 25.5MH 4A 2LN TH |
1,211 | 7.29 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 25.5 mH @ 1 kHz | 4A | 130mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7123-RCCMC 9.35MH 5A 2LN TH |
2,740 | 7.29 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 9.35 mH @ 1 kHz | 5A | 72mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7448680180CMC 150UH 20A 2LN TH |
1,068 | 7.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 10 kHz | 20A | 1.9mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
7448680200CMC 120UH 23.5A 2LN TH |
4,122 | 7.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 120 µH @ 10 kHz | 23.5A | 1.4mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|

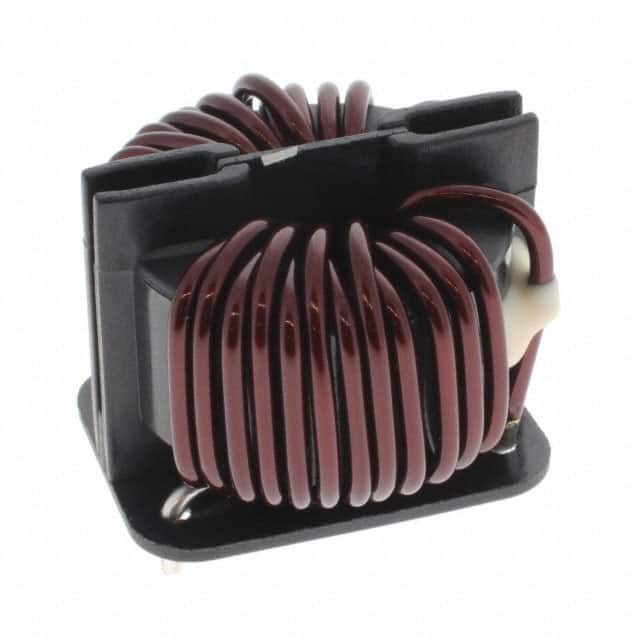

SCF-02-350JHCMC 35MH 2A 2LN TH |
4,404 | 8.53 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 35 mH @ 10 kHz | 2A | 220mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

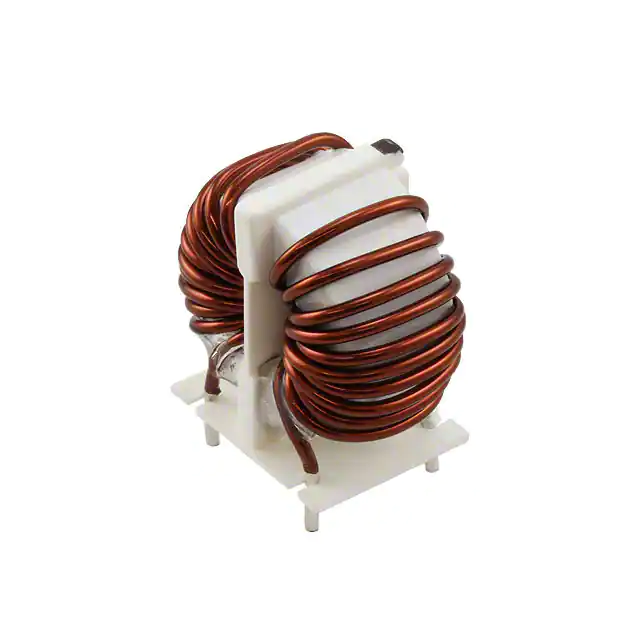

SC-15-05JCMC 500UH 15A 2LN TH |
4,656 | 7.79 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 15A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
