Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

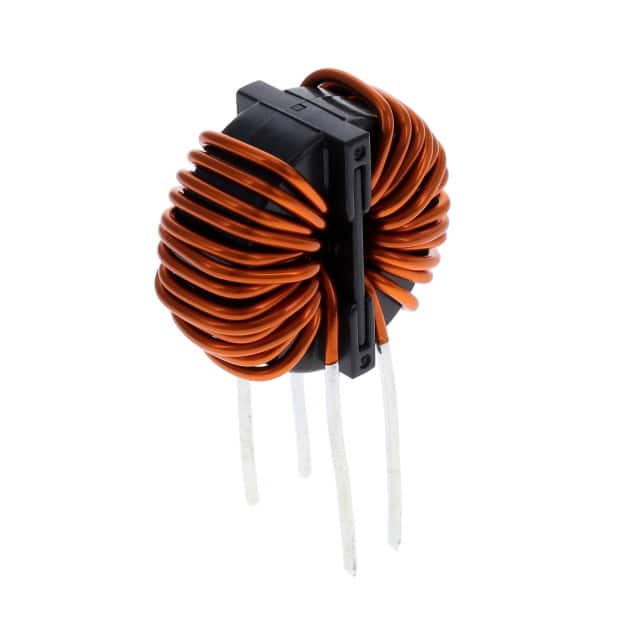

LDFL012282VD-V0ECMC 2.8MH 12A 2LN TH |
2,292 | 9.57 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2.8 mH @ 100 kHz | 12A | 9.5mOhm | 250V | - | - | - | - | - | - | - |
|
SCF19XV-190-1R5A005JVCMC 300UH 19A 2LN TH AEC-Q200 |
4,058 | 10.01 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 19A | 1.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-220-1R6A004JVCMC 200UH 22A 2LN TH AEC-Q200 |
4,415 | 10.01 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-120-1R2A007JHCMC 600UH 12A 2LN TH AEC-Q200 |
4,903 | 10.01 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 4.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

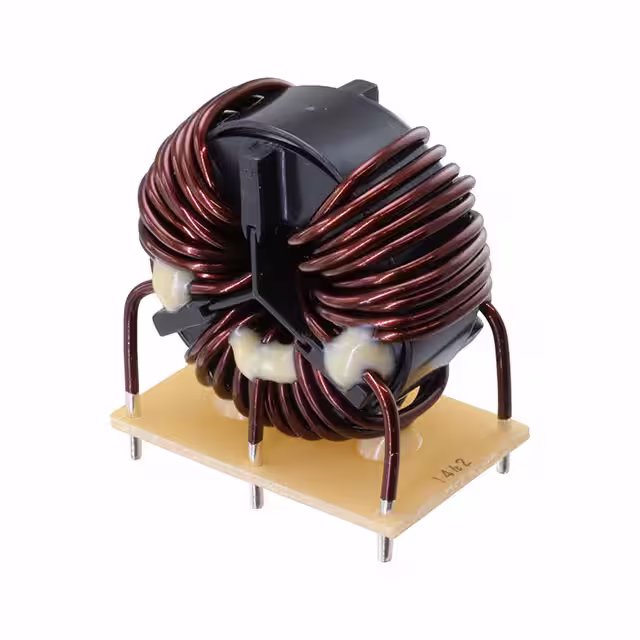

SC-20-SE10JCMC 940UH 20A 3LN TH |
2,268 | 10.30 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 940 µH @ 10 kHz | 20A | 7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-E50JHCMC 5.2MH 15A 2LN TH |
3,630 | 10.38 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.2 mH @ 10 kHz | 15A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR31H-225-2R0A014JCMC 1.4MH 22.5A 2LN TH |
2,350 | 10.74 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 10 kHz | 22.5A | 5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

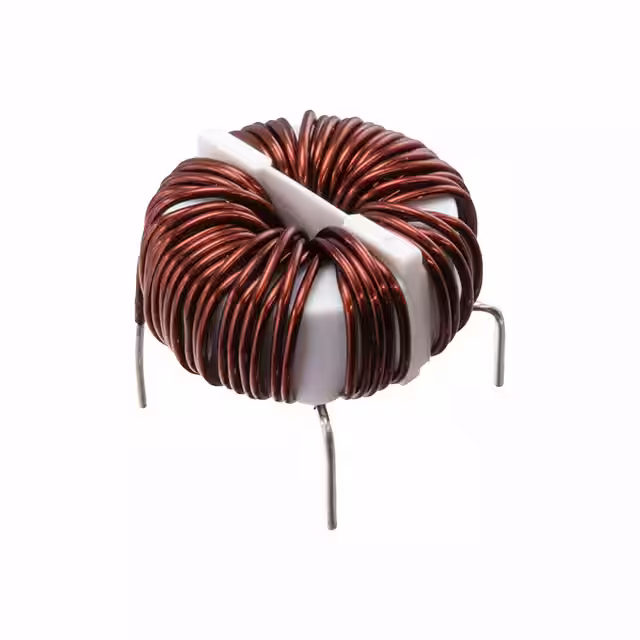

SC-10-500CMC 5MH 10A 2LN TH |
3,859 | 11.23 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 10A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
RT8522-6-10M0CMC 10MH 6A 2LN TH |
3,244 | 9.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 6A | 33mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
744844471CMC 470UH 9A 2LN TH |
3,407 | 13.13 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 470 µH @ 10 kHz | 9A | 16mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIV-1-3243-16D9CMC 16A 2LN TH |
3,646 | 13.93 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 16A | 5.7mOhm (Typ) | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
RT8122-8-8M0CMC 8MH 8A 2LN TH |
3,497 | 9.43 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 8A | 21mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
SCR38-350-1R8B008JCMC 850UH 35A 2LN TH |
1,550 | 13.61 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
744830007215CMC 700UH 21.5A 2LN TH |
2,825 | 14.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 21.5A | 3.8mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF25XV-280-2R1A005JVCMC 600UH 28A 2LN TH AEC-Q200 |
4,257 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.39mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-170-1R7A009JVCMC 2MH 17A 2LN TH AEC-Q200 |
3,635 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 17A | 3.71mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-350-2R4A003JHCMC 220UH 35A 2LN TH AEC-Q200 |
4,405 | 12.70 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 35A | 0.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
RT8532-8-4M8CMC 4.8MH 8A 3LN TH |
2,121 | 10.92 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 4.8 mH @ 100 kHz | 8A | 17mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
SCF29XV-120-1R6A017JHCMC 3.2MH 12A 2LN TH AEC-Q200 |
4,389 | 13.89 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.2 mH @ 100 kHz | 12A | 6.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
RT8132-10-4M0CMC 4MH 10A 3LN TH |
2,583 | 11.84 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 4 mH @ 100 kHz | 10A | 15mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
