Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

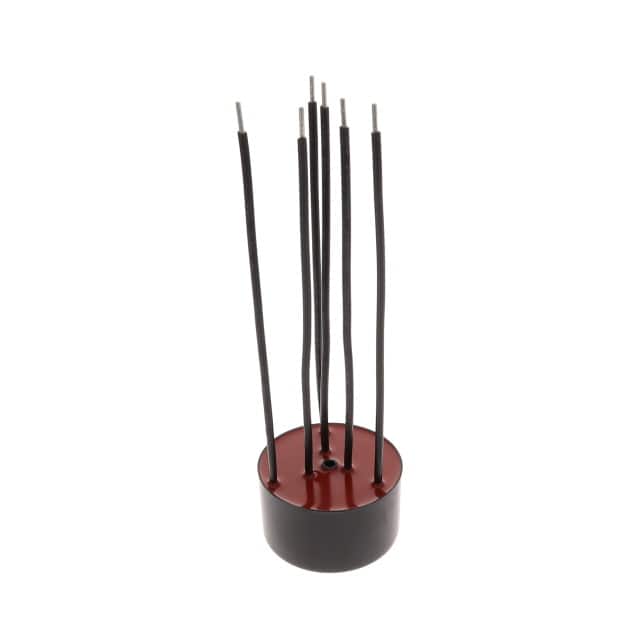

RD6137-16-1M5CMC 1.5MH 16A 3LN TH |
2,541 | 19.21 |
|
Datasheet |
- | Power Line | 3 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

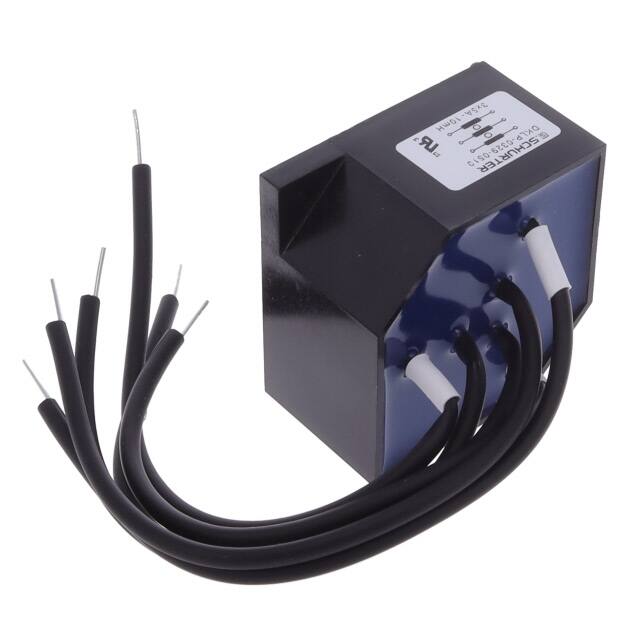

DKLP-0329-0510CMC 5A 3LN TH |
2,618 | 30.48 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 5A | 48mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIP-0329-1002CMC 10A 3LN CHAS MNT |
2,700 | 31.69 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 10A | 15mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIH-3352-162N-NKCMC 16A 3LN TH |
4,466 | 33.09 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 16A | 3mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|

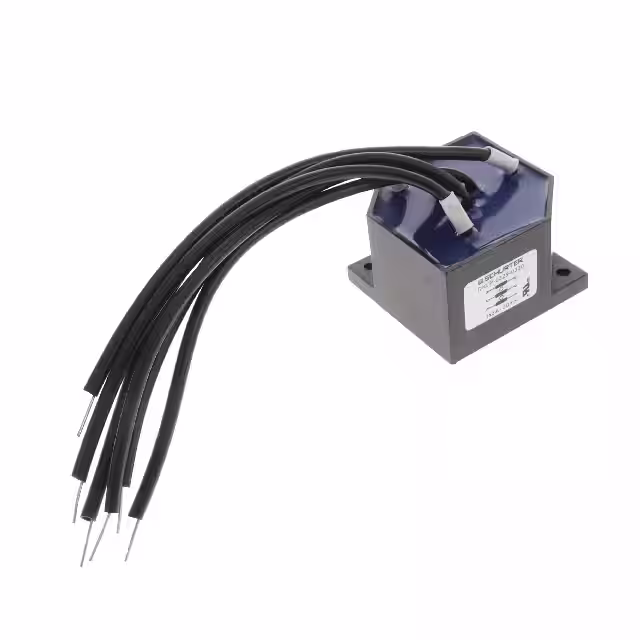

DKLP-0329-0330CMC 3A 3LN TH |
1,479 | 33.49 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 3A | 130mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|

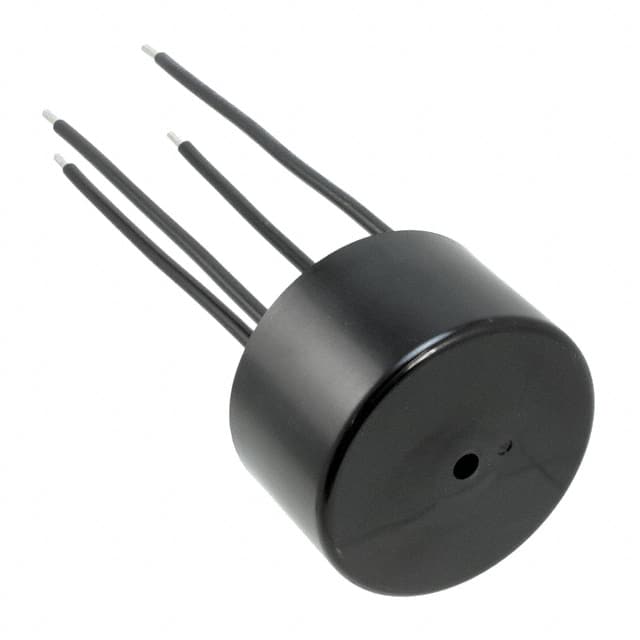

RD7127-6-25M0CMC 25MH 6A 2LN TH |
4,997 | 22.62 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 400 Hz | 6A (Typ) | 84.2mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
744835090095CMC 9MH 9.5A 3LN TH |
3,548 | 38.19 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 9 mH @ 10 kHz | 9.5A | 47mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

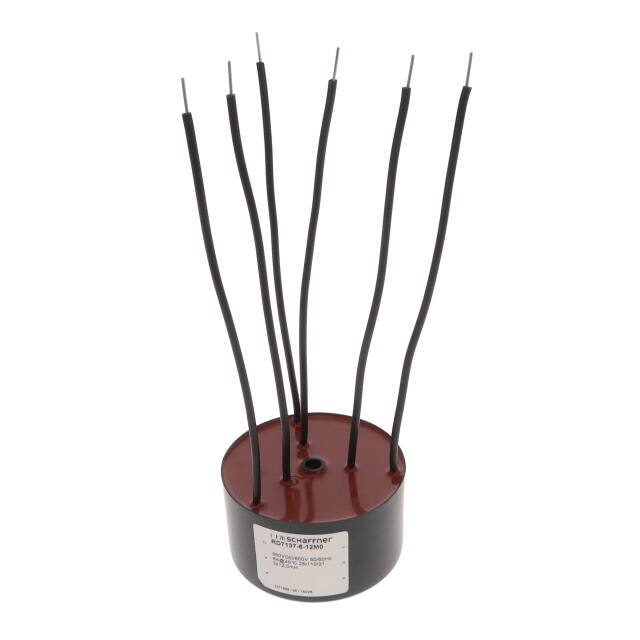

RD7137-6-12M0CMC 12MH 6A 3LN TH |
1,750 | 24.43 |
|
Datasheet |
- | Power Line | 3 | - | 12 mH @ 1 kHz | 6A (Typ) | 60.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7137-10-6M6CMC 6.6MH 10A 3LN TH |
1,107 | 25.16 |
|
Datasheet |
- | Power Line | 3 | - | 6.6 mH @ 400 Hz | 10A (Typ) | 21.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

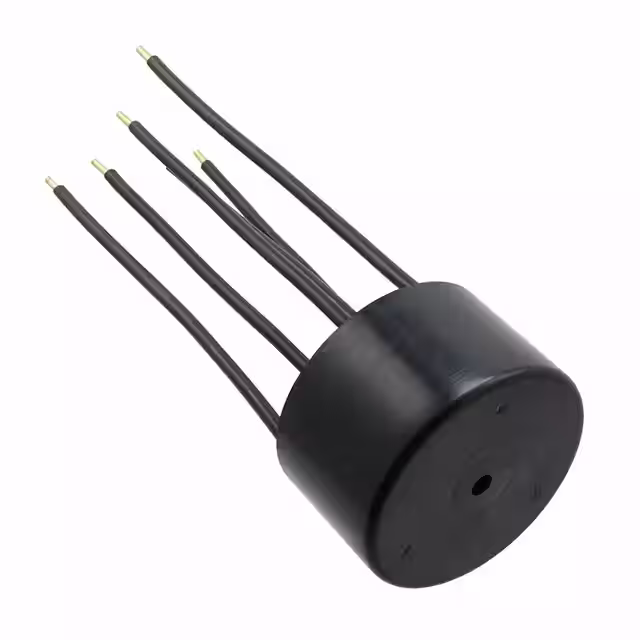

RD7137-36-0M5CMC 500UH 36A 3LN TH |
3,287 | 27.61 |
|
Datasheet |
- | Power Line | 3 | - | 500 µH @ 400 Hz | 36A (Typ) | 2.75mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

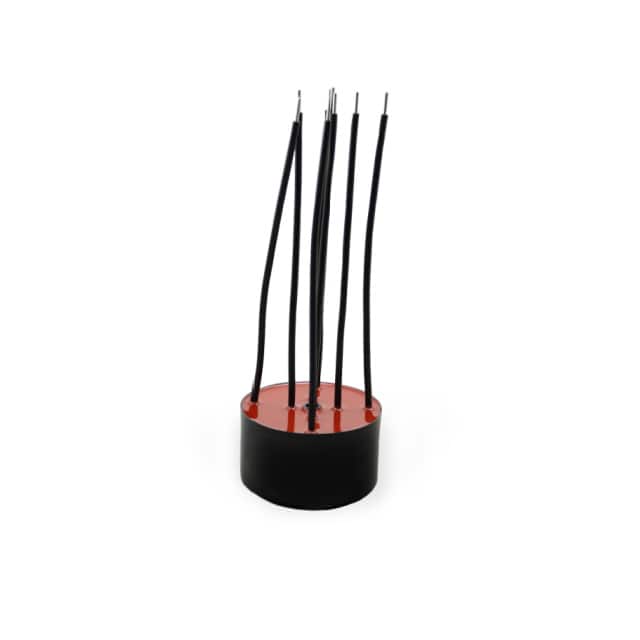

RD7147-16-1M5CMC 1.5MH 16A 4LN TH |
4,113 | 28.56 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-25-0M7CMC 700UH 25A 4LN TH |
4,905 | 29.63 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 700 µH @ 1 kHz | 25A (Typ) | 3.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

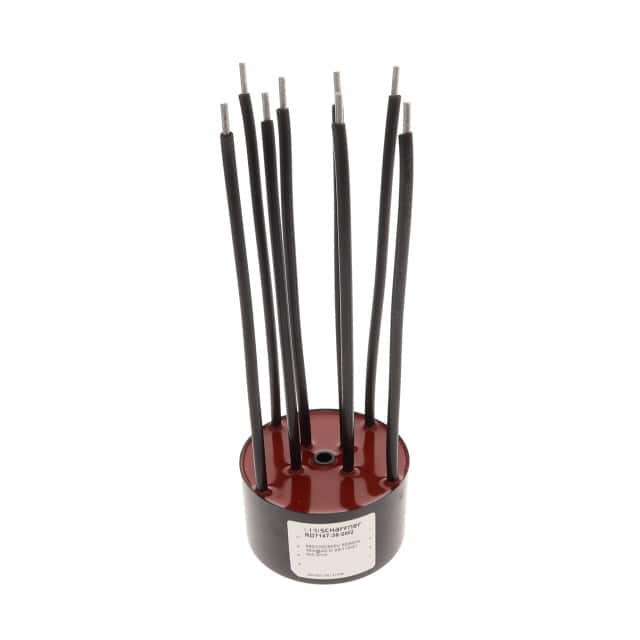

RD7147-36-0M2CMC 200UH 36A 4LN TH |
1,704 | 30.44 |
|
Datasheet |
Horizontal, 8 PC Pin | Power Line | 4 | - | 200 µH @ 400 Hz | 36A (Typ) | 2.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
.jpg)
|
DKIL-0231-1505CMC 15A 2LN TH |
4,887 | 47.63 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 15A | 17mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
744838180160CMC 18MH 16A 3LN TH |
3,181 | 54.50 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 18 mH @ 10 kHz | 16A | 14mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

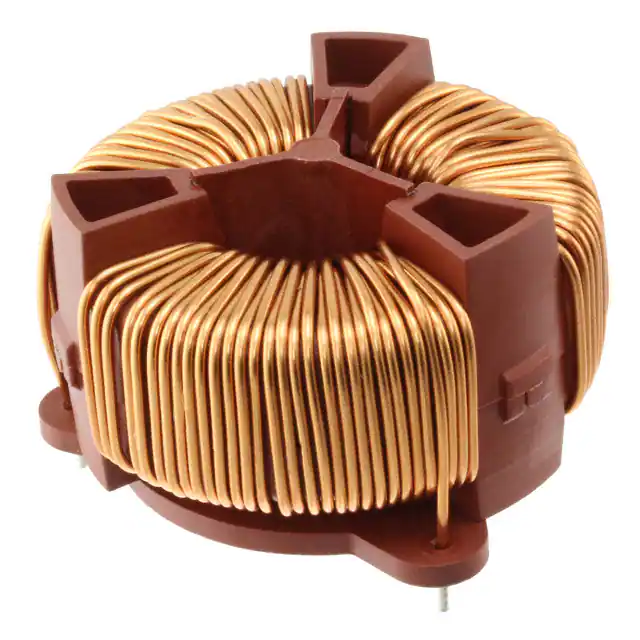

744839208072CMC 208MH 7.2A 3LN TH |
1,795 | 54.50 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 208 mH @ 10 kHz | 7.2A | 85mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

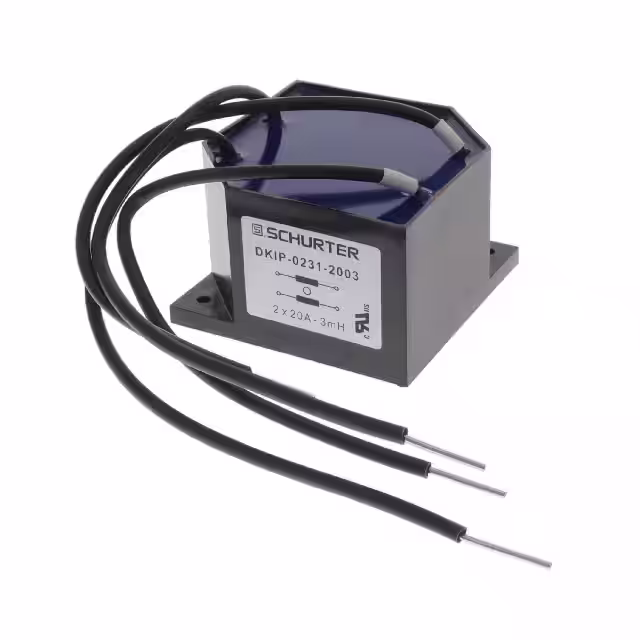

DKIP-0231-2003CMC 20A 2LN TH |
2,431 | 50.11 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 20A | 10mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|

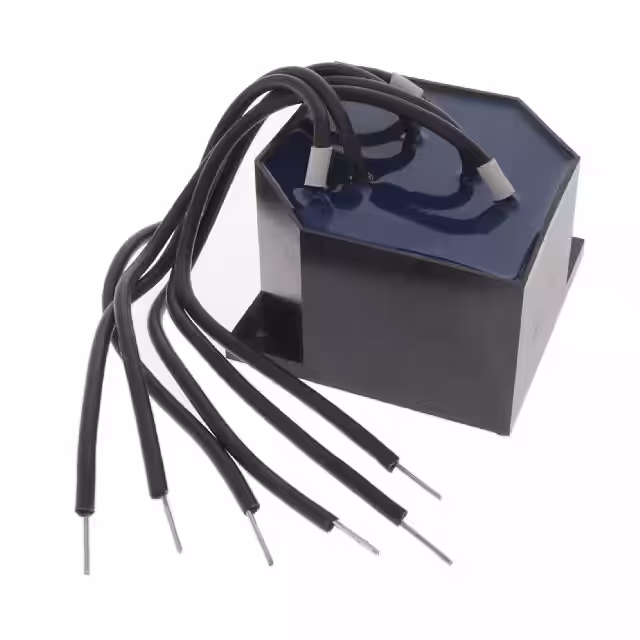

DKIP-0331-1005CMC 10A 3LN TH |
1,773 | 53.80 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 10A | 32mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|

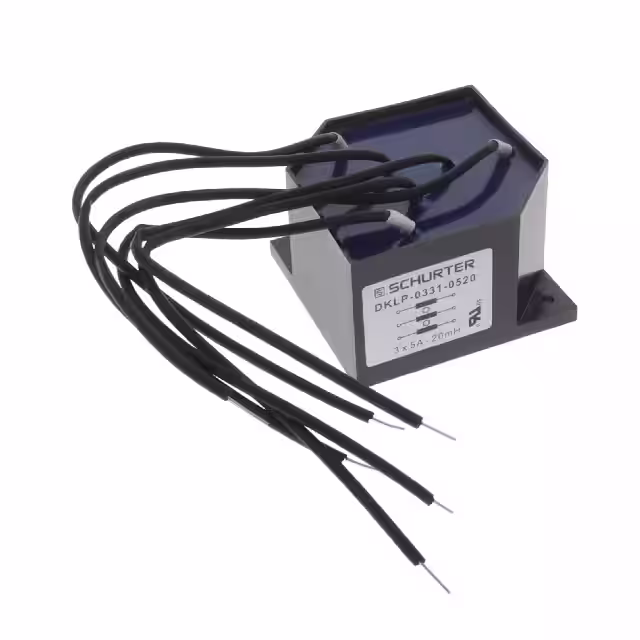

DKLP-0331-0520CMC 5A 3LN TH |
3,562 | 62.13 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 5A | 100mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKLP-0331-0350CMC 3A 3LN TH |
4,571 | 63.01 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 3A | 260mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
