Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

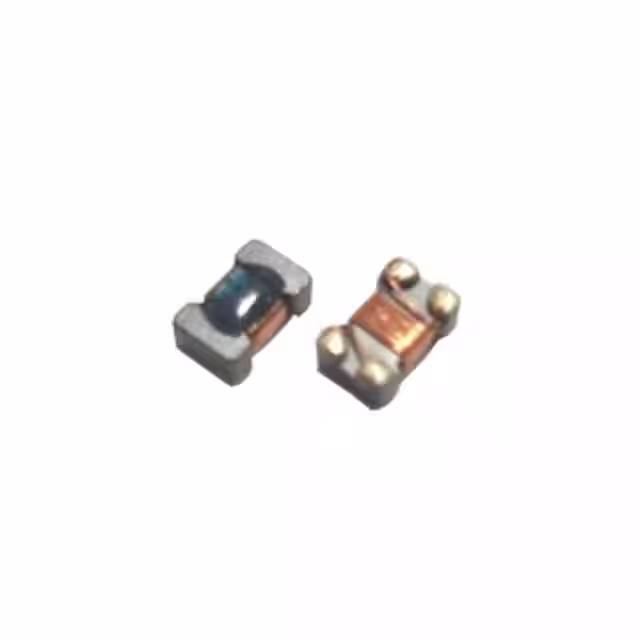

BWCC00201208261M02CMC 700MA 2LN 260 OHM SMD |
2,727 | 0.10 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 700mA | 600mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
PCMF1HDMI14SZCMC |
1,445 | 0.10 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2752041447CMC 2LN 30 OHM SMD |
2,045 | 0.20 |
|
Datasheet |
- | Signal Line | 2 | 30 Ohms @ 100 MHz | - | - | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
AWCU00201212121M02CMC 400MA 2LN 120OHM SMD AECQ200 |
4,891 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212300M02CMC 450MA 2LN 30OHM SMD AEC-Q200 |
1,321 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 30 Ohms @ 100 MHz | - | 450mA | 200mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212371M02CMC 280MA 2LN 370OHM SMD AECQ200 |
2,933 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212221M02CMC 310MA 2LN 220OHM SMD AECQ200 |
1,701 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 310mA | 350mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212261M02CMC 300MA 2LN 260OHM SMD AECQ200 |
2,706 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212161M02CMC 350MA 2LN 160OHM SMD AECQ200 |
3,430 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 350mA | 350mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212181M02CMC 330MA 2LN 180OHM SMD AECQ200 |
4,031 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212501M02CMC 170MA 2LN 500OHM SMD AECQ200 |
4,867 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | - | 170mA | 550mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212201M02CMC 330MA 2LN 200OHM SMD AECQ200 |
3,241 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212301M02CMC 290MA 2LN 300OHM SMD AECQ200 |
4,605 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 290mA | 400mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212671M02CMC 140MA 2LN 670OHM SMD AECQ200 |
4,302 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 670 Ohms @ 100 MHz | - | 140mA | 600mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212750M02CMC 360MA 2LN 75OHM SMD AEC-Q200 |
2,695 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 360mA | 300mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00201212901M02CMC 80MA 2LN 900OHM SMD AEC-Q200 |
3,569 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 100 MHz | - | 80mA | 600mOhm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
BWCU00321619221M02CMC 320MA 2LN 220 OHM SMD |
4,763 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 320mA | 400mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00321619261M02CMC 310MA 2LN 260 OHM SMD |
4,107 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00321619121M02CMC 370MA 2LN 120 OHM SMD |
1,246 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
BWCU00321619222M02CMC 200MA 2LN 2.2K OHM SMD |
4,909 | 0.11 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
