Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

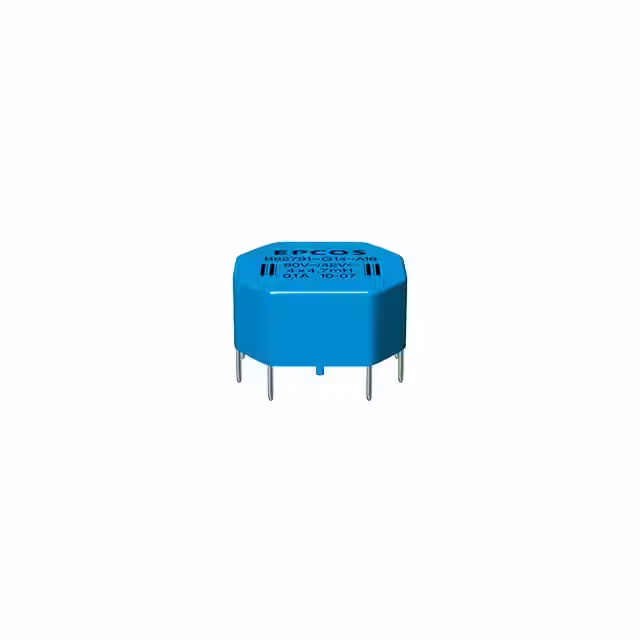

B82791G0014A017CMC 200UH 100MA 2LN TH |
2,808 | 3.42 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 200 µH @ 100 kHz | 100mA | 300mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
LG01-0956N2LFCMC 95UH 4CH EXT TEMP 16P SMD |
4,041 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 650mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
23Z109SMNL-TCMC 10LN SMD |
2,781 | 0.00 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | Signal Line | 10 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
CMJ-2-472CMC 4.7MH 200MA 2LN SMD |
4,784 | 1.36 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 4.7 mH @ 100 kHz | 200mA | 840mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
CAV-0.8-27CMC 27MH 800MA 2LN TH |
2,576 | 2.43 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 27 mH @ 10 kHz | 800mA | 674mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-20-5625.6MH @ 10 KHZ 2 LINE COMMON MOD |
1,529 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 H @ 10 kHz | 2A | 60mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
PE-65854TCMC 4LN SMD |
2,917 | 0.00 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | - | - | 400mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
AMFC10-3NZ3A Common mode choke |
2,813 | 0.00 |
|
Datasheet |
- | - | - | - | - | 30A | 50mOhm (Typ) | 2000V (2kV) | 1500V (1.5kV) | -40°C ~ 105°C | - | - | - | - | - |
|
|
7113-RCCMC 1.7MH 2A 2LN TH |
4,998 | 3.13 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 2A | 75mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

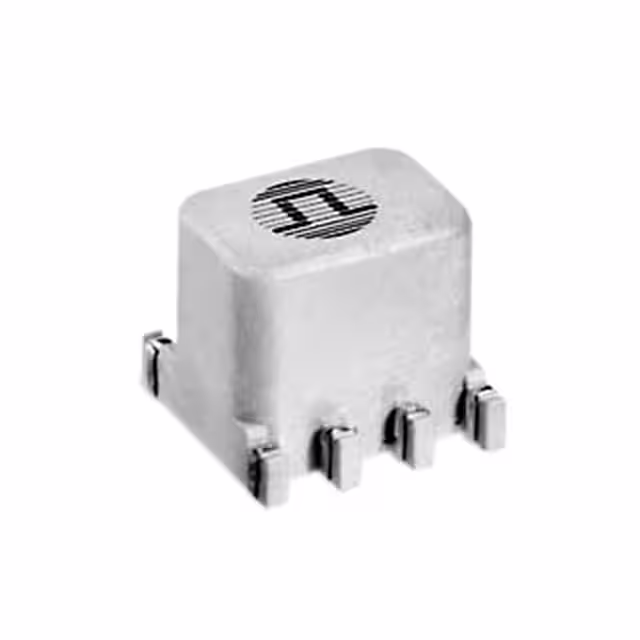

T8006NLTCMC 470UH 4LN SMD |
3,239 | 2.58 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | 470 µH @ 100 kHz | - | 600mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
T8006NLCMC 470UH 4LN SMD |
4,204 | 2.58 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | 470 µH @ 100 kHz | - | 600mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
AMFC1-3NZCMC 1MH 3A 2LN TH |
4,453 | 3.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 3A | 40mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
LG01-0956N2RLTRCMC 95UH 4CH EXT TEMP 16P SMD T/ |
2,303 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 650mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|
|
DKFP-F201-D611DKFP COMP.CHOKE 2PH 600MA 11MH K |
1,904 | 0.00 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AMFC15-0.5NZCMC 15MH 500MA 2LN TH |
4,728 | 6.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 1 kHz | 500mA | 600mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
B2013FNLCMC 9MH 100MA 2LN SMD |
1,611 | 2.62 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 1Ohm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
PE-68627NLTCMC 4LN SMD |
1,341 | 2.63 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | - | - | 250mOhm | - | - | - | - | - | - | - | - |
|
|
AE3005CMC 350MA 2LN SMD AEC-Q200 |
4,876 | 3.12 |
|
- |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 350mA | - | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
LG01-0956N2RLCMC 95UH 4CH EXT TEMP 16P SMD |
3,354 | 0.00 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 650mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
T60405R6161X4046161X404 |
1,145 | 0.00 |
|
- |
Vertical, 4 PC Pin | - | 2 | 2.3 kOhms @ 100 kHz | 2.3 mH @ 100 kHz | 4.4A | 31.5mOhm | - | - | -40°C ~ 70°C | - | - | - | - | - |
