Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF2720B-152Y5R0-01CMC 5A 2LN TH |
4,860 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 5A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
PL8220TPOWER |
2,920 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 400 µH @ 10 kHz | 6A | 9.4mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

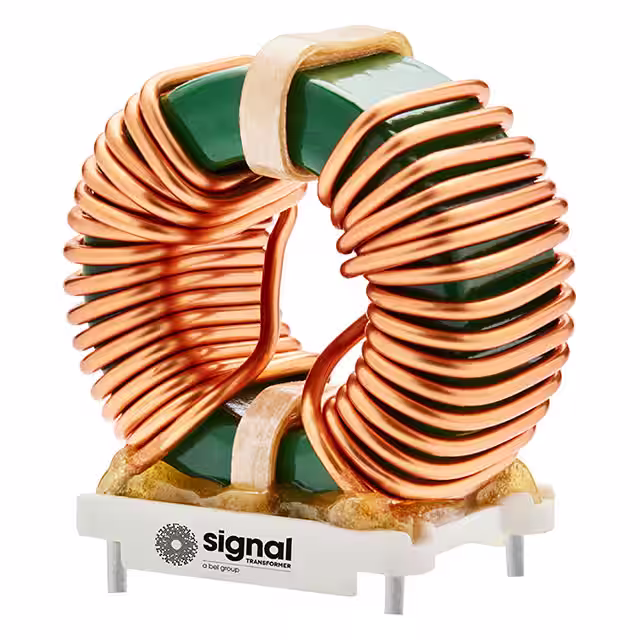

HCTC-2.5-12.5CMC 2.5MH 12.5A 2LN TH |
3,019 | 5.90 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
PL8213NLTPOWER |
1,336 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 800 µH @ 10 kHz | 3A | 30mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8216POWER |
4,625 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 280 µH @ 10 kHz | 4A | 13.2mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8213TPOWER |
2,115 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 800 µH @ 10 kHz | 3A | 30mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

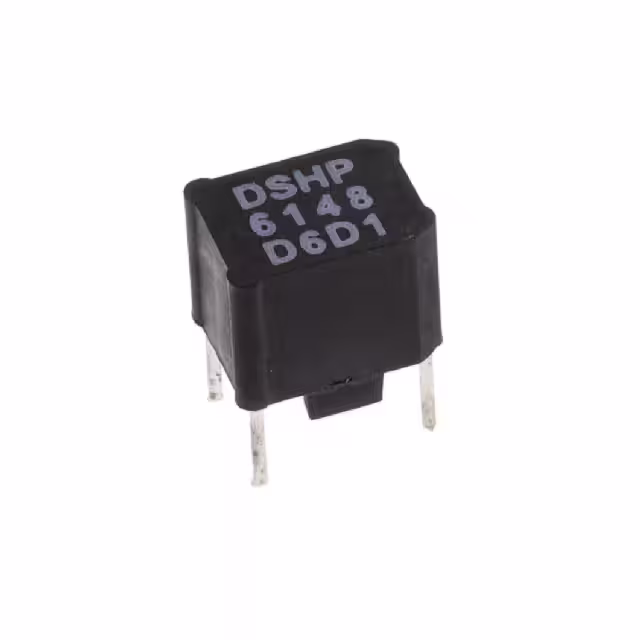

DSHP-6148-D6D1CMC 600MALN TH |
3,703 | 7.69 |
|
Datasheet |
Radial | - | - | - | - | 600mA | 550mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PL8212NLPOWER |
3,168 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.125 mH @ 10 kHz | 1.8A | 55mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8212POWER |
3,734 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.125 mH @ 10 kHz | 1.8A | 55mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8215NLTPOWER |
4,164 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 536 µH @ 10 kHz | 3.8A | 17.1mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8215TPOWER |
4,619 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 536 µH @ 10 kHz | 3.8A | 17.1mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
TF3524V-402Y6R0-01CMC 6A 2LN TH |
1,605 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 6A | 35mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-502Y5R0-01CMC 5A 2LN TH |
1,168 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 5A | 50mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-750Y12R0-1HCMC 75UH 12A 2LN TH |
4,024 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 75 µH @ 10 kHz | 12A | 10mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-601Y15R0-01CMC 15A 2LN TH |
3,617 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 15A | 7mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-702Y4R0-01CMC 4A 2LN TH |
1,012 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-450Y15R0-1HCMC 15A 2LN TH |
1,212 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 15A | 7mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-121Y8R0-1HCMC 120UH 8A 2LN TH |
2,023 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 120 µH @ 10 kHz | 8A | 20mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3524V-301Y20R0-01CMC 20A 2LN TH |
1,482 | 7.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 20A | 5mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF2720B-502Y3R0-01CMC 3A 2LN TH |
4,338 | 7.09 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3A | 150mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
