Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3000-181CMC 180UH 810MA 2LN TH |
2,255 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 180 µH @ 1 kHz | 810mA | 259mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-182CMC 1.8MH 260MA 2LN TH |
2,818 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 1.8 mH @ 1 kHz | 260mA | 2.8Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-221CMC 220UH 790MA 2LN TH |
2,325 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 220 µH @ 1 kHz | 790mA | 316mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-272CMC 2.7MH 230MA 2LN TH |
2,174 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 2.7 mH @ 1 kHz | 230mA | 3.68Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-332CMC 3.3MH 210MA 2LN TH |
2,893 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 3.3 mH @ 1 kHz | 210mA | 4.71Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-392CMC 3.9MH 200MA 2LN TH |
2,944 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 3.9 mH @ 1 kHz | 200mA | 5.16Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-472CMC 4.7MH 180MA 2LN TH |
1,044 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 4.7 mH @ 1 kHz | 180mA | 6.64Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
3000-562CMC 5.6MH 150MA 2LN TH |
3,386 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 5.6 mH @ 1 kHz | 150mA | 9.03Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7103CMC 2MH 1A 2LN TH |
4,799 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 1A | 70mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7105CMC 5MH 1A 2LN TH |
4,837 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 1A | 125mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7106CMC 600UH 2A 2LN TH |
4,790 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 600 µH @ 1 kHz | 2A | 30mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7107CMC 1MH 2A 2LN TH |
4,439 | 0.00 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 2A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7350-VCMC 500UH 1.5A 2LN TH |
2,824 | 0.00 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 500 µH @ 1 kHz | 1.5A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
PM3700-30CMC 750UH 5.5A 2LN SMD |
3,803 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 1 kHz | 5.5A | 12mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-40CMC 1MH 4A 2LN SMD |
1,546 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 1 kHz | 4A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-70CMC 10MH 1.5A 2LN SMD |
3,322 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 10 mH @ 1 kHz | 1.5A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
PM3700-80CMC 20MH 1A 2LN SMD |
2,970 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 20 mH @ 1 kHz | 1A | 250mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

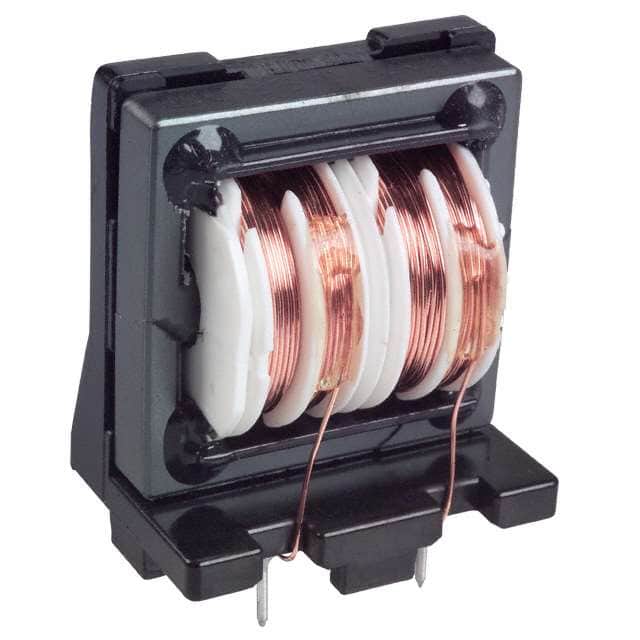

ELF-21V006ACMC 600MA 2LN TH |
3,888 | 2.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 600mA | 1.294Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V007ACMC 700MA 2LN TH |
1,527 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 700mA | 1.212Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-21V008ACMC 800MA 2LN TH |
2,973 | 3.61 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 800mA | 707mOhm (Typ) | - | - | - | - | - | - | - | - |
