Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

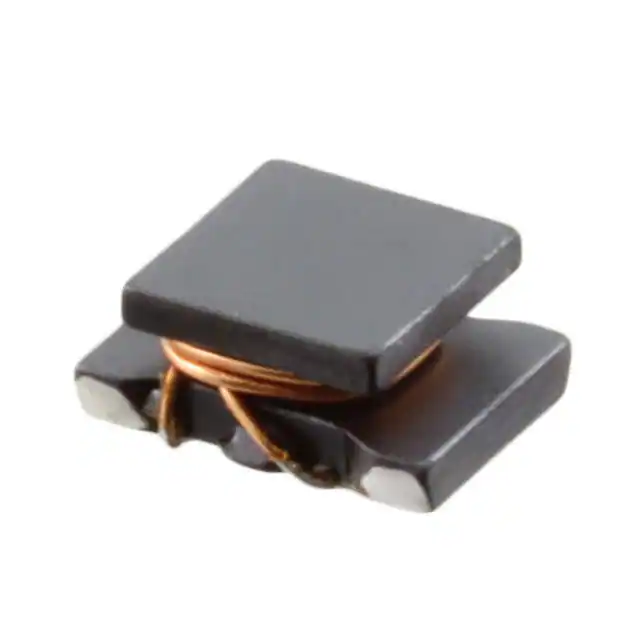

DLW5ATH112MQ2KCMC 1.5A 2LN 1.1KOHM SMD AECQ200 |
1,119 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.1 kOhms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH151MQ2KCMC 3A 2LN 150 OHM SMD AEC-Q200 |
1,837 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 150 Ohms @ 100 MHz | - | 3A | 20mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH231TQ2KCMC 2.5A 2LN 230OHM SMD AEC-Q200 |
4,830 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 230 Ohms @ 100 MHz | - | 2.5A | 27mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH331MQ2KCMC 2.5A 2LN 330OHM SMD AEC-Q200 |
1,640 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 330 Ohms @ 100 MHz | - | 2.5A | 27mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH401TQ2KCMC 2A 2LN 400 OHM SMD AEC-Q200 |
4,712 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 400 Ohms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH450TQ2KCMC 4A 2LN 45 OHM SMD AEC-Q200 |
1,637 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 45 Ohms @ 100 MHz | - | 4A | 13mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH500MQ2KCMC 4A 2LN 50 OHM SMD AEC-Q200 |
1,051 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 50 Ohms @ 100 MHz | - | 4A | 13mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH501MQ2KCMC 2A 2LN 500 OHM SMD AEC-Q200 |
3,346 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH501TQ2KCMC 1.5A 2LN 500OHM SMD AEC-Q200 |
4,578 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5BTH101TQ2KCMC 4A 2LN 100 OHM SMD AEC-Q200 |
3,853 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 4A | 13mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5BTH102TQ2KCMC 2A 2LN 1K OHM SMD AEC-Q200 |
4,530 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5BTH142TQ2KCMC 1.5A 2LN 1.4KOHM SMD AECQ200 |
2,091 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5BTH251TQ2KCMC 3A 2LN 250 OHM SMD AEC-Q200 |
3,865 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 250 Ohms @ 100 MHz | - | 3A | 20mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5BTH501TQ2KCMC 2.5A 2LN 500OHM SMD AEC-Q200 |
4,054 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 2.5A | 27mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
2744051446CMC 5A 2LN 230 OHM SMD |
3,676 | 0.62 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 230 Ohms @ 100 MHz | - | 5A | 4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
B2005CMC 9MH 100MA 2LN TH |
1,216 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 600mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B2013CMC 9MH 100MA 2LN SMD |
2,055 | 0.00 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 1Ohm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
MCF06052G120-TCMC 50MA 2LN 12 OHM SMD |
1,627 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 50mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF06052G350-TCMC 50MA 2LN 35 OHM SMD |
4,969 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 50mA | 5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF12102H500-TCMC 160MA 2LN 50 OHM SMD |
2,966 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 160mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
