Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

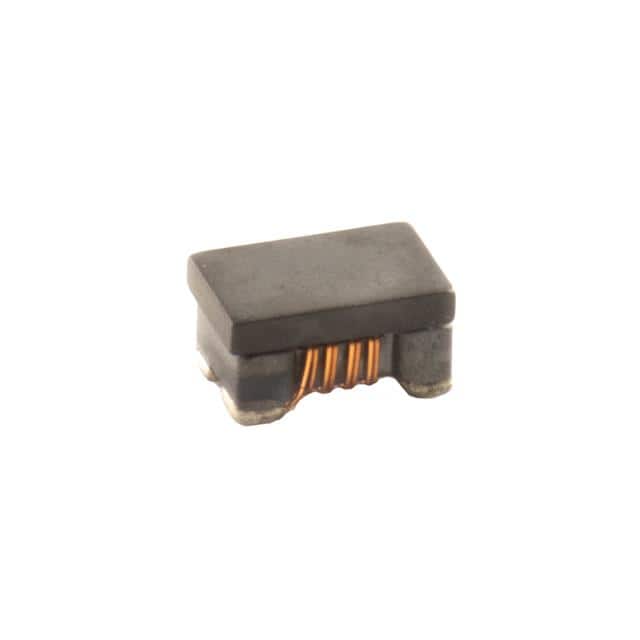

SCM10-361M-RCCMC 280MA 2LN 360 OHM SMD |
1,598 | 0.98 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 360 Ohms @ 100 MHz | - | 280mA | 450mOhm | 120V | - | -40°C ~ 150°C | - | - | - | - | - |
|

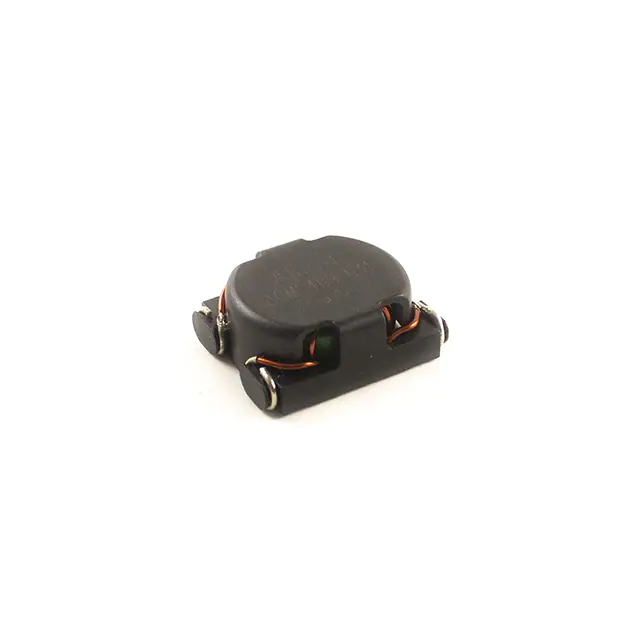

ACM0469-631CMC 630UH 11.6A 2LN SMD |
4,104 | 3.75 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 630 µH @ 10 kHz | 11.6A | 11mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

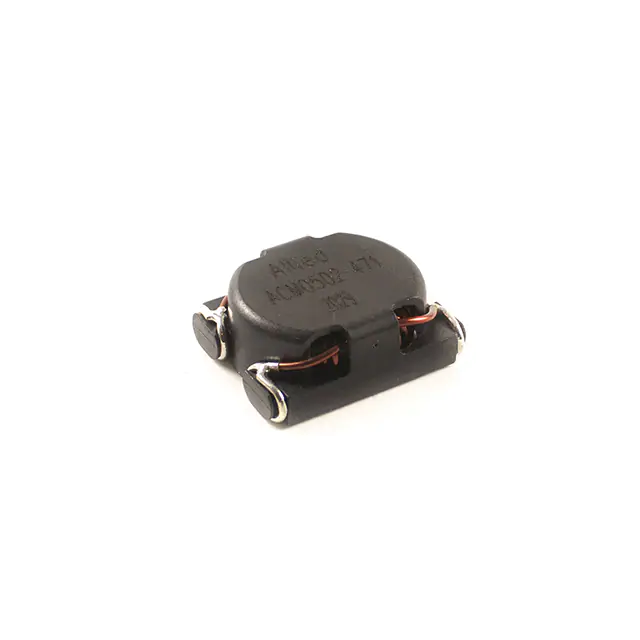

ACM0502-471CMC 470UH 14A 2LN TH |
2,727 | 3.50 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 470 µH @ 10 kHz | 14A | 8mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

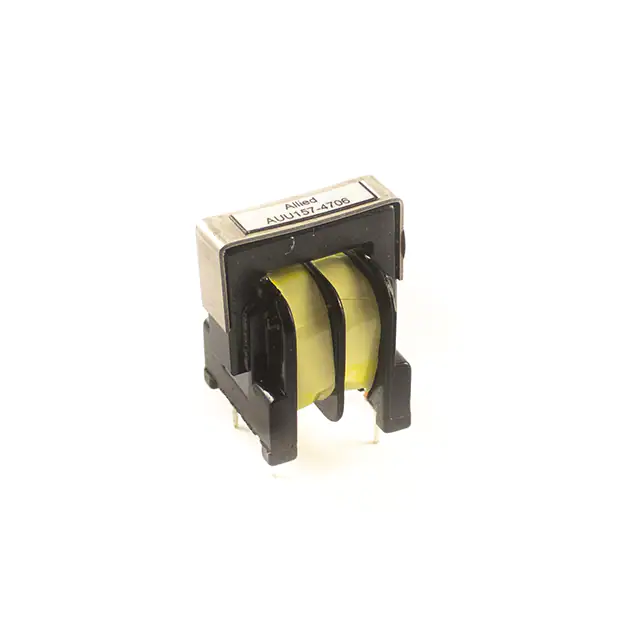

AUU157-4706CMC 10MH 1.5A 2LN TH |
4,324 | 8.50 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.5A | 220mOhm Max | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
VCMB8103-RCCMC 1MH 4.8A 2LN TH |
4,437 | 3.75 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
MCM-7060M-102CMC 3A 2LN 1.02K OHM SMD |
4,214 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.02 kOhms @ 100 MHz | - | 3A | 17mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|

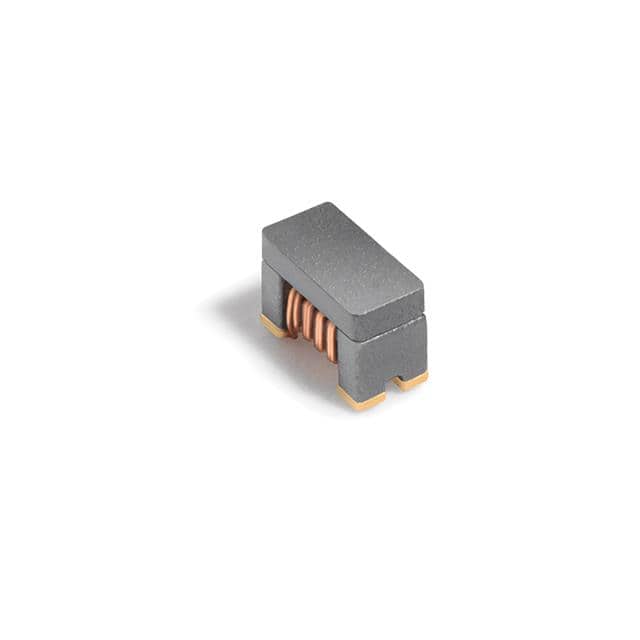

0603USB-951MLC0603USB-951MLC |
2,758 | 0.93 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 2.6 GHz | 63 nH @ 100 MHz | 500mA | 142mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
DLW43SH510XK2CMC 51UH 230MA 2LN SMD AEC-Q200 |
4,149 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 51 µH @ 1 MHz | 230mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW43SH220XK2CMC 22UH 310MA 2LN SMD AEC-Q200 |
3,471 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 22 µH @ 100 kHz | 310mA | 600mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW43SH110XK2CMC 11UH 360MA 2LN SMD AEC-Q200 |
3,911 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 11 µH @ 100 kHz | 360mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW43SH101XK2CMC 100UH 200MA 2LN SMD AEC-Q200 |
4,141 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 1 MHz | 200mA | 2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW32SH101XF2CMC 100UH 115MA 2LN SMD AEC-Q200 |
3,974 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 115mA | 2.1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MCZ1210DH120L2TD0GCMC 2LN 12 OHM SMD |
2,445 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
AMFC47-3NZCMC 4.7MH 3A 2LN TH |
3,306 | 4.65 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 3A | 70mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
AMFC10-0.5NZCMC 10MH 500MA 2LN TH |
4,195 | 3.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 500mA | 500mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
AMFC82-1NZCMC 8.2MH 1A 2LN TH |
2,059 | 3.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8.2 mH @ 1 kHz | 1A | 180mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
AMFW40-3JZ-STCMC 49LN CHAS MNT INDUSTRIAL |
4,710 | 19.74 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | - | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
|
AMFC22-1NZCMC 2.2MH 1A 2LN TH |
4,372 | 2.84 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1A | 90mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
AMFC33-1NZCMC 3.3MH 1A 2LN TH |
2,730 | 2.17 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 1A | 100mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
DLP11SN201HL2B+00-53CMC 110MA 2LN 200 OHM SMD |
3,535 | 0.00 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 110mA | 3.88Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
