Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF0602-101YCMC 100UH 300MA 2LN 260 OHM SMD |
1,122 | 2.49 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 3 MHz | 100 µH @ 10 kHz | 300mA | 220mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SHO-402CMC 800MA 2LN TH |
582 | 2.49 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 99 µH @ 100 kHz | 800mA | 120mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
|
|
SRF0602-100YCMC 10UH 300MA 2LN 600 OHM SMD |
259 | 2.49 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 35 MHz | 10 µH @ 10 kHz | 300mA | 240mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
B82731M2501A030CMC 47MH 500MA 2LN TH |
8,422 | 3.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82731M2601A030CMC 39MH 600MA 2LN TH |
4,223 | 3.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 600mA | 1.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720K2601N040CMC 4.4MH 600MA 2LN TH |
599 | 3.49 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SN8S-500CMC 72UH 2A 2LN TH |
1,526 | 2.56 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 2A | 68mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
RN202-0.3-02-22MCMC 22MH 300MA 2LN TH |
191 | 2.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82721A2701N020CMC 10MH 700MA 2LN TH |
2,860 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 550mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

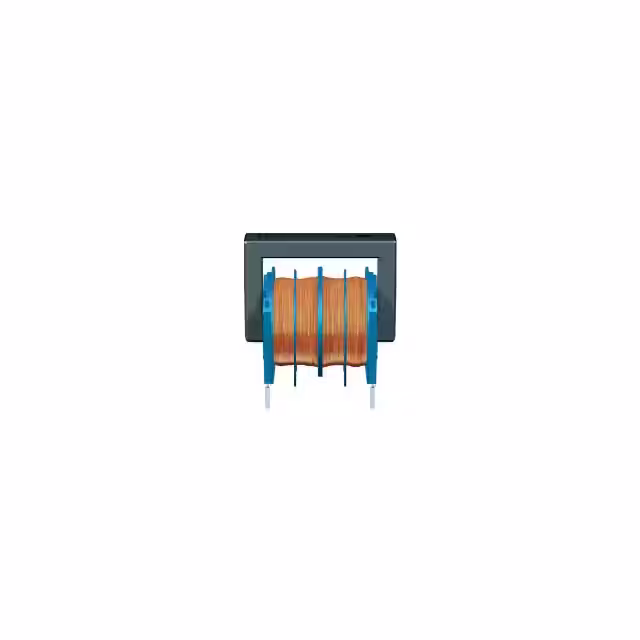

B82731M2801A030CMC 22MH 800MA 2LN TH |
1,358 | 3.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 800mA | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
ACMP-Q9050-102-TCMC 5A 2LN 1K OHM SMD AEC-Q200 |
7,869 | 3.27 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

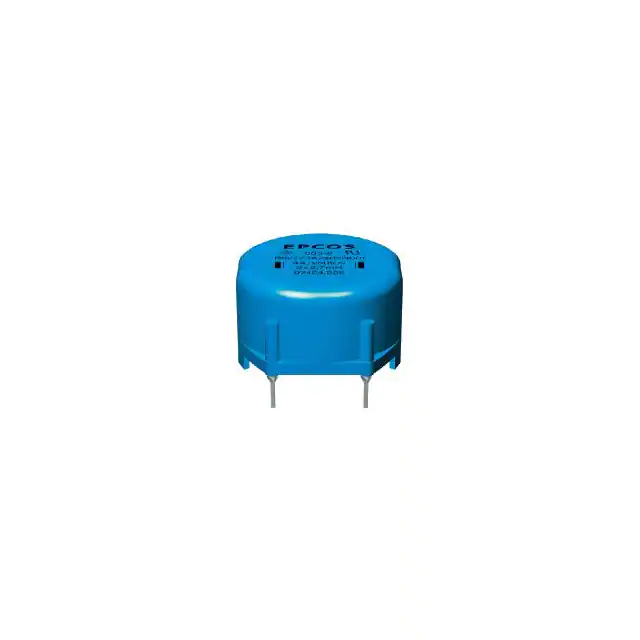

B82723A2142N020CMC 27MH 1.4A 2LN TH |
1,503 | 4.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PAC6006.444NLTCMC 8.5A 2LN 1.9K OHM SMD |
326 | 3.53 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 1.9 kOhms @ 4.8 MHz | - | 8.5A | 10mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
ALFT-03A-13CMC 1MH 2.2A 2LN TH |
310 | 2.56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 2.2A | 400mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
B82731M2401A033CMC 68MH 400MA 2LN TH |
9,298 | 3.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 400mA | 3Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

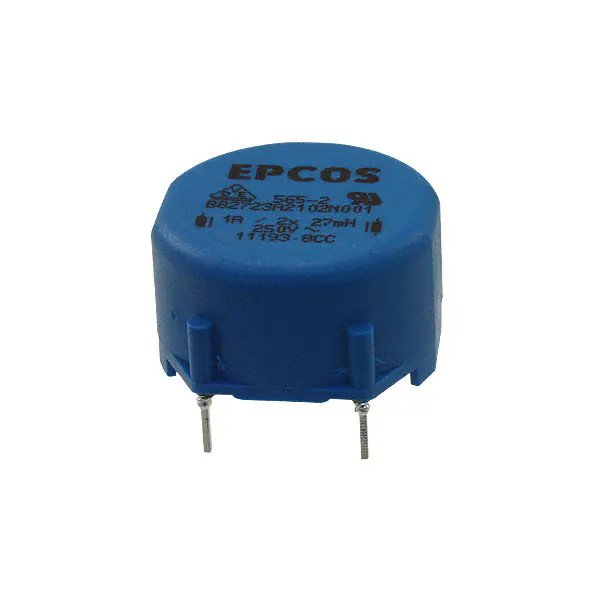

B82723A2102N001CMC 27MH 1A 2LN TH |
199 | 4.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN212-1.2-02-6M8CMC 6.8MH 1.2A 2LN TH |
2,012 | 2.14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 250mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82791H2301N001CMC 30MH 300MA 2LN TH |
1,483 | 4.06 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 300mA | 2.2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

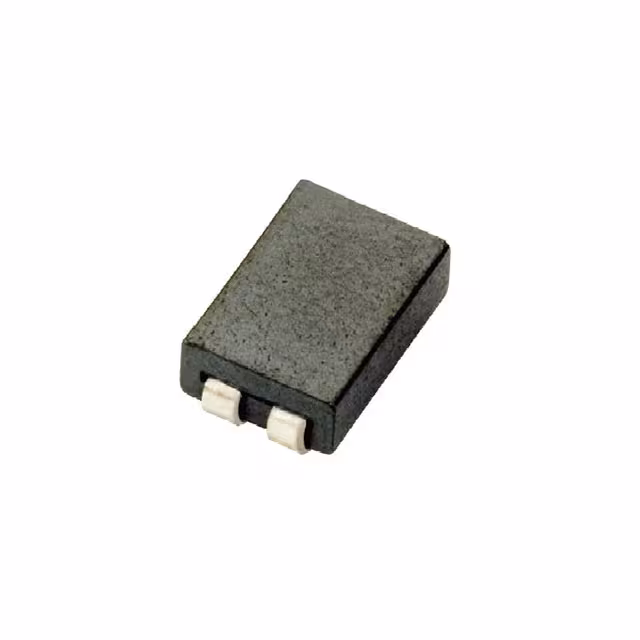

4222RFERRITE BEAD 54 OHM 4SMD 2LN |
184 | 1.65 |
|
Datasheet |
4-SMD, J-Lead | - | 2 | 54 Ohms @ 100 MHz | - | 5A | 10mOhm | 500V | - | - | - | - | - | - | - |
|
RN112-0.5-02-18MCMC 18MH 500MA 2LN TH |
127 | 2.14 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
