Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

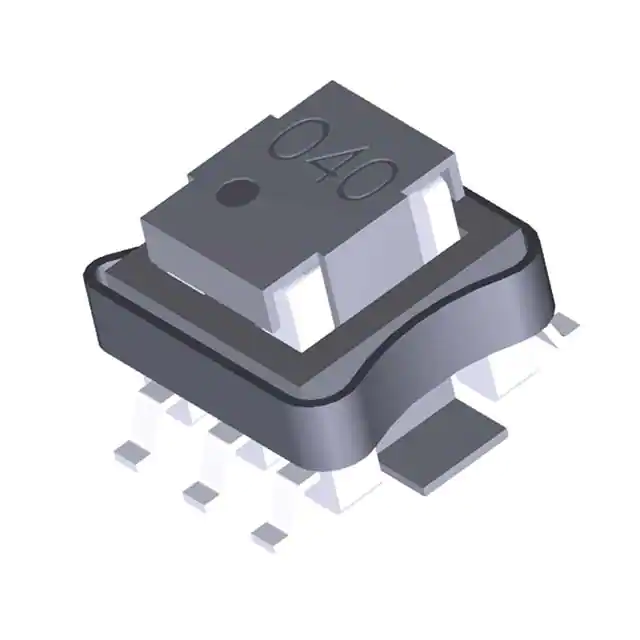

53100CCURR SENSE XFMR 1:100 10A SMD |
3,949 | 1.76 |
|
Datasheet |
5300 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 2 mH | - | 1:100 | - | 7mOhm Primary, 5.6Ohm Secondary | - | Surface Mount | 0.283" L x 0.327" W (7.20mm x 8.30mm) | 0.213" (5.40mm) | Gull Wing |
|
B82801B0925A200CURR SENSE XFMR 1:200 20A SMD |
3,317 | 3.31 |
|
Datasheet |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 8 mH | 100VµS | 1:200 | - | 0.6mOhm Primary, 33.24Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
PA1005.100NLTCURR SENSE XFMR 1:100 20A SMD |
9,058 | 2.47 |
|
Datasheet |
PA1005.XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 2 mH | - | 1:100 | - | 0.75mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
B82801B0205A100CURR SENSE XFMR 1:100 SMD |
3,347 | 2.80 |
|
Datasheet |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 2 mH | - | 1:100 | - | 0.8mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
ACST-261-1CURRENT SENSE TRANSFORMER |
3,182 | 0.00 |
|
Datasheet |
ACST-200 | Tray | Active | 50Hz ~ 200Hz | Invasive | 30 A | 2.4 H | - | 1:1000 | 1000:1 | 0.6mOhm | - | Through Hole | 0.807" L x 0.690" W (20.50mm x 17.53mm) | 0.650" (16.51mm) | PC Pin |
|
ASM-010CURR SENSE XFMR 10A T/H |
21,985 | 4.87 |
|
Datasheet |
ASM | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | - | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

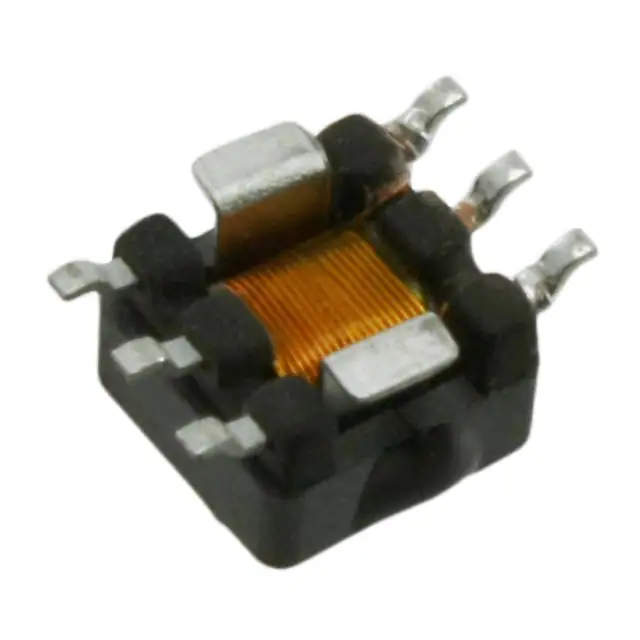

P8205NLTCURR SENSE XFMR 1:50 SMD |
3,151 | 3.01 |
|
Datasheet |
P820X | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 500 µH | - | 1:50 | - | 6mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
CSE187LCURR SENSE XFMR 1:500 30A T/H |
42,956 | 3.66 |
|
Datasheet |
CSE | Bulk | Active | 50Hz ~ 400Hz | Invasive | 30 A | - | - | 1:500 | - | 3mOhm Primary, 21Ohm Secondary | - | Through Hole | 0.860" L x 0.720" W (21.84mm x 18.29mm) | 0.710" (18.03mm) | PC Pin |
|
B82801C0565A100CURR SENSE XFMR 1:100 SMD |
926 | 4.02 |
|
Datasheet |
B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 5.6 mH | - | 1:100 | - | 0.28mOhm Primary, 1Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|

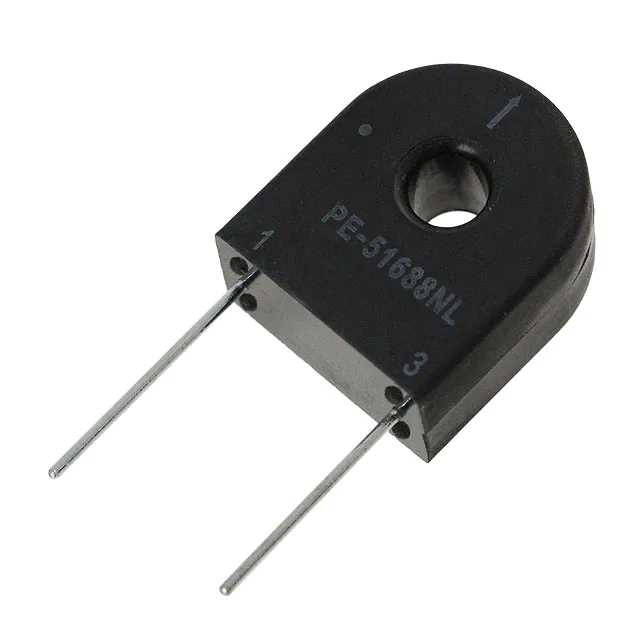

PE-51688NLCURR SENSE XFMR 20A T/H |
926 | 4.36 |
|
Datasheet |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
PE-68280NLTCURR SENSE XFMR 1:1:100 SMD |
7,277 | 3.91 |
|
Datasheet |
PE-68XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 1.15mOhm Primary, 930mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|
AS-100CURR SENSE XFMR 1:50 T/H |
338 | 4.19 |
|
Datasheet |
AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 6 mH | 175VµS | 1:50 | - | 600mOhm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
P0582NLCURR SENSE XFMR 100:1:1 35A T/H |
825 | 4.55 |
|
Datasheet |
THT | Tray | Active | 50kHz ~ 500kHz | Invasive | 35 A | 19 mH | - | 100:1:1 | - | 1.4Ohm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|
AX-0500CURR SENSE XFMR 5A T/H |
1,616 | 4.52 |
|
Datasheet |
AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 500:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

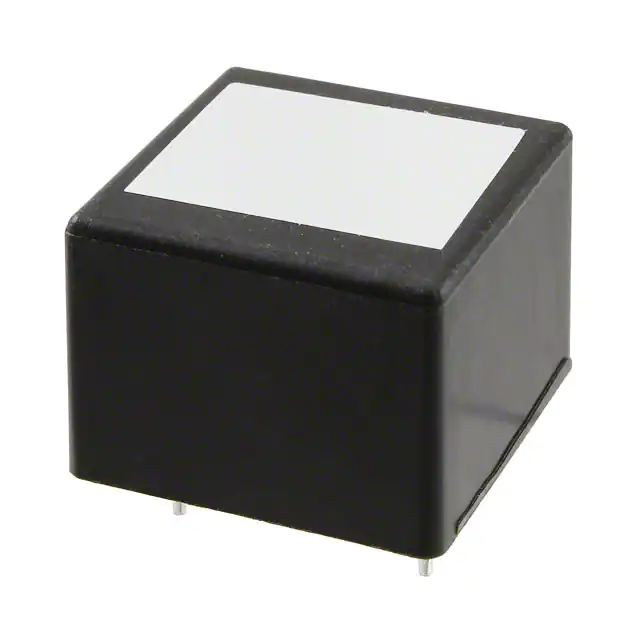

CSE187L-PCURR SENSE XFMR 1:500 30A T/H |
1,050 | 5.54 |
|
Datasheet |
CSE | Bulk | Active | 50Hz ~ 400Hz | Invasive | 30 A | - | - | 1:500 | - | 3mOhm Primary, 21Ohm Secondary | - | Through Hole | 0.875" L x 0.875" W (22.23mm x 22.23mm) | 0.720" (18.29mm) | PC Pin |
|

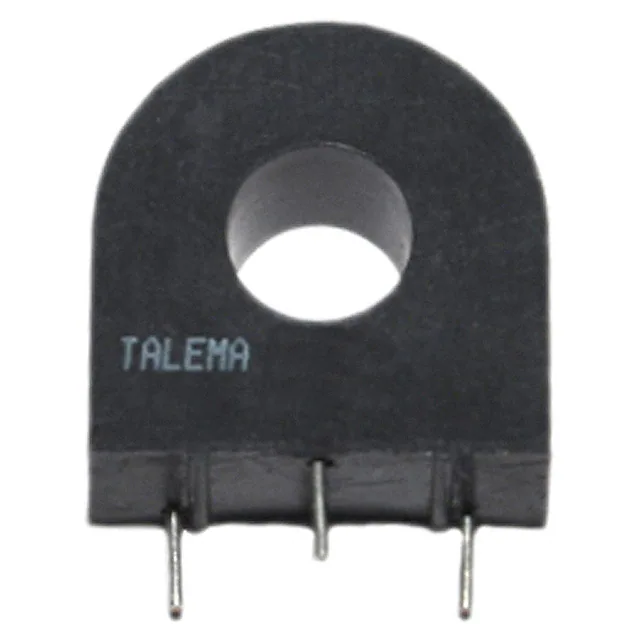

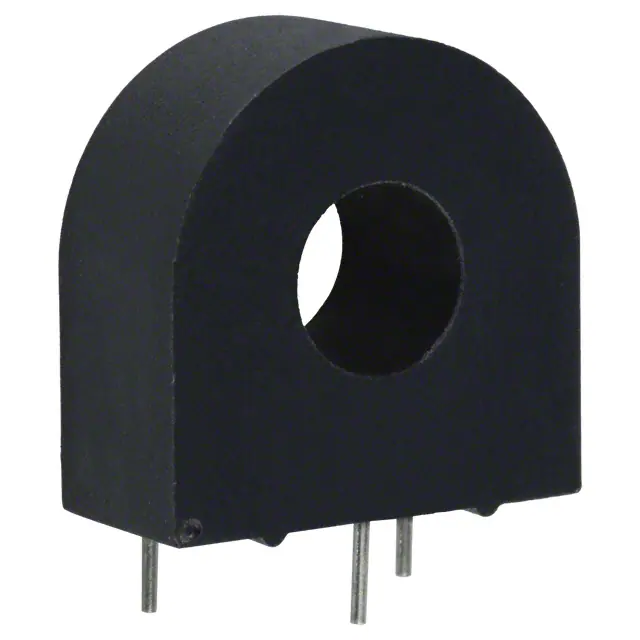

AC1020CURR SENSE XFMR 20A T/H |
14,610 | 5.53 |
|
Datasheet |
AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
T60404E4626X502CURR SENSE XFMR 1:2500 100A TH |
5,210 | 5.15 |
|
Datasheet |
- | Box | Active | 50Hz | Non-Invasive (Solid Core) | 100 A | 102 H | - | 1:2500 | 2500:1 | 41.7Ohm | - | Through Hole | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 1.339" (34.00mm) | PC Pin |
|
|
AC1015CURR SENSE XFMR 15A T/H |
2,752 | 11.67 |
|
Datasheet |
AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
AC1005CURR SENSE XFMR 5A T/H |
373 | 5.53 |
|
Datasheet |
AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
CT-1005CURR SENSE XFMR 5A T/H |
3,985 | 459.97 |
|
Datasheet |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
