Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A82-2050CURR SENSE XFMR 250A CHAS MNT |
2,960 | 453.00 |
|
Datasheet |
- | Bag | Active | 40Hz ~ 1kHz | Non-Invasive (Solid Core) | 250 A | - | - | - | - | - | - | Chassis Mount | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 2.657" (67.50mm) | Wire Leads |
|
PH9505.050NLTCURR SENSE XFMR 1:50 30A SMD |
4,418 | 2.95 |
|
Datasheet |
PH9505.XXXNL | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 1.7 mH | - | 1:50 | - | 0.5mOhm Primary, 1.5Ohm Secondary Max | - | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
PH9500.065NLTCURR SENSE XFMR 1.65 10A SMD |
2,798 | 1.98 |
|
Datasheet |
PH9500.XXXNL | Tape & Reel (TR) | Active | - | Invasive | 10 A | 2 mH | - | 1.65 | - | 3mOhm Primary, 1.62Ohm Secondary Max | - | Surface Mount | - | 0.346" (8.80mm) | Gull Wing |
|
B82801A1743A030CURR SENSE XFMR 1:30 SMD |
2,809 | 4.02 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 74 µH | - | 1:30 | - | 2.5mOhm Primary, 800mOhm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A1404A070CURR SENSE XFMR SMD |
1,640 | 4.02 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 400 µH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
CST306-2TCURR SENSE XFMR 25A T/H |
2,758 | 6.11 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 14 mH | 1000VµS | - | 100CT:1 | 1.55Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
B78419A2288A003CURR SENSE XFMR 1:50 SMD |
2,774 | 7.12 |
|
Datasheet |
B78419 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 1.7 mH | - | 1:50 | - | 0.5mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.504" L x 0.535" W (12.80mm x 13.60mm) | 0.567" (14.40mm) | Gull Wing |
|
|
B78419A2271A003CURR SENSE XFMR 1:180 SMD |
3,948 | 7.12 |
|
Datasheet |
B78419 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 25 mH | - | 1:180 | - | 0.5mOhm Primary, 7.4Ohm Secondary | - | Surface Mount | 0.504" L x 0.535" W (12.80mm x 13.60mm) | 0.567" (14.40mm) | Gull Wing |
|
MR-2CURR SENSE XFMR 30A CHAS MNT |
2,419 | 13.61 |
|
Datasheet |
MR | Bulk | Active | 60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | - | 30Ohm | - | Chassis Mount | 0.972" L x 0.858" W (24.70mm x 21.80mm) | 0.327" (8.30mm) | Wire Leads |
|

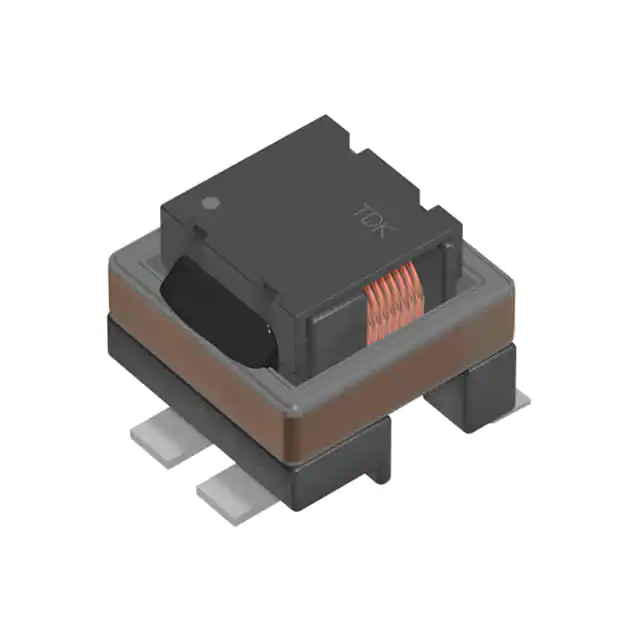

VST10/9EE-200S1C2CURR SENSE XFMR 1:100 SMD |
2,759 | 9.52 |
|
Datasheet |
VST | Tape & Reel (TR) | Active | - | - | - | - | - | 1:100 | - | - | - | Surface Mount | 0.476" L x 0.425" W (12.10mm x 10.80mm) | 0.394" (10.00mm) | - |
|
CT5PCCURR SENSE XFMR T/H |
4,220 | 28.66 |
|
Datasheet |
CT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Through Hole | 1.030" L x 1.080" W (26.16mm x 27.43mm) | 1.200" (30.48mm) | PC Pin |
|

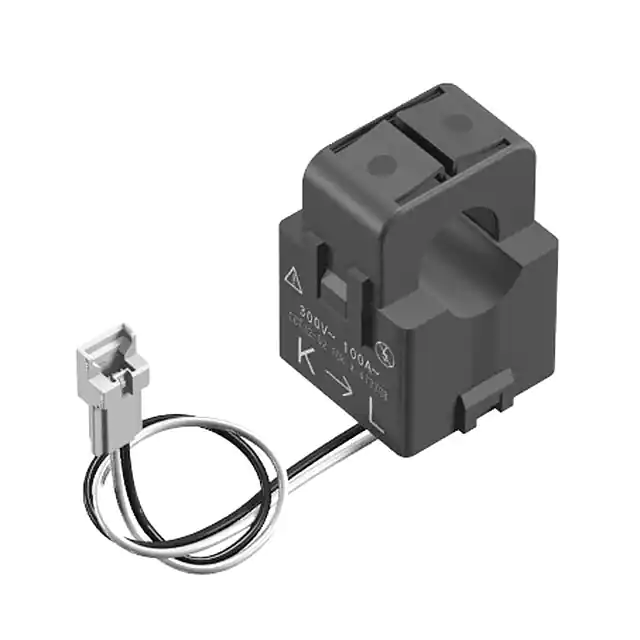

CCT323047-100-16-02CURR SENSE XFMR 100A CHAS MNT |
3,250 | 32.66 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 100 A | - | - | - | 3000:1 | 285Ohm | - | Chassis Mount | 1.378" L x 1.280" W (35.00mm x 32.50mm) | 1.870" (47.50mm) | Wire Leads with Connector |
|

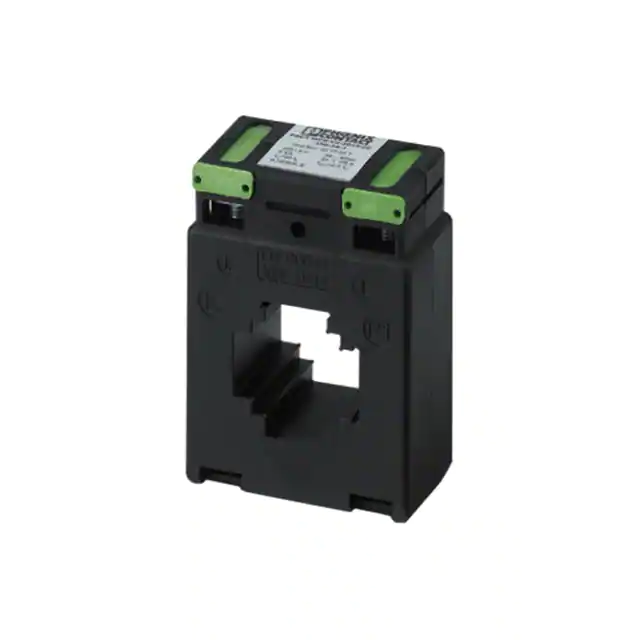

2277077CURR SENSE XFMR 1:30 150A DIN RL |
3,909 | 51.24 |
|
Datasheet |
PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | 1:30 | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
|
CT60ACURR SENSE XFMR 5A CHAS MNT |
3,995 | 59.07 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 60:5 | - | - | Chassis Mount | 3.750" L x 1.750" W (95.25mm x 44.45mm) | 3.250" (82.55mm) | Wire Leads |
|

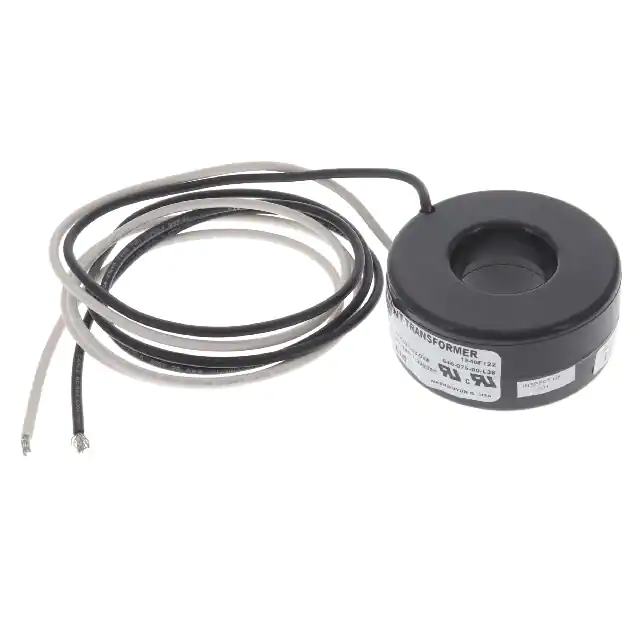

CT-0075-D10CURR SENSE XFMR 75:5 DONUT |
2,270 | 62.37 |
|
Datasheet |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 75 A | - | - | - | 75:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|
|
CT75ACURR SENSE XFMR 5A CHAS MNT |
1,225 | 60.78 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 75:5 | - | - | Chassis Mount | 3.750" L x 1.750" W (95.25mm x 44.45mm) | 3.250" (82.55mm) | Wire Leads |
|
CTV2X100A333MVCURR SENSE XFMR 100A IN-LINE |
1,141 | 64.00 |
|
Datasheet |
- | Box | Active | - | Non-Invasive (Split Core) | 100 A | - | - | - | - | - | - | Free Hanging (In-Line) | 1.260" L x 1.220" W (32.00mm x 31.00mm) | 1.772" (45.00mm) | Wire Leads |
|
|
CT250ACURR SENSE XFMR 5A CHAS MNT |
2,627 | 69.93 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 250:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|
|
CT600ACURR SENSE XFMR 5A CHAS MNT |
1,031 | 83.54 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 600:5 | - | - | Chassis Mount | 6.000" L x 1.750" W (152.40mm x 44.45mm) | 5.250" (133.35mm) | Wire Leads |
|
|
CT800ACURR SENSE XFMR 5A CHAS MNT |
4,734 | 101.85 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 800:5 | - | - | Chassis Mount | 6.000" L x 1.750" W (152.40mm x 44.45mm) | 5.250" (133.35mm) | Wire Leads |
