Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

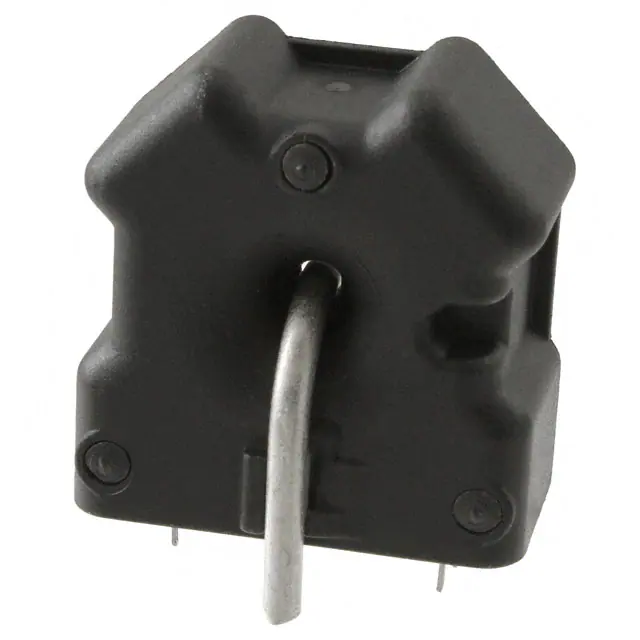

PA3206NLCURR XFMR ROGOWSKI COIL 40A CHAS |
10,644 | 7.90 |
|
Datasheet |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 40 A | 1.14 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.181" L x 0.563" W (30.00mm x 14.30mm) | 1.220" (31.00mm) | Wire Leads |
|

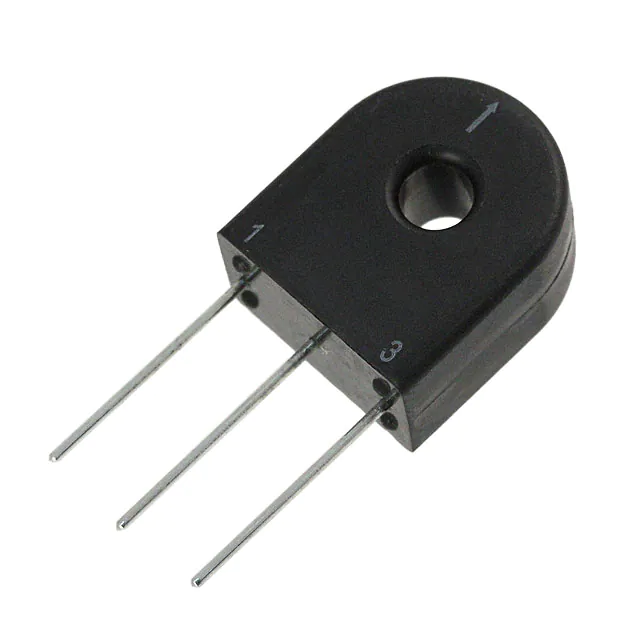

PE-51718NLCURR SENSE XFMR 20A T/H |
109 | 4.36 |
|
Datasheet |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|

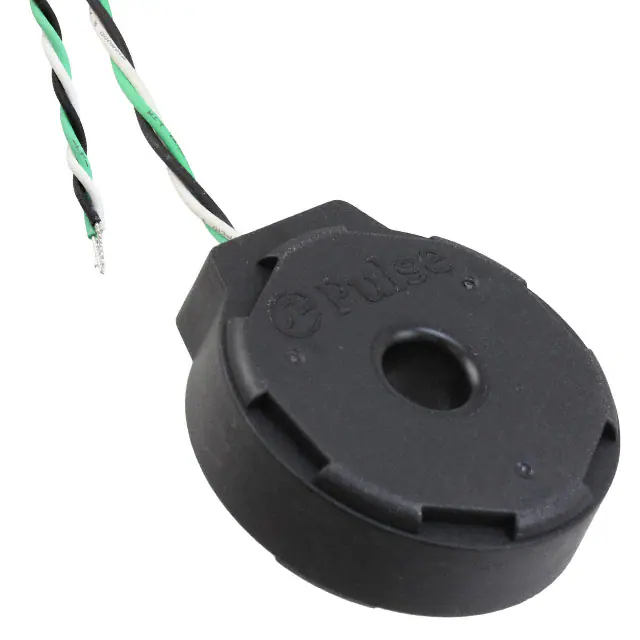

PA3202NLCURR XFMR ROGOWSKI 200A CHAS |
755 | 8.00 |
|
Datasheet |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | 1.75 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.669" L x 1.587" W (42.40mm x 40.30mm) | 0.580" (14.73mm) | Wire Leads |
|

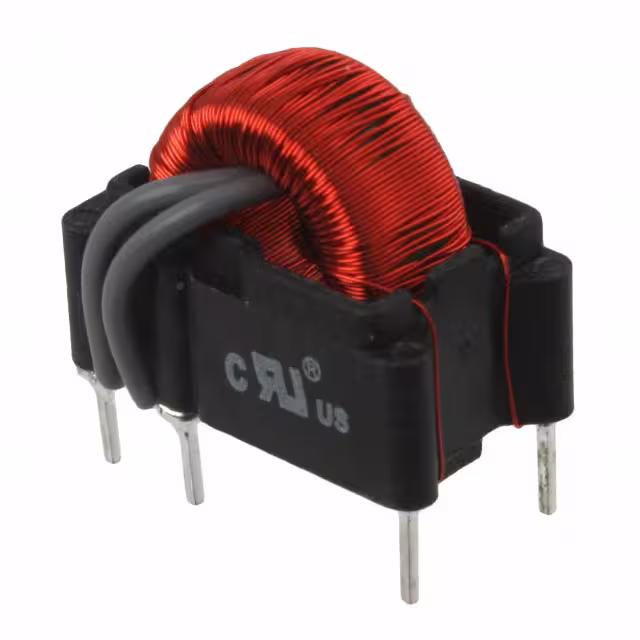

P0581NLCURR SENSE XFMR 200:1:1 34A T/H |
112 | 4.27 |
|
Datasheet |
THT | Tray | Active | 50kHz ~ 500kHz | Invasive | 34 A | 76 mH | - | 200:1:1 | - | 2.8Ohm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|
T60404E4622X501CURR SENSE XFMR 2000:1 20A TH |
10,079 | 0.00 |
|
Datasheet |
- | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 20 A | 110 H | - | 1:2000 | 2000:1 | 126Ohm | - | Through Hole | 0.965" L x 0.484" W (24.50mm x 12.30mm) | 0.994" (25.25mm) | PC Pin |
|
PA3208NLCURR XFMR ROGOWSKI 100A CHAS |
543 | 6.80 |
|
Datasheet |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 100 A | 1.14 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.205" L x 1.189" W (30.60mm x 30.20mm) | 0.580" (14.73mm) | Wire Leads |
|

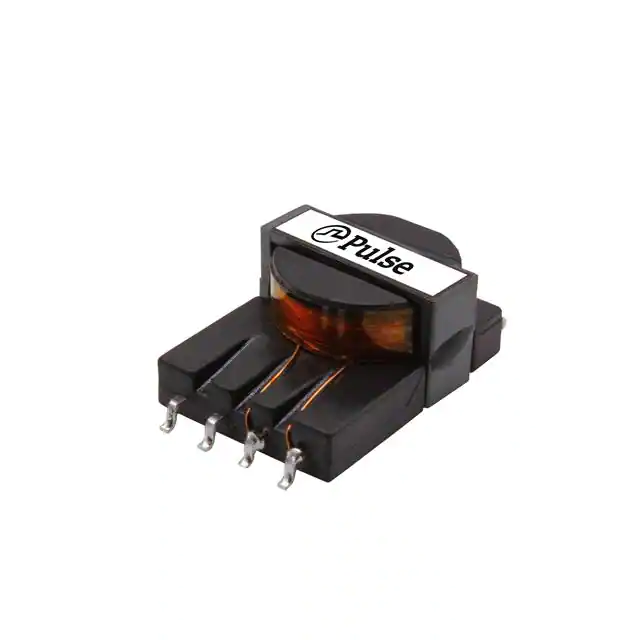

PAS6322.150NLTCURR SENSE XFMR 1:150 50A SMD |
261 | 4.63 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 10 mH | - | 1:150 | - | 0.5mOhm Primary, 6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.472" (12.00mm) | Gull Wing |
|
|
PAS6322.100NLTCURR SENSE XFMR 1:100 50A SMD |
516 | 4.63 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 4.5 mH | - | 1:100 | - | 0.5mOhm Primary, 2.6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
PAS6322.050NLTCURR SENSE XFMR 1:50 50A SMD |
194 | 4.63 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 1.1 mH | - | 1:50 | - | 0.5mOhm Primary, 600mOhm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|

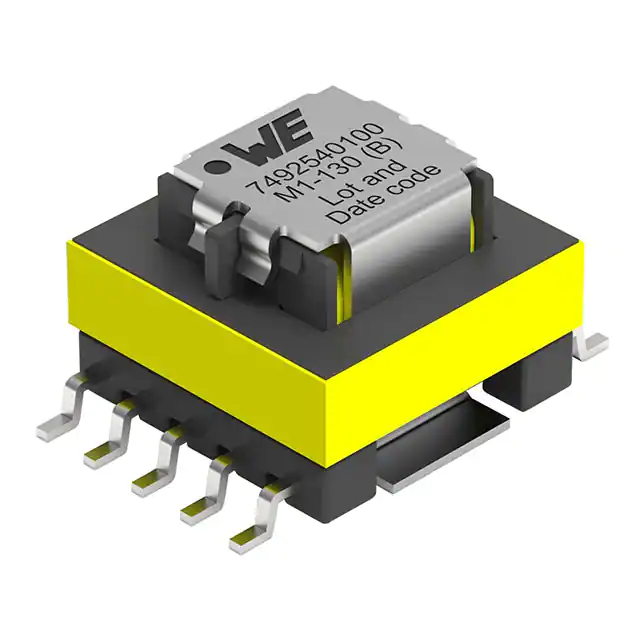

7492540100CURR SENSE XFMR 1:100 40A SMD |
1,028 | 3.91 |
|
Datasheet |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 5.6 mH | 248Vµs | 1:100 | - | 0.28mOhm Primary, 805mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|

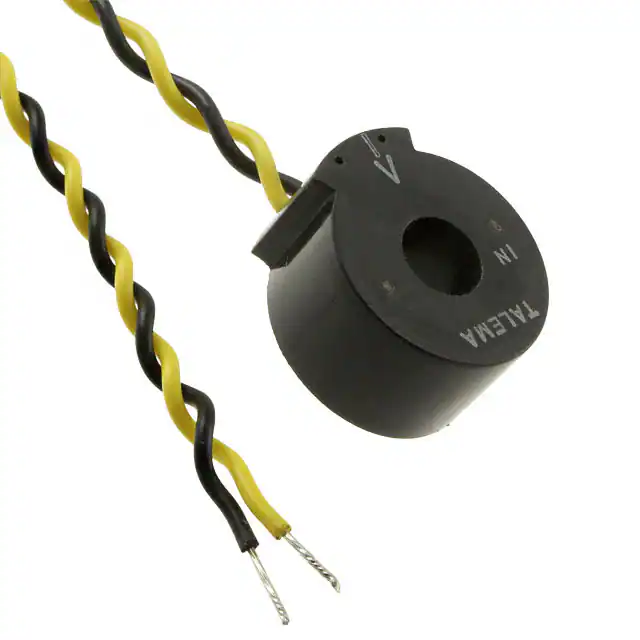

AZ-0500CURR SENSE XFMR 25A IN-LINE |
601 | 8.22 |
|
Datasheet |
AZ | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 25 A | - | - | 500:1 | - | 18Ohm Primary | - | Free Hanging (In-Line) | 0.748" Dia (19.00mm) | 0.453" (11.50mm) | Wire Leads |
|
|
PAS6322.200NLTCURR SENSE XFMR 1:20 50A SMD |
872 | 5.54 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 17.5 mH | - | 1:200 | - | 0.5mOhm Primary, 12Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
CST306-3TCURR SENSE XFMR 25A T/H |
2,574 | 6.11 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 55 mH | 2000VµS | - | 200CT:1 | 3.75Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
CST-1005CURR SENSE XFMR 5A T/H |
1,665 | 7.37 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
|
CST306-2ACURR SENSE XFMR 25A T/H |
4,594 | 6.11 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 14 mH | 1000VµS | - | 100:1 | 1.55Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
AC1025CURR SENSE XFMR 25A T/H |
1,194 | 6.68 |
|
Datasheet |
AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 25 A | - | - | - | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
AC1040CURR SENSE XFMR 40A T/H |
166 | 6.09 |
|
Datasheet |
AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 40 A | - | - | - | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
CST-1020CURR SENSE XFMR 20A T/H |
1,304 | 7.37 |
|
Datasheet |
CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
CST206-1TCURR SENSE XFMR 110A T/H |
1,435 | 7.48 |
|
Datasheet |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 110 A | 14 mH | 2000VµS | - | 100:1 | 580mOhm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
CT-1030CURR SENSE XFMR 30A T/H |
9,052 | 8.87 |
|
Datasheet |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
