Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL3257TPOWER |
1,342 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 3 mH | - | 1:125 | 125:1 | 6mOhm Primary, 6.5Ohm Secondary | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.215" (5.46mm) | Gull Wing |
|
|
PL3257NLTPOWER |
3,134 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 3 mH | - | 1:125 | 125:1 | 6mOhm Primary, 6.5Ohm Secondary | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.215" (5.46mm) | Gull Wing |
|
|
CR8349-2000-DCURR SENSE XFMR 75A T/H |
2,644 | 21.18 |
|
Datasheet |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 75 A | - | - | - | 2000:1 | 48Ohm | - | Through Hole | 1.024" L x 0.670" W (26.00mm x 17.00mm) | 1.102" (28.00mm) | PC Pin |
|
|
SPCT62/3050/5AVA1CL3CURRENT TRANSFROMER |
2,820 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPCT62/3050/5AVA 1.5CL3CURRENT TRANSFROMER |
1,168 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PL1840NLPOWER |
4,379 | 0.00 |
|
Datasheet |
- | Tube | Active | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | 1:200 | 0.42mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PL3254NLTPOWER |
1,391 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 720 µH | - | 1:60 | 60:1 | 6mOhm Primary, 2.25Ohm Secondary | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.215" (5.46mm) | Gull Wing |
|
|
PL3254TPOWER |
4,819 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 720 µH | - | 1:60 | 60:1 | 6mOhm Primary, 2.25Ohm Secondary | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.215" (5.46mm) | Gull Wing |
|
|
CT1150CURRENT TRANSFORMER PRIM: 150A |
2,922 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | 1:1000 | 1000:1 | 11Ohm | - | Through Hole | 2.189" L x 0.811" W (55.60mm x 20.60mm) | 2.189" (55.60mm) | PC Pin |
|
|
CT1200CURRENT TRANSFORMER PRIM: 200A |
3,156 | 0.00 |
|
- |
CT | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | 1:1000 | 1000:1 | 11Ohm | - | Through Hole | 2.189" L x 0.811" W (55.60mm x 20.60mm) | 2.189" (55.60mm) | PC Pin |
|
|
PL3264NLPOWER |
2,014 | 0.00 |
|
Datasheet |
- | Tube | Active | 50kHz ~ 1MHz | Invasive | 20 A | 3 mH | - | 1:100 | 100:1 | 0.75mOhm Primary, 6Ohm Secondary Max | - | Surface Mount | 0.330" L x 0.284" W (8.38mm x 7.21mm) | 0.215" (5.46mm) | Gull Wing |
|
|
SPCT62/3075/5AVA3CL3CURRENT TRANSFROMER |
3,602 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPCT62/40150/5AVA3CL1CURRENT TRANSFROMER |
2,969 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPCT62/30100/5AVA3CL1CURRENT TRANSFROMER |
3,041 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

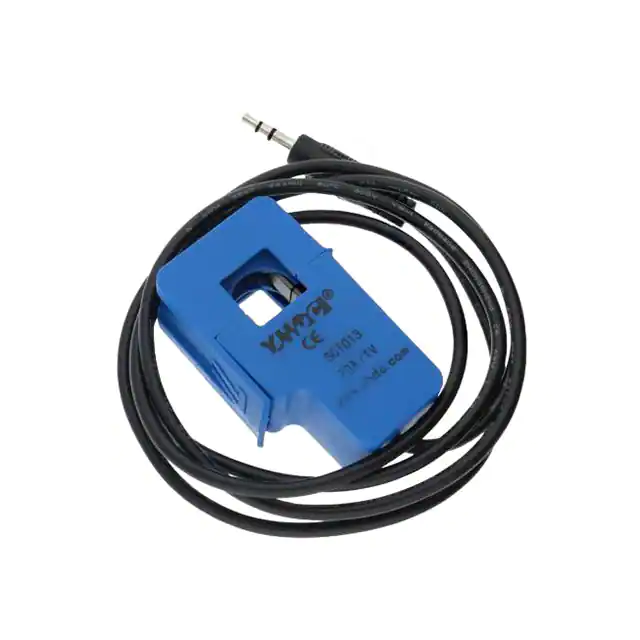

MIKROE-2524CURR SENSE XFMR 30A IN-LINE |
1,298 | 19.00 |
|
Datasheet |
- | Bulk | Active | - | Non-Invasive (Split Core) | 30 A | - | - | - | - | - | - | Free Hanging (In-Line) | - | - | Wire Leads with Connector |
|
|
CR8350-2000-DCURR SENSE XFMR 100A T/H |
4,366 | 23.07 |
|
Datasheet |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 100 A | - | - | - | 2000:1 | 25Ohm | - | Through Hole | 1.476" L x 0.551" W (37.50mm x 14.00mm) | 1.535" (39.00mm) | PC Pin |
|
|
SPCT100/60500/5AVA5CL1CURRENT TRANSFROMER |
4,939 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPCT62/2230/5AVA1CL 5CURRENT TRANSFROMER |
2,596 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TOP 90-S10/SP2TRANSDUCER |
1,163 | 0.00 |
|
- |
TOP | Bulk | Not For New Designs | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 90 A | - | - | - | - | - | - | DIN Rail | 1.319" L x 1.240" W (33.50mm x 31.50mm) | 1.909" (48.50mm) | Wire Leads |
|
CR45-BCURR SENSE XFMR PANEL MOUNT |
1,026 | 24.02 |
|
Datasheet |
CR45 | Bulk | Active | 50Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Panel Mount | 0.949" L x 0.461" W (24.10mm x 11.70mm) | 1.039" (26.40mm) | - |
