DC DC Converters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

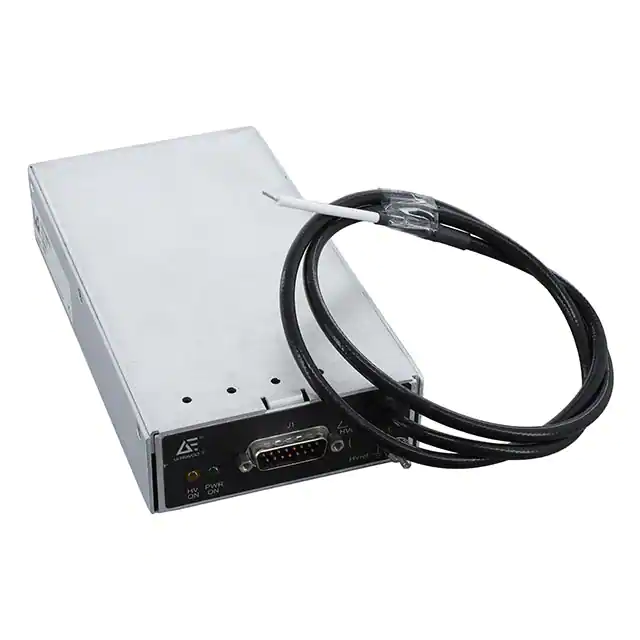

30LE24-P15DC/DC CONVERTER 30000V 15W |
4,697 | 1295.38 |
|
Datasheet |
Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 30000V | - | - | - | 500µA | 15W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
HP001RAA025DC/DC CNVRTR 10V-1000V 10W |
2,733 | 849.41 |
|
Datasheet |
HP (10W) | Box | Active | Enclosed, High Voltage | 21.6V | 26.4V | 1 | ±10V ~ ±1000V | - | - | - | 10mA | 10W | - | ITE (Commercial) | - | 0°C ~ 50°C | Chassis Mount | 7.87" L x 3.86" W x 1.85" H (200.0mm x 98.0mm x 47.0mm) | cURus, UL | - |
|

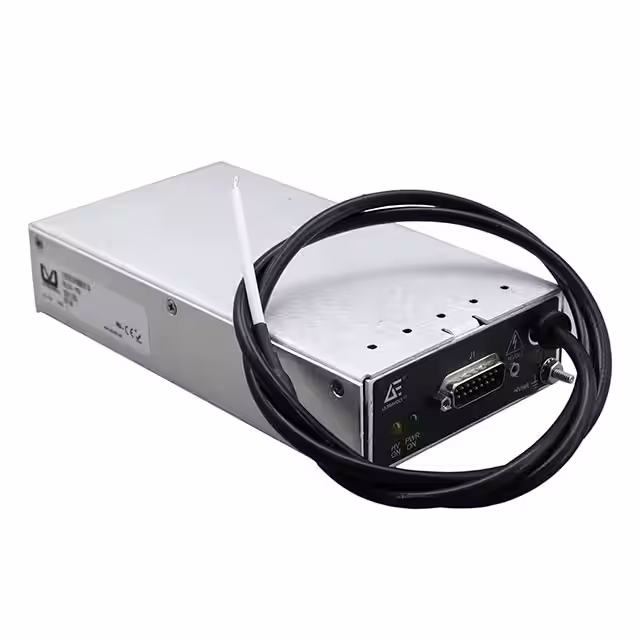

30LE24-P30DC/DC CONVERTER 30000V 30W |
4,864 | 1328.68 |
|
Datasheet |
Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 30000V | - | - | - | 1mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|

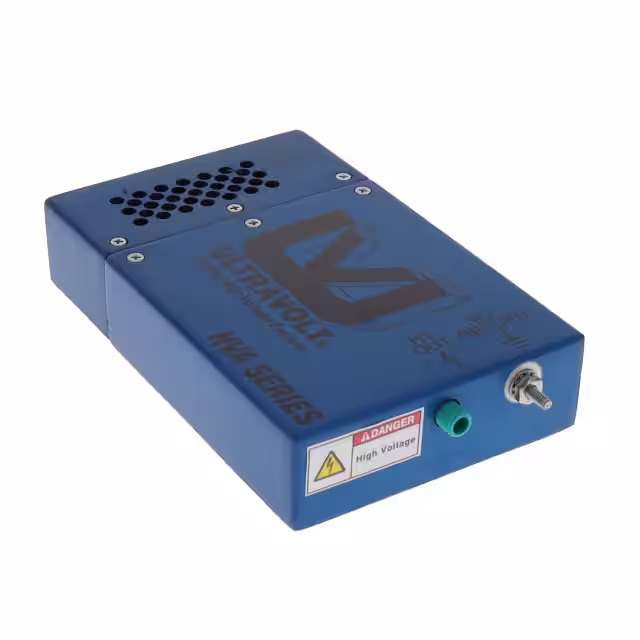

1HVA24-BP1-FDC/DC CONVERTER 1000V 250MW |
1,333 | 1463.15 |
|
Datasheet |
HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 1000V | - | - | - | 250µA | 250mW | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|

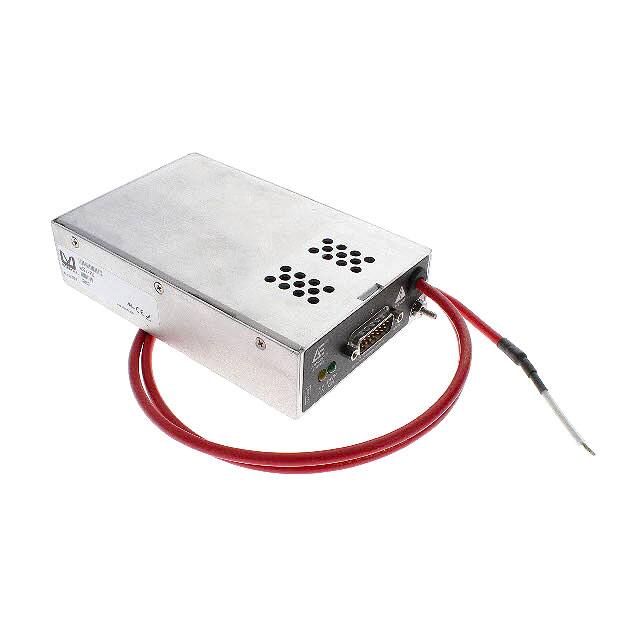

4LE24-P30DC/DC CONVERTER 4000V 30W |
3,074 | 1226.30 |
|
Datasheet |
Ultravolt® LE | Bulk | Active | Enclosed | 23V | 30V | 1 | 4000V | - | - | - | 7.5mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.50" H (152.4mm x 96.8mm x 38.2mm) | CE, cURus | 60950-1 |
|
|
HP2.5RAA025DC/DC CNVRTR 10V-2500V 10W |
2,370 | 1079.34 |
|
Datasheet |
HP (10W) | Box | Active | Enclosed, High Voltage | 21.6V | 26.4V | 1 | ±10V ~ ±2500V | - | - | - | 4mA | 10W | - | ITE (Commercial) | - | 0°C ~ 50°C | Chassis Mount | 7.87" L x 3.86" W x 1.85" H (200.0mm x 98.0mm x 47.0mm) | cURus, UL | - |
|

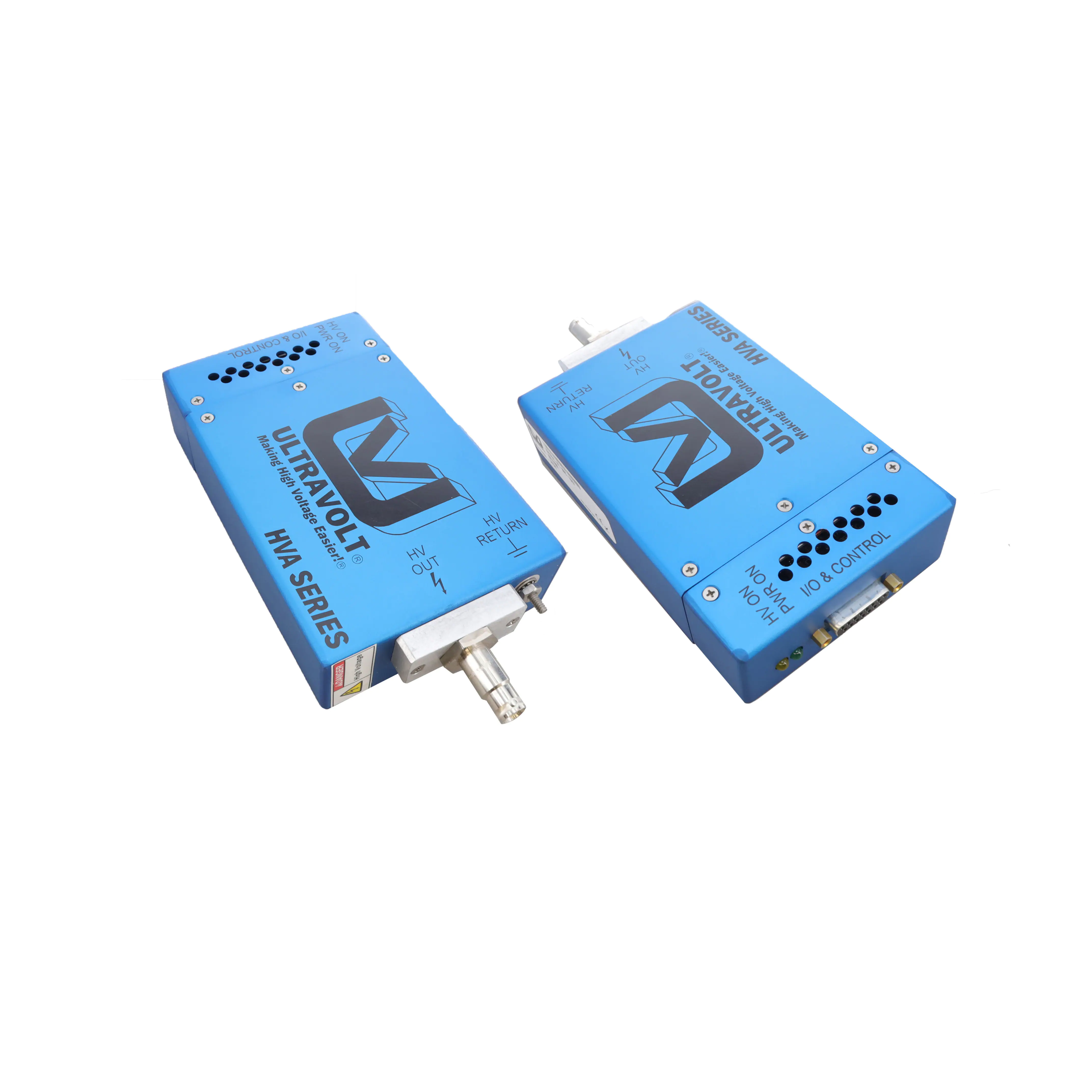

10HVA24-N1-BNC-10KVDC/DC CONVERTER 10000V 1W |
1,628 | 1448.44 |
|
Datasheet |
HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 10000V | - | - | - | 100µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
2HVA24-BP1-FDC/DC CONVERTER 2000V 500MW |
4,030 | 1463.15 |
|
Datasheet |
HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 2000V | - | - | - | 250µA | 500mW | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|

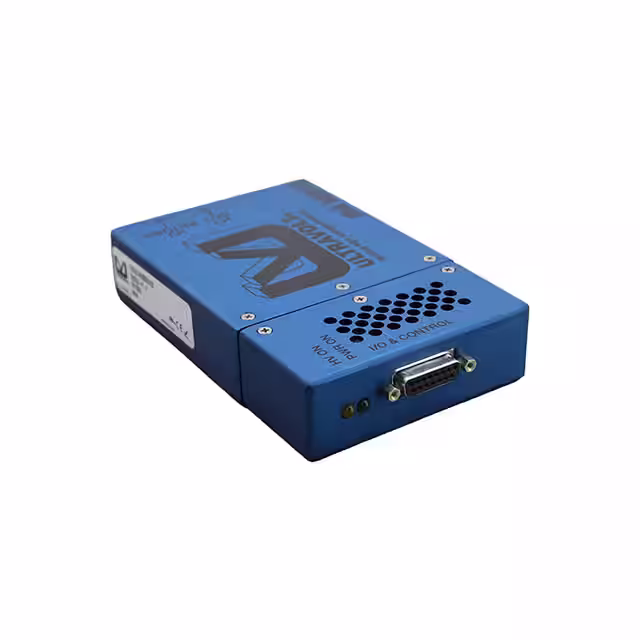

10HVA24-P1-FDC/DC CONVERTER 10000V 1W |
2,269 | 1493.71 |
|
Datasheet |
HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 10000V | - | - | - | 100µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
|
5HVA24-BP1-FDC/DC CONVERTER 5000V 1W |
2,255 | 1549.16 |
|
Datasheet |
HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 5000V | - | - | - | 200µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
HP030NIP020DC/DC CNVRTR 100V-30000V 7.5W |
3,470 | 947.53 |
|
Datasheet |
HP (10W) | Box | Active | Enclosed, High Voltage | 21.6V | 26.4V | 1 | 100V ~ 30000V | - | - | - | 250µA | 7.5W | - | ITE (Commercial) | - | 0°C ~ 50°C | Chassis Mount | 8.27" L x 4.72" W x 2.17" H (210.0mm x 120.0mm x 55.0mm) | cURus, UL | - |
|
|
5HVA24-BP1-206DC/DC CONVERTER 5000V 1W |
2,572 | 0.00 |
|
Datasheet |
HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 5000V | - | - | - | 200µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
|
700DNC40-12-CGDC/DC CONVERTER 14.4V 3300W |
3,662 | 5082.00 |
|
Datasheet |
DNC (3300W) | Box | Active | Enclosed | 400VDC | 800VDC | 1 | 14.4V | - | - | - | 229A | 3300W | 3 kV | ITE (Commercial) | 92% | -40°C ~ 45°C | Chassis Mount | 13.78" L x 13.50" W x 7.39" H (350.0mm x 343.0mm x 187.7mm) | - | - |
|
PSD-45C-24DC/DC CONVERTER 24V 45W |
1,596 | 20.50 |
|
Datasheet |
PSD-45 (45W) | Box | Active | Open Frame | 36V | 72V | 1 | 24V | - | - | - | 1.875A | 45W | 1.5 kV | ITE (Commercial) | 86% | -10°C ~ 60°C (With Derating) | Chassis Mount | 5.00" L x 2.99" W x 1.18" H (127.0mm x 76.0mm x 30.0mm) | CB, CE | - |
|
|
PSD-45A-24DC/DC CONVERTER 24V 30W |
2,149 | 20.50 |
|
Datasheet |
PSD-45 (45W) | Box | Active | Open Frame | 9.2V | 18V | 1 | 24V | - | - | - | 1.25A | 30W | 1.5 kV | ITE (Commercial) | 79% | -10°C ~ 60°C (With Derating) | Chassis Mount | 5.00" L x 2.99" W x 1.18" H (127.0mm x 76.0mm x 30.0mm) | CB, CE | - |
|
TMDC 06-2425DC/DC CONVERTER +/-24V 6W |
4,444 | 45.09 |
|
Datasheet |
TMDC 06 (6W) | Tube | Active | Enclosed | 9V | 36V | 2 | 24V | -24V | - | - | 125mA, 125mA | 6W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE, cURus | - |
|
TMDC 10-4823DC/DC CONVERTER +/-15V 10W |
3,992 | 54.97 |
|
Datasheet |
TMDC 10 (10W) | Tube | Active | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 333mA, 333mA | 10W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE, cURus | - |
|
CHB50W-24S05-CMDC/DC CONVERTER 5V 50W |
1,584 | 90.60 |
|
- |
CHB50W (50W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 10A | 50W | 1.5 kV | ITE (Commercial) | 81% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.98" L x 2.54" W x 1.03" H (101.2mm x 64.6mm x 26.2mm) | CE, cURus | - |
|
|
CHB50W-24S24-CMDC/DC CONVERTER 24V 50W |
2,175 | 90.00 |
|
Datasheet |
CHB50W (50W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 2.08A | 50W | 1.5 kV | ITE (Commercial) | 84% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.98" L x 2.54" W x 1.03" H (101.2mm x 64.6mm x 26.2mm) | CE, cURus | - |
|
B40SR12424ACDC/DC CONVERTER 12.4V 298W |
1,898 | 126.51 |
|
Datasheet |
B40SR (200W) | Bag | Active | Enclosed | 18V | 60V | 1 | 12.4V | - | - | - | 24A | 298W | 2.25 kV | ITE (Commercial) | 88.8% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
