DC DC Converters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYB20-Q24-S5-UDC/DC CONVERTER 5V 20W |
1,110 | 66.31 |
|
Datasheet |
PYB20-U (20W) | Tray | Obsolete | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 4A | 20W | - | - | 90% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|
|
PYB20-Q48-S3-UDC/DC CONVERTER 3.3V 20W |
1,742 | 0.00 |
|
Datasheet |
PYB20-U (20W) | Tray | Obsolete | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 5A | 20W | - | - | 86% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|

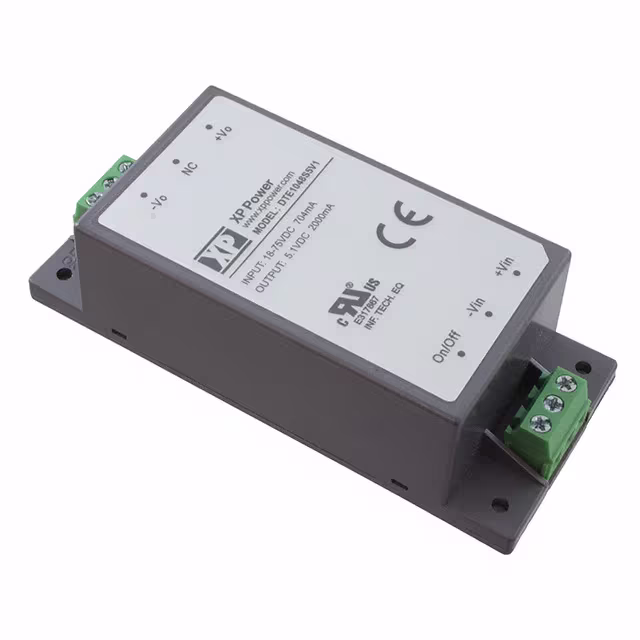

DTE1048S5V1DC/DC CONVERTER 5.1V 10W |
4,383 | 56.06 |
|
Datasheet |
DTE10 (10W) | Box | Active | Enclosed | 18V | 75V | 1 | 5.1V | - | - | - | 2A | 10W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 105°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE | 62368-1 |
|
6140.2DC/DC CONVERTER |
3,688 | 52.86 |
|
Datasheet |
- | Box | Active | Open Frame | 13V | 35V | 1 | 10V | - | - | - | 200mA | 2W | - | ITE (Commercial) | - | -20°C ~ 50°C | Chassis Mount | 0.94" L x 3.43" W x 2.24" H (24.0mm x 87.0mm x 57.0mm) | CE | - |
|
|
PYB20-Q24-D12-UDC/DC CONVERTER +/-12V 20W |
4,291 | 60.82 |
|
Datasheet |
PYB20-U (20W) | Tray | Obsolete | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 834mA, 834mA | 20W | - | - | 88% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|
|
PYB20-Q48-D12-UDC/DC CONVERTER +/-12V 20W |
1,394 | 0.00 |
|
Datasheet |
PYB20-U (20W) | Tray | Obsolete | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 834mA, 834mA | 20W | - | - | 88% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|
PYBE30-Q48-S3-UDC-DC ISOLATED, 30W, 18~75 VDC I |
1,097 | 53.21 |
|
Datasheet |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 6A | 30W | 1.5 kV | ITE (Commercial) | 85% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
|
DC/DC-CONVDC/DC CONVERTER |
4,305 | 1.00 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AE15B-UW-S24-TDC-DC ISOLATED, 15 W, 200~1500 V |
2,845 | 0.00 |
|
Datasheet |
AE15B-UW (15W) | Tray | Not For New Designs | Enclosed | 200V | 1500V | 1 | 24V | - | - | - | 625mA | 15W | 5.6 kV | ITE (Commercial) | 83% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.31" L x 2.76" W x 1.32" H (135.0mm x 70.0mm x 33.5mm) | CE, EN, UKCA | - |
|
PDQE15-Q48-S3-UDC/DC CONVERTER 3.3V 13W |
3,129 | 42.72 |
|
Datasheet |
PDQE15-U (15W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 4A | 13W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
PDQE20-Q24-S12-UDC/DC CONVERTER 12V 20W |
1,233 | 47.63 |
|
Datasheet |
PDQE20-U (20W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 1.667A | 20W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
|
PQAE50-D24-S12-UDC-DC ISOLATED, 50 W, 18~36 VDC |
4,249 | 0.00 |
|
Datasheet |
PQAE50 (50W) | Tray | Not For New Designs | Isolated Module | 18V | 36V | 1 | 12V | - | - | - | 4.167A | 50W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE, UKCA | - |
|
|
PQAE50-D24-S5-UDC-DC ISOLATED, 50 W, 18~36 VDC |
4,549 | 0.00 |
|
Datasheet |
PQAE50 (50W) | Tray | Not For New Designs | Isolated Module | 18V | 36V | 1 | 5V | - | - | - | 10A | 50W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE, UKCA | - |
|

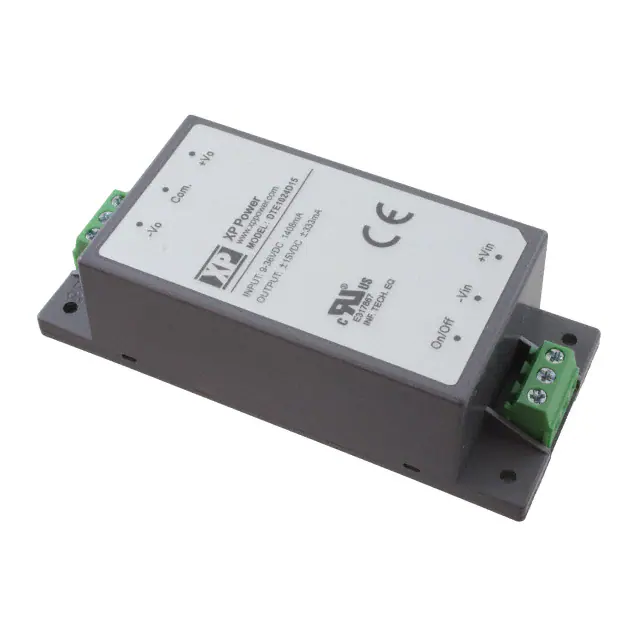

DTE1024D15DC/DC CONVERTER +/-15V 10W |
4,999 | 58.34 |
|
Datasheet |
DTE10 (10W) | Box | Active | Enclosed | 9V | 36V | 2 | 15V | -15V | - | - | 333mA, 333mA | 10W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 105°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE | 62368-1 |
|
|
PYBE30-Q24-D24H-TDC-DC ISOLATED, 30 W, 9~36 VDC I |
2,349 | 0.00 |
|
Datasheet |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 24V | -24V | - | - | 625mA, 625mA | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | cURus | - |
|
|
PYBE30-Q24-D5H-TDC-DC ISOLATED, 30 W, 9~36 VDC I |
3,749 | 0.00 |
|
Datasheet |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 5V | -5V | - | - | 3A, 3A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | cURus | - |
|
|
PYBE30-Q24-D12H-TDC-DC ISOLATED, 30 W, 9~36 VDC I |
2,698 | 0.00 |
|
Datasheet |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | cURus | - |
|
|
PYBE30-Q48-S15H-TDC-DC ISOLATED, 30 W, 18~75 VDC |
1,243 | 0.00 |
|
Datasheet |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | CE, cURus, UKCA | 60950-1; 62368-1 |
|
|
PYBE30-Q48-S3H-TDC-DC ISOLATED, 30 W, 18~75 VDC |
1,122 | 0.00 |
|
Datasheet |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 6A | 20W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | CE, cURus, UKCA | 60950-1; 62368-1 |
|
|
PYBE30-Q48-D15H-TDC-DC ISOLATED, 30 W, 18~75VDC I |
4,882 | 0.00 |
|
Datasheet |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | CE, cURus, UKCA | 60950-1; 62368-1 |
