DC DC Converters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

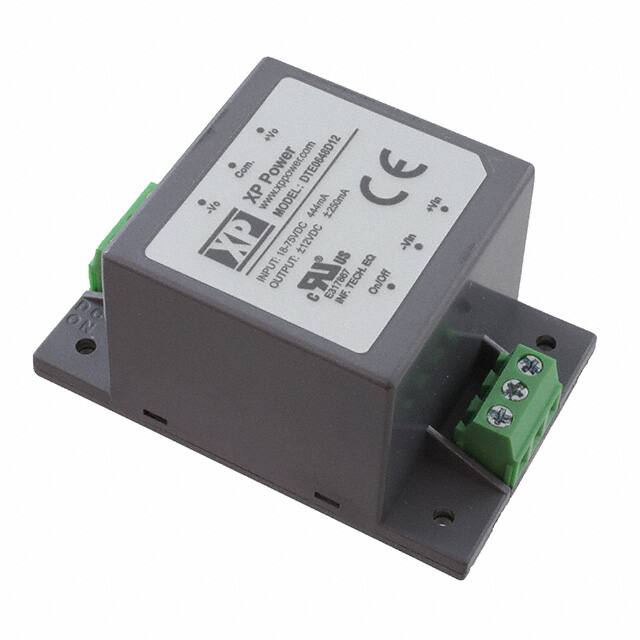

DTE0648D12DC/DC CONVERTER +/-12V 6W |
1,655 | 49.09 |
|
Datasheet |
DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 250mA, 250mA | 6W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|
DDRH-30-48STI/P:150~1500VDC;O/P:48V/0~0.625A |
2,604 | 0.00 |
|
Datasheet |
DDRH-30 (30W) | Bulk | Active | Enclosed, High Voltage | 150V | 1500V | 1 | 48V | - | - | - | 625mA | 10W | 4 kV | ITE (Commercial) | 91% | -40°C ~ 80°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.26" H (135.0mm x 70.0mm x 32.0mm) | CE, EAC, UKCA | - |
|
|
DDRH-45-15STI/P:150~1500VDC;O/P:15V/0~3A |
1,692 | 0.00 |
|
Datasheet |
DDRH-45 (45W) | Bulk | Active | Enclosed, High Voltage | 150V | 1500V | 1 | 15V | - | - | - | 3A | 45W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 80°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.26" H (135.0mm x 70.0mm x 32.0mm) | CE, EAC, UKCA | - |
|
|
DDRH-30-15STI/P:150~1500VDC;O/P:15V/0~2A |
2,631 | 0.00 |
|
Datasheet |
DDRH-30 (30W) | Bulk | Active | Enclosed, High Voltage | 150V | 1500V | 1 | 15V | - | - | - | 2A | 30W | 4 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.26" H (135.0mm x 70.0mm x 32.0mm) | CE, EAC, UKCA | - |
|
|
DDRH-30-12STI/P:150~1500VDC;O/P:12V/0~2.5A |
2,664 | 0.00 |
|
Datasheet |
DDRH-30 (30W) | Bulk | Active | Enclosed, High Voltage | 150V | 1500V | 1 | 12V | - | - | - | 2.5A | 30W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 80°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.26" H (135.0mm x 70.0mm x 32.0mm) | CE, EAC, UKCA | - |
|
DTJ2048D15DC/DC CONVERTER +/-15V 20W |
3,761 | 50.60 |
|
Datasheet |
DTJ20 (20W) | Box | Active | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 665mA, 665mA | 20W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
|
DTJ2024D12DC/DC CONVERTER +/-12V 20W |
3,208 | 50.60 |
|
Datasheet |
DTJ20 (20W) | Box | Active | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 835mA, 835mA | 20W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
|
DTJ2048D05DC/DC CONVERTER +/-5V 20W |
3,256 | 50.60 |
|
Datasheet |
DTJ20 (20W) | Box | Active | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 2A, 2A | 20W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
TMDC 06-7215HDC/DC CONVERTER 24V 6W |
4,841 | 50.75 |
|
Datasheet |
TMDC 06H (6W) | Box | Active | Enclosed | 80V | 160V | 1 | 24V | - | - | - | 250mA | 6W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 93°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE, cURus | - |
|
|
DDRH-45-12STI/P:150~1500VDC;O/P:12V/0~3.75A |
1,654 | 0.00 |
|
Datasheet |
DDRH-45 (45W) | Bulk | Active | Enclosed, High Voltage | 150V | 1500V | 1 | 12V | - | - | - | 3.75A | 45W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 80°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.26" H (135.0mm x 70.0mm x 32.0mm) | CE, EAC, UKCA | - |
|
|
DDRH-45-48STDC DC CONVERTER |
4,674 | 0.00 |
|
- |
DDRH-45 (45W) | Box | Active | Enclosed | 150V | 1500V | 1 | 48V | - | - | - | 938mA | 45W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.26" H (135.0mm x 70.0mm x 32.0mm) | CE, EAC, UKCA | - |
|
TMDC 06-7211HDC/DC CONVERTER 5.1V 6.1W |
2,541 | 50.75 |
|
Datasheet |
TMDC 06H (6W) | Box | Active | Enclosed | 80V | 160V | 1 | 5.1V | - | - | - | 1.2A | 6.1W | 3 kV | ITE (Commercial) | 79% | -40°C ~ 93°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE, cURus | - |
|
TMDC 06-7225HDC/DC CONVERTER +/-24V 6W |
2,697 | 53.19 |
|
Datasheet |
TMDC 06H (6W) | Box | Active | Enclosed | 80V | 160V | 2 | 24V | -24V | - | - | 125mA, 125mA | 6W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 93°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE, cURus | - |
|
|
EC5SBW-24S12-CMFPWR SUPP, BATT & COND |
2,167 | 0.00 |
|
Datasheet |
EC5SBW-CMF (30W) | Bulk | Active | Open Frame | 10V | 36V | 1 | 12V | - | - | - | 2.5A | 30W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 85°C (With Derating) | Chassis Mount | 3.31" L x 1.48" W x 1.20" H (84.1mm x 37.6mm x 30.5mm) | CE, UKCA | 62368-1 |
|

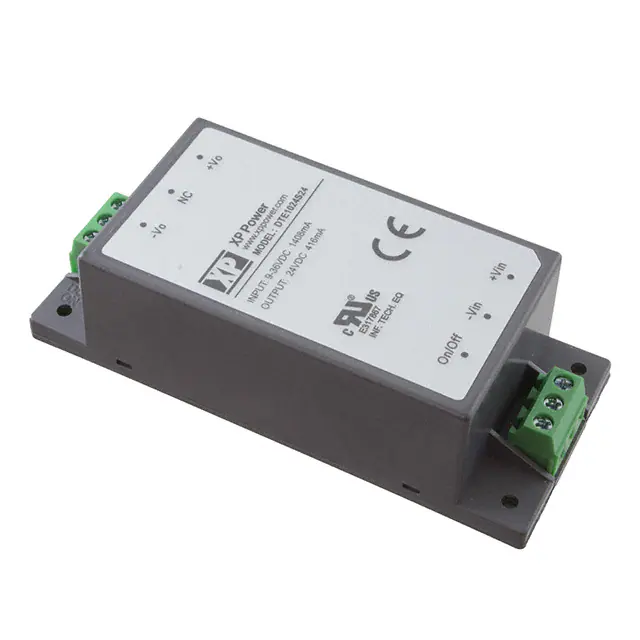

DTE1024S24DC/DC CONVERTER 24V 10W |
3,191 | 56.06 |
|
Datasheet |
DTE10 (10W) | Box | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 418mA | 10W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 105°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE | 62368-1 |
|
DTE1048S48DC/DC CONVERTER 48V 10W |
1,741 | 56.06 |
|
Datasheet |
DTE10 (10W) | Box | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 208mA | 10W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 105°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE | 62368-1 |
|
|
DDRH-60-12PWR SUPP, BATT & COND |
3,921 | 0.00 |
|
Datasheet |
DDRH-60 (60W) | Bulk | Active | Enclosed | 150V | 1500V | 1 | 12V | - | - | - | 5A | 60W | 4 kV | ITE (Commercial) | 85% | -30°C ~ 80°C (With Derating) | DIN Rail | 4.13" L x 2.24" W x 3.68" H (105.0mm x 57.0mm x 93.5mm) | CE, EAC | - |
|
TMDC 10-4825DC/DC CONVERTER +/-24V 10W |
4,083 | 54.97 |
|
Datasheet |
TMDC 10 (10W) | Tube | Active | Enclosed | 18V | 75V | 2 | 24V | -24V | - | - | 208mA, 208mA | 10W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 92.5°C (With Derating) | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE, cURus | - |
|
TMDC 10-7222HDC/DC CONVERTER +/-12V 10W |
4,608 | 64.06 |
|
Datasheet |
TMDC 10H (10W) | Box | Active | Enclosed | 80V | 160V | 2 | 12V | -12V | - | - | 416mA, 416mA | 10W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 70°C | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE, cURus | - |
|
TMDC 10-7223HDC/DC CONVERTER +/-15V 10W |
1,506 | 64.06 |
|
Datasheet |
TMDC 10H (10W) | Box | Active | Enclosed | 80V | 160V | 2 | 15V | -15V | - | - | 333mA, 333mA | 10W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 70°C | Chassis Mount | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) | CB, CE, cURus | - |
