Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8452BA-B-IS1RDGTL ISO 1000VRMS 5CH GP 16SOIC |
2,421 | 3.47 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Capacitive Coupling | General Purpose | No | 5 | 3/2 | Unidirectional | 1000Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8455BA-B-IS1RDGTL ISO 1000VRMS 5CH GP 16SOIC |
3,705 | 3.47 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Capacitive Coupling | General Purpose | No | 5 | 5/0 | Unidirectional | 1000Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
SI8455BA-B-IURDGTL ISO 1000VRMS 5CH GP 16QSOP |
2,263 | 3.47 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Capacitive Coupling | General Purpose | No | 5 | 5/0 | Unidirectional | 1000Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
.jpg)
|
IL 3285DGT ISO 2.5KV RS422/RS485 16SOIC |
3,201 | 7.87 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 5Mbps | - | - | 12ns, 12ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 3485EDGT ISO 2.5KV RS422/RS485 16SOIC |
4,216 | 4.73 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 20Mbps | - | - | 12ns, 12ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 3422EDGT ISO 2.5KV RS422/RS485 16SOIC |
2,477 | 4.73 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 20Mbps | - | - | 12ns, 12ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
IL 3222-3EDGT ISO 2.5KV RS422/RS485 16SOIC |
2,737 | 4.73 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 5Mbps | - | - | 12ns, 12ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
IL 3485-3EDGT ISO 2.5KV RS422/RS485 16SOIC |
1,254 | 3.15 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 20Mbps | - | - | 12ns, 12ns | 3V ~ 5.5V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|

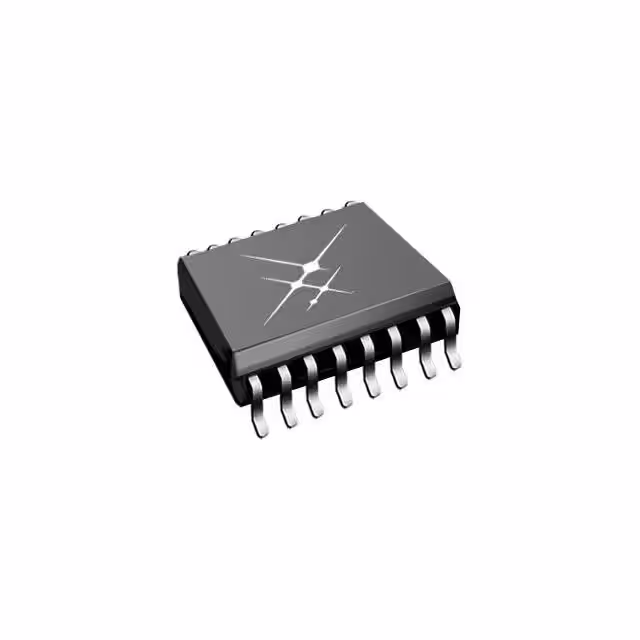

SI8655BA-C-IU1 KV 5-CHANNEL DIGITAL ISOLATOR |
1,062 | 3.27 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 5 | 5/0 | Unidirectional | 1000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
SI8660AB-AS1RLINEAR IC |
4,547 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 6 | - | Unidirectional | - | 35kV/µs | - | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86SQ44EB-IUR2.5 KVRMS QSPI COMPATIBLE ISOLAT |
2,549 | 3.51 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 150Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
SI86SQ44BB-IUR2.5 KVRMS QSPI COMPATIBLE ISOLAT |
2,105 | 3.51 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 150Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
SI8650EC-AS1RAUTOMOTIVE 3.75 KV 5-CHANNEL DIG |
1,879 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 5 | 5/0 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8652BC-AS1RAUTOMOTIVE 3.75 KV 3 FORWARD & 2 |
2,079 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 5 | 3/2 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8651EC-AS1RAUTOMOTIVE 3.75 KV 4 FORWARD & 1 |
3,761 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 5 | 4/1 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8652EC-AS1RAUTOMOTIVE 3.75 KV 3 FORWARD & 2 |
3,569 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 5 | 3/2 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8651BC-AS1RAUTOMOTIVE 3.75 KV 4 FORWARD & 1 |
1,562 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 5 | 4/1 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISO721DG4DGTL ISO 2500VRMS 1CH GP 8SOIC |
4,105 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
SI8440BB-D-ISRDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,837 | 3.36 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8441BB-D-ISRDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,870 | 3.36 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
