Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-091J-000EDGTL ISO 2500VRMS 4CH GP 16SOIC |
554 | 19.64 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
HCPL-902J-000EDGTL ISO 2500VRMS 4CH GP 16SO |
259 | 19.64 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-090J-500EDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,032 | 19.70 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-091J-500EDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,045 | 19.70 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-092J-500EDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,221 | 19.70 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADM2682EBRIZDGTL ISO 5KV RS422/RS485 16SOIC |
1,497 | 21.15 |
|
Datasheet |
isoPower® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | RS422, RS485 | Yes | 3 | 2/1 | Unidirectional | 5000Vrms | 25kV/µs | 16Mbps | 100ns, 100ns | - | 15ns, 15ns (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADM2682EBRIZ-RL7DGTL ISO 5KV RS422/RS485 16SOIC |
1,201 | 21.15 |
|
Datasheet |
isoPower® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS422, RS485 | Yes | 3 | 2/1 | Unidirectional | 5000Vrms | 25kV/µs | 16Mbps | 100ns, 100ns | - | 15ns, 15ns (Max) | 3.3V, 5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|

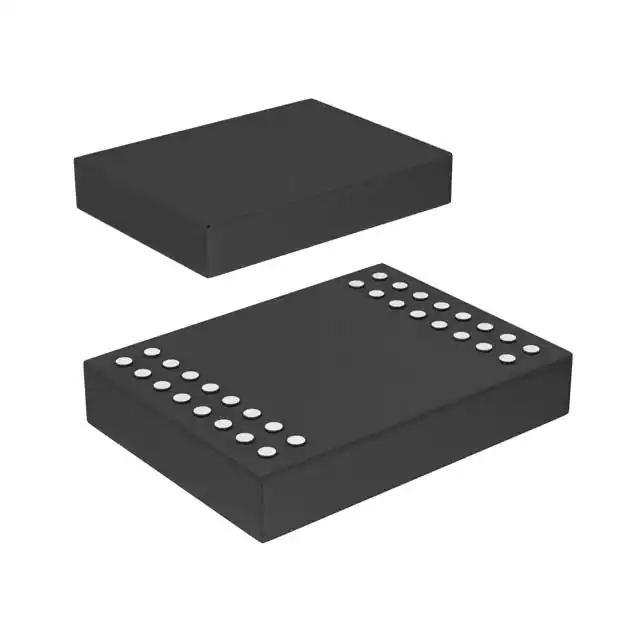

LTM2881CV-5#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
561 | 22.15 |
|
Datasheet |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 32-LGA (15x11.25) |
|
|
LTM2881CV-3#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
384 | 22.15 |
|
Datasheet |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | 0°C ~ 70°C | Surface Mount | 32-LGA (15x11.25) |
|
|
LTM2882CV-5#PBFDGT ISO 2500VRMS 4CH RS232 32LGA |
347 | 22.15 |
|
Datasheet |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 30kV/µs | 10Mbps | 100ns, 100ns | - | 60ns, 60ns | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 32-LGA (15x11.25) |
|
LTM2881CY-5#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
306 | 22.15 |
|
Datasheet |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2881CY-3#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
3,538 | 22.15 |
|
Datasheet |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | 0°C ~ 70°C | Surface Mount | 32-BGA (15x11.25) |
|
ADN4620BRSZDUAL CHAN 2.5GBPS 2+0 LVDS ISOLA |
3,645 | 21.67 |
|
Datasheet |
iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Magnetic Coupling | LVDS | No | 2 | 2/0 | Unidirectional | 3750Vrms | 35kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
|
|
LTM2881IY-3#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
4,186 | 24.02 |
|
Datasheet |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2882IY-5#PBFDGT ISO 2500VRMS 4CH RS232 32BGA |
1,631 | 24.02 |
|
Datasheet |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 30kV/µs | 10Mbps | 100ns, 100ns | - | 60ns, 60ns | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2882IY-3#PBFDGT ISO 2500VRMS 4CH RS232 32BGA |
1,472 | 24.02 |
|
Datasheet |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 30kV/µs | 10Mbps | 100ns, 100ns | - | 60ns, 60ns | 3V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2881IV-5#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
815 | 24.02 |
|
Datasheet |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 32-LGA (15x11.25) |
|
|
LTM2882IV-3#PBFDGT ISO 2500VRMS 4CH RS232 32LGA |
540 | 24.02 |
|
Datasheet |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 30kV/µs | 10Mbps | 100ns, 100ns | - | 60ns, 60ns | 3V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 32-LGA (15x11.25) |
|
|
LTM2881IV-3#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
515 | 24.02 |
|
Datasheet |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 32-LGA (15x11.25) |
|
|
LTM2882IV-5#PBFDGT ISO 2500VRMS 4CH RS232 32LGA |
2,793 | 24.02 |
|
Datasheet |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 30kV/µs | 10Mbps | 100ns, 100ns | - | 60ns, 60ns | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 32-LGA (15x11.25) |
