Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI83418ADA-IFDGTL ISOL 1500VRMS 4CH SPI 32DFN |
220 | 7.92 |
|
Datasheet |
- | 32-VFDFN Exposed Pad | Tray | Active | Capacitive Coupling | SPI | No | 4 | 4/0 | Unidirectional | 1500Vrms | 100kV/µs | - | 2.3µs, 2.9µs (Typ) | 10µs (Min) | 3µs, 3µs | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 32-DFN (9x9) |
|
SI86SM42BE-IS26.0 KVRMS SLEEP MODE ISOLATOR, 4 |
440 | 6.80 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 6000Vrms | 100kV/µs | 150Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
SI8631BD-B-YS0ISOLATION |
138 | 4.51 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Capacitive Coupling | General Purpose | Yes | 3 | 2/1 | Unidirectional | 5000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3480BRSZ-RL7DGTL ISO 3750VRMS 4CH GP 20SSOP |
756 | 6.48 |
|
Datasheet |
iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 3750Vrms | 25kV/µs | 25Mbps | 33ns, 33ns | 3ns | 2.5ns, 2.5ns | 1.8V ~ 5.5V, 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SSOP |
|
|
NCID9210R2HIGH SPEED DUAL-CHANNEL, BI-DIRE |
650 | 6.32 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | I2C, SPI | No | 2 | 1/1 | Unidirectional | 5000Vrms | 100kV/µs | 50Mbps | 25ns, 25ns | 10ns | 2.2ns, 3ns | 2.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
MAX14930CAWE+DGTL ISO 2750VRMS 4CH GP 16SOIC |
609 | 6.95 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2750Vrms | 25kV/µs (Typ) | 150Mbps | 7.5ns, 7.4ns | 1ns | 2ns, 2ns | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
NCID9211HIGH SPEED DUAL-CHANNEL, BI-DIRE |
987 | 6.18 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | I2C, SPI | No | 2 | 1/1 | Bidirectional | 5000Vrms | 100kV/µs | 50Mbps | 25ns, 25ns | 10ns | 2.2ns, 3ns | 2.5V ~ 5.5V | - | - | -40°C ~ 150°C | Surface Mount | 16-SOIC |
|

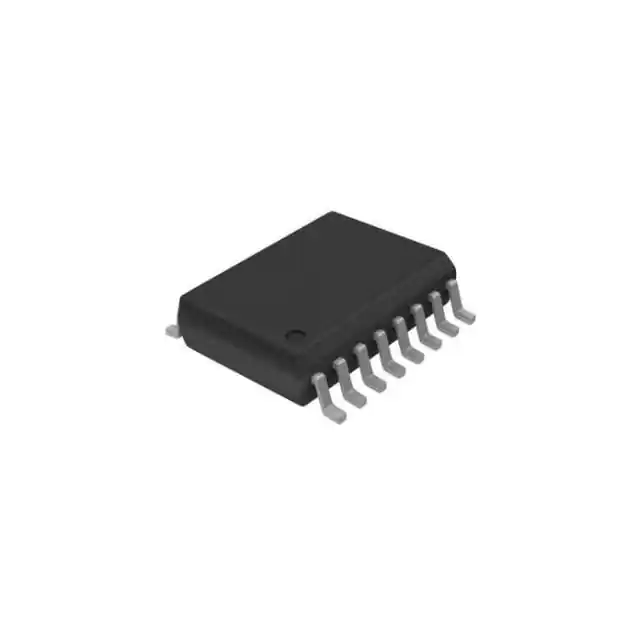

NCID9210NCID9210R2 |
102 | 6.18 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | I2C, SPI | No | 2 | 1/1 | Unidirectional | 5000Vrms | 100kV/µs | 50Mbps | 25ns, 25ns | 10ns | 2.2ns, 3ns | 2.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISO7820FDWWDGTL ISO 5700VRMS 2CH GP 16SOIC |
181 | 8.58 |
|
Datasheet |
- | 16-SOIC (0.551", 14.00mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5700Vrms | 100kV/µs | 100Mbps | 16ns, 16ns | 4.6ns | 2.4ns, 2.4ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
MAX14930BAWE+DGTL ISO 2750VRMS 4CH GP 16SOIC |
151 | 5.99 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2750Vrms | 25kV/µs (Typ) | 25Mbps | 27.5ns, 28.8ns | 2.6ns | 2ns, 2ns | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
IL 514-3EDGTL ISO 2500VRMS 3CH GP 16SOIC |
2,848 | 6.89 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 2Mbps | 25ns, 25ns | 10ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
MAX22820EAWA+2-CH 3KVRMS DIGITAL ISOLATOR |
128 | 5.83 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 200kV/µs | 10Mbps | 136ns, 136ns | 15ns | 5ns, 5ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
ADUM2200ARWZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
5,000 | 1.00 |
|
- |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
ADUM2201ARIZ-RLDGTL ISO 5000VRMS 2CH GP 16SOIC |
666 | 5.38 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
ADUM2200ARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
170 | 1.00 |
|
- |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM2200WARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
188 | 7.01 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM2201WARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
141 | 7.01 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
NCIV9411HIGH SPEED QUAD CHANNEL DIGITAL |
2,000 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | I2C, SPI | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 100kV/µs | 10Mbps | 170ns, 170ns | 70ns | 3ns, 2ns | 2.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7821LLSDWDGTL ISO 5700VRMS 2CH GP 16SOIC |
547 | 11.43 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5700Vrms | 100kV/µs | 150Mbps | 25ns, 25ns | - | - | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1301WSRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
246 | 6.53 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
