Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL 610-3EDGTL ISO 2500VRMS 1CH GP 8SOIC |
1,517 | 5.06 |
|
Datasheet |
IsoLoop® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 100Mbps | 15ns, 15ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
SI8641ED-B-ISRDGTL ISO 5000VRMS 4CH GP 16SOIC |
7,372 | 4.75 |
|
Datasheet |
Si864x | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8640ED-B-ISRDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,770 | 4.75 |
|
Datasheet |
Si864x | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM241E0BRWZ-RLDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,071 | 4.97 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|

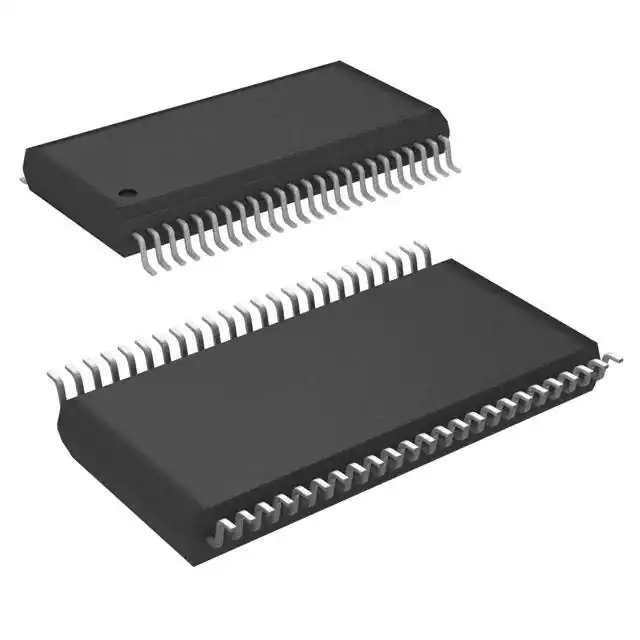

ISO1I811TXUMA1DGTL ISOL 500VAC 8CH SPI 48TSSOP |
6,522 | 6.98 |
|
Datasheet |
ISOFACE™ | 48-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | SPI | No | 8 | 8/0 | Unidirectional | 500VAC | 25kV/µs | - | - | - | - | 2.85V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 48-TSSOP |
|
SI8660BA-B-IS1RDGTL ISO 1000VRMS 6CH GP 16SOIC |
6,073 | 4.92 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 6 | 6/0 | Unidirectional | 1000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
IL610-1ETR7DGTL ISO 2500VRMS 1CH GP 8MSOP |
2,820 | 5.06 |
|
Datasheet |
IL600 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | CAN, RS232, RS422, RS485, SPI | No | 1 | 1/0 | Unidirectional | 1000Vrms | 15kV/µs | 100Mbps | 15ns, 15ns | 10ns (Min) | 2ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-MSOP |
|
MAX12931BASA+TDGTL ISO 3750VRMS 2CH GP 8SOIC |
5,778 | 3.82 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3750Vrms | 50kV/µs (Typ) | 25Mbps | 32.5ns, 33.6ns | 4ns | 1.6ns, 1.4ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
SI8380S-IUDGT ISOL 2500VRMS 8CH SPI 20QSOP |
9,014 | 6.97 |
|
Datasheet |
- | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | SPI | No | 8 | 8/0 | Unidirectional | 2500Vrms | 200kV/µs | 250kbps | - | - | 3.9ns, 3.7ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-QSOP |
|
|
ISO1176TDWRISO RS485 W/ TRANSFORMER DRIVER |
3,176 | 7.22 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 40Mbps | - | - | - | 3V ~ 5.5V, 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC |
|
|
ADUM1201BRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC |
7,211 | 4.72 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
IL 41050TA-3EDGT ISOL 2500VRMS 2CH CAN 16SOIC |
2,021 | 5.28 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | CAN | No | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 1Mbps | - | - | - | 3V ~ 5.5V, 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1201BRZDGTL ISO 2500VRMS 2CH GP 8SOIC |
1,338 | 4.72 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
.jpg)
|
IL 41050TAEDGT ISOL 2500VRMS 2CH CAN 16SOIC |
741 | 5.28 |
|
Datasheet |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | CAN | No | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 1Mbps | - | - | - | 3V ~ 5.5V, 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8652BC-B-IS1DGTL ISO 3750VRMS 5CH GP 16SOIC |
1,159 | 5.25 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 5 | 3/2 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7242MDWRDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,637 | 6.46 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 23ns, 23ns | 2ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
MAX14850ASE+TDGTL ISO 600VRMS 6CH GP 16SOIC |
14,675 | 3.55 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 6 | 4/4 | Bidirectional, Unidirectional | 600Vrms | 1.5kV/µs | 2Mbps, 50Mbps | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
MAX14850AEE+TDGTL ISO 600VRMS 6CH GP 16SSOP |
3,564 | 3.55 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 6 | 4/4 | Bidirectional, Unidirectional | 600Vrms | 1.5kV/µs | 2Mbps, 50Mbps | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
ADUM1200BRZ-RL7DGTL ISO 2500VRMS 2CH GP 8SOIC |
1,455 | 1.00 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
|
ADUM1200BRZDGTL ISO 2500VRMS 2CH GP 8SOIC |
1,044 | 1.00 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
