EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECLAMP0504T.TCTFILTER RC 1 KOHM/12PF ESD SMD |
3,000 | 0.46 |
|
- |
EMIClamp® | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | High Pass | 1st | RC | 4 | - | - | 1k | 2 A | R = 1kOhm, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.017" (0.43mm) |
|
ECLAMP2386K.TCTFILTER RC(PI) 200 OHM/12PF SMD |
3,000 | 0.52 |
|
- |
EMIClamp® | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | - | 30dB @ 800MHz ~ 2.7GHz | 200 | - | R = 200Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.051" W (2.50mm x 1.30mm) | 0.022" (0.55mm) |
|
ECLAMP2378K.TCTFILTER RC(PI) 100 OHM/11PF SMD |
3,000 | 0.53 |
|
- |
EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | - | 30dB @ 1.8GHz ~ 2.5GHz | 100 | - | R = 100Ohms, C = 11pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.130" L x 0.051" W (3.30mm x 1.30mm) | 0.022" (0.55mm) |
|

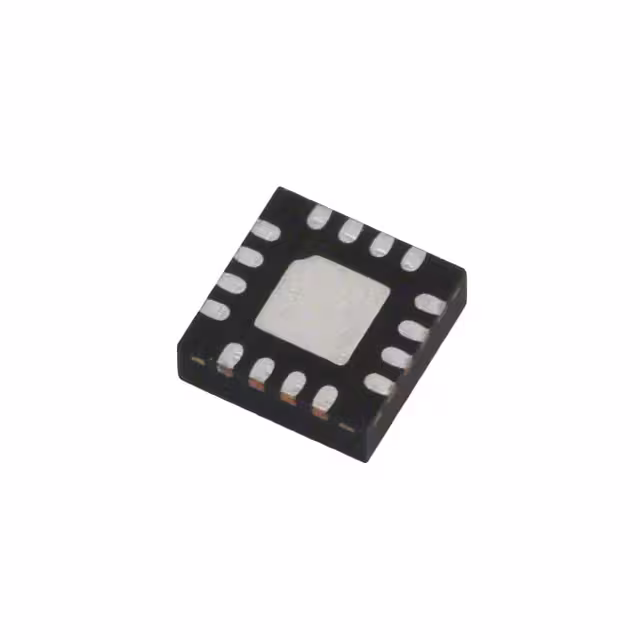

ECLAMP2342N.TCTFILTER RC(PI) 100 OHM/12PF SMD |
3,000 | 1.39 |
|
- |
EClamp™ | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | - | 30dB @ 1GHz ~ 2.5GHz | 100 | - | R = 100Ohms, C = 12pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
ECLAMP2388P.TCTFILTER RC(PI) 200 OHM/12PF SMD |
3,000 | 0.59 |
|
- |
EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | - | 30dB @ 800MHz ~ 2.7GHz | 200 | - | R = 200Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.026" (0.65mm) |
|
|
ECLAMP2456P.TCTFILTER LC(PI) 28NH/12PF ESD SMD |
2,980 | 0.60 |
|
- |
EMIClamp® | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 6 | 155MHz (Cutoff) | 40dB @ 800MHz ~ 2.7GHz | 33 | - | L = 28nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.118" L x 0.063" W (3.00mm x 1.60mm) | 0.026" (0.65mm) |
|
|
ECLAMP2396P.TCTFILTER LC(PI) 19NH/12PF ESD SMD |
2,500 | 0.60 |
|
- |
EMIClamp® | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 6 | 150MHz (Cutoff) | 30dB @ 800MHz ~ 2.7GHz | 18 | - | L = 19nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.118" L x 0.063" W (3.00mm x 1.60mm) | 0.026" (0.65mm) |
|
|
ECLAMP2508K.TCTFILTER LC(PI) 17NH/12PF ESD SMD |
4,520 | 0.69 |
|
- |
EMIClamp® | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 8 | 250MHz (Cutoff) | 20dB @ 800MHz ~ 2.7GHz | 18 | - | L = 17nH, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.130" L x 0.051" W (3.30mm x 1.30mm) | 0.022" (0.55mm) |
|
P409CE104M275AH330FILTER RC 33 OHM/0.1UF TH |
1,238 | 0.85 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 33 | - | R = 33Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
P410CJ473M300AH101FILTER RC 100 OHM/47UF TH |
1,459 | 0.96 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 47nF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) |
|
|
P409CP224M275AH330FILTER RC 33 OHM/0.22UF TH |
150 | 1.39 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 33 | - | R = 33Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
SBSPP1000220MCTSURFACE MOUNT PI FILTER |
2,430 | 1.40 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 2dB @ 100MHz | - | 1 A | C = 22pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
P409CP104M275AH221FILTER RC 220 OHM/0.1UF TH |
141 | 1.34 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
P409CP224M275AH470FILTER RC 47 OHM/0.22UF TH |
130 | 1.31 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
SBSPP0500333MXTSURFACE MOUNT PI FILTER |
2,386 | 1.86 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 0.033µF | No | - | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000153MXBSURFACE MOUNT PI FILTER |
192 | 1.99 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 0.015µF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | 0.071" (1.80mm) |
|
|
P409EL474M275AH680FILTER RC 68 OHM/0.47UF TH |
225 | 2.53 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 68 | - | R = 68Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
|
SBSGP5000153MXTSURFACE MOUNT C AND PI FILTER |
1,000 | 5.22 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 0.015µF | No | -55°C ~ 125°C | General Purpose | 500V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.65mm) |
|
|
SBSGP5000682MXTSURFACE MOUNT C AND PI FILTER |
500 | 5.22 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 6800pF | No | -55°C ~ 125°C | General Purpose | 500V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.65mm) |
,-3-PC-Pad.jpg)
|
SBSGP1000104MXTFILTER LC(PI) 0.1UF SMD |
465 | 5.22 |
|
- |
SBSG | 1812 (4532 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 39dB @ 100MHz | - | 5 A | C = 0.1µF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.64mm) |
