EMI/RFI Filters (LC, RC Networks)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
IP3088CX20,135 IP3088CX20 - CONSUMER CIRCUIT NXP USA Inc.	10,902	0.34	RFQ	-	-	20-WFBGA, WLCSP	Bulk	Active	Low Pass	5th	LC (Pi)	8	175MHz (Cutoff)	40dB @ 800MHz ~ 1.5GHz	18	30 mA	L = 40nH (Total), C = 42pF (Total)	Yes	-40°C ~ 85°C	GSM, LAN, PCS, WAN	-	-	-	Surface Mount	0.156" L x 0.050" W (3.96mm x 1.28mm)	0.028" (0.70mm)
EMIF03-SIM01F2 FILTER RC(PI) ESD SMD STMicroelectronics	3,382	0.94	RFQ	-	IPAD™	8-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	3	-	-	47, 100	-	R = 47Ohms, 100Ohms, C = 35pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.056" L x 0.056" W (1.42mm x 1.42mm)	0.028" (0.70mm)
VEMI45AC-HNH-GS08 FILTER RC(PI) 100 OHM/13PF SMD Vishay General Semiconductor - Diodes Division	8,260	0.42	RFQ	-	-	8-UFDFN Exposed Pad	Tape & Reel (TR)	Last Time Buy	Low Pass	2nd	RC (Pi)	4	240MHz (Cutoff)	-	100	2 A	R = 100Ohms, C = 13pF	Yes	-40°C ~ 125°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.067" L x 0.053" W (1.70mm x 1.35mm)	0.024" (0.60mm)

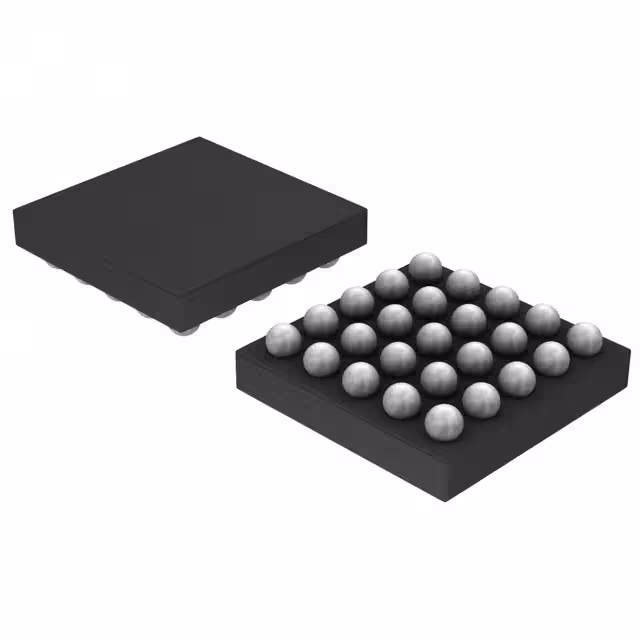

EMIF10-COM01F2 FILTER RC(PI) 200 OHM/45PF SMD STMicroelectronics	2,814	1.55	RFQ	-	IPAD™	25-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	10	-	-	200	-	R = 200Ohms, C = 45pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.094" L x 0.094" W (2.39mm x 2.39mm)	0.028" (0.70mm)
EMIF10-COM01C2 FILTER RC(PI) 200 OHM/45PF SMD STMicroelectronics	2,814	0.97	RFQ	-	EMIF	25-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	10	-	-	200	-	R = 200Ohms, C = 45pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.095" L x 0.095" W (2.41mm x 2.41mm)	0.030" (0.76mm)
EMIF02-MIC02F2 FILTER RC(PI) 470 OHM/16PF SMD STMicroelectronics	14,290	0.93	RFQ	-	IPAD™	6-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	2	-	-	470	-	R = 470Ohms, C = 16pF	Yes	-40°C ~ 85°C	Audio	-	-	-	Surface Mount	0.056" L x 0.036" W (1.42mm x 0.92mm)	0.028" (0.70mm)

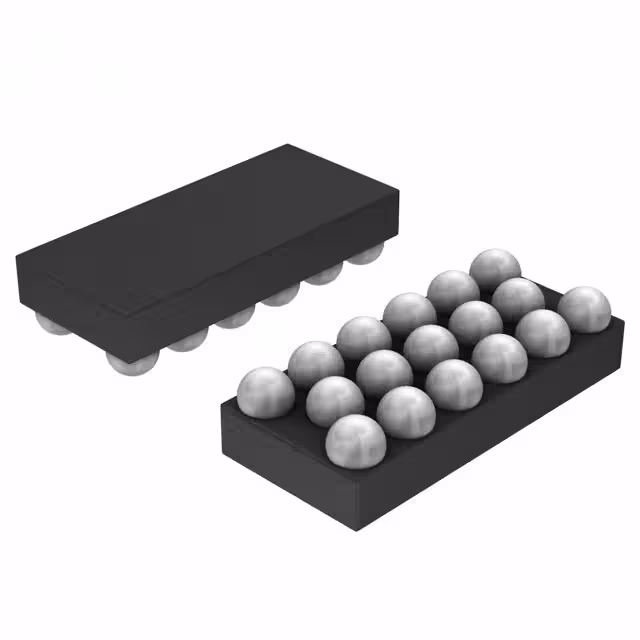

NUF4107FCT1G FILTER RC(PI) 100 OHM/60PF SMD onsemi	4,056	0.41	RFQ	-	-	17-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	4	-	-35dB @ 800MHz ~ 2.2GHz	100	-	R = 100Ohms, C = 60pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.117" L x 0.052" W (2.96mm x 1.33mm)	0.029" (0.74mm)
MEA1608LC060T001 FILTER LC 6PF 290MHZ SMD TDK Corporation	3,880	0.49	RFQ	-	MEA	0603 (1608 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	2nd	LC	4	290MHz (Cutoff)	20dB @ 800MHz ~ 1GHz	-	100 mA	C = 6pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.063" L x 0.032" W (1.60mm x 0.80mm)	0.024" (0.60mm)

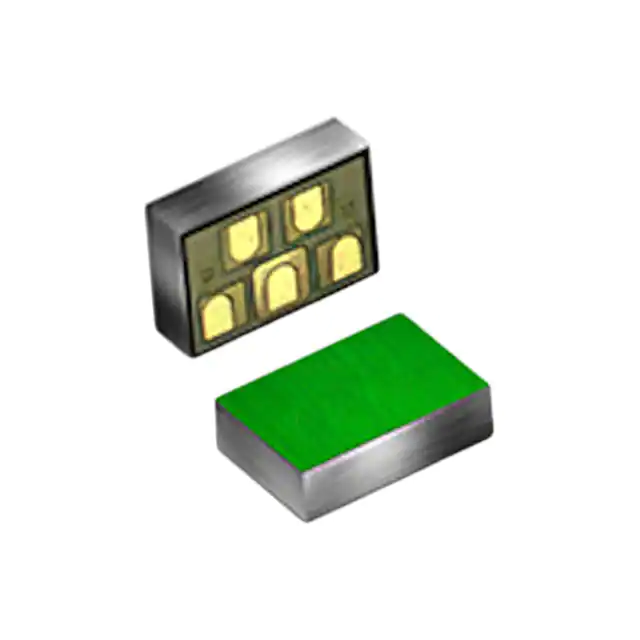

VEMI256A-SD2-G4-08 ESD PROTECTION DIODE CLP1007 Vishay General Semiconductor - Diodes Division	10,000	0.38	RFQ	-	-	5-XFDFN	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	2	60MHz (Cutoff)	-	60	8.5 A	R = 60Ohms, C = 90pF	Yes	-40°C ~ 125°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.041" L x 0.029" W (1.03mm x 0.73mm)	0.011" (0.29mm)
MEA1210PH220T001 FILTER LC(PI) 22PF 410MHZ SMD TDK Corporation	5,439	0.56	RFQ	-	MEA	0504 (1210 Metric), Array, 6 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (Pi)	2	410MHz (Cutoff)	20dB @ 800MHz ~ 3GHz	-	100 mA	C = 22pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.047" L x 0.039" W (1.20mm x 1.00mm)	0.024" (0.60mm)
MEA1210D401R FILTER LC 400MHZ SMD TDK Corporation	3,990	0.56	RFQ	-	MEA	0504 (1210 Metric), Array, 6 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	2nd	LC	2	400MHz (Cutoff)	20dB @ 900MHz ~ 2GHz	-	100 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.047" L x 0.039" W (1.20mm x 1.00mm)	0.024" (0.60mm)
MEA1210LC150T001 FILTER LC 15PF 240MHZ SMD TDK Corporation	3,980	0.56	RFQ	-	MEA	0504 (1210 Metric), Array, 6 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	2nd	LC	2	240MHz (Cutoff)	20dB @ 800MHz ~ 3GHz	-	100 mA	C = 15pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.047" L x 0.039" W (1.20mm x 1.00mm)	0.024" (0.60mm)
MEA1210PH150T001 FILTER LC(PI) 15PF 430MHZ SMD TDK Corporation	3,820	0.56	RFQ	-	MEA	0504 (1210 Metric), Array, 6 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (Pi)	2	430MHz (Cutoff)	20dB @ 800MHz ~ 3GHz	-	100 mA	C = 15pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.047" L x 0.039" W (1.20mm x 1.00mm)	0.024" (0.60mm)
MEA1210D301R FILTER LC 300MHZ SMD TDK Corporation	3,710	0.56	RFQ	-	MEA	0504 (1210 Metric), Array, 6 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	2nd	LC	2	300MHz (Cutoff)	20dB @ 700MHz ~ 2GHz	-	100 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.047" L x 0.039" W (1.20mm x 1.00mm)	0.024" (0.60mm)
MEA1210D501R FILTER LC 500MHZ SMD TDK Corporation	3,375	0.56	RFQ	-	MEA	0504 (1210 Metric), Array, 6 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	2nd	LC	2	500MHz (Cutoff)	20dB @ 1.5GHz ~ 3GHz	-	100 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.047" L x 0.039" W (1.20mm x 1.00mm)	0.024" (0.60mm)
EMIF06-1005MX12Y AUTOMOTIVE GRADE 6-LINE LOW CAPA STMicroelectronics	2,999	0.64	RFQ	-	EMIF	12-WFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	6	-	-34dB @ 900MHz ~ 1.8GHz	100	-	R = 100Ohm, C = 45pF	Yes	-55°C ~ 150°C	Data Lines for Mobile Devices	-	-	-	Surface Mount, Wettable Flank	0.118" L x 0.053" W (3.00mm x 1.35mm)	0.032" (0.80mm)
SNZF220DFT1G FILTER RC(PI) 110 OHM/22PF SMD onsemi	1,900	0.54	RFQ	-	-	5-TSSOP, SC-70-5, SOT-353	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	2	220MHz (Cutoff)	-	110	-	R = 110Ohms, C = 22pF	Yes	-	-	-	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.043" (1.09mm)
EZA-DLU02AAJ FILTER RC(PI) SMD Panasonic Electronic Components	4,974	0.52	RFQ	-	EZADLU	1206 (3216 Metric), Concave, Long Side Terminals	Tape & Reel (TR)	Obsolete	Low Pass	1st	RC (Pi)	2	-	-	15, 15k	-	R = 15Ohms, 15kOhms, C = 47pF	No	-25°C ~ 85°C	USB	12V	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.033" (0.85mm)

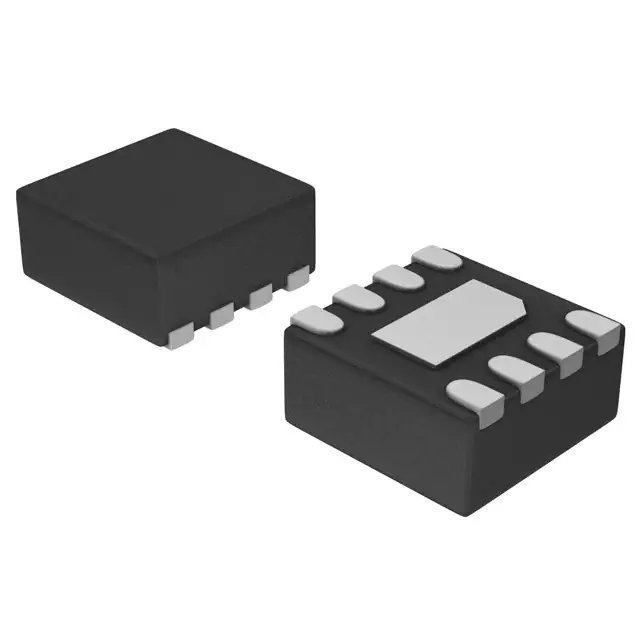

NUF4401MNT1G FILTER RC(PI) 200 OHM/15PF SMD onsemi	4,994	0.53	RFQ	-	-	8-VFDFN Exposed Pad	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	4	125MHz (Cutoff)	-35dB @ 900MHz ~ 2.4GHz	200	-	R = 200Ohms, C = 15pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.079" L x 0.079" W (2.00mm x 2.00mm)	0.039" (1.00mm)

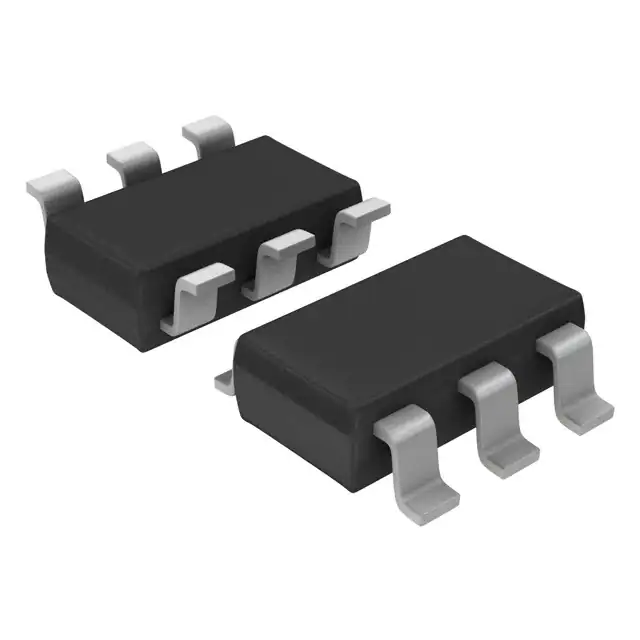

STF202-22T1G FILTER RC(PI) 22 OHM/68PF SMD onsemi	7,810	0.57	RFQ	-	STF202-22	SC-74, SOT-457	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	2	-	-	22	-	R = 22Ohms, C = 68pF	Yes	-55°C ~ 125°C	USB	-	-	-	Surface Mount	0.118" L x 0.059" W (3.00mm x 1.50mm)	0.043" (1.09mm)

Total 1980 Record«Prev 1... 29 30 31 323334 35 36...99 Next»
