EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZM-LCD06-06FRC (Pi) EMI Filter 2nd Order Low |
3,000 | 0.00 |
|
- |
- | 12-UFDFN Exposed Pad | Strip | Active | Low Pass | 2nd | RC (Pi) | 6 | 110MHz (Cutoff) | -29dB @ 800MHz ~ 1GHz | 95 | - | R = 95Ohms, C = 41.5pF | Yes | -55°C ~ 125°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.020" (0.50mm) |
|
UM44014-Line RC EMI Filter with TVS |
10,000 | 0.60 |
|
- |
- | 8-UFDFN | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | 150MHz (Cutoff) | -36dB @ 800MHz, -32dB @ 2 ~ 5GHz | - | - | R = 100Ohm, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.024" (0.61mm) |
|
|
UM64116-Line RC EMI Filter with TVS |
10,000 | 0.75 |
|
- |
- | 8-UFDFN | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 150MHz (Cutoff) | -36dB @ 800MHz, -32dB @ 2 ~ 5GHz | - | - | R = 100Ohm, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.098" L x 0.051" W (2.50mm x 1.30mm) | 0.024" (0.60mm) |
|
UM86018-Line LC EMI Filter with TVS |
10,000 | 0.80 |
|
- |
- | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 8 | 150MHz (Cutoff) | -24dB @ 800MHz, -41dB @ 2 ~ 5GHz | 10 | - | L = 17nH, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
UM84018-Line RC EMI Filter with TVS |
10,000 | 0.80 |
|
- |
- | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 150MHz (Cutoff) | -31.5dB @ 800MHz, 25dB @ 2 ~ 5GHz | - | - | R = 100Ohm, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
UM84118-Line RC EMI Filter with TVS |
9,980 | 0.82 |
|
- |
- | 8-UFDFN | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 150MHz (Cutoff) | -36dB @ 800MHz, -32dB @ 2 ~ 5GHz | - | - | R = 100Ohm, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.130" L x 0.051" W (3.30mm x 1.30mm) | 0.024" (0.60mm) |
|
|
RG1780-6-ELCURC NETWORK, 0.5 MFD, 100 OHM, 12 |
298 | 0.00 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RG1783-10RC NETWORK, 0.25 MFD, 470 OHM, 2 |
709 | 79.08 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 470Ohm, C = 0.25µF | No | -40°C ~ 80°C | General Purpose | 600V | - | - | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.780" (19.81mm) |
|
|
RG1988-6-12-ELCURC NETWORK, 0.25 MFD, 100 OHM, 2 |
435 | 0.00 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RG1784-10-ELCURC NETWORK, 0.5 MFD, 470 OHM, 25 |
244 | 0.00 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RG1780-8-ELCURC Network, 0.5 Mfd, 220 Ohm, 12 |
290 | 0.00 |
|
- |
- | - | Retail Package | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RG1983-3-ELCURC NETWORK, 0.5 MFD, 47 OHM, 125 |
214 | 0.00 |
|
- |
- | - | Retail Package | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RG1782-8RC NETWORK, 0.1 MFD, 220 OHM, 25 |
418 | 69.18 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 220Ohm, C = 0.1µF | No | -40°C ~ 80°C | General Purpose | 600V | - | - | Through Hole | 1.000" L x 0.380" W (25.40mm x 9.65mm) | 0.660" (16.76mm) |
|
|
RG1782-8-ELCURC NETWORK, 0.1 MFD, 220 OHM, 25 |
418 | 0.00 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

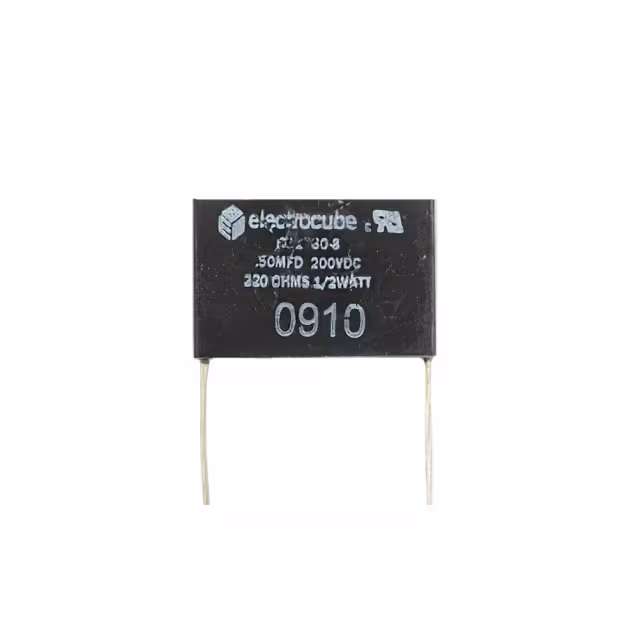

RG1782-3RC NETWORK, 0.1 MFD, 47 OHM, 250 |
309 | 68.00 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 47Ohm, C = 0.1µF | No | -40°C ~ 80°C | General Purpose | 600V | - | - | Through Hole | 1.000" L x 0.380" W (25.40mm x 9.65mm) | 0.660" (16.76mm) |
|
|
RG1782-3-ELCURC NETWORK, 0.1 MFD, 47 OHM, 250 |
309 | 0.00 |
|
- |
- | - | Retail Package | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

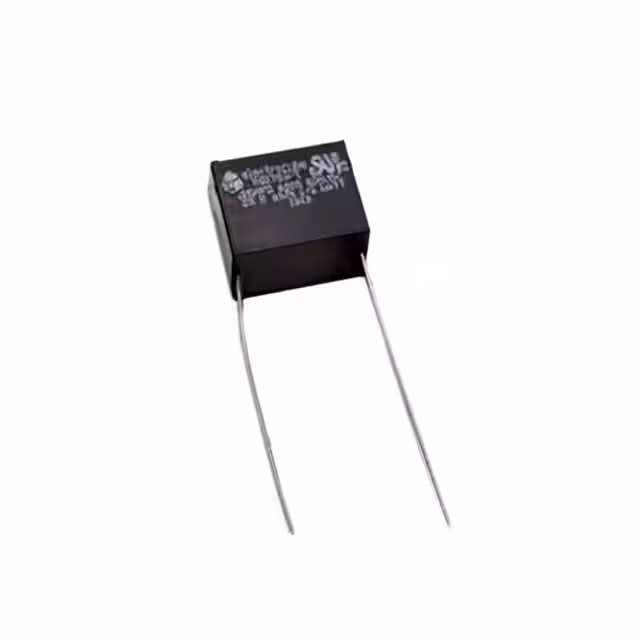

RG1781-3RC NETWORK, 1 MFD, 47 OHM, 125VA |
484 | 75.31 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 47Ohm, C = 1µF | No | -40°C ~ 80°C | General Purpose | 200V | - | - | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.780" (19.81mm) |
|
|
RG1986-1-ELCURC NETWORK, 0.5 MFD, 22 OHM, 250 |
1,134 | 0.00 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

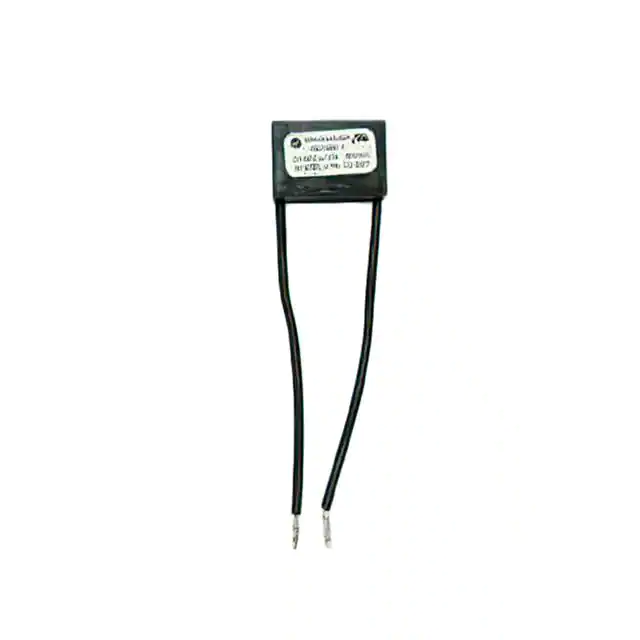

RG1986-2RC NETWORK, 0.5 MFD, 33 OHM, 250 |
353 | 87.45 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 33Ohm, C = 0.5µF | No | -40°C ~ 80°C | General Purpose | 600V | - | - | Through Hole | 1.250" L x 0.580" W (31.75mm x 14.73mm) | 0.870" (22.10mm) |
|
|
RG1986-8-8-ELCURC Network, 0.5 MFD, 220 Ohm, 25 |
2,522 | 0.00 |
|
- |
- | - | Retail Package | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
