EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFA21SL287V1A45LFILTER LC 280MHZ SMD |
1,878 | 0.25 |
|
- |
EMIFIL®, NFA21 | 0805 (2012 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 280MHz (Cutoff) | 25dB @ 800MHz | - | 100 mA | - | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
MEA1608PH220TFILTER LC(PI) 22PF 420MHZ SMD |
2,951 | 0.24 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Not For New Designs | Low Pass | 3rd | LC (Pi) | 4 | 420MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 22pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
|
MEA1608PH270TFILTER LC(PI) 27PF 410MHZ SMD |
4,122 | 0.24 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Not For New Designs | Low Pass | 3rd | LC (Pi) | 4 | 410MHz (Cutoff) | 20dB @ 800MHz ~ 3GHz | - | 100 mA | C = 27pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|

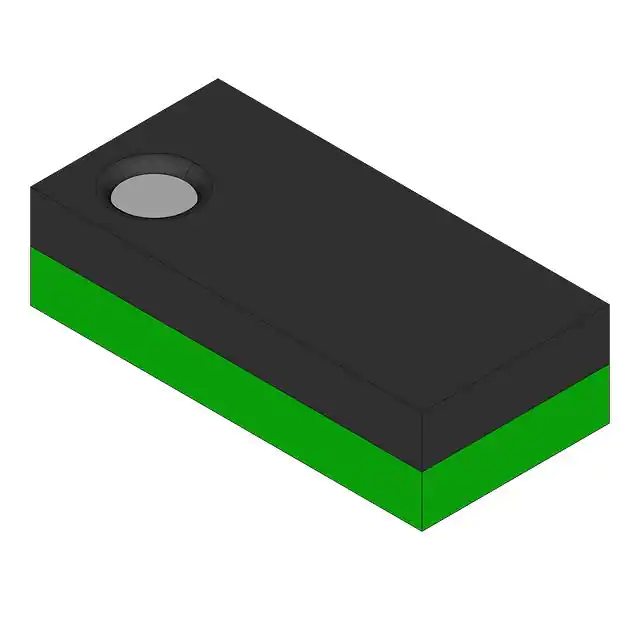

CM1426-04CPFILTER RC(PI) 100 OHM/8.5PF SMD |
2,756 | 0.20 |
|
- |
- | 10-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 230MHz (Cutoff) | 20dB @ 1GHz | 100 | - | R = 100Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.077" L x 0.052" W (1.96mm x 1.33mm) | 0.028" (0.70mm) |
|

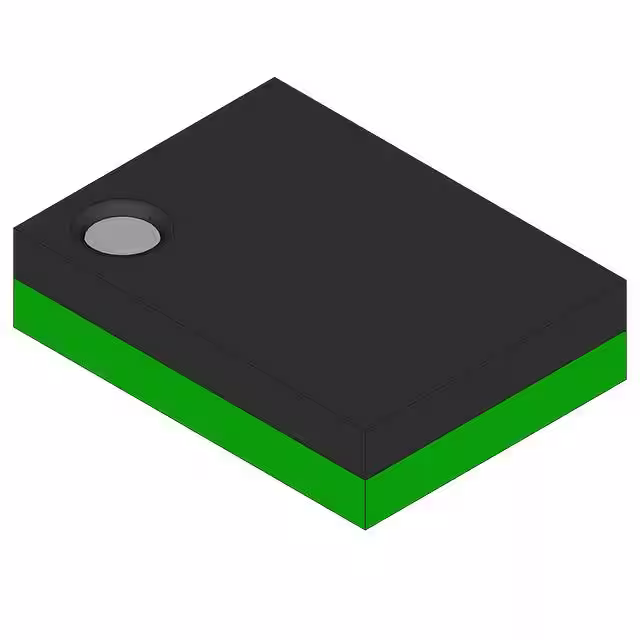

CM1452-04CPFILTER LC(PI) 17NH/15PF ESD SMD |
4,414 | 0.00 |
|
- |
- | 10-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 4 | 148MHz (Cutoff) | 30dB @ 800MHz ~ 2.7GHz | - | 30 mA | L = 17nH, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.066" L x 0.044" W (1.67mm x 1.11mm) | 0.027" (0.69mm) |
|
NFA18SD187X1A45LFILTER LC 180MHZ SMD |
4,805 | 0.25 |
|
- |
EMIFIL®, NFA18 | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 180MHz (Cutoff) | 15dB @ 500MHz | - | 25 mA | - | No | -40°C ~ 85°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
|
NFA18SD207X1A45LFILTER LC 200MHZ SMD |
1,783 | 0.25 |
|
- |
EMIFIL®, NFA18 | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 200MHz (Cutoff) | 13dB @ 500MHz | - | 25 mA | - | No | -40°C ~ 85°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
AOZ8070DIFILTER RC(PI) 100 OHM/8PF SMD |
1,501 | 0.00 |
|
- |
- | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 220MHz (Cutoff) | -20dB @ 1GHz ~ 3GHz | 100 | 20 mA | R = 100Ohms, C = 8pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.138" L x 0.047" W (3.50mm x 1.20mm) | 0.024" (0.60mm) |
|
|
AOZ8530DIFILTER LC(PI) 17NH/16PF ESD SMD |
1,155 | 0.00 |
|
- |
- | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 8 | 450MHz (Cutoff) | -25dB @ 800MHz ~ 3GHz | - | - | L = 17nH, C = 16pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.138" L x 0.047" W (3.50mm x 1.20mm) | 0.024" (0.60mm) |
|
|
NFA21SL287V1A48LFILTER LC 280MHZ SMD |
4,274 | 0.25 |
|
- |
EMIFIL®, NFA21 | 0805 (2012 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 280MHz (Cutoff) | 25dB @ 800MHz | - | 100 mA | - | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
NFA21SL317V1A45LFILTER LC 310MHZ SMD |
4,906 | 0.25 |
|
- |
EMIFIL®, NFA21 | 0805 (2012 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 310MHz (Cutoff) | 20dB @ 800MHz | - | 100 mA | - | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
NFA21SL317V1A48LFILTER LC 310MHZ SMD |
2,709 | 0.25 |
|
- |
EMIFIL®, NFA21 | 0805 (2012 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 310MHz (Cutoff) | 20dB @ 800MHz | - | 100 mA | - | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
NFA21SL337V1A45LFILTER LC 330MHZ SMD |
1,828 | 0.25 |
|
- |
EMIFIL®, NFA21 | 0805 (2012 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 330MHz (Cutoff) | 15dB @ 800MHz | - | 100 mA | - | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
NFA21SL337V1A48LFILTER LC 300MHZ SMD |
4,012 | 0.25 |
|
- |
EMIFIL®, NFA21 | 0805 (2012 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 300MHz (Cutoff) | 20dB @ 800MHz | - | 100 mA | - | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
VEMI85AC-HGK-GS08FILTER RC(PI) 100 OHM/13PF SMD |
1,579 | 0.25 |
|
- |
- | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Last Time Buy | Low Pass | 2nd | RC (Pi) | 8 | 240MHz (Cutoff) | - | 100 | 4 A | R = 100Ohms, C = 13pF | Yes | -40°C ~ 125°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.130" L x 0.053" W (3.30mm x 1.35mm) | 0.024" (0.60mm) |
,-4-PC-Pad.jpg)
|
NFL15ST207X0J3DFILTER LC(T) 105NH/17PF SMD |
2,857 | 0.00 |
|
- |
EMIFIL®, NFL15 | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | 200MHz (Cutoff) | 6dB @ 0MHz ~ 200MHz | - | 50 mA | L = 105nH, C = 17pF | No | -40°C ~ 85°C | General Purpose | 6.3V | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.014" (0.35mm) |
|
|
NFL15ST307X0J3DFILTER LC(T) 95NH/12PF SMD |
4,551 | 0.00 |
|
- |
EMIFIL®, NFL15 | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | 300MHz (Cutoff) | 6dB @ 0MHz ~ 300MHz | - | 50 mA | L = 95nH, C = 12pF | No | -40°C ~ 85°C | General Purpose | 6.3V | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.014" (0.35mm) |
|
|
NFL15ST507X0J3DFILTER LC(T) 60NH/7PF SMD |
1,183 | 0.00 |
|
- |
EMIFIL®, NFL15 | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | 500MHz (Cutoff) | 6dB @ 0MHz ~ 500MHz | - | 50 mA | L = 60nH, C = 7pF | No | -40°C ~ 85°C | General Purpose | 6.3V | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.014" (0.35mm) |
|
|
DSS9NP32A222Q91JFILTER LC(T) 2200PF TH |
3,261 | 0.00 |
|
- |
EMIFIL®, DSS9 | Radial - 3 Leads | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 2200pF | No | -25°C ~ 85°C | General Purpose | - | - | - | Through Hole | 0.472" L x 0.295" W (12.00mm x 7.50mm) | 0.413" (10.50mm) |
|
|
IP4252CZ12-6,118FILTER RC(PI) 40 OHM/12PF SMD |
3,758 | 0.00 |
|
- |
- | 12-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | 12dB @ 800MHz ~ 3GHz | 40 | - | R = 40Ohms, C = 12pF (Total) | Yes | -40°C ~ 85°C | LAN, WAN | - | - | - | Surface Mount | 0.098" L x 0.053" W (2.50mm x 1.35mm) | 0.020" (0.50mm) |
