EMI/RFI Filters (LC, RC Networks)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
DSS1NB32A271Q92A EMI SUPPRESSION FILTERS Murata Electronics	1,309	0.00	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Tape & Box (TB)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 270pF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)
DSS1NB32A271Q93A EMI SUPPRESSION FILTERS Murata Electronics	2,774	0.00	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Tape & Box (TB)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 270pF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)

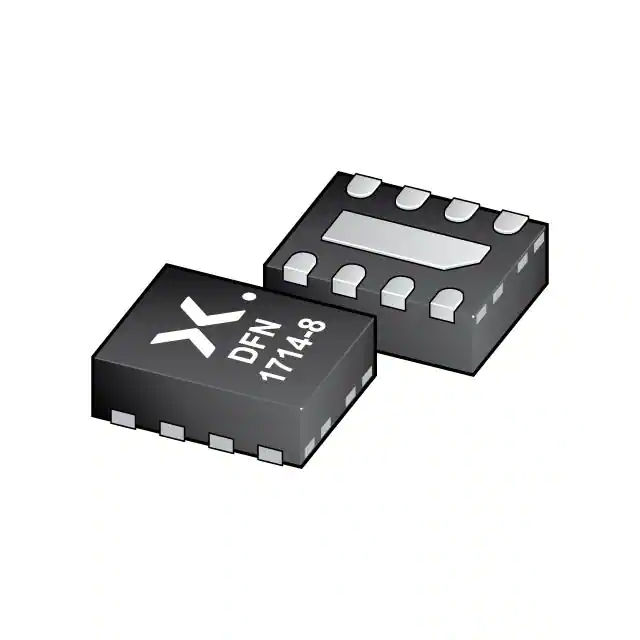

IP4251CZ8-4-TTL132 IP4251CZ8-4-TTL DATA LINE FILTER NXP USA Inc.	4,946	0.15	RFQ	-	-	8-UFDFN Exposed Pad	Bulk	Active	Low Pass	2nd	RC (Pi)	4	-	16dB @ 800MHz ~ 3GHz	100	-	R = 100Ohms, C = 10pF (Total)	Yes	-40°C ~ 85°C	LAN, WAN	-	-	-	Surface Mount	0.067" L x 0.053" W (1.70mm x 1.35mm)	0.022" (0.55mm)

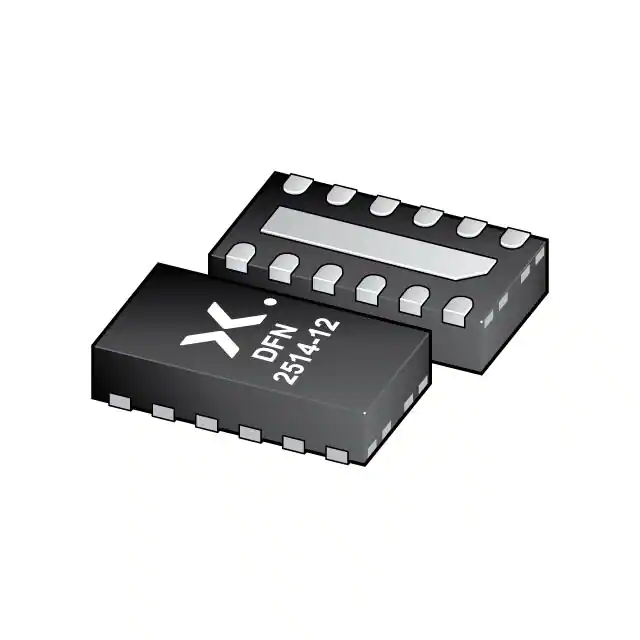

IP3253CZ12-6-TTL132 6-CH PASSIVE EMI-FILTER NETWORK NXP USA Inc.	3,406	0.21	RFQ	-	*	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IP4264CZ8-10-TTL132 DATA LINE FILTER NXP USA Inc.	1,192	0.10	RFQ	-	-	8-UFDFN Exposed Pad	Bulk	Active	Low Pass	2nd	RC (Pi)	3	-	-	47, 100	-	R = 47Ohms, 100Ohm, C = 6pF	Yes	-30°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.067" L x 0.053" W (1.70mm x 1.35mm)	0.022" (0.55mm)
104M06QC100 FILTER 100OHM 0.1UF 600V RADIAL Paktron	2,743	10.36	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	100	-	R = 100Ohm, C = 0.1µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.079" L x 0.390" W (27.40mm x 9.90mm)	0.657" (16.70mm)
104MACQRL150 FILTER 150OHM 0.1UF 125VAC RADIA Paktron	1,140	8.28	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	150	-	R = 150Ohm, C = 0.1µF	No	-55°C ~ 85°C	General Purpose	125VAC	-	-	Through Hole	1.079" L x 0.440" W (27.40mm x 11.18mm)	0.657" (16.70mm)

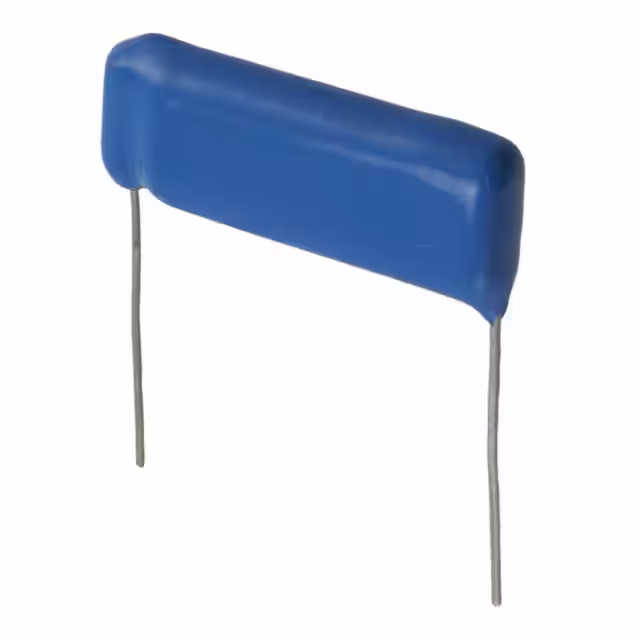

105M02QB47 FILTER 47OHM 1.0UF 200V RADIAL Paktron	4,472	10.99	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	47	-	R = 47Ohms, C = 1µF	No	-55°C ~ 85°C	General Purpose	200V	-	-	Through Hole	1.449" L x 0.390" W (36.80mm x 9.90mm)	0.657" (16.70mm)
254M06QD22 FILTER 22OHM 0.25UF 600V RADIAL Paktron	1,939	12.64	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	22	-	R = 22Ohms, C = 0.25µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.449" L x 0.417" W (36.80mm x 10.60mm)	0.748" (19.00mm)
104M06QC47 FILTER 47OHM 0.1UF 600V RADIAL Paktron	3,279	10.36	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	47	-	R = 47Ohms, C = 0.1µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.079" L x 0.390" W (27.40mm x 9.90mm)	0.657" (16.70mm)
104M06QC150 FILTER 150OHM 0.1UF 600V RADIAL Paktron	1,579	11.15	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	150	-	R = 150Ohm, C = 0.1µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.079" L x 0.390" W (27.40mm x 9.90mm)	0.657" (16.70mm)
504M02QA22 FILTER 22OHM 0.5UF 200V RADIAL Paktron	1,057	8.45	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	22	-	R = 22Ohms, C = 0.5µF	No	-55°C ~ 85°C	General Purpose	200V	-	-	Through Hole	1.079" L x 0.370" W (27.40mm x 9.40mm)	0.642" (16.30mm)
254M06QD150 FILTER 150OHM 0.25UF 600V RADIAL Paktron	3,549	11.53	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	150	-	R = 150Ohms, C = 0.25µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.449" L x 0.417" W (36.80mm x 10.60mm)	0.748" (19.00mm)
FK2125TZ700C850T LINE FILTER SMD Taiyo Yuden	1,575	0.00	RFQ	-	FK	0805 (2012 Metric), 4 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	1st	RC (T-Type)	1	-	-	2	100 mA	R = 70Ohms, C = 85pF	No	-25°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.047" (1.20mm)
FK3216HC040-B LINE FILTER SMD Taiyo Yuden	4,229	0.00	RFQ	-	FK	1206 (3216 Metric)	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (T-Type)	1	25MHz (Center)	6dB @ 100MHz	0.5	300 mA	-	No	-25°C ~ 85°C	Data Lines for Mobile Devices	25V	-	-	Surface Mount, MLCC	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.059" (1.50mm)
FK3216HC050-T LINE FILTER SMD Taiyo Yuden	3,421	0.00	RFQ	-	FK	1206 (3216 Metric)	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (T-Type)	1	32.5MHz (Center)	4dB @ 100MHz	0.5	300 mA	-	No	-25°C ~ 85°C	Data Lines for Mobile Devices	25V	-	-	Surface Mount, MLCC	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.059" (1.50mm)
FK2125TZ700C500T LINE FILTER SMD Taiyo Yuden	3,418	0.00	RFQ	-	FK	0805 (2012 Metric), 4 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	1st	RC (T-Type)	1	-	-	2	100 mA	R = 70Ohms, C = 50pF	No	-25°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.047" (1.20mm)
FK3216HC025-T LINE FILTER SMD Taiyo Yuden	1,825	0.00	RFQ	-	FK	1206 (3216 Metric)	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (T-Type)	1	15MHz (Center)	10dB @ 100MHz	0.5	300 mA	-	No	-25°C ~ 85°C	Data Lines for Mobile Devices	25V	-	-	Surface Mount, MLCC	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.059" (1.50mm)
FK3216HC033-T LINE FILTER SMD Taiyo Yuden	1,875	0.00	RFQ	-	FK	1206 (3216 Metric)	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (T-Type)	1	20.5MHz (Center)	7dB @ 100MHz	0.5	300 mA	-	No	-25°C ~ 85°C	Data Lines for Mobile Devices	25V	-	-	Surface Mount, MLCC	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.059" (1.50mm)
UM4601 4-Line LC EMI Filter with TVS Union Semiconductor International Limited	2,899	0.70	RFQ	-	-	8-UFDFN	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	4	150MHz (Cutoff)	-24dB @ 800MHz, -41dB @ 2 ~ 5GHz	10	-	L = 17nH, C = 15pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	5V	-	-	Surface Mount	0.079" L x 0.079" W (2.00mm x 2.00mm)	0.031" (0.80mm)

Total 1980 Record«Prev 1... 93 94 95 969798 99 Next»
