Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW0D-B24-BC0006LROTARY ENCODER MECHANICAL 6PPR |
213 | 5.46 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EVE-RLCJL008BROTARY ENCODER MECHANICAL 8PPR |
109 | 6.27 |
|
Datasheet |
EVER | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|
ECW1J-R19-CC0024LROTARY ENCODER MECHANICAL 24PPR |
150 | 5.46 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

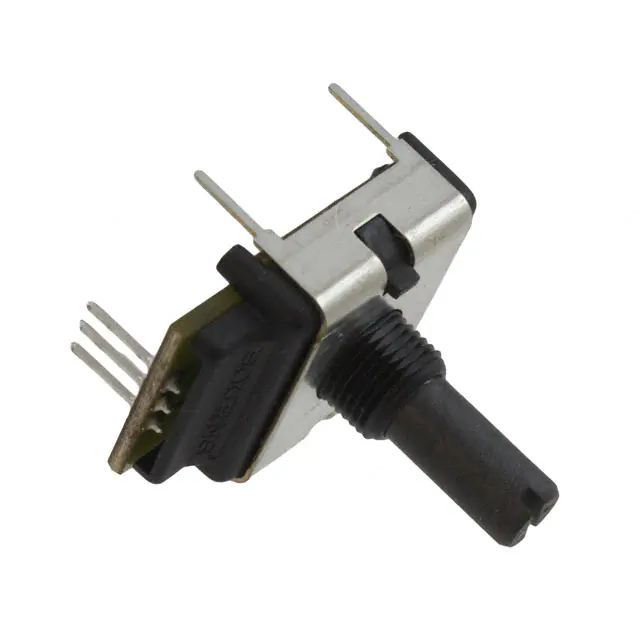

ECW0J-B24-BD0009LROTARY ENCODER MECHANICAL 9PPR |
143 | 5.46 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

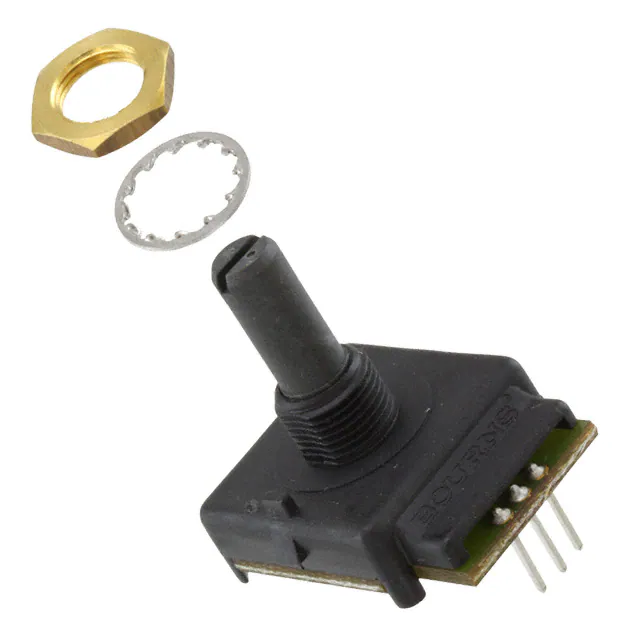

ECW1J-R19-AC0024LROTARY ENCODER MECHANICAL 24PPR |
109 | 5.46 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW0J-B24-BC0006LROTARY ENCODER MECHANICAL 6PPR |
289 | 5.46 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-R19-BC0024LROTARY ENCODER MECHANICAL 24PPR |
260 | 5.46 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
ECW1D-C24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
235 | 5.46 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
AS5134-ZSSTROTARY ENCODER MAGNETIC |
12,546 | 9.22 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 4.4V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|

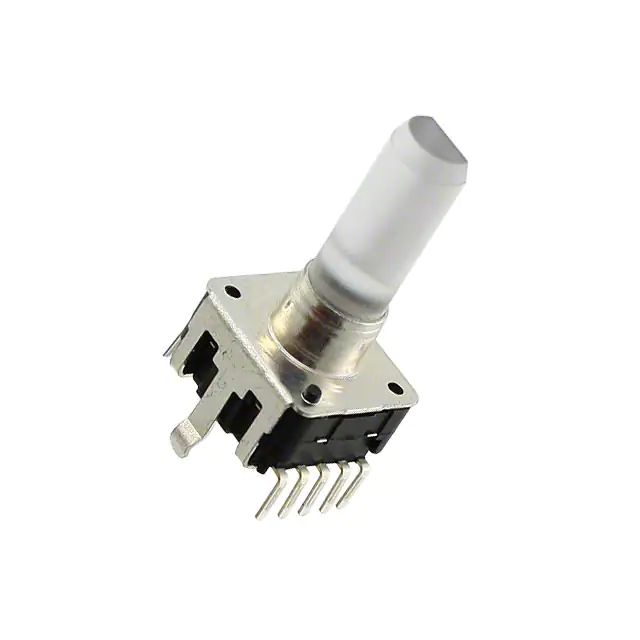

PEL12T-4226F-S1024ROTARY ENCODER MECHANICAL 24PPR |
192 | 6.68 |
|
Datasheet |
PEL12T | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
AS5030-ATST TSSOP16 LF T&RDPROTARY ENCODER MAGNETIC |
2,048 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | - | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

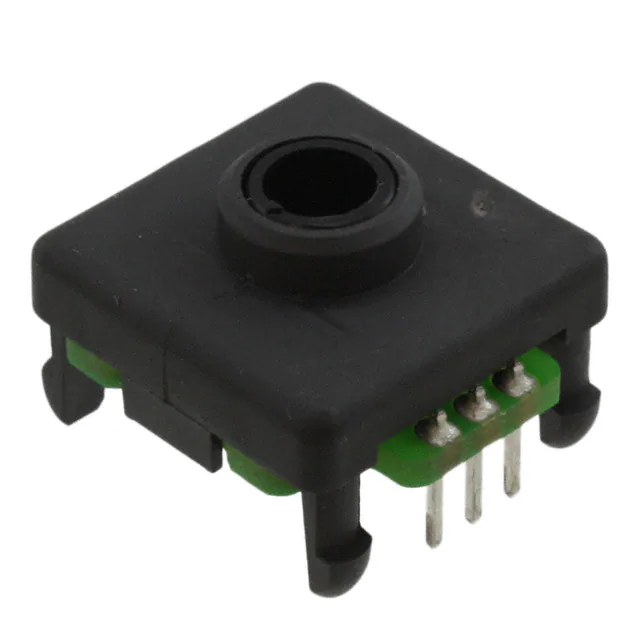

ESD0D-S00-GC0006LROTARY ENCODER MECHANICAL 6PPR |
191 | 8.30 |
|
Datasheet |
ES | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | - | Yes | No | PCB, Surface Mount | Vertical | PC Pin | 200K | - | - |
|

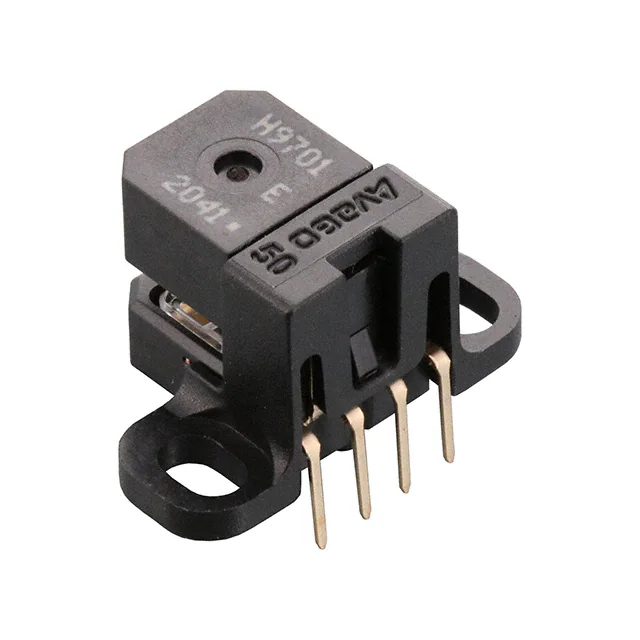

HEDS-9701-E50SMALL EN,2CH,200CPR,BT LDS,STD |
963 | 13.17 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

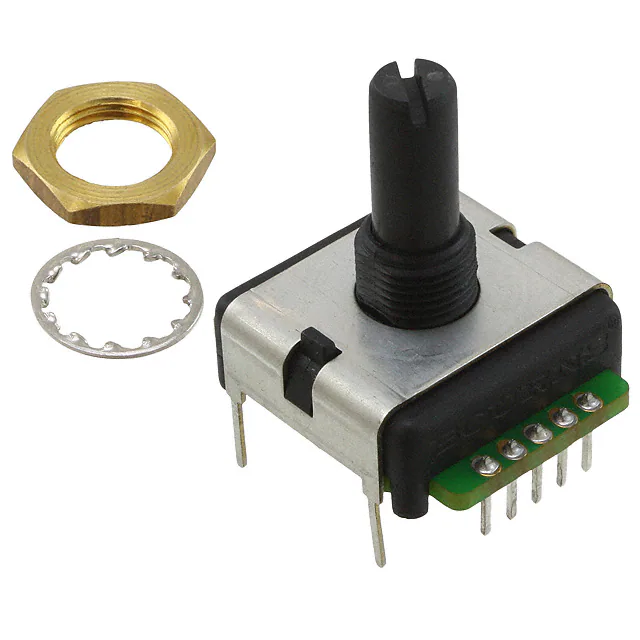

EAW0J-B24-CE0128LROTARY ENCODER MECHANICAL 128PPR |
266 | 10.72 |
|
Datasheet |
ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|

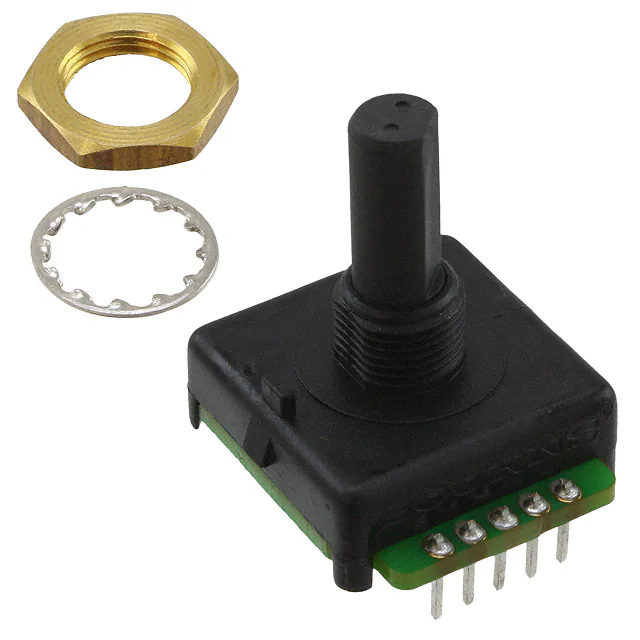

EAW0J-C24-AE0128LROTARY ENCODER MECHANICAL 128PPR |
163 | 10.72 |
|
Datasheet |
ACE™ | Tray | Active | Not Verified | Mechanical | Binary (Absolute) | 128 | - | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
EPS1D-F19-AE0024LROTARY ENCODER MECHANICAL 24PPR |
312 | 11.14 |
|
Datasheet |
EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 4.8mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
AEAT-8800-Q24TRPROG 16BITS MAGNETIC ENCODER QFN |
446 | 10.22 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | SSI | 4096 | 5.5V ~ 5.7V | External Magnet, Not Included | No | No | Surface Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
HEDS-9700#E50ROTARY ENCODER OPTICAL 200PPR |
413 | 15.42 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9700-C545V, 2CH,100CPR, DIG |
734 | 13.17 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-9731#B50ROTARY ENCODER OPTICAL 1000PPR |
390 | 15.42 |
|
Datasheet |
HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
