DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP1031CP-5-EVALZEVAL BOARD FOR ADP10315 |
1,884 | 73.94 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 3 Isolated Outputs | - | 5.15V, 21V, -15V | - | 4.5V ~ 60V | Flyback | - | Board(s) | ADP1031-5 |
|
MAX22256EVKIT#EVAL BOARD FOR MAX22256 |
3,530 | 69.56 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 8.3 W | - | 1A | 5V ~ 36V | Half-Bridge | - | Board(s) | MAX22256 |
|
EVM3695-100-BH-00AEVAL BOARD FOR MPM3695100 |
2,590 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 100A | 3.3V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
EVAL-LT7170-AZEVAL BOARD FOR LT7170 |
2,442 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 5.5V | 20A | 2.9V ~ 16V | Buck | - | Board(s) | LT7170 |
|
DC1472AEVAL BOARD FOR LTM4618 |
3,420 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V | 6A | 4.5V ~ 26.5V | Buck | 500kHz | Board(s) | LTM4618 |
|

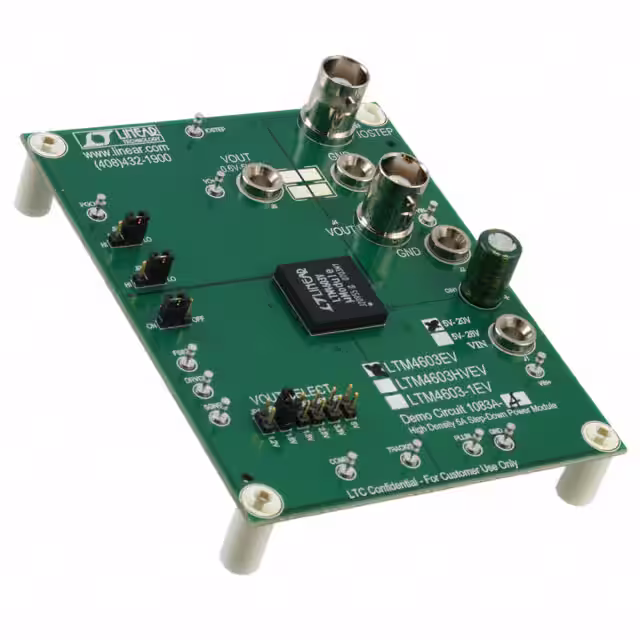

DC1083A-AEVAL BOARD FOR LTM4603 |
2,450 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 6A | 4.5V ~ 20V | Buck | 1MHz | Board(s) | LTM4603 |
|

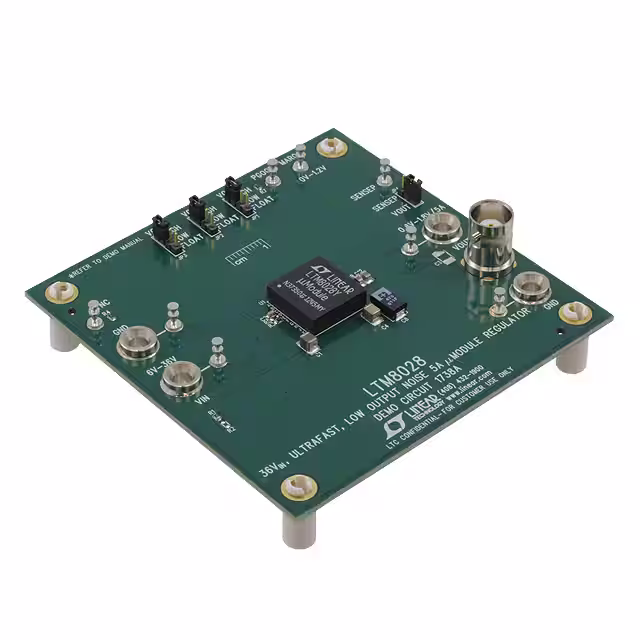

DC1738AEVAL BOARD FOR LTM8028 |
4,989 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 6V ~ 36V | Buck | 250kHz | Board(s) | LTM8028 |
|
|
DC1905BEVAL BOARD FOR LTM4633 |
4,380 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1V, 1.2V, 3.3V | 10A, 10A, 10A | 4.7V ~ 16V | Buck | 750kHz | Board(s) | LTM4633 |
|
|
DC2665B-AEVAL BOARD FOR LTM4626 |
1,574 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 3.1V ~ 20V | Buck | 600kHz | Board(s) | LTM4626 |
|

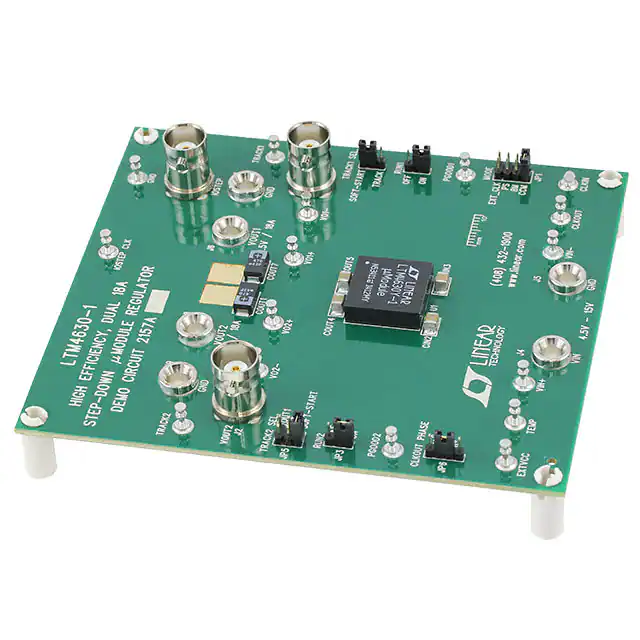

DC2157AEVAL BOARD FOR LTM46301 |
2,861 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 18A, 18A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4630-1 |
|
|
EVAL-LTM4703-AZEVAL BOARD FOR LTM4703 |
2,713 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 4V ~ 16V | Buck | 400kHz | Board(s) | LTM4703 |
|
DC2268A-GEVAL BOARD FOR LTM4631 |
1,634 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 1.8V | 10A, 10A | 4.5V ~ 15V | Buck | - | Board(s) | LTM4631 |
|
|
DC2665B-BEVAL BOARD FOR LTM4638 |
2,354 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 15A | 3.1V ~ 20V | Buck | 600kHz | Board(s) | LTM4638 |
|
|
DC2820A-BLTM8060F DEMOBOARD |
1,866 | 0.00 |
|
- |
- | Tray | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 3.3V, 5V | 3A | 5.4V ~ 40V | Buck | - | Board(s) | LTM8060F |
|

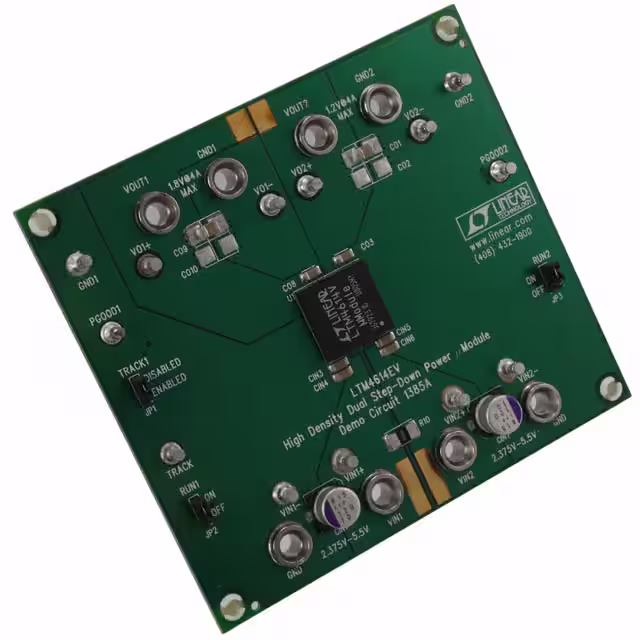

DC1385AEVAL BOARD FOR LTM4614 |
4,594 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 4A, 4A | 2.375V ~ 5.5V | Buck | 1.25MHz | Board(s) | LTM4614 |
|
DC2147AEVAL BOARD FOR LTM4631 |
3,004 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.2V | 10A, 10A | 4.5V ~ 15V | Buck | 650kHz | Board(s) | LTM4631 |
|

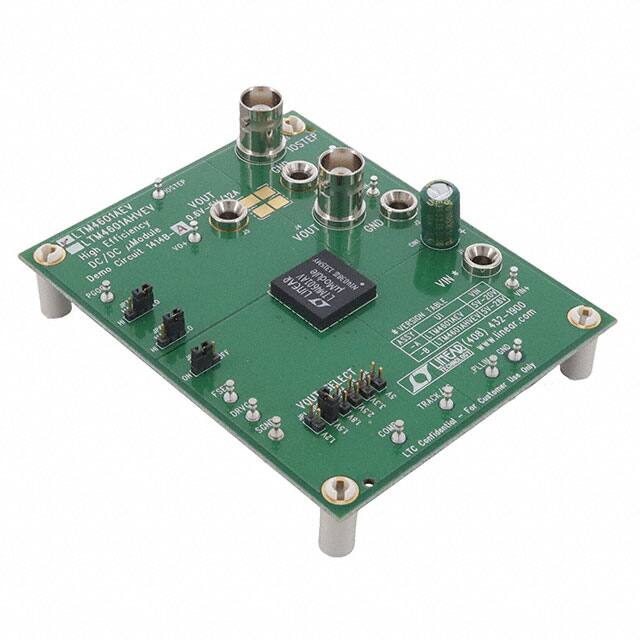

DC1414B-AEVAL BOARD FOR LTM4601AEV |
4,241 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5V | 12A | 4.5V ~ 20V | Buck | 850kHz | Board(s) | LTM4601AEV |
|
|
DC2268A-CEVAL BOARD FOR LTM4628 |
3,190 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 8A, 8A | 4.5V ~ 26.5V | Buck | - | Board(s) | LTM4628 |
|
|
DC2665B-CEVAL BOARD FOR LTM4657 |
4,433 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 3.1V ~ 20V | Buck | 500kHz | Board(s) | LTM4657 |
|
|
RTKA211250DE0010BUEVAL BOARD FOR RAA211250 |
3,725 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 30V | Buck | - | Board(s) | RAA211250 |
