DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX18002WEVKIT#EVAL BOARD FOR MAX18002 |
1,645 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.5V ~ 5.5V | 3.6A | 1.8V ~ 5.5V | Boost | - | Board(s) | MAX18002 |
|
|
TLV61047EVM-038EVAL BOARD FOR TLV61047 |
2,846 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Up | 1 Isolated Output | - | 12V | 600mA | 3V ~ 9V | Boost | - | Board(s) | TLV61047 |
|
|
EVAL-LT7170-1-AZEVAL BOARD FOR LT71701 |
4,246 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 5.5V | 20A | 2.9V ~ 16V | Buck | - | Board(s) | LT7170-1 |
|
|
EVAL-LT7171-1-AZEVAL BOARD FOR LT71711 |
3,295 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 2.9V ~ 16V | Buck | 1MHz | Board(s) | LT7171-1 |
|
|
EVAL-LT7171-AZEVAL BOARD FOR LT7171 |
2,739 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 2.9V ~ 16V | Buck | - | Board(s) | LT7171 |
|
NCP1071SOTGEVBEVAL BOARD FOR NCP1071 |
4,996 | 75.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 2 W | 12V | - | 85 ~ 270 VAC | Buck | 100kHz | Board(s) | NCP1071 |
|

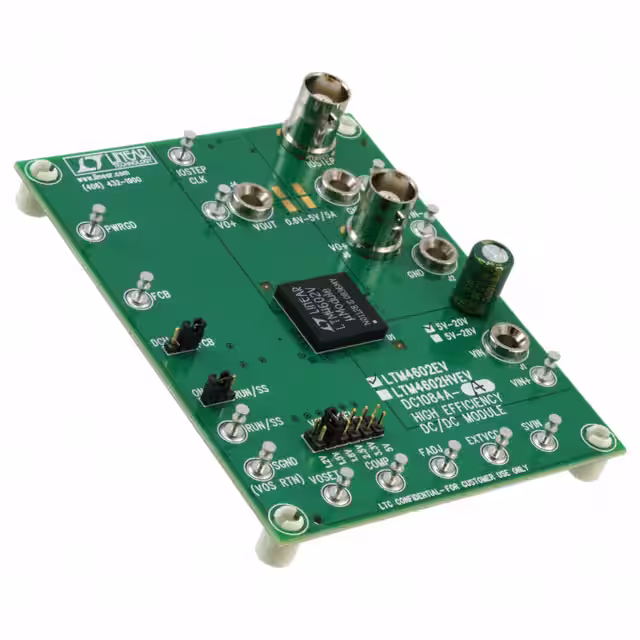

DC1084A-AEVAL BOARD FOR LTM4602 |
2,810 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 6A | 4.5V ~ 20V | Buck | 800kHz | Board(s) | LTM4602 |
|
|
RPH-3.0-EVM-1EVAL BOARD FOR RPH3.0 |
4,835 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V | 3A | 4.5V ~ 55V | Buck | - | Board(s) | RPH-3.0 |
|
|
DC3164A-BEVAL BOARD FOR LTM47101 |
2,745 | 0.00 |
|
Datasheet |
Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.8V, 1V, 1.2V, 1.5V | 8A, 8A, 8A, 8A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTM4710-1 |
|
|
DC3248AEVAL BOARD FOR LTM4659 |
2,222 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTM4659 |
|

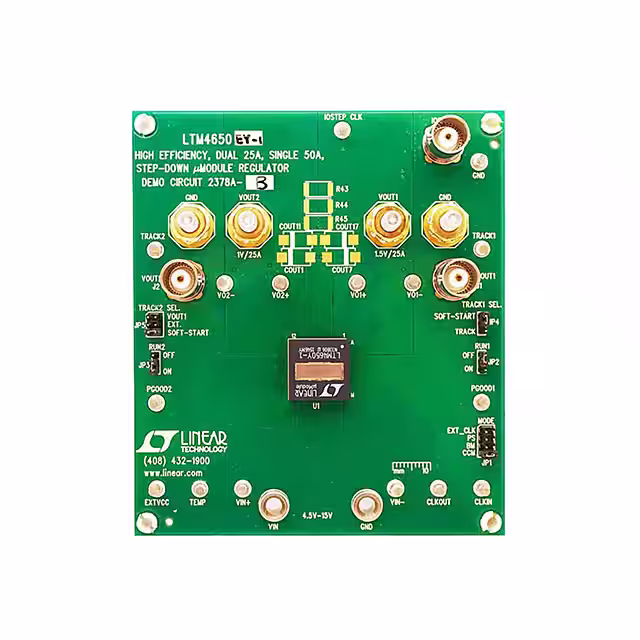

DC2378A-BEVAL BOARD FOR LTM46501 |
3,442 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 25A, 25A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
|
|
EVAL-LTM4702-AZEVAL BOARD FOR LTM4702 |
1,222 | 0.00 |
|
Datasheet |
Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 4V ~ 16V | Buck | 800kHz | Board(s) | LTM4702 |
|
|
DC3107ALTM4640 DEMOBOARD HIGH DENSITY Q |
2,784 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
MAX38642AEVK#WLPEVAL BOARD FOR MAX38642A |
1,255 | 0.00 |
|
Datasheet |
nanoPower | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 350mA | 1.8V ~ 5.5V | Buck | - | Board(s) | MAX38642A |
|

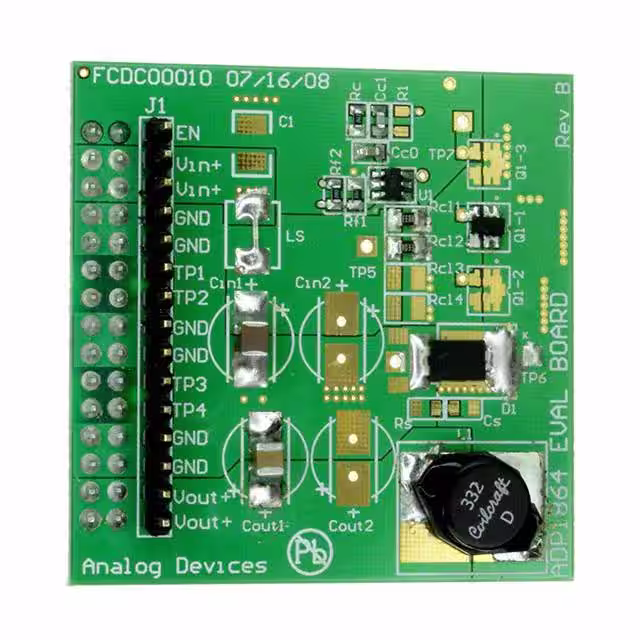

ADP1864-EVALZEVAL BOARD FOR ADP1864 |
1,873 | 73.60 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 9V ~ 12V | Buck | 580kHz | Board(s) | ADP1864 |
|

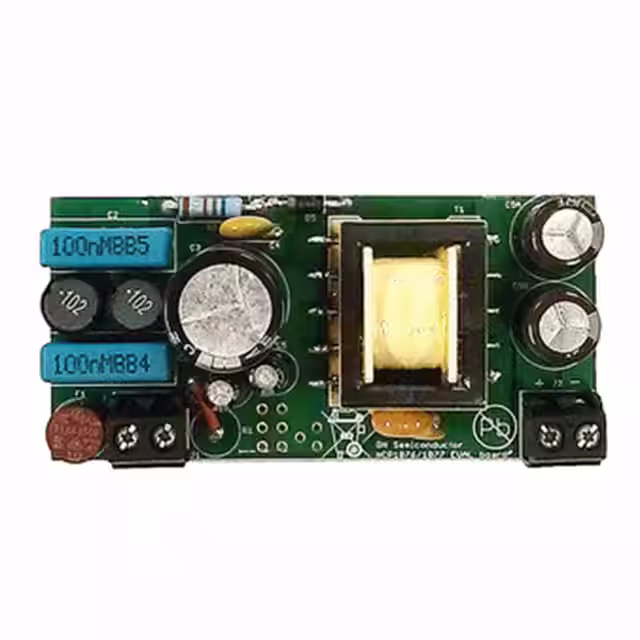

NCP1077STGEVBEVAL BOARD FOR NCP1077 |
4,925 | 81.25 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | 5V | - | - | Flyback | 100kHz | Board(s) | NCP1077 |
|
|
AP66200QFVBW-EVMEVAL BOARD FOR AP66200Q |
1,702 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 3.8V ~ 60V | Buck | 500kHz | Board(s) | AP66200Q |
|
|
RTKA223011DR0080BUEVAL BOARD FOR RAA223011 |
3,858 | 0.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 4.7 W | 12V | 400mA | 85 ~ 265 VAC | Flyback | 33kHz | Board(s) | RAA223011 |
|

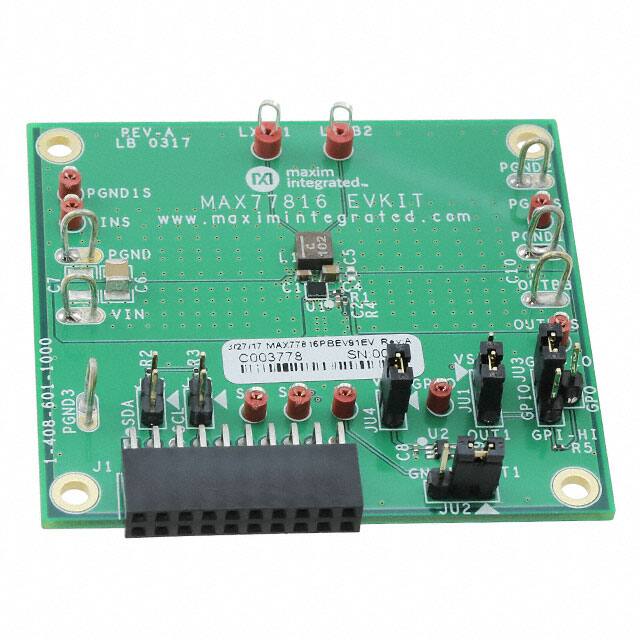

MAX77816EVKIT#EVAL BOARD FOR MAX77816 |
1,889 | 79.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.6V ~ 5.14V | 3A | 2.3V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | MAX77816 |
|
|
MAX668EVKIT+EVAL BOARD FOR MAX668 |
3,339 | 69.56 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1A | - | Boost | 500kHz | Board(s) | MAX668 |
