DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC14131EVM-070EVAL BOARD FOR UCC14131Q1 |
1,147 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 1.5 W | - | - | 11.2V ~ 14V | - | - | Board(s) | UCC14131-Q1 |
|

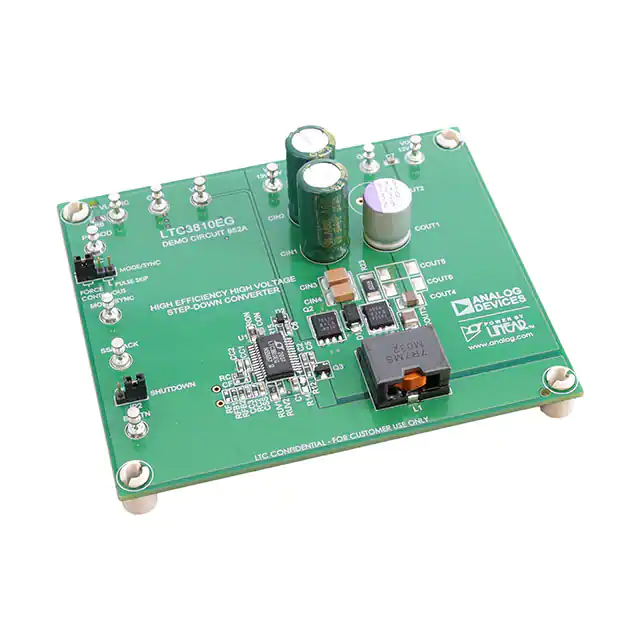

DC952AEVAL BOARD FOR LTC3810 |
2,844 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 6A | 13V ~ 80V | Buck | 230kHz | Board(s) | LTC3810 |
|

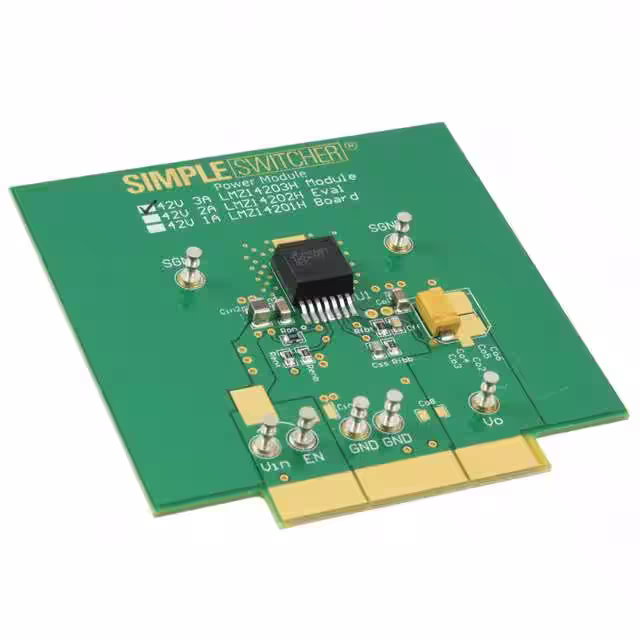

LMZ14203HEVAL/NOPBEVAL BOARD FOR LMZ14203H |
3,006 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 3A | 15V ~ 42V | Buck | - | Board(s) | LMZ14203H |
|

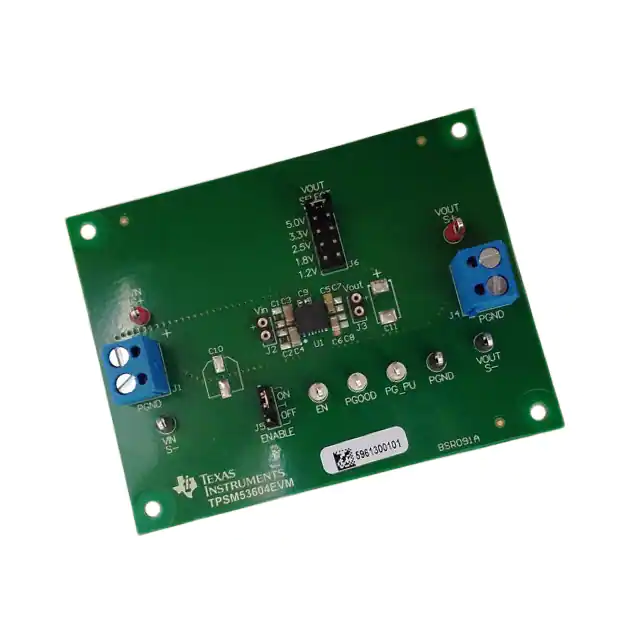

TPSM53604EVMEVAL BOARD FOR TPSM53604 |
2,946 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 4A | 3.8V ~ 36V | Buck | - | Board(s) | TPSM53604 |
|

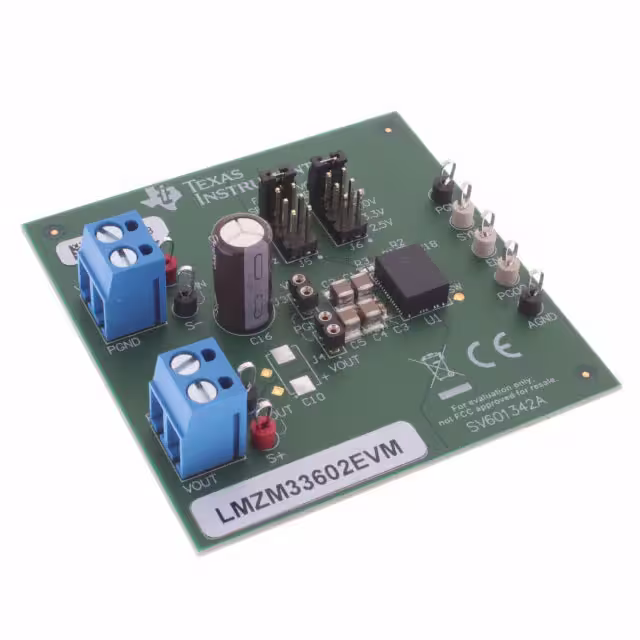

LMZM33602EVMEVAL BOARD FOR LMZM33602 |
2,986 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 12V | - | 4V ~ 36V | Buck | - | Board(s) | LMZM33602 |
|

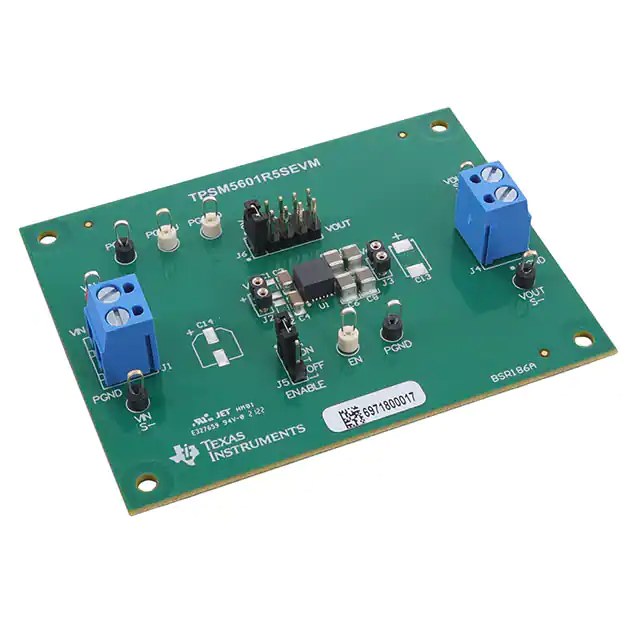

TPSM5601R5SEVMEVAL BOARD FOR TPSM5601R5S |
4,724 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | - | 4.2V ~ 60V | Buck | - | Board(s) | TPSM5601R5S |
|

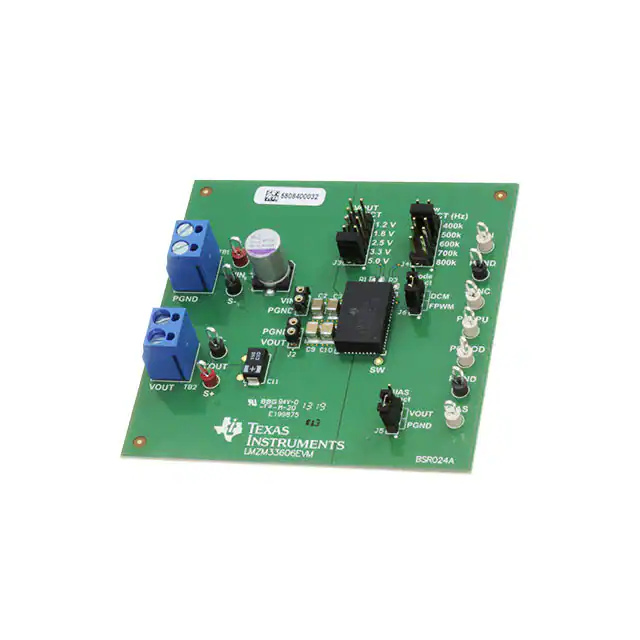

LMZM33606EVMEVAL BOARD FOR LMZM33606 |
2,973 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 6A | 3.5V ~ 36V | Buck | - | Board(s) | LMZM33606 |
|

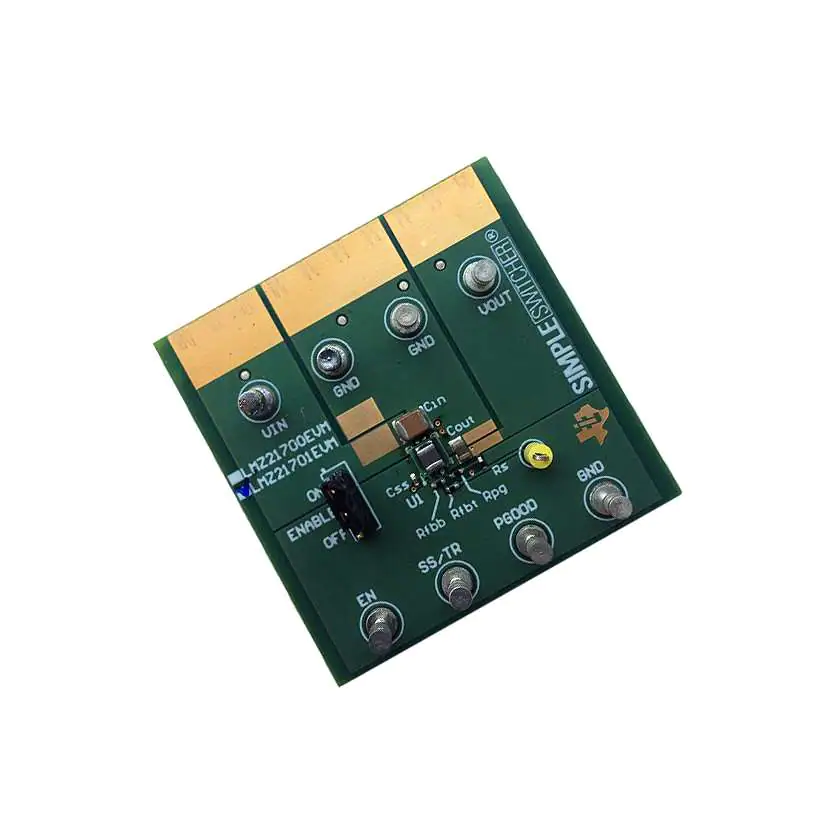

LMZ21701EVMEVAL BOARD FOR LMZ21701 |
4,406 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 17V | Buck | - | Board(s) | LMZ21701 |
|

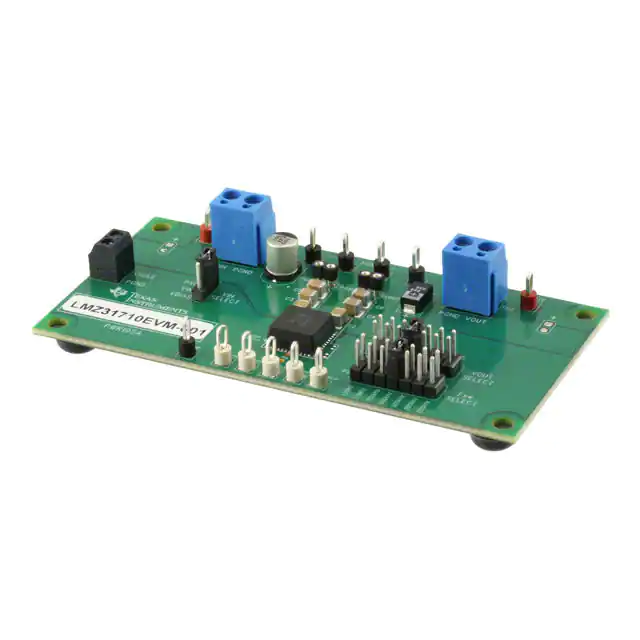

LMZ31710EVM-001EVAL BOARD FOR LMZ31710 |
2,571 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 10A | 2.95V ~ 17V | Buck | - | Board(s) | LMZ31710 |
|
|
RTKA210130DE0020BUEVAL BOARD FOR RAA210130 |
1,356 | 0.00 |
|
Datasheet |
- | Tray | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 30A | 4.75V ~ 15V | Buck | 500kHz | Board(s) | RAA210130 |
|

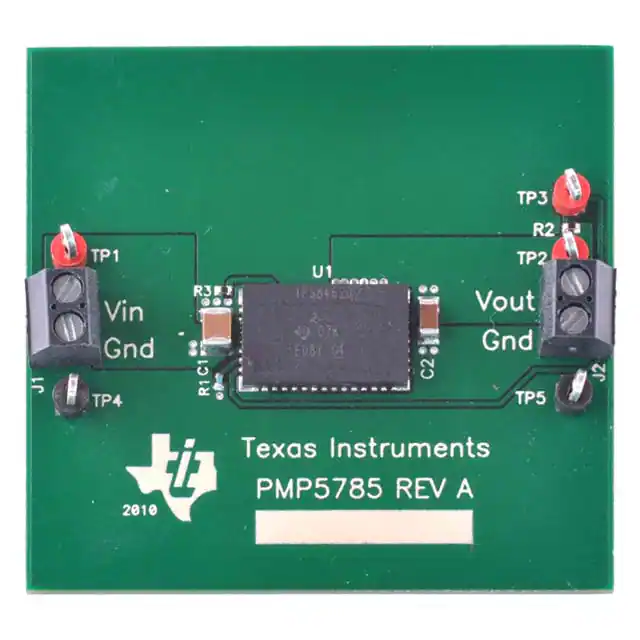

TPS84620EVM-692EVAL BOARD FOR TPS84620692 |
1,830 | 64.03 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4.5V ~ 14.5V | Buck | 630kHz | Board(s) | TPS84620-692 |
|

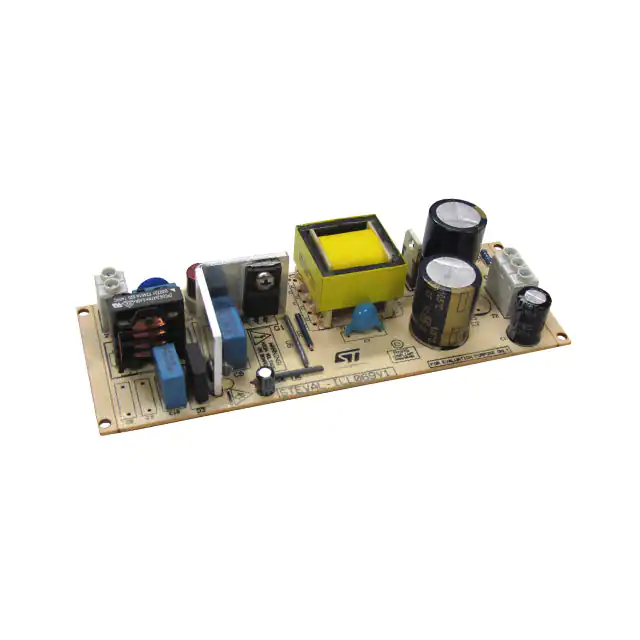

STEVAL-ILL069V1EVAL BOARD FOR HVLED001 |
3,627 | 83.75 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 48V | 730mA | 90 ~ 305 VAC | Flyback | - | Board(s) | HVLED001 |
|
|
EVB-EM2030L01QIEVAL BOARD FOR EM2030L01QI |
1,527 | 85.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | - | - | 0.5V ~ 1.325V | 30A | 4.5V ~ 16V | Buck | 800kHz | Board(s) | EM2030L01QI |
|
MCRY-PROTOKITPROTOTYPE KIT FOR MATRIX MATRIX |
3,917 | 250.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | - | - | 3V | 1.2mA | - | Boost | - | Board(s) | - |
|

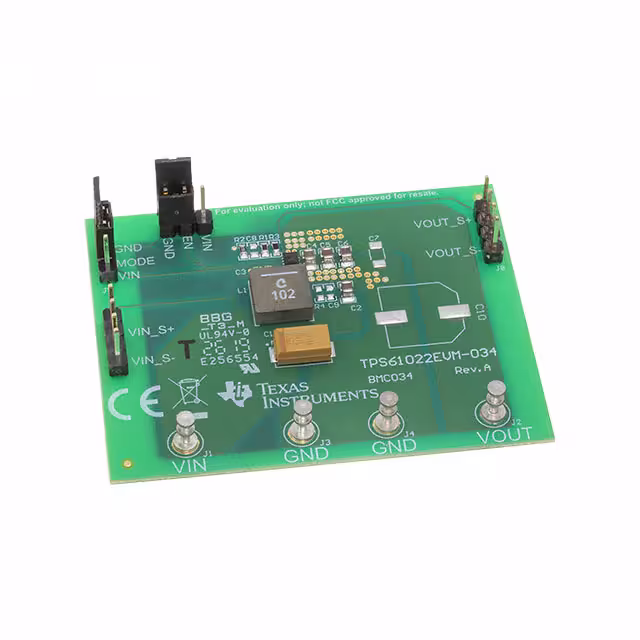

TPS61022EVM-034EVAL BOARD FOR TPS61022 |
1,019 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.1V | 3A | 0.5V ~ 5.5V | Boost | - | Board(s) | TPS61022 |
|

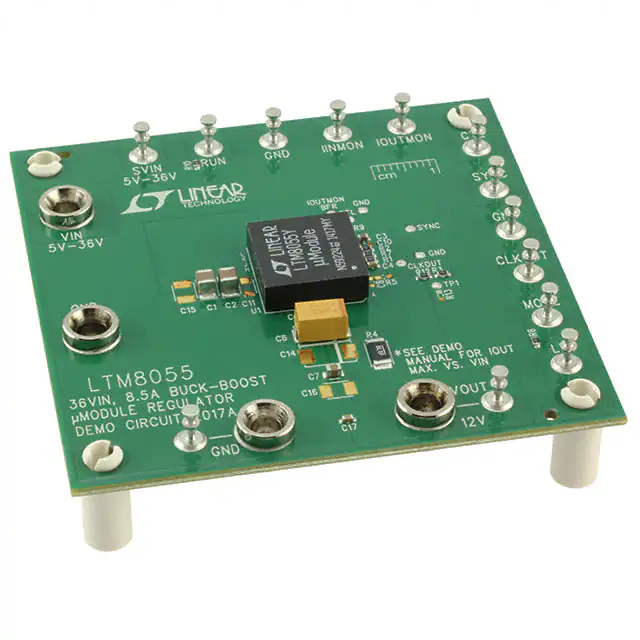

DC2017AEVAL BOARD FOR LTM8055 |
3,003 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 6A | 5V ~ 36V | Buck-Boost | 600kHz | Board(s) | LTM8055 |
|
PMLKBOOSTEVMEVAL BOARD FOR LM5122 TPS55340 |
2,237 | 106.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V, 24V | 2A, 1.9A | 5V ~ 12V, 9V ~ 20V | Boost | - | Board(s) | LM5122, TPS55340 |
|
DC2407AEVAL BOARD FOR LT8650S |
2,028 | 117.70 |
|
Datasheet |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 4A, 4A | 5.4V ~ 42V | Buck | 2MHz | Board(s) | LT8650S |
|
LM5146-Q1-EVM12VEVAL BOARD FOR LM5146Q1 |
3,937 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 15V ~ 85V | Buck | 400kHz | Board(s) | LM5146-Q1 |
|

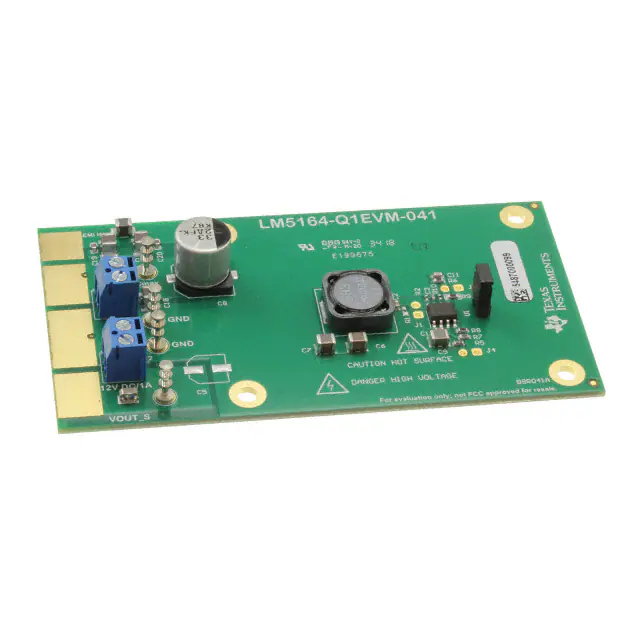

LM5164-Q1EVM-041EVAL BOARD FOR LM5164Q1 |
4,022 | 118.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1A | 15V ~ 100V | Buck | 300kHz | Board(s) | LM5164-Q1 |
