DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX20411EVKIT#FAMILY OF LV BUCK CONVERTERS UP |
4,076 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|

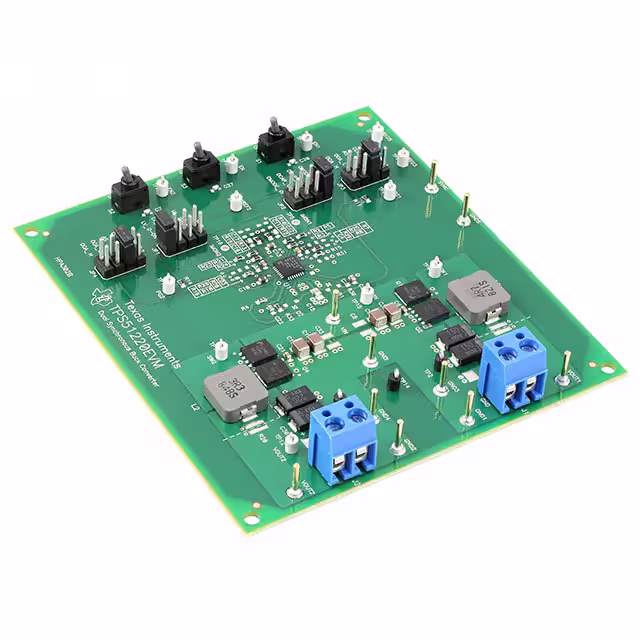

TPS51220EVMEVAL BOARD FOR TPS51220 |
4,198 | 58.80 |
|
Datasheet |
D-CAP™ | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 6A, 6A | 8V ~ 20V | Buck | 280kHz | Board(s) | TPS51220 |
|

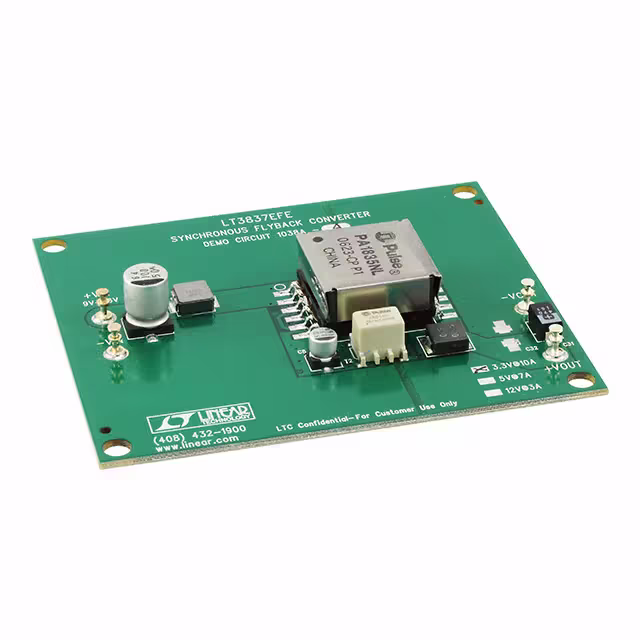

DC1038A-AEVAL BOARD FOR LT3837 |
3,961 | 206.56 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 10A | 9V ~ 36V | Flyback | 200kHz | Board(s) | LT3837 |
|
DC776AEVAL BOARD FOR LTC3705 LTC3706 |
2,211 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 45A | 36V ~ 72V | Forward Converter | 215kHz | Board(s) | LTC3705, LTC3706 |
|
|
LM5036EVM-294EVAL BOARD FOR LM5036 |
2,174 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 8A | 36V ~ 75V | Buck | 200kHz | Board(s) | LM5036 |
|

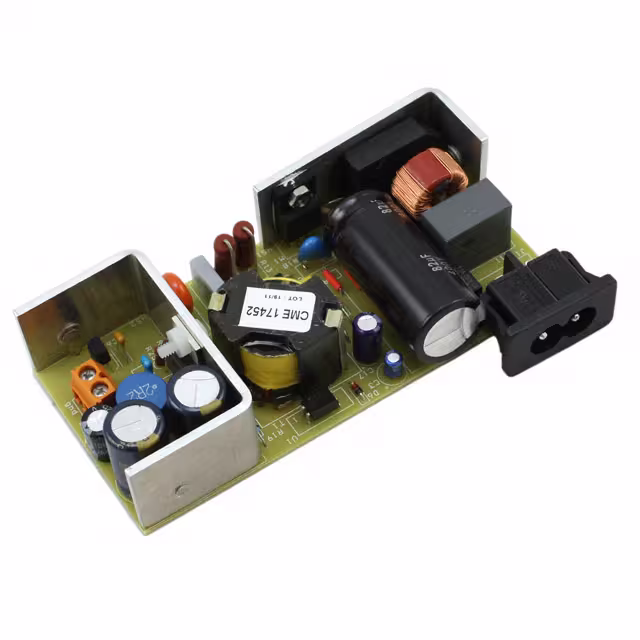

NCP1250B40WGEVBEVAL BOARD FOR NCP1250 |
4,837 | 212.50 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 40 W | 12V | 3.3A | 85 ~ 265 VAC | - | - | Board(s) | NCP1250 |
|
|
MAX25249EVKIT#EVAL BOARD MAX25249 MAX25249B |
2,959 | 238.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 1.2A, 1A, 500mA | 4.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX25249, MAX25249B |
|
|
MAX25249BEVKIT#EVAL BOARD MAX25249 MAX25249B |
3,286 | 238.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 1.2A, 1A, 500mA | 4.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX25249, MAX25249B |
|

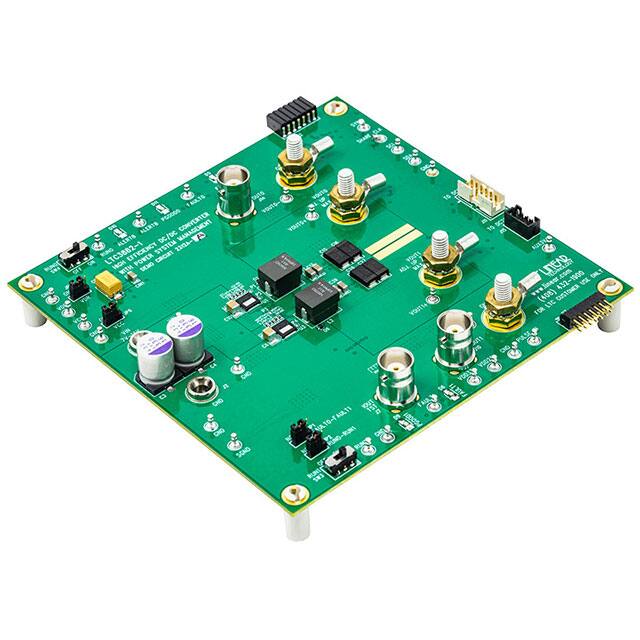

DC2312A-AEVAL BOARD FOR LTC3882EUJ1 |
3,237 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 35A, 35A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3882EUJ-1 |
|
|
MAX16710EVKIT#EVAL BOARD FOR MAX16710 |
2,553 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 5.8V | 10A | 2.7V ~ 16V | Buck | 500kHz | Board(s) | MAX16710 |
|
|
BM2SC121FP2-EVK-001EVAL BOARD FOR BM2SC121 |
4,662 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 48 W | 24V | 2A | 210 ~ 480VAC, 300V ~ 900V | Flyback | - | Board(s) | BM2SC121 |
|
DUALASYMA5VGEVBEVAL BOARD FOR NCP5386B NCP5911 |
1,907 | 231.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 1.4V | 20A | 8V ~ 19V | Buck | 330kHz | Board(s) | NCP5386B, NCP5911 |
|

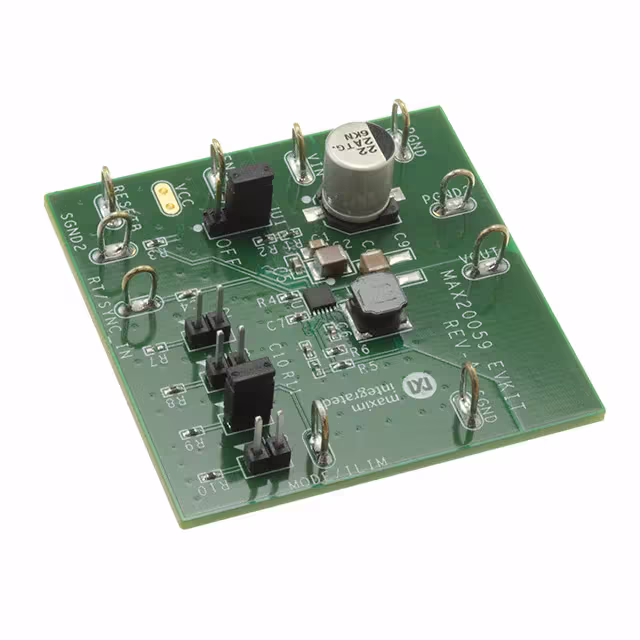

MAX20059EVKIT#EVAL BOARD FOR MAX20059 |
4,875 | 218.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.5V ~ 72V | Buck | 400kHz | Board(s) | MAX20059 |
|

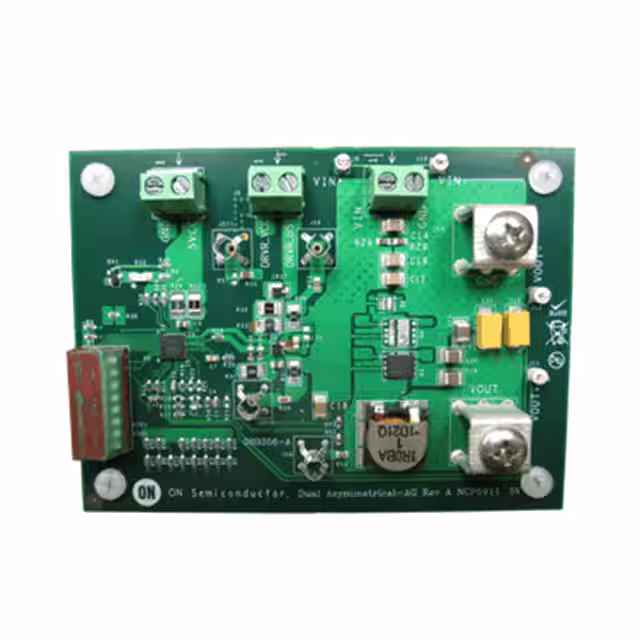

DUALASYMB12VGEVBEVAL BOARD FOR NCP5386B NCP5901B |
4,602 | 231.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 1.4V | 20A | 8V ~ 19V | Buck | 330kHz | Board(s) | NCP5386B, NCP5901B |
|
CM4EVAL BOARD FOR C SERIES |
4,022 | 234.68 |
|
Datasheet |
C | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | C Series |
|
|
TPS62876EVM-199EVAL BOARD FOR TPS62876 |
1,305 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V | 75A | 2.7V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62876 |
|

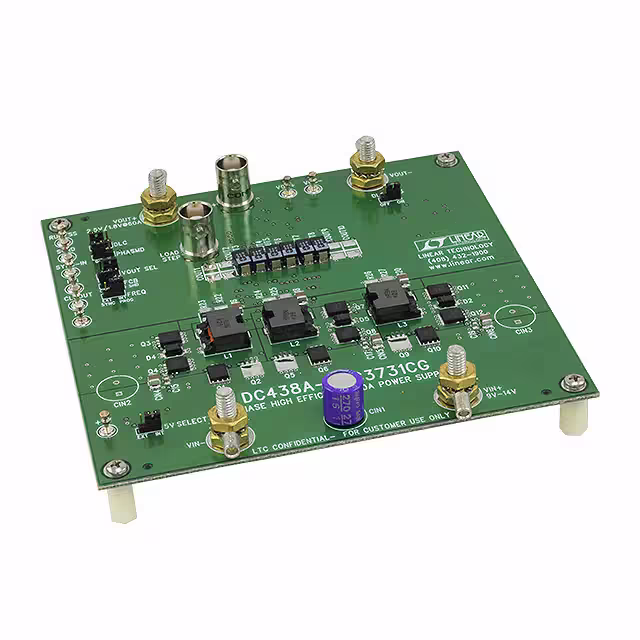

DC438AEVAL BOARD FOR LTC3731 |
1,460 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V or 2.5V | 60A | 9V ~ 14V | Buck | - | Board(s) | LTC3731 |
|
|
LP87694Q1EVMEVAL BOARD FOR LP87694Q1 |
1,654 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 5A, 5A, 5A, 5A | 2.8V ~ 5.5V | Buck | - | Board(s) | LP87694-Q1 |
|

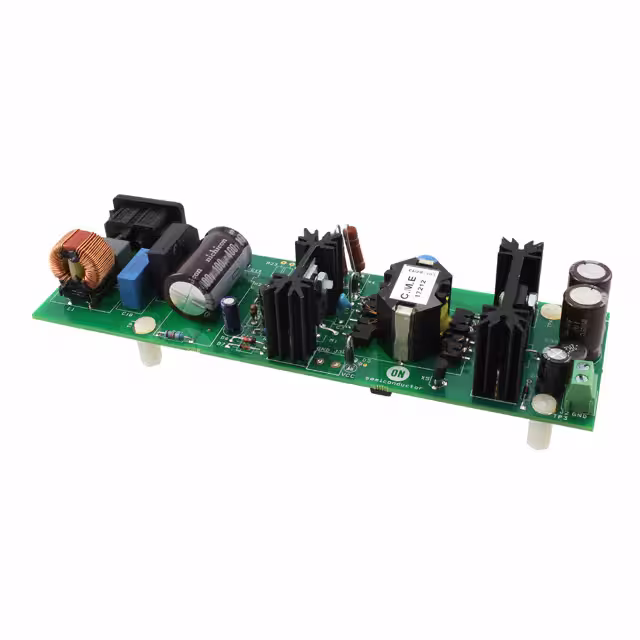

NCP1380BGEVBEVAL BOARD FOR NCP1380B |
4,647 | 250.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 4A | 85 ~ 265 VAC | Flyback | - | Board(s) | NCP1380B |
|

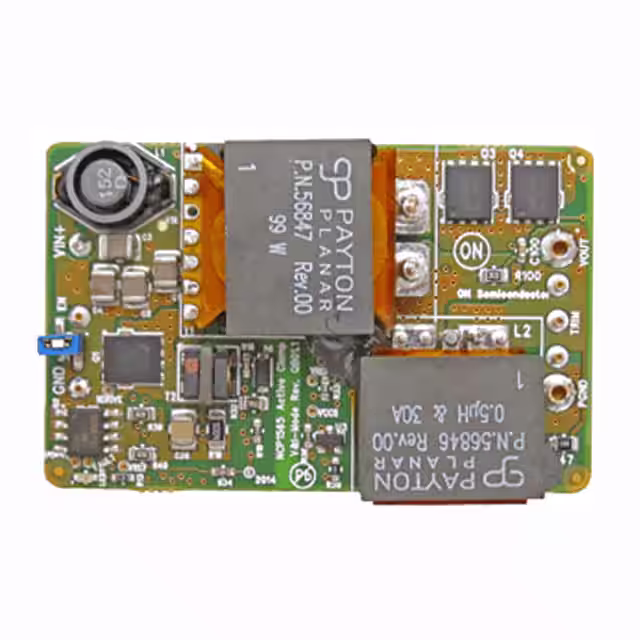

NCP1565TELECGEVBEVAL BOARD FOR NCP1565 |
1,275 | 250.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V | 30A | - | Buck | - | Board(s) | NCP1565 |
