DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVM3610-QV-00AEVAL BOARD FOR MPM3610 |
4,461 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 4.5V ~ 21V | Buck | 2MHz | Board(s) | MPM3610 |
|
|
EVM3805-QB-01AEVAL BOARD FOR MPM3805 |
1,169 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.5V ~ 6V | Buck | 3.5MHz | Board(s) | MPM3805 |
|
|
EV020A-5-S-00AEVAL BOARD FOR MP020A5 |
3,464 | 0.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 5 W | 5V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | MP020A-5 |
|
|
EV5610-QG-00AEVAL BOARD FOR MP5610 |
4,812 | 0.00 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 2 Non-Isolated Outputs | - | ±5.4V | 40mA | 2.7V ~ 5V | Boost | - | Board(s) | MP5610 |
|
|
EVQ4487-U-00AEVAL BOARD FOR MPQ4487 |
4,668 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5.17V | 3A, 3A | 12V | Buck | 450kHz | Board(s) | MPQ4487 |
|
|
EV8714-LE-00AEVAL BOARD FOR MP8714 |
3,903 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 4.5V ~ 17V | Buck | - | Board(s) | MP8714 |
|

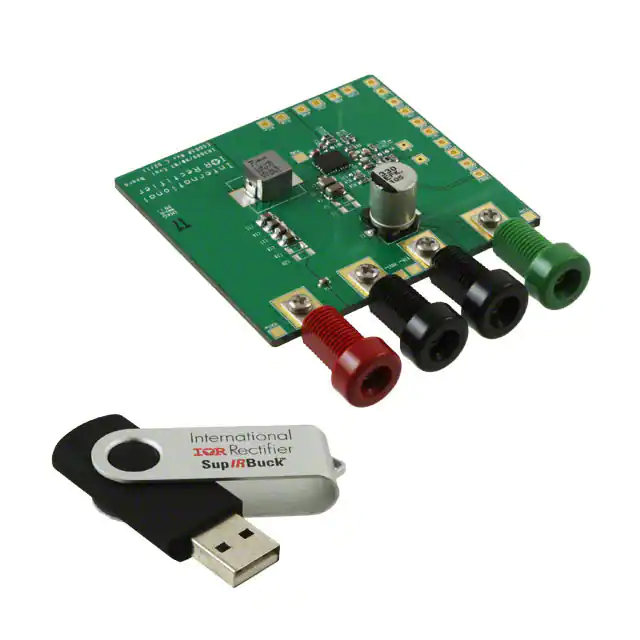

IRDC3898EVAL BOARD FOR IR3898 |
1,014 | 25.48 |
|
Datasheet |
SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 12V | Buck | 600kHz | Board(s) | IR3898 |
|

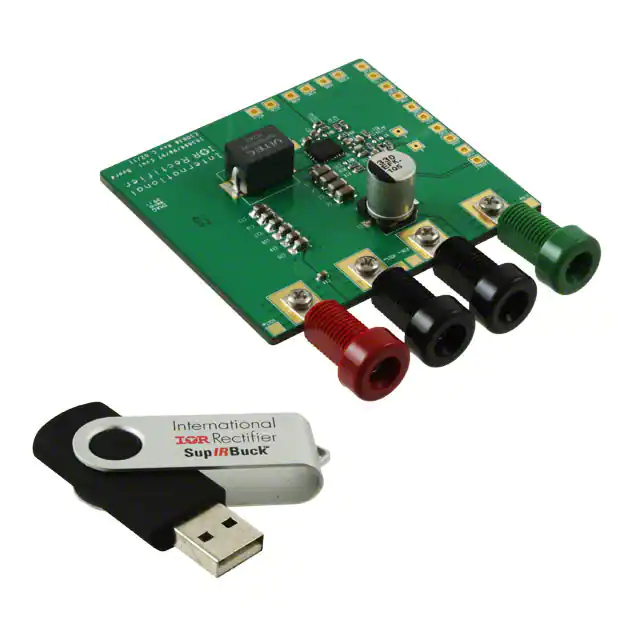

IRDC3899EVAL BOARD FOR IR3899 |
4,514 | 25.48 |
|
Datasheet |
SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 9A | 12V | Buck | 600kHz | Board(s) | IR3899 |
|

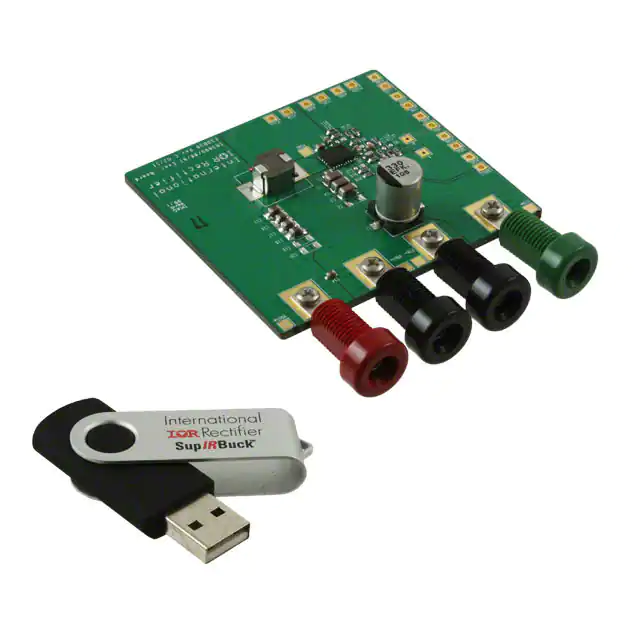

IRDC3897EVAL BOARD FOR IR3897 |
1,861 | 25.49 |
|
Datasheet |
SupIRBuck® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 12V | Buck | 600kHz | Board(s) | IR3897 |
|
LM22670EVALEVAL BOARD FOR LM22670 |
2,763 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22670 |
|
TPS51315EVMEVAL BOARD FOR TPS51315 |
3,234 | 0.00 |
|
Datasheet |
D-CAP™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 10A | 4.5V ~ 14V | Buck | 300kHz | Board(s) | TPS51315 |
|

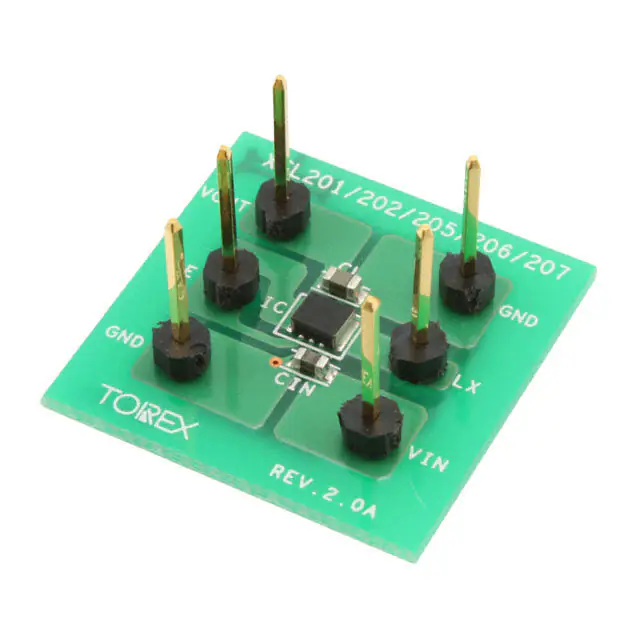

XCL206B283-EVBEVAL BOARD FOR XCL206B283ARG |
2,881 | 28.12 |
|
Datasheet |
XCL206 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.8V | 600mA | 2V ~ 6V | Buck | - | Board(s) | XCL206B283AR-G |
|

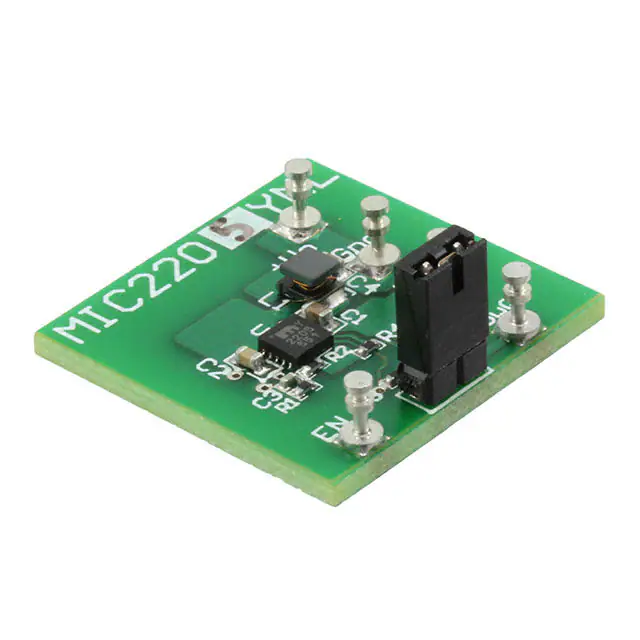

MIC2205YML-EVEVAL BOARD FOR MIC2205 |
3,016 | 26.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MIC2205 |
|
1789205X1EVAL BOARD FOR FISM |
3,703 | 27.25 |
|
Datasheet |
MagI3C | Box | Obsolete | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V | - | - | Boost, Buck | - | Partially Populated Board(s) | FISM |
|
IRDC3894EVAL BOARD FOR IR3894 |
2,508 | 26.14 |
|
Datasheet |
SupIRBuck® | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 12V | Buck | 600kHz | Board(s) | IR3894 |
|

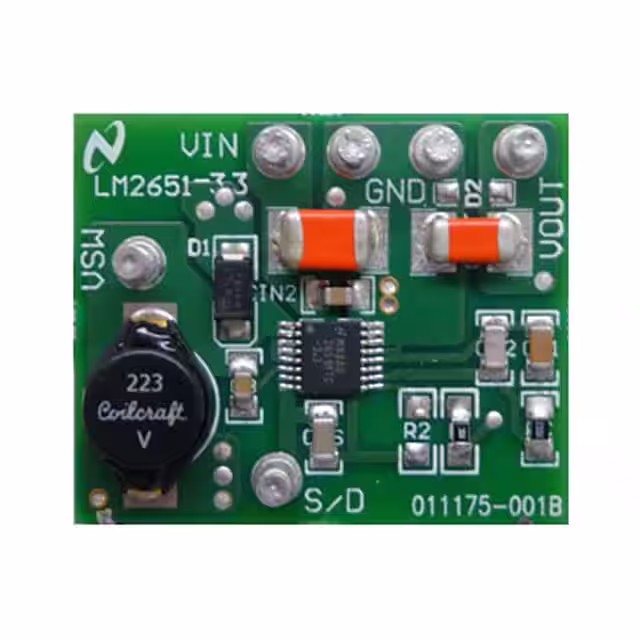

LM2651-3.3EVALEVAL BOARD FOR LM2651 |
4,874 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 14V | Buck | 300kHz | Board(s) | LM2651 |
|

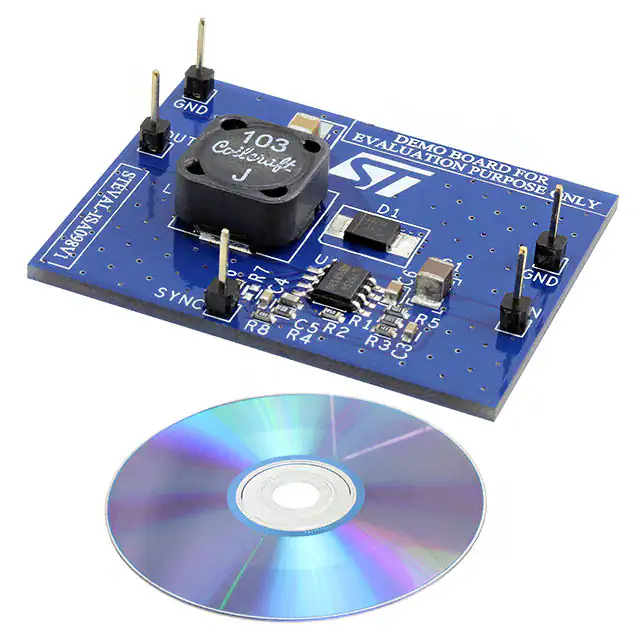

STEVAL-ISA098V1EVAL BOARD FOR L7985A |
4,262 | 26.25 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 38V | 2A | 4.5V ~ 38V | Buck | - | Board(s) | L7985A |
|
|
TPS54229EEVM-056EVAL BOARD FOR TPS54229 |
2,103 | 25.74 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54229 |
|
TPS54329EEVM-056EVAL BOARD FOR TPS54329 |
1,095 | 25.74 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54329 |
|

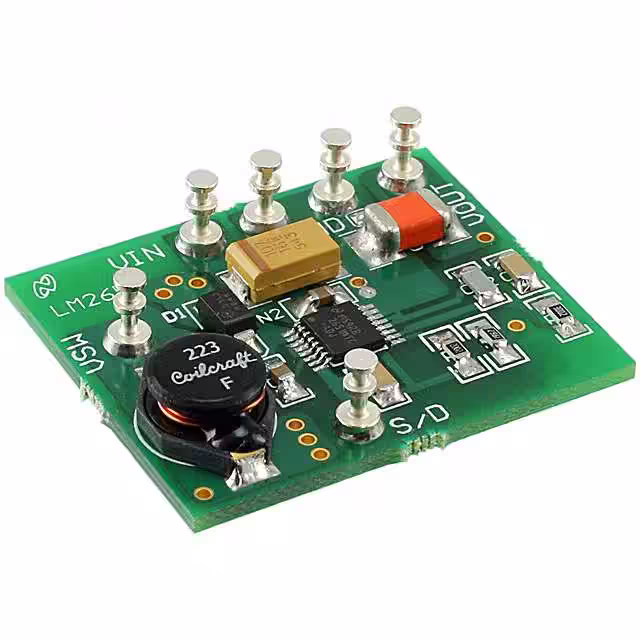

LM2651EVALEVAL BOARD FOR LM2651 |
1,688 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1.5A | 4V ~ 14V | Buck | 300kHz | Board(s) | LM2651 |
