DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCM3623EA5K15C0T70EVAL BOARD DCM3623XA5K15C0Y7Z |
1,831 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 300 W | 13.8V | 21.8A | 60V ~ 154V | Buck | - | Board(s) | DCM3623xA5K15C0y7z |
|
|
MXL7704-B-EVBEVAL BOARD FOR MXL7704 |
2,465 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | - | 4A, 2.5A, 1.5A, 1.5A, 100mA | 4V ~ 5.5V | Buck | - | Board(s) | MxL7704 |
|
|
ADP5022CB-1-EVALZEVAL BOARD FOR ADP5022 |
1,833 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | - | 600mA, 600mA, 125mA | 2.4V ~ 5.5V | Buck | - | Board(s) | ADP5022 |
|
|
TS32101EVBEVAL BOARD FOR TS32101 |
4,769 | 0.00 |
|
- |
- | Tray | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V ~ 5.5V | 1.5A | 1.75V ~ 5.5V | Boost | 2MHz | Board(s) | TS32101 |
|

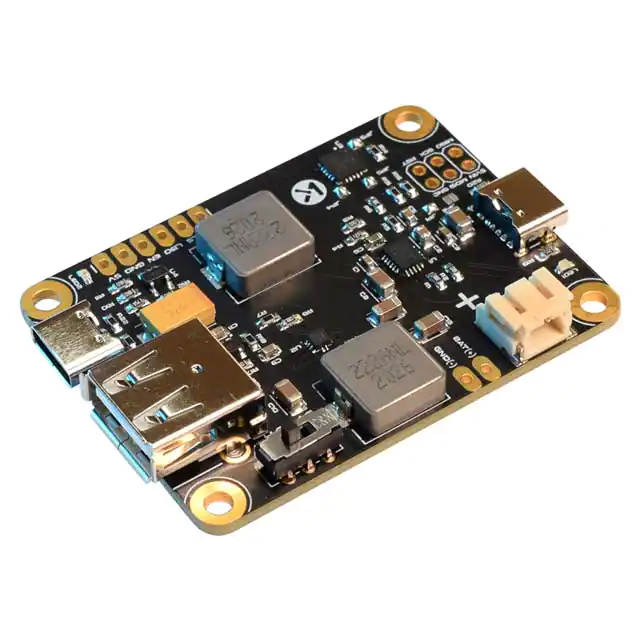

AR3000V1.0EVAL BOARD FOR MP2624 |
1,348 | 30.00 |
|
- |
AmpRipper 3000 | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.2V | 3A | 5V | Boost | - | Board(s) | MP2624 |
|
|
EV1HMC7846LP45EV1HMC7846LP45 |
3,432 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
MAX1846EVKIT+EVAL BOARD FOR MAX1846 MAX1847 |
4,117 | 0.00 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | -5V, -12V | 2A, 400mA | 3V ~ 16.5V | Buck | 300kHz | Board(s) | MAX1846, MAX1847 |
|
|
AP3917DEV2EVAL BOARD FOR AP3917D |
1,290 | 40.50 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/DC, Step Down | 2 Non-Isolated Outputs | 4.75 W | 5V, 18V | 250mA, 50mA | 85 ~ 264 VAC | Buck | - | Board(s) | AP3917D |
|
|
EV96C70AEVAL BOARD FOR LX7309 |
1,098 | 255.00 |
|
- |
- | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 2 Isolated Outputs | 55 W | 5V, 55V | 5A, 550mA | 36V ~ 54V | Flyback | - | Board(s) | LX7309 |
|
|
EV77W77AEVAL BOARD FOR LX7309 |
4,621 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC Converter | 2 Non-Isolated Outputs | 30 W | 5V, 55V | - | 9V ~ 30V | Flyback | - | Board(s) | LX7309 |
|
|
EVKT-MPM3695-10-AEVAL BOARD FOR MPM369510 |
2,812 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 4V ~ 16V | Buck | 800kHz | Board(s), Cable(s), Accessories | MPM3695-10 |
|
|
EVKT-MEZD81260A-AEVAL BOARD FOR MEZD81260A |
3,197 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 2 Non-Isolated Outputs | - | - | 30A, 30A | 5V ~ 16V | - | - | Board(s) | mEZD81260A |
|
|
EV1606-TF-00AEVAL BOARD FOR MP1606 |
2,550 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 5.5V | Buck | 1.1MHz | Board(s) | MP1606 |
|
|
EV28210-C-00AEVAL BOARD FOR MP28210 |
2,160 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3V or 3.3V | 1A | 2V ~ 5.5V | Buck | 1.5MHz | Board(s) | MP28210 |
|
|
MBC2596-01EVAL BOARD FOR LM2596 |
2,151 | 0.00 |
|
Datasheet |
- | Retail Package | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V ~ 30V | 3A | 4V ~ 35V | Buck | 150kHz | Board(s) | LM2596 |
|
|
MBC2596HV-01EVAL BOARD FOR LM2596HV |
3,277 | 0.00 |
|
Datasheet |
- | Retail Package | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V ~ 35V | 3A | 4V ~ 55V | Buck | 150kHz | Board(s) | LM2596HV |
|
|
DER-952QEVAL BOARD FOR INN3949CQ |
4,930 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
KITPF5302FRDMEVMEVAL BOARD FOR PF5302 |
1,821 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.2V | 15A | 2.7V ~ 5.5V | Buck | - | Board(s) | PF5302 |
|
|
ATDC2934EV1EVAL BOARD FOR ATDC2934 |
1,787 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 28V | 600mA | 5V ~ 42V | Buck | 1.2MHz | Board(s) | ATDC2934 |
|
|
ATDC1934EV1EVAL BOARD FOR ATDC1934 |
1,539 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 28V | 700mA | 4V ~ 38V | Buck | 660kHz | Board(s) | ATDC1934 |
