AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UX12AC12-BTHR-7FAN AXIAL 120X38MM 115VAC TERM |
2,959 | 22.61 |
|
Datasheet |
UX12AC | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 47.0dB(A) | 22.00W | 3300 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cUL, TUV, UL | 1.1 lbs (499.0 g) |
|

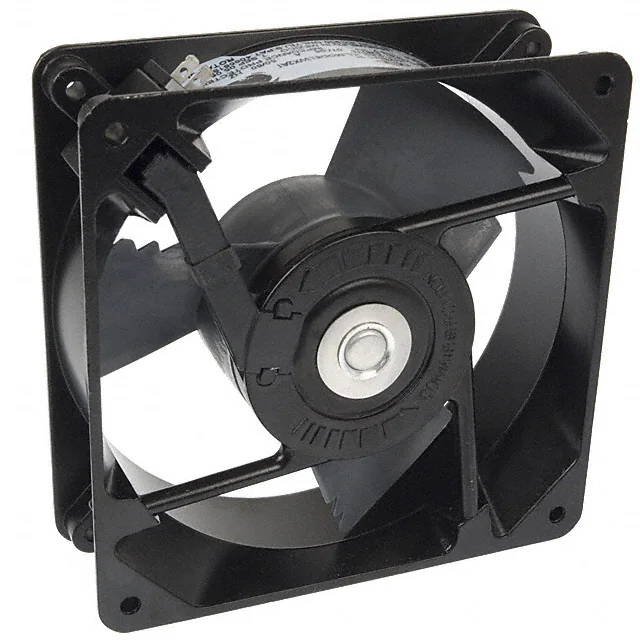

19028778AFAN AXIAL 119X39MM 115VAC WX2A1 |
3,829 | 0.00 |
|
Datasheet |
Whisper XL AC | - | Obsolete | 115VAC | Square - 119mm L x 119mm H | 39.00mm | 57.0 CFM (1.60m³/min) | - | Sleeve | Tubeaxial | - | 31.2dB(A) | 6.00W | 1500 RPM | 2 Terminals | - | - | - | 1.3 lbs (589.7 g) |
|

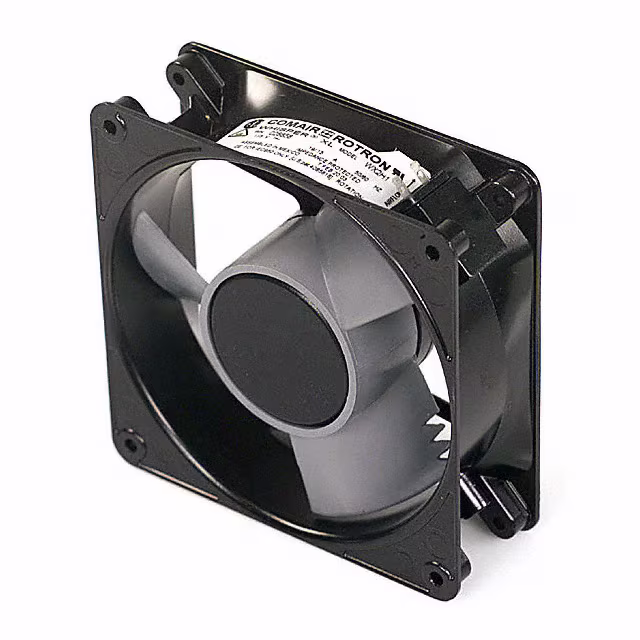

19028858AFAN AXIAL 119X39MM 115VAC WX2H1 |
1,270 | 0.00 |
|
Datasheet |
Whisper XL AC | - | Obsolete | 115VAC | Square - 119mm L x 119mm H | 39.00mm | 85.0 CFM (2.38m³/min) | 0.174 in H2O (43.3 Pa) | Sleeve | Tubeaxial | - | 37.1dB(A) | 13.00W | 2500 RPM | 2 Terminals | - | - | - | 1.3 lbs (589.7 g) |
|
|
19028322AFAN AXIAL 119X39MM 115VAC WX2M1 |
1,864 | 0.00 |
|
Datasheet |
Whisper XL AC | - | Obsolete | 115VAC | Square - 119mm L x 119mm H | 39.00mm | 72.0 CFM (2.02m³/min) | - | Sleeve | Tubeaxial | - | 34.5dB(A) | 9.00W | 2000 RPM | 2 Terminals | - | - | - | 1.3 lbs (589.7 g) |
|
|
19028860AFAN AXIAL 119X39MM 230VAC WX3H1 |
4,508 | 0.00 |
|
Datasheet |
Whisper XL AC | - | Obsolete | 230VAC | Square - 119mm L x 119mm H | 39.00mm | 85.0 CFM (2.38m³/min) | 0.174 in H2O (43.3 Pa) | Sleeve | Tubeaxial | - | 37.1dB(A) | 13.50W | 2525 RPM | 2 Terminals | - | - | - | 1.3 lbs (589.7 g) |
|
19028318AFAN AXIAL 119X39MM 115VAC MX2A1 |
3,951 | 0.00 |
|
Datasheet |
Muffin XL AC | - | Obsolete | 115VAC | Square - 119mm L x 119mm H | 39.00mm | 105.0 CFM (2.94m³/min) | 0.223 in H2O (55.5 Pa) | Sleeve | Tubeaxial | - | 47.6dB(A) | 15.00W | 3100 RPM | 2 Terminals | - | - | - | 1.3 lbs (589.7 g) |
|

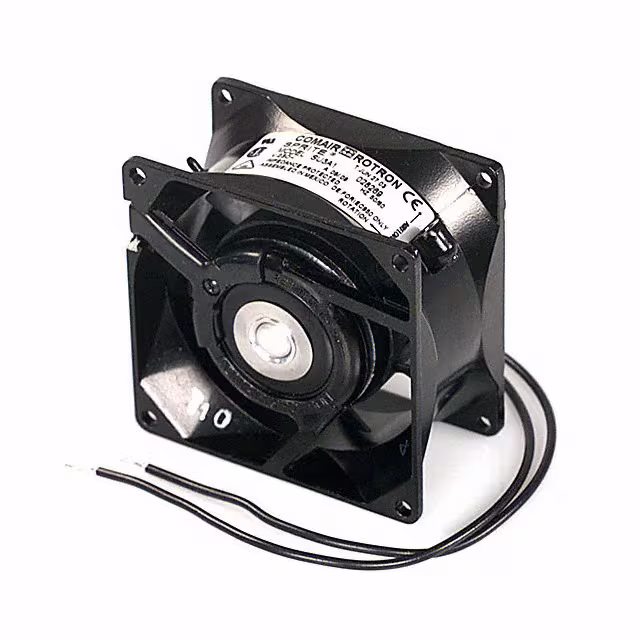

19028269AFAN AXIAL 80X42MM 230VAC SU3A1 |
1,232 | 0.00 |
|
Datasheet |
Sprite AC | - | Obsolete | 230VAC | Square - 80mm L x 80mm H | 42.00mm | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Sleeve | Tubeaxial | - | 40.3dB(A) | 13.00W | 3250 RPM | 2 Wire Leads | - | - | - | 1.1 lbs (499.0 g) |
|
|
CF1092HVL-1000U-999FAN AXIAL 92X25MM 115VAC WIRE |
1,308 | 0.00 |
|
Datasheet |
CF | Bulk | Active | 100 ~ 120VAC | Square - 92mm L x 92mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 3.40W | 2900 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
|
CF2092HVL-1000U-999FAN AXIAL 92X25MM 220/240VAC |
1,845 | 0.00 |
|
Datasheet |
CF | Bulk | Active | 200 ~ 240VAC | Square - 92mm L x 92mm H | 25.00mm | 53.9 CFM (1.51m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | 4.20W | 4200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
LPH12A99-BTLRFAN AXIAL 120X38MM 100-240VAC |
4,302 | 22.58 |
|
Datasheet |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 86.0 CFM (2.41m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 39.0dB(A) | 4.20W | 2500 RPM | 2 Terminals | - | - | - | 0.631 lb (286.20 g) |
|
|
LPH12A99-BTMRFAN AXIAL 120X38MM 90-264VAC |
2,973 | 0.00 |
|
Datasheet |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 110.0 CFM (3.08m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 45.0dB(A) | 6.20W | 3000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
LPH12A99-BWHRFAN AXIAL 120X38MM 90-264VAC |
4,959 | 0.00 |
|
Datasheet |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 49.0dB(A) | 9.50W | 3500 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
LPH12A99-BWLRFAN AXIAL 120X38MM 90-264VAC |
2,878 | 0.00 |
|
Datasheet |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 86.0 CFM (2.41m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 39.0dB(A) | 4.20W | 2500 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
LPH80A99-BWHR-PCEC FAN AXIAL 80 X 80 X 38MM W/PA |
2,513 | 26.75 |
|
Datasheet |
LPH80A99 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 38.00mm | 41.0 CFM (1.15m³/min) | 0.280 in H2O (70.0 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 31.0dB(A) | 5.50W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | - | - | 0.359 lb (162.84 g) |
|
4580AXFAN AXIAL 119X38MM 230VAC TERM |
2,933 | 0.00 |
|
Datasheet |
4000AX | - | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 89.0 CFM (2.49m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 16.00W | - | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
|
MA2082-HVL.GNFAN AXIAL 80X25MM 220/240VAC |
2,125 | 25.18 |
|
Datasheet |
MagLev® MA | Bulk | Obsolete | 220 ~ 240VAC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 33.0dB(A) | 4.60W | 3300 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.225 lb (102.06 g) |
|
|
CF2072HVL-1000U-999FAN AXIAL 70X25MM 220/240VAC |
4,829 | 0.00 |
|
Datasheet |
CF | Bulk | Active | 200 ~ 240VAC | Square - 70mm L x 70mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 31.0dB(A) | 3.90W | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UKCA, UL | - |
|

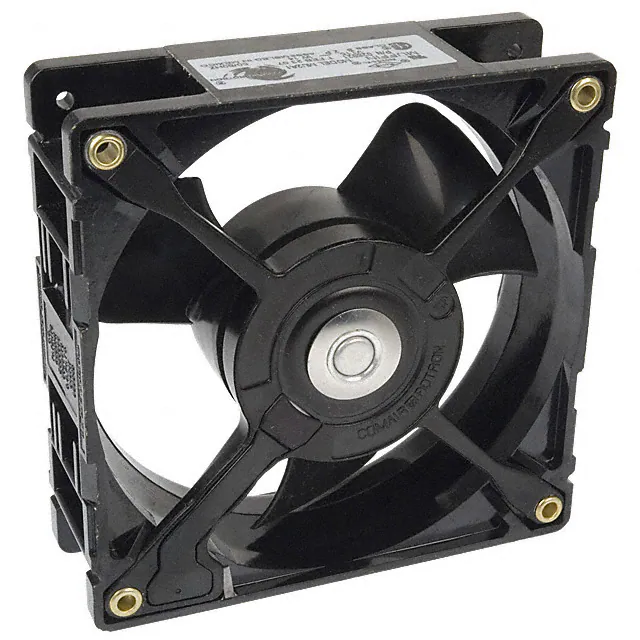

19028021AFAN AXIAL 120X38MM 115VAC MU2A1 |
4,768 | 0.00 |
|
Datasheet |
Muffin AC | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.296 in H2O (73.7 Pa) | Sleeve | Tubeaxial | - | 45.1dB(A) | 14.00W | 3100 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
|
19028023AFAN AXIAL 120X38MM 230VAC MU3A1 |
4,356 | 0.00 |
|
Datasheet |
Muffin AC | - | Obsolete | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.296 in H2O (73.7 Pa) | Sleeve | Tubeaxial | - | 45.1dB(A) | 14.00W | 3100 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
|
A1123-HBL.(7).GNFAN AXIAL 119.5X38.5MM 115VAC |
2,475 | 13.12 |
|
Datasheet |
A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 21.00W | 2750 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
