AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF4113MBL-000U-AA9FAN AXIAL 120X38MM 100-240V IP21 |
2,267 | 26.08 |
|
Datasheet |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 90.1 CFM (2.52m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 40.2dB(A) | 3.40W | 3000 RPM | 2 Wire Leads | IP21 | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.595 lb (269.89 g) |
|
|
CF4113HBL-000U-AE9FAN AXIAL 120X38MM 100-240V IP68 |
4,653 | 75.30 |
|
Datasheet |
CF | Bulk | Active | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 109.0 CFM (3.05m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 44.9dB(A) | 5.10W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
CF4113MBL-000U-AE9FAN AXIAL 120X38MM 100-240V IP68 |
3,466 | 60.58 |
|
Datasheet |
CF | Bulk | Active | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 90.1 CFM (2.52m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 40.2dB(A) | 3.40W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|

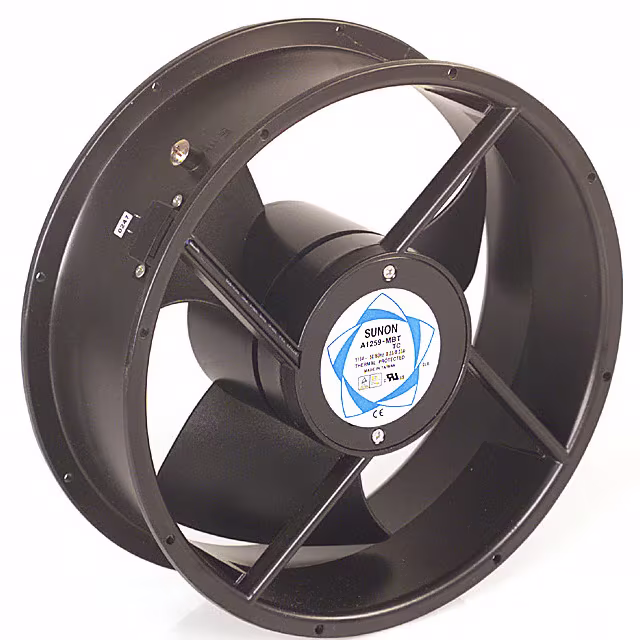

A1259MBT-TCFAN AXIAL 254X89MM 115VAC TERM |
2,369 | 0.00 |
|
Datasheet |
A | - | Obsolete | 115VAC | Round - 254mm Dia | 89.00mm | 665.0 CFM (18.62m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 23.00W | 1600 RPM | 2 Terminals | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 4.4 lbs (2 kg) |
|
5908-105FAN AXIAL 127X38MM 115VAC TERM |
4,450 | 66.68 |
|
Datasheet |
5900 | Bulk | Obsolete | 115VAC | Square - 127mm L x 127mm H | 38.00mm | 121.2 CFM (3.39m³/min) | - | Ball | Tubeaxial | - | 47.0dB(A) | 17.00W | - | 2 Terminals | - | - | - | 1.3 lbs (589.7 g) |
|
|
5938FAN AXIAL 127X38MM 115VAC |
2,144 | 59.01 |
|
Datasheet |
5900 | Bulk | Obsolete | 115VAC | Square - 127mm L x 127mm H | 38.00mm | 95.4 CFM (2.67m³/min) | - | Ball | Tubeaxial | - | 40.0dB(A) | 12.00W | 2500 RPM | 2 Terminals | - | -22 ~ 131°F (-30 ~ 55°C) | CE, CSA, UL, VDE | - |
|
UF15AC12/23-BWHRFAN AXIAL 172X150X38MM 115/230V |
4,369 | 44.55 |
|
Datasheet |
UF15AC | Bulk | Active | 115/230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 26.00W, 28.00W | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.6 lbs (725.7 g) |
|
4715HS-22T-B5A-B00FAN AXIAL 119X38MM 220VAC TERM |
2,413 | 0.00 |
|
Datasheet |
HS | Bulk | Obsolete | 220VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 44.0dB | 15.50W | 3100 RPM | 2 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | CE, UL, VDE | 1.3 lbs (589.7 g) |
|
4600ZWFAN AXIAL 119X38MM 115VAC WIRE |
4,665 | 52.50 |
|
Datasheet |
4000Z | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 18.00W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4656ZWFAN AXIAL 119X38MM 230VAC WIRE |
1,961 | 51.86 |
|
Datasheet |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 94.2 CFM (2.64m³/min) | - | Ball | Tubeaxial | - | 40.0dB(A) | 19.00W | 2650 RPM | 2 Wire Leads | - | -40 ~ 167°F (-40 ~ 75°C) | - | 1.2 lbs (544.3 g) |
|
17000698AFAN AXIAL 172X55MM PT2B3K 115VAC |
1,567 | 0.00 |
|
Datasheet |
- | Box | Obsolete | 115VAC | Round - 172mm Dia | 55.00mm | 245.0 CFM (6.86m³/min) | - | Ball | Tubeaxial | Auto Restart | 62.0dB(A) | 30.00W | 3300 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
_Series.jpg)
|
8556TAFAN AXIAL 76X37MM 230VAC WIRE |
4,950 | 53.16 |
|
Datasheet |
8000TA | Bulk | Active | 230VAC | Round - 76mm Dia | 37.00mm | 22.4 CFM (0.627m³/min) | - | Ball | Tubeaxial | - | 26.0dB(A) | 12.00W | 2750 RPM | 2 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|

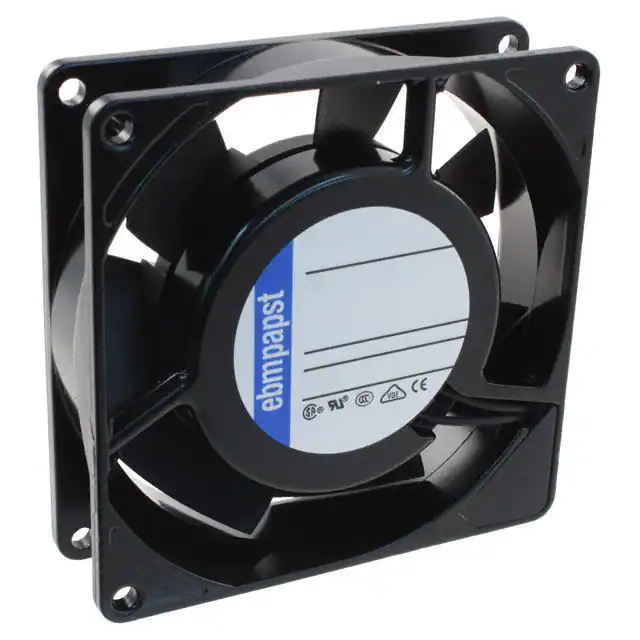

3956FAN AXIAL 92X25MM 230VAC TERM |
3,048 | 53.86 |
|
Datasheet |
3900 | Box | Obsolete | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 34.7 CFM (0.972m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 11.00W | 2650 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.617 lb (279.87 g) |
|
|
OA109AP-22-1TBSFFAN AXIAL 120X38MM 230VAC TERM |
3,393 | 0.00 |
|
Datasheet |
OA109 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.50mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Salt Fog Rated | 46.0dB | 15.00W | 3100 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | 1.1 lbs (499.0 g) |
|
UF15PE23-BWHNRFAN AXIAL 172X51MM 230VAC WIRE |
2,822 | 35.88 |
|
Datasheet |
UF15PE | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | - | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 1.8 lbs (816.5 g) |
|
|
5958WFAN AXIAL 127X38MM 230VAC WIRE |
2,930 | 65.18 |
|
Datasheet |
5900 | Box | Obsolete | 230VAC | Square - 127mm L x 127mm H | 38.00mm | 121.2 CFM (3.39m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 17.00W | 3100 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | CCC, CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
|
08038PB-A0L-EA-00FAN 80MM X 38MM 100VAC TERMINAL |
1,183 | 51.95 |
|
- |
08038PB | Bulk | Active | 100VAC | Square - 80mm L x 80mm H | 38.00mm | 32.0 CFM (0.896m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 38.0dB | 7.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109S006FAN 120X38MM 100VAC |
4,128 | 31.47 |
|
Datasheet |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 0.071 in H2O (17.6 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 7.00W | 1700 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | PSE | 1.2 lbs (544.3 g) |
|
|
109S008FAN 120X38MM 200VAC |
4,089 | 32.81 |
|
Datasheet |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | PSE | 1.2 lbs (544.3 g) |
|
|
109S010FAN 120X38MM 200VAC |
3,063 | 32.81 |
|
Datasheet |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 0.071 in H2O (17.6 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 7.00W | 1700 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | PSE | 1.2 lbs (544.3 g) |
